380V 22KW 3 Phase Variable Speed Motor Controller

Basic Information
Place of Origin: China
Brand Name: STABLECU
Certification: CE
Model Number: ST310-4T22GB
Minimum Order Quantity: 1PCS
Packaging Details: 1pcs/Polybag,100pcs/big polybag, 300pcs/ctn
Delivery Time: 5-8 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Material: ABS+PC Power: 22KW
Voltage: 380V Power Phase: 3 Phase
Usage: Motor Color: Gray
Package: Carton Box Warranty: 18 Months
High Light:

22KW 3 phase variable speed motor controller

,

380V 3 phase variable speed motor controller

,

3 phase vfd controller 22KW

22KW Variable Frequency Drive VFD Speed Controller 3-Phase Output For CNC Motor​



Introduction of variable frequency drive

The frequency converter is a power control device that uses frequency conversion technology and microelectronics technology to control AC motors by changing the frequency of the motor's working power supply. The frequency converter is mainly composed of rectifier (AC to DC), filtering, inverter (DC to AC), braking unit, drive unit, detection unit, and micro-processing unit. The inverter adjusts the voltage and frequency of the output power supply by opening and closing the internal IGBT, and provides the required power supply voltage according to the actual needs of the motor, thereby achieving the purpose of energy-saving and speed regulation. In addition, the inverter has many protection functions. , Such as overcurrent, overvoltage, overload protection, and so on. With the continuous improvement of industrial automation, frequency converters have also been widely used.

Operation panel for frequency inverter

Mark  Key Name Function
 MENU  Program/Exit key

 1. Enter or exit the programming state

 2. Modify the data and abandon the storage

 3. Switch fault display to stop/running parameter with the SHIFT key, press MENU to switch back to fault display state

 ENT  Identify key

 1. Edit function code parameters

 2. Data storage confirmation

 3. View the single group of parameters circularly

 M  Multi-function key  Switch selection according to function
 SHIFT  The shift key

 1. Move the editing bit of function parameters

 2. Move the data editing bit

 3. Switch the display parameters of the operation panel under shutdown/running state

 Increase Decrease

 Add keys clockwise

 In shutdown/operation state, the frequency value increases
 Increase Decrease  Counterclockwise   decrease key  The frequency value decreases under shutdown/running state
 RUN  Run key

 1. Long press the 3S operation panel to start the driver in the given mode

 2. Long press 3S to set parameters, and then start the driver for parameters self-learning

 STOP/AST  Stop/reset key

 1. Press the button for 1S to report the fault and reset the   fault after abnormal shutdown

 2. Press for 1S to control the drive shutdown under the given mode of operation panel operation command

Detail images of frequency converter

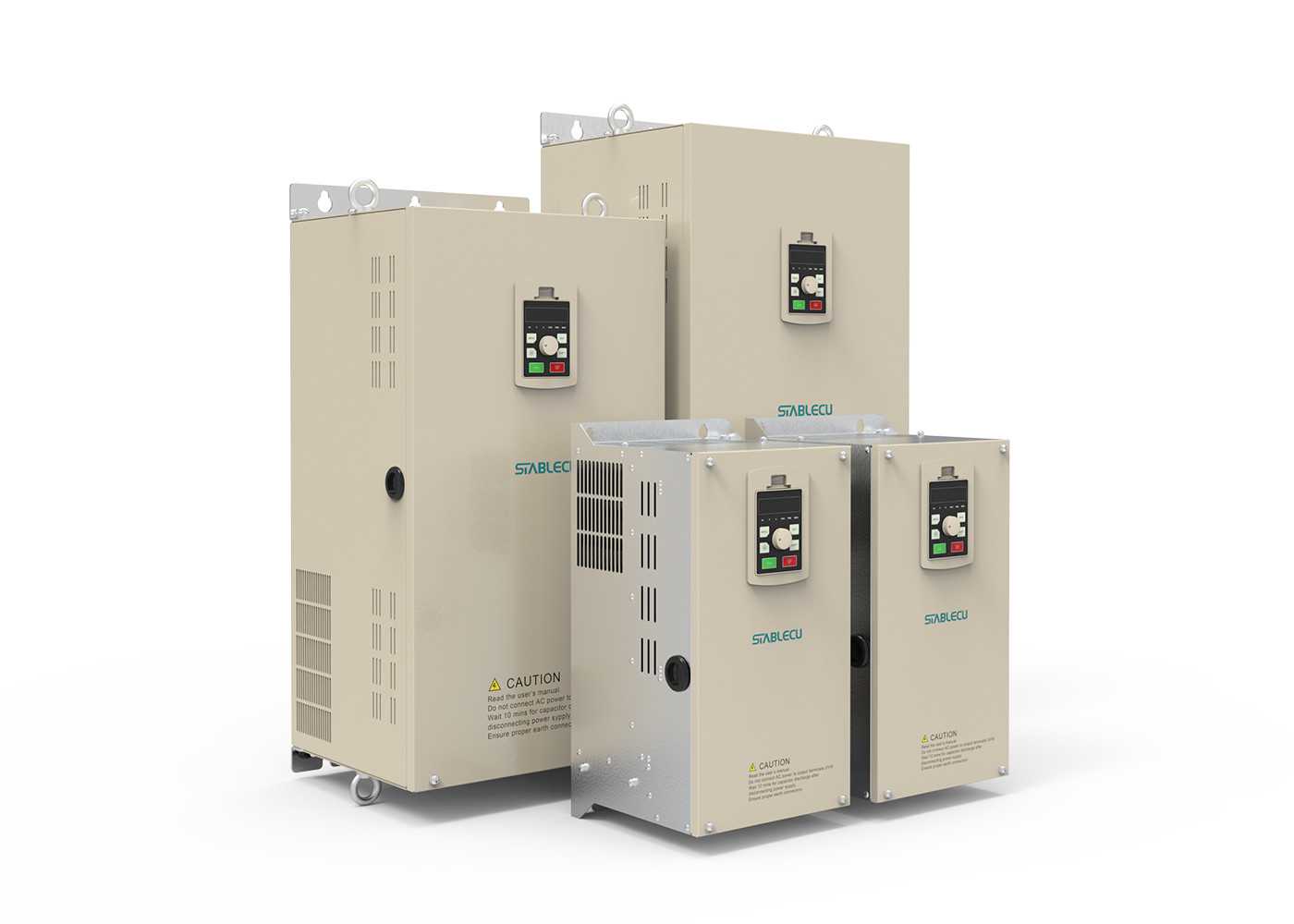

380V 22KW 3 Phase Variable Speed Motor Controller 0

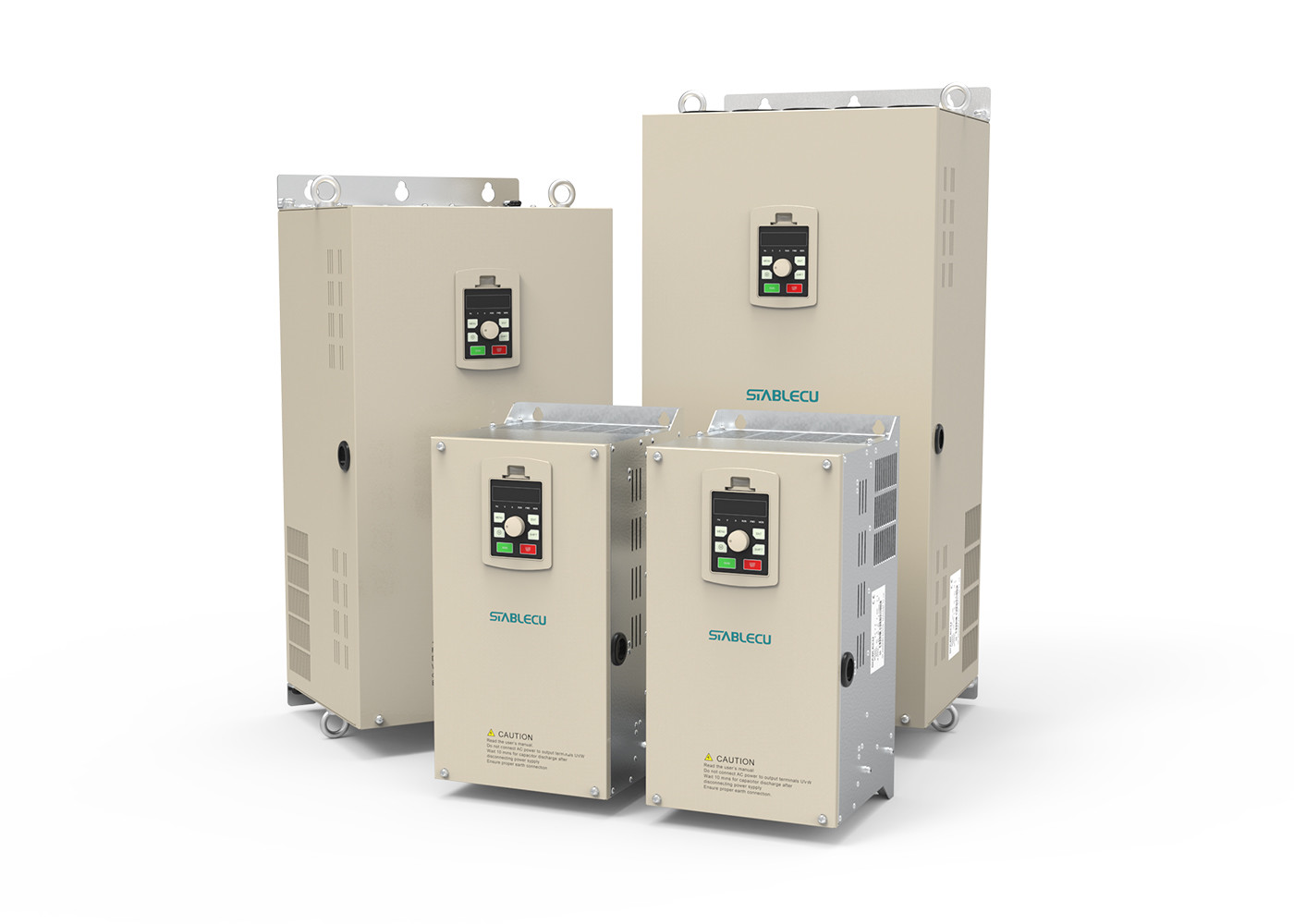

380V 22KW 3 Phase Variable Speed Motor Controller 1

380V 22KW 3 Phase Variable Speed Motor Controller 2

FAQ

1. Who are we?
We are a manufacturer based in Guangdong, China, start from 2009, sell to Domestic Market(100.00%). There are a total of about 201-300 people in our office.
2. How can we guarantee the quality?
Always a pre-production sample before mass production; Always final Inspection before shipment.
3. What can you buy from us?
Ultrasonic Generator, PLC/Motion Controller, Servo Motor And Stepper Motor, Frequency Converter, Automation System Development And Complete Set Of Electric Box.
4. Do you offer customization services?
Yes, we can customize the products according to your requirements. Please send us an inquiry, your inquiry will be responded within 12 hours.
5. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, DDP, DDU, Express Delivery;
Accepted Payment Currency: USD, EUR, JPY, CAD, AUD, HKD, CNY;
Accepted Payment Type: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash;
Language Spoken: English, Chinese.
