Material: | ABS+PC | Power: | 30KW |
---|---|---|---|
Voltage: | 380V | Phase: | 3 Phase |
Color: | Huawei Gray | Type: | Variable Frequency Inverter |
Application: | Induction Motor | Control Mode: | Vector Control |
High Light: | Motor Frequency Inverter 30KW 380V,60Hz To 50HZ Motor Frequency Inverter,30KW AC motor inverter drive |
30KW 380 Voltage Frequency Converter 60 To 50HZ AC Motor Frequency Inverter
Introduction of variable frequency drive
ST310 series inverter adopts vector control technology, has excellent drive and control performance,
has rich hardware configuration and software function improves usability and reliability, and meets different
industrial applications. 0.75 ~ 22KW built-in standard brake unit,30 ~ 110KW optional built-in brake unit,
independent cooling air duct design, and thousands of revolutions of the fan, improve product stability
and performance, extend product life, improve product quality and Competitiveness.
Model specification and technical data of variable frequency drive
Frequency converter Model | The power rating(kW) | The output current(A) | The input current(A) | Adaptation motor(kW) | The braking unit |
ST310-4T0.75GB | 0.75 | 2.3 | 3.4 | 0.75 |
The standard built-in
|
ST310-4T1.5GB | 1.5 | 3.8 | 5.0 | 1.5 | |
ST310-4T2.2GB | 2.2 | 5.5 | 6.0 | 2.2 | |
ST310-4T3.7GB | 3.7 | 9.0 | 10.5 | 3.7 | |
ST310-4T5.5GB | 5.5 | 13 | 14.6 | 5.5 | |
ST310-4T7.5GB | 7.5 | 17 | 20.5 | 7.5 | |
ST310-4T11GB | 11 | 24 | 29 | 11 | |
ST310-4T15GB | 15 | 30 | 35 | 15 | |
ST310-4T18.5GB | 18.5 | 39 | 44 | 18.5 | |
ST310-4T22GB | 22 | 45 | 50 | 22 | |
ST310-4T30G | 30 | 60 | 65 | 30 |
optional built-in |
ST310-4T37G | 37 | 75 | 80 | 37 | |
ST310-4T45G | 45 | 91 | 95 | 45 | |
ST310-4T55G | 55 | 112 | 118 | 55 | |
ST310-4T75G | 75 | 150 | 157 | 75 | |
ST310-4T90G | 90 | 176 | 160* | 90 | |
ST310-4T110G | 110 | 210 | 192* | 110 | |
ST310-4T132G | 132 | 253 | 232* | 132 | Built-out |
ST310-4T160G | 160 | 310 | 285* | 160 | |
ST310-4T185G | 185 | 350 | 326* | 185 | |
ST310-4T200G | 200 | 380 | 354* | 200 | |
ST310-4T220G | 220 | 430 | 403* | 220 | |
ST310-4T250G | 250 | 470 | 441* | 250 | |
ST310-4T280G | 280 | 520 | 489* | 280 | |
ST310-4T315G | 315 | 590 | 571* | 315 | |
ST310-4T355G | 355 | 650 | 624* | 355 | |
ST310-4T400G | 400 | 725 | 699* | 400 | |
ST310-4T450G | 450 | 755 | 770* | 450 | |
* 185KW ~ 450KW products are equipped with external DC reactor. Please be sure to connect the reactor to use, otherwise the product will not be able to operate normally |

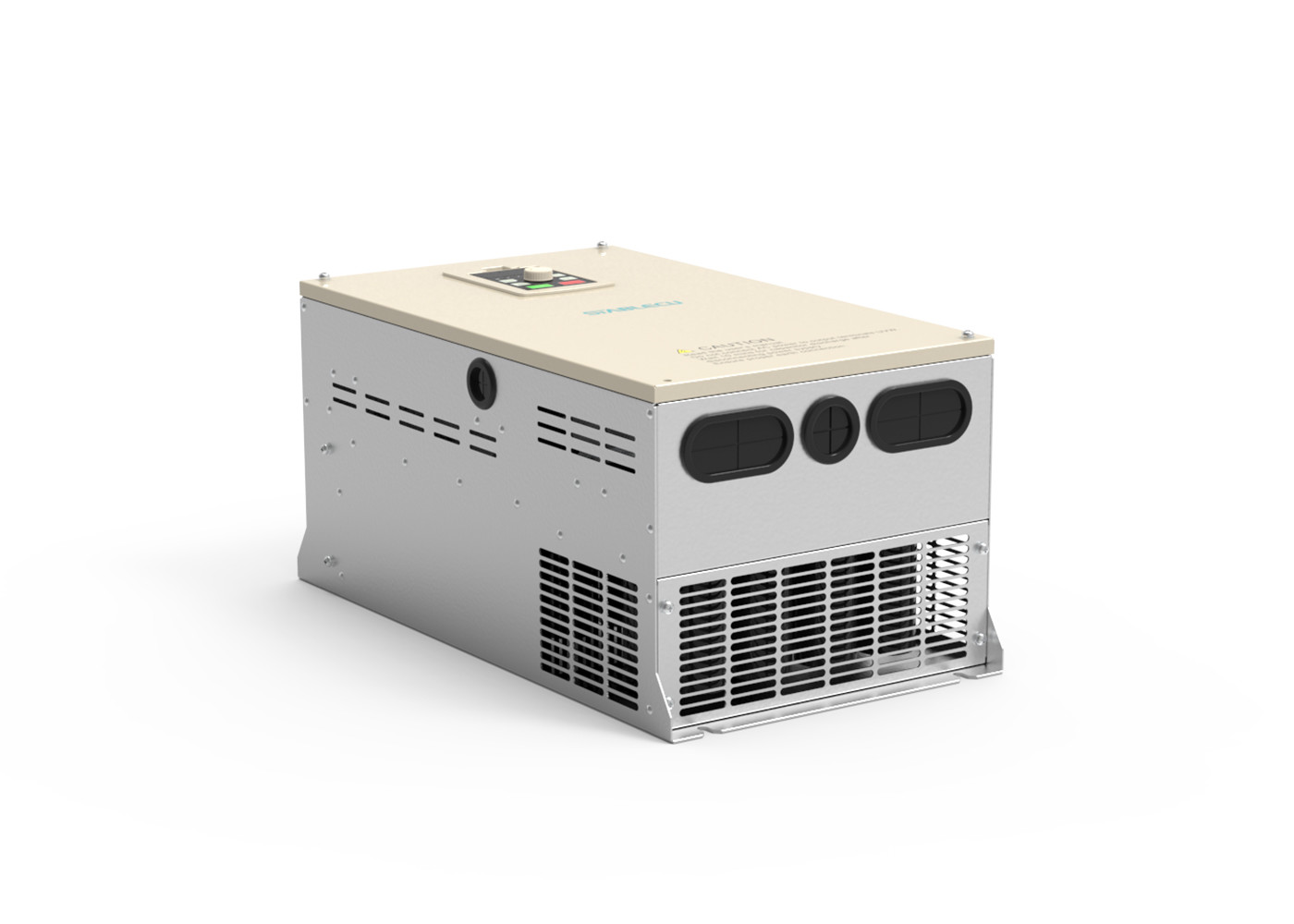

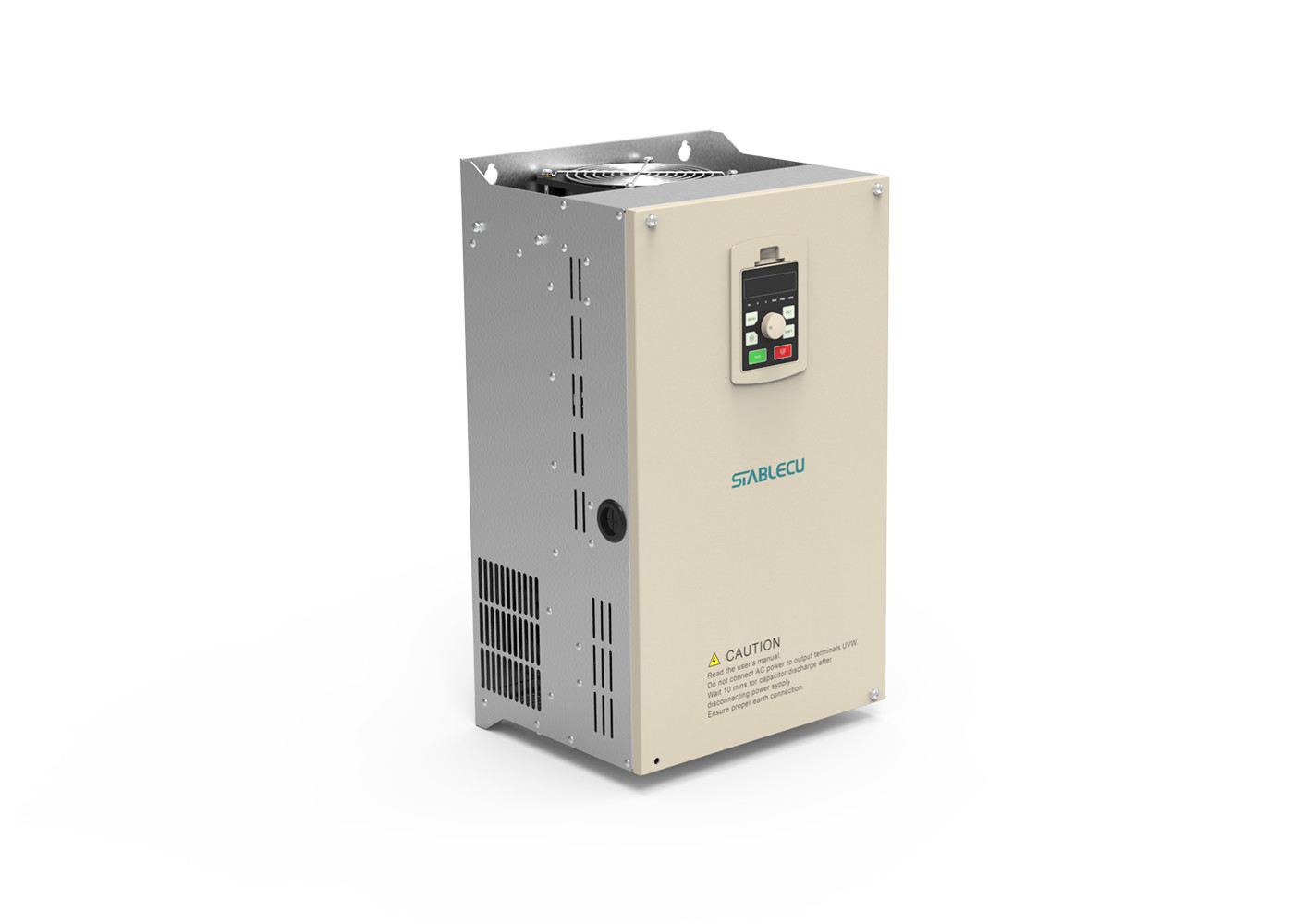

Detailed images of variable frequency drive
FAQ
1. Who are we?
We are a manufacturer based in Guangdong, China, start from 2009, sell to Domestic Market(100.00%).
There are total about 201-300 people in our office.
2. How can we guarantee the quality?
Always a pre-production sample before mass production; Always final Inspection before shipment.
3. What can you buy from us?
Ultrasonic Generator, PLC/Motion Controller, Servo Motor And Stepper Motor, Frequency Converter,
Automation System Development And Complete Set Of Electric Box.
4. Do you offer customization services?
Yes, we can customize the products according to your requirements. Please send us an inquiry, your inquiry
will be replied within 12 hours.
5. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, DDP, DDU, Express Delivery;
Accepted Payment Currency: USD, EUR, JPY, CAD, AUD, HKD, CNY;
Accepted Payment Type: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash;
Language Spoken: English, Chinese.
