2200W Single Phase Motor Frequency Inverter Mini Series

Basic Information
Place of Origin: China
Brand Name: STABLECU
Certification: CE
Model Number: ST310-2S2.2G
Minimum Order Quantity: 1PCS
Packaging Details: 1pcs/Polybag,100pcs/big polybag, 300pcs/ctn
Delivery Time: 5-8 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Material: ABS+PC Power: 2.2KW
Voltage: 220V Phase: Single Phase
Customized: Yes Condition:: 100% New
Warranty: 18 Months Control Mode: V/F Control
High Light:

CE 2200W single phase motor frequency inverter


2200W single phase motor frequency inverters


CE 2200W vfd variable frequency drive

Mini Series VFD Variable Frequency Drive 2.2KW 2200W For Single Phase Motor


In order to meet the needs of customers, Jiesheng's engineers have developed a new economical product - ST300 series.
The volume becomes smaller, which is conducive to the rational distribution of electric box space and avoiding crowding,
reducing the overall temperature rise of electric cabinets and prolonging the service life of products.

Product feature of variable frequency drive

Structural Design
1. Independent air duct for heat dissipation, effectively isolating pollutants from inside.
2. Using a 4-layer precision PCB board and a new generation of IGBT module technology, and mostly using IC integrated electronics.
3. The volume and weight of new generation inverters is lighter, saving installation space.
Software Design
1. ST310 inverter control modes include:
– V/F mode
0: straight line V/F
1: Multi-stage V/F
2: 1.2, 1.4, 1.6, 1.8, 2.0 powers
3: V/F separation method
2. Overload capacity: 150% for 60 sec, 180% for 10 sec, 200% for 0.5 sec.
3. The drives adopt a new software speed tracking algorithm, which have low impact on current and voltage when tracking,
also have the accurate tracking speed.
4. Maximum frequency of 3000 Hz, can be used in different machines. They have been successfully applied to chemical, metallurgy,
machine tools, woodworking, textile, and many other industries.
Hardware Design
1. Full protection function. IGBT through protection, current abnormal protection, over-current, and over-voltage protection, etc.
2. Wide voltage design of input power supply, works normally between 220V-380V AC.
Humanized Design
1. Multiple sets of motor parameters can be customized.
2. Provide parameters for four failure records.
3. The whole series is equipped with a 1/1 scale paper shell template for mounting holes, so as to realize more convenient and fast
electrical cabinet installation.
4. The fan partition is pull-out and detachable, and the fan can be taken out directly, which is convenient for daily maintenance.

Use of operation panel of variable frequency drive

Mark  Key Name Function
MENU Program/ Exit key 1. Enter or exit the programming state
2. Modify the data and abandon the storage
3. Switch fault display to stop/running parameter with the SHIFT key, press MENU to switch back to fault display state
ENT Identify key 1. Edit function code parameters
2. Data storage confirmation
3. View the single group of parameters circularly
SHIFT The shift key 1. Move the editing bit of function parameters
2. Move the data editing bit
3. Switch the display parameters of the operation panel under shutdown/running state
Knob+ Add keys clockwise 1. The number of selected bits of the function code is increased
2. The selected bit of parameter value increases]
3. In shutdown/operation state, the frequency value increases
Knob- Counterclockwise decrease key 1. The serial number of the function code is reduced
2. The selected bit of parameter value decreases
3. The frequency value decreases under shutdown/running state
RUN Run, Stop and reset keys 1. Long press the 3S operation panel to start the driver in the given mode
2. Long press 3S to set parameters, and then start the driver for parameters self-learning
3. Press the button for 1S to report the fault and reset the fault after abnormal shutdown
4. Press for 1S to control the drive shutdown under the given mode of operation panel operation command

Detailed images of variable frequency drive

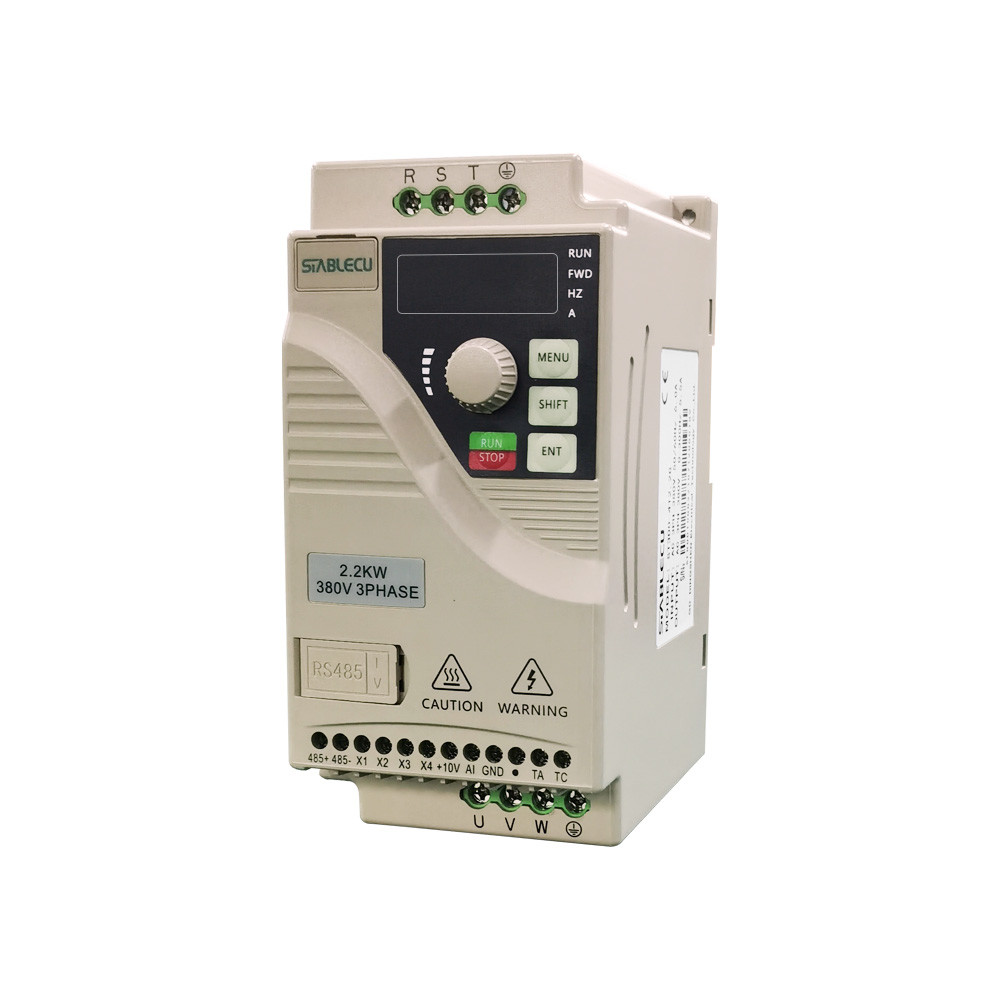

2200W Single Phase Motor Frequency Inverter Mini Series 0

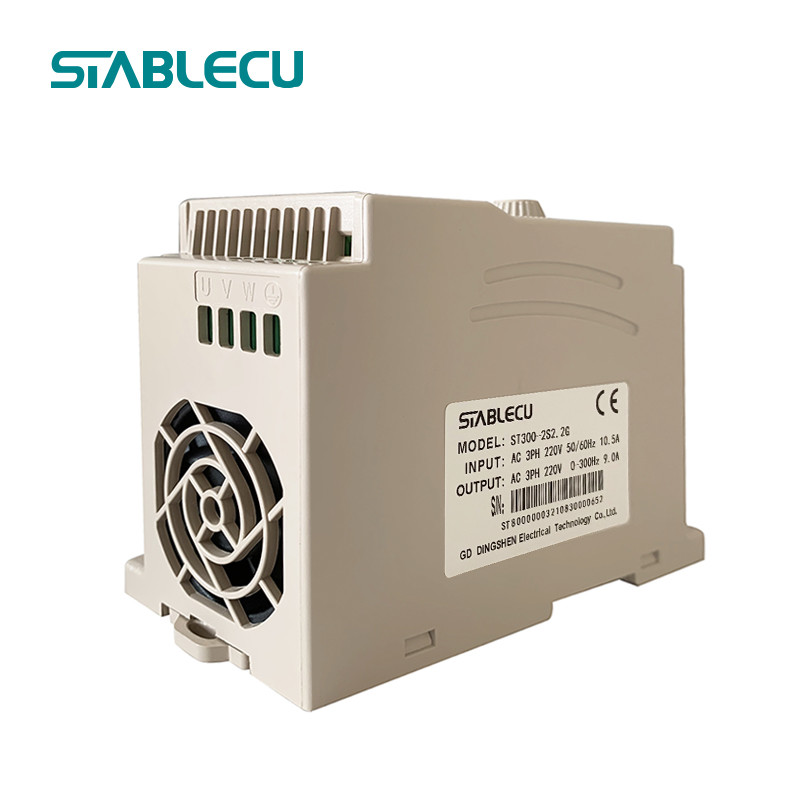

2200W Single Phase Motor Frequency Inverter Mini Series 1

2200W Single Phase Motor Frequency Inverter Mini Series 2
