| Place of Origin: | China |
|---|---|
| Brand Name: | STABLECU |
| Certification: | CE |
| Model Number: | ST300-2S1.5GB |
| Minimum Order Quantity: | 1PCS |
| Packaging Details: | 1pcs/Polybag,100pcs/big polybag, 300pcs/ctn |
| Delivery Time: | 5-8 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000 pcs per month |
| Material: | ABS+PC | Power: | 0.75KW |
|---|---|---|---|
| Voltage: | 220V/380V | IP: | 20 |
| Color: | Huawei Gray | Type: | AC |
| OEM: | Yes | Warranty: | 18 Months |
| High Light: | IP20 1.5KW VFD for 2hp single phase motor,IP20 1.5KW Single Phase Frequency Inverter,IP20 Single Phase Frequency Inverters |
||
1.5KW 2HP Mini Frequency Inverter 1 Phase AC Drives For Single Phase Motor
Introduction of variable frequency drive
ST300 series inverter is a high-performance vector inverter, which is newly developed based on customer demand
and market research and can be used to control and adjust single or three-phase speed. Optional voltage 220v or 380v,
used for AC asynchronous motors. With good load adaptability, high-precision speed controllability, low-speed high-torque
output performance, excellent overload capacity, and rich setting functions. The size design of this economical and applicable
inverter is made smaller, which is conducive to the user to reasonably plan the space of the electric box.
Quick details of variable frequency drive
|
item
|
Frequency Inverter |
| Place of Origin | China |
|
Brand Name
|
STABLECU |
| Model Number |
ST300-2S0.75G/1.5G/2.2G
|
| Warranty | 18 Months |
| Type | speed driver/AC driver |
| Certification |
CE/ROHS/FCC/ISO9001
|
| Customized | Yes |
| Rated Power |
0.75kw, 1.5kw, 2.2kw
|
| Nominal Voltage | 220v/380V |
| power phase number | 1/3 Phase |
| Power | 0.75kw, 1.5kw, 2.2kw |
| Input rated voltage and frequency | 1PH AC 220V 50/60HZ / 3PH AC380V 50/60Hz |
| Allowable voltage range | 220V/ 380V |
| Output voltage |
220V, 380V: 380V-480V
|
| Control Mode | Vector Control |
| Output frequency | 0.1~300.0 Hz |
Indicator description of variable frequency drive
| Indicator mark | The name of the | Meaning | Color |
| Hz | Frequency indicator light | On: The current parameter is running frequency Blinking: The current display parameter is the set frequency |
Green |
| A | Current indicator light | On: Current is displayed | Green |
| MON | Run command mode indicator | On: The operation panel runs the command in the specified mode Off: Indicates the specified mode of the terminal running command Blinking: The upper computer runs the specified command mode |
Green |
| RUN | Operating status indicator light | On: The drive is running Off: The drive is stopped Blinking: The drive is being stopped |
Green |
| FWD | Positive/reverse indicator light | On: The drive is in positive rotation Off: The driver is in reverse direction when it is running |
Green |

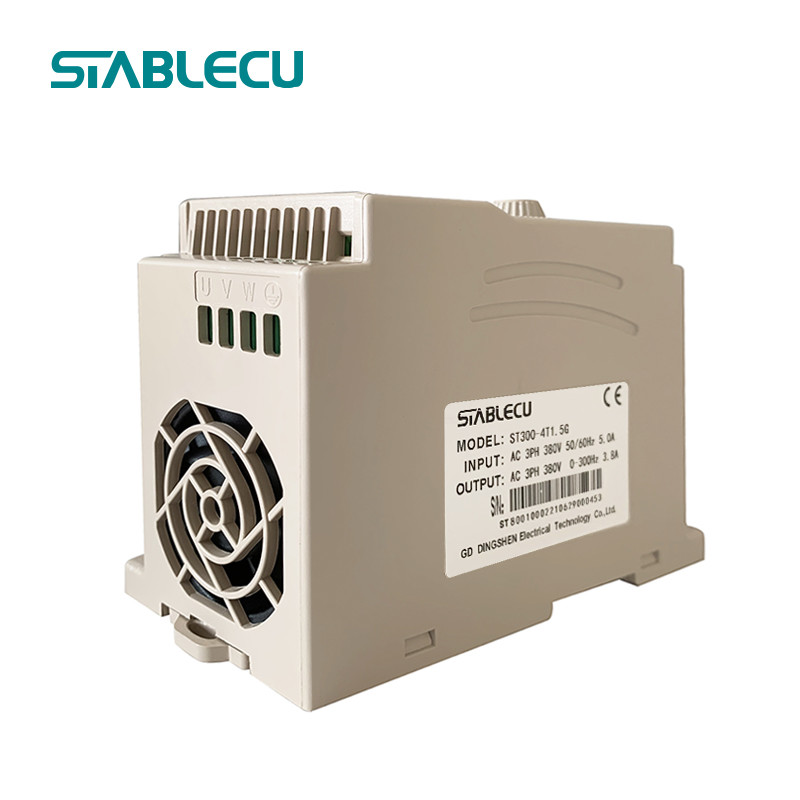

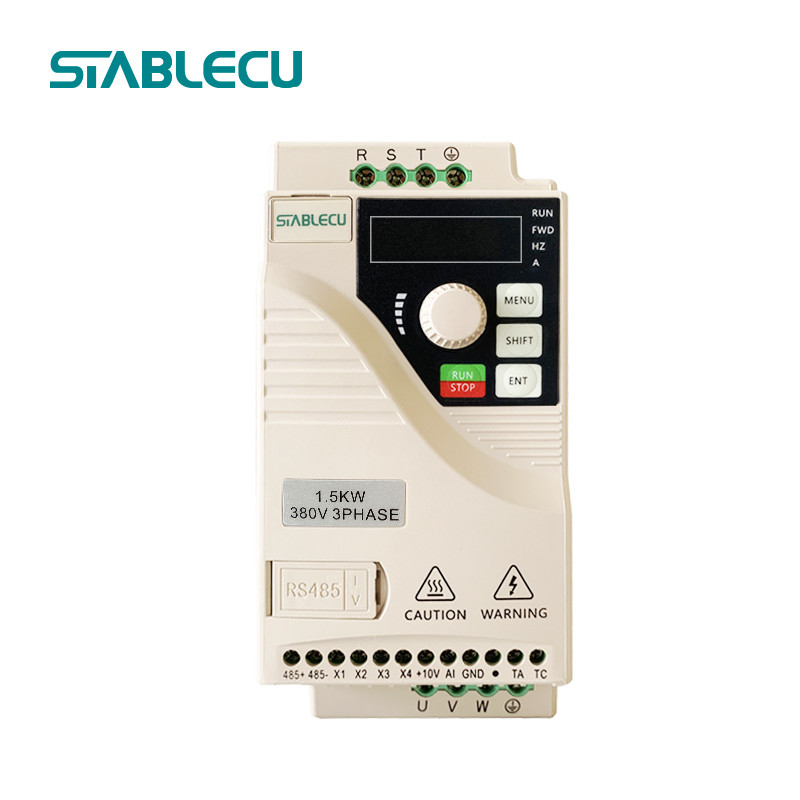

Detailed Image of variable frequency drive
Application of variable frequency drive
It is used to drive various automation production equipment involving textile, machine tool equipment, water pump,
fan, paper-making, food machine, packing machine, etc.
FAQ
1. Who are we?
We are a manufacturer based in Guangdong, China, starting in 2009, and selling to Domestic Market(100.00%).
There are total about 201-300 people in our office.
2. How can we guarantee the quality?
Always a pre-production sample before mass production; Always final Inspection before shipment.
3. What can you buy from us?
Ultrasonic Generator, PLC/Motion Controller, Servo Motor And Stepper Motor, Frequency Converter,
Automation System Development And Complete Set Of Electric Box.
4. Do you offer customization services?
Yes, we can customize the products according to your requirements. Please send us an inquiry, your inquiry
will be replied within 12 hours.
5. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, DDP, DDU, Express Delivery；
Accepted Payment Currency: USD, EUR, JPY, CAD, AUD, HKD, CNY;
Accepted Payment Type: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash;
Language Spoken: English, Chinese.
