0.75KW 1HP Three Phase Variable Frequency Inverter Motor Control

0.75KW 1HP Three Phase Variable Frequency Drive VFD Motor Control

Variable frequency drive description

In the first place, use flame-retardant materials such as ABS and PC. Flame retardancy, heat resistance,
toughness, and strength of this material make it effective in resisting deformation and embrittlement under
high temperatures and harsh environments. Additionally, a separate heat dissipation air duct is designed to
prevent external dust and oil from entering the product. In order to effectively reduce the temperature of the
inverter, a fan is installed. In order to ensure the quality of raw materials, components, PCBs, and IGBTs are
selected from leading domestic suppliers.

Hardware interface of frequency converter

1. Two analog inputs (AI1, AI2), current (0-20mA), voltage (0-10V)
2. Two analog outputs (AO1, AO2), current (0-20mA), voltage (0-10V)
3. The six inputs (X1,X2,X3,X4,X5,X6) of the switch
4. A high-speed pulse input DI is used, and an output Y1 is used
5. A 24V output power terminal is provided
6. A modBUS communication port is available, and the RTU mode is supported

Hardware features of frequency converter

1. Several well-known companies in the industry, not to mention Jingli, but well-known companies.
2. ST310 series: 0.75-22KW built-in, 30-110KW optional installed, and 132-450KW external mounted brakes
3. ST310 (0.75-3.7KW), ST300 (0.75-2.2KW)/ST200 (0.75-2.2KW), 5.7*37KW STAR module, above 45KW,
Infineon module is used.
4. Among them are ST, ON, Avago, Aceinna, Toshiba, and other international brands of electronic materials
5. Brand: Peters, Germany, three anti-paint products
6. The chip is from Texas Instruments, TI
7. It is more durable and longer-lasting than oil-bearing fans as it uses a ball fan to cool
8. Electrolytic capacitor: Zeasset brand
9. The following brands offer patch resistance: Fenghua, Guoju, Houshen
10. Firstly, the panel knob adopts a high precision encoder knob with 360° step-less speed regulation, with a
button (select 0.01-10.00Hz when moving one grid).

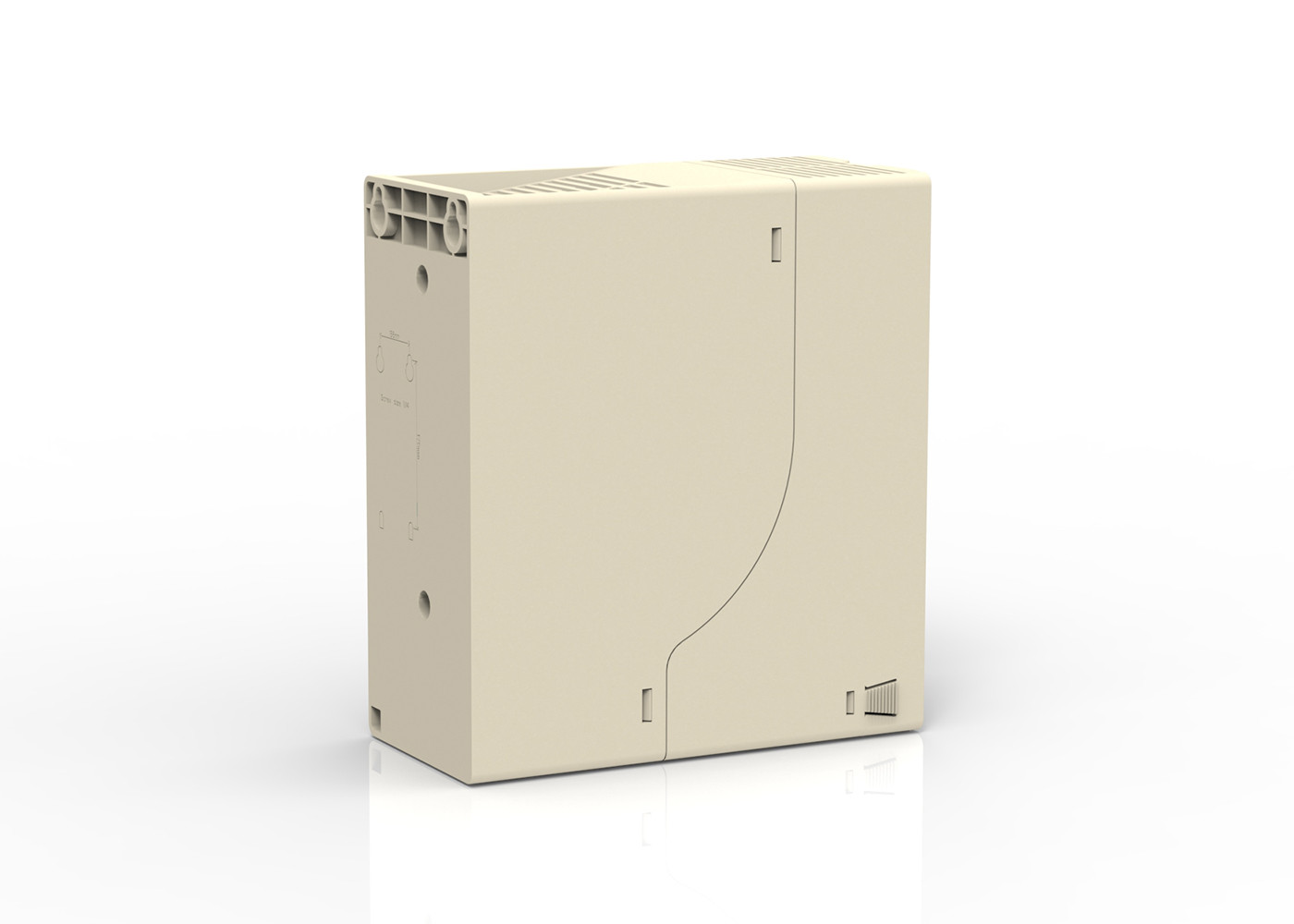

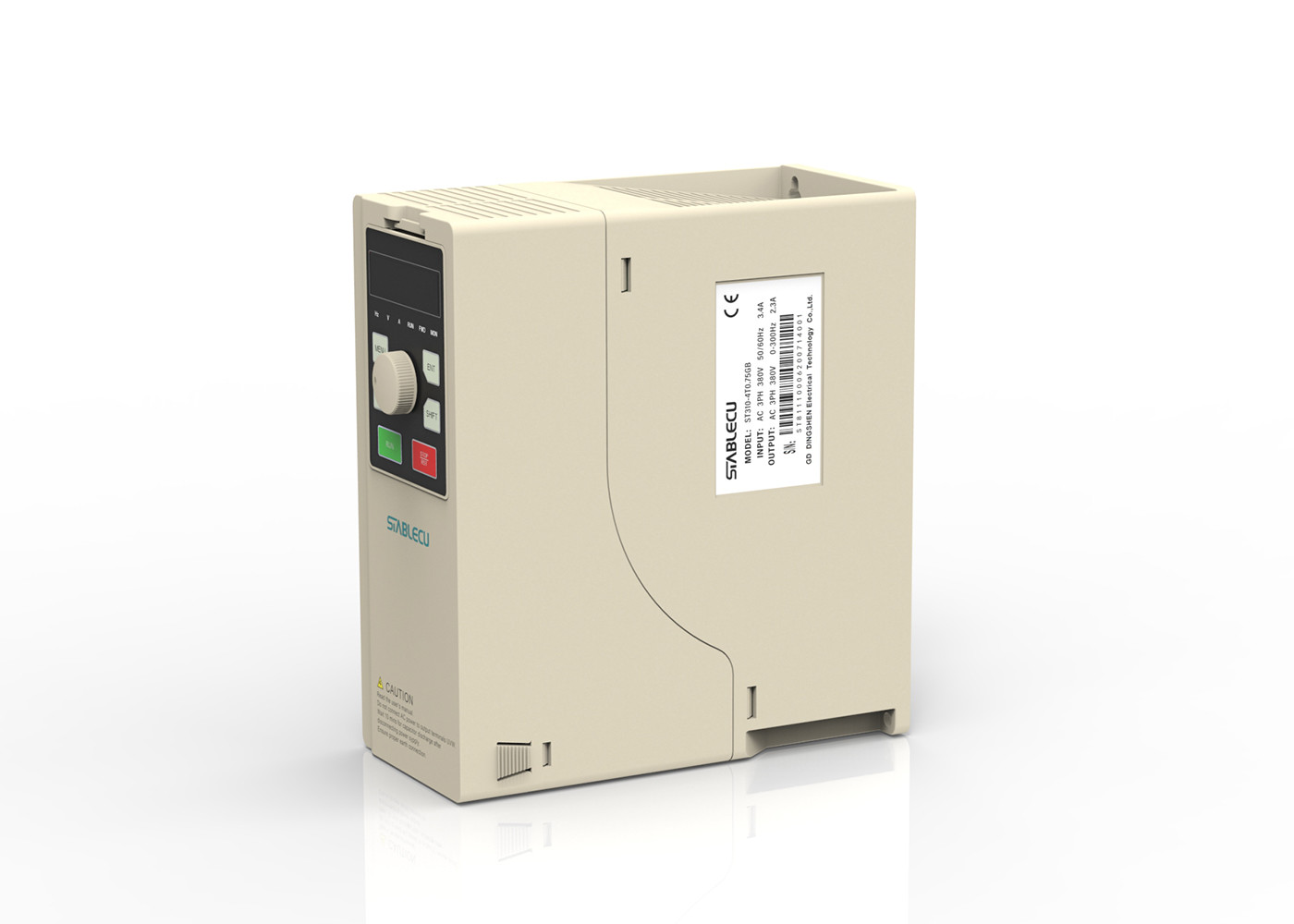

Detailed images of frequency inverter

FAQ

1. Who are we?
We are a manufacturer based in Guangdong, China, start from 2009, sell to Domestic Market(100.00%).
There are total about 201-300 people in our office.
2. How can we guarantee the quality?
Always a pre-production sample before mass production; Always final Inspection before shipment.
3. What can you buy from us?
Ultrasonic Generator, PLC/Motion Controller, Servo Motor And Stepper Motor, Frequency Converter,
Automation System Development And Complete Set Of Electric Box.
4. Do you offer customization services?
Yes, we can customize the products according to your requirements. Please send us an inquiry, your inquiry
will be replied within 12 hours.
5. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, DDP, DDU, Express Delivery；
Accepted Payment Currency: USD, EUR, JPY, CAD, AUD, HKD, CNY;
Accepted Payment Type: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash;
Language Spoken: English, Chinese.
