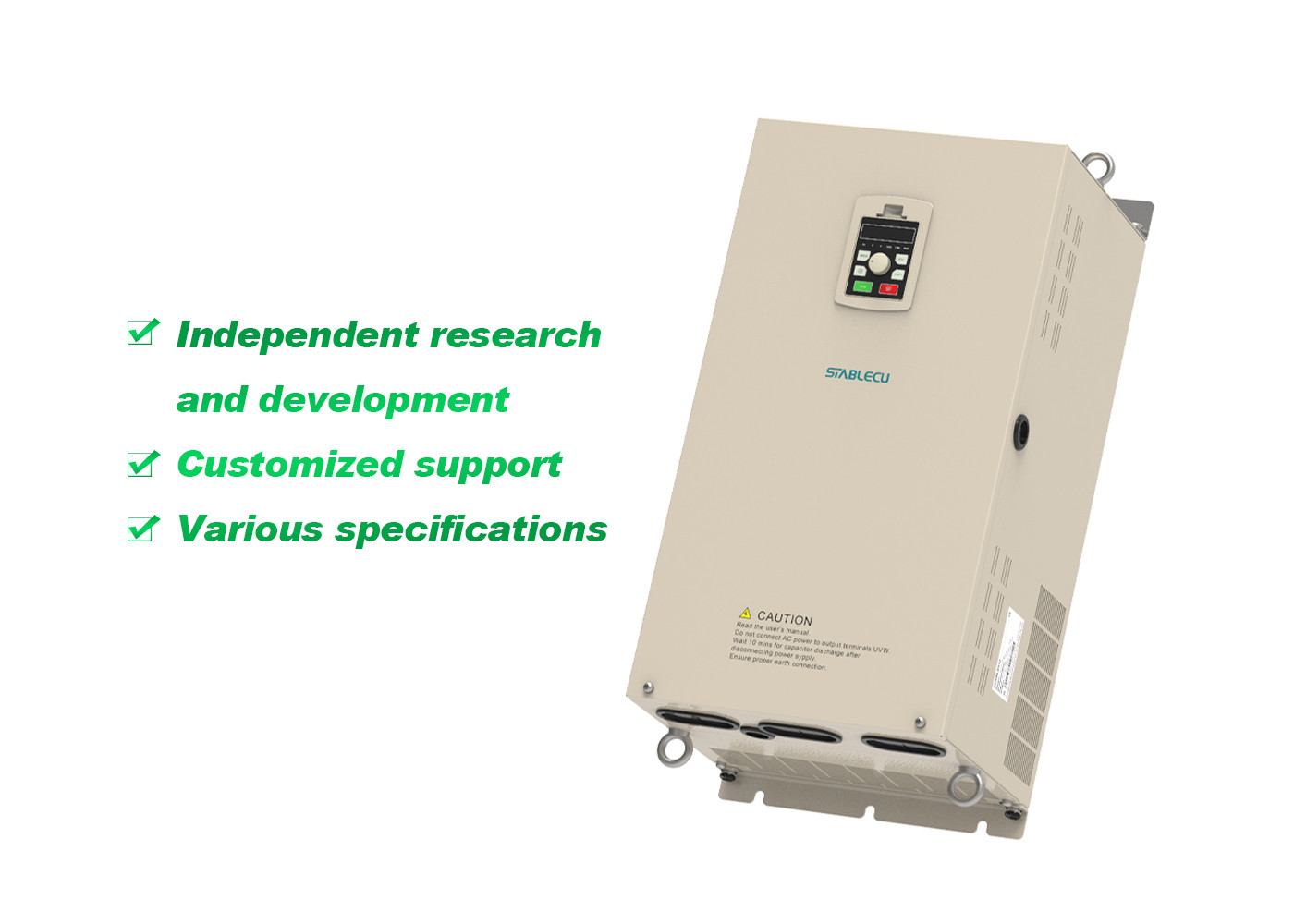

45KW 55KW Three Phase Pump Frequency Inverter 440V VFD

45KW 55KW 3 Phase Variable Frequency Drive 220V/380V/440V VFD

Description of frequency converter

Inverters of the ST310 series are high-performance inverters designed on a vector control and torque control
core technology platform. VF control functions are more suitable for high-end control requirements, since they
provide more precise control. In the operation panel, the adjustment knob has a more precise stroke and a
narrow adjustment range. A modular hardware and software solution can address the requirements of high-end
industries such as jack-ups, lifting systems, paper factories, chemical fiber mills, elevators, rolling mills, and
packaging facilities.

Hardware interface of frequency converter
1. There are two analog inputs (AI1, AI2), current (0-20mA), and voltage (0-10V).
2. An analog output consists of two outputs (0-20mA), voltage (0-10V), and current (0-20mA).
3. X1, X2, X3, X4, X5, X6) for switch inputs
4. The high-speed pulse input DI, and the high-speed pulse output Y1, are included.
5. There is one 24V output power terminal
6. Supports the modBUS protocol and the RTU mode for communication on port 485.

Hardware features of frequency converter

1. A list of well-known manufacturers in the field, like Guide and Jingli, outsourcing factories
2. The ST310 series has 0.75-22KW built-in, a 30-110KW optional built-in, and an external braking unit with
132-450KW option
3. There are three types of module: ST310 (0.75-3.7KW)/ST300/ST200 (0.75-2.2KW), 5.5*37KW STAR module;
the Infineon module is used for above 45KW.
4. International brands such as ST, ON, Avago, Aceinna, Toshiba, and others are available in some electronic materials
5. The following three anti-paints are produced by Peters, Germany:
6. The chip was manufactured by TI, Texas Instruments
7. The cooling fan is a ball fan, more wear-resistant, and will last longer than an oil-bearing fan
8. The Zeasset brand is used for electrolytic capacitors
9. The following brand is resistant to patches: Fenghua, Guoju, Houshen
10. With the indicator knob, a high degree of precision is provided, with a 360° step-less speed regulation, and a button
(select 0.01-10.00Hz when moving one grid) is used.

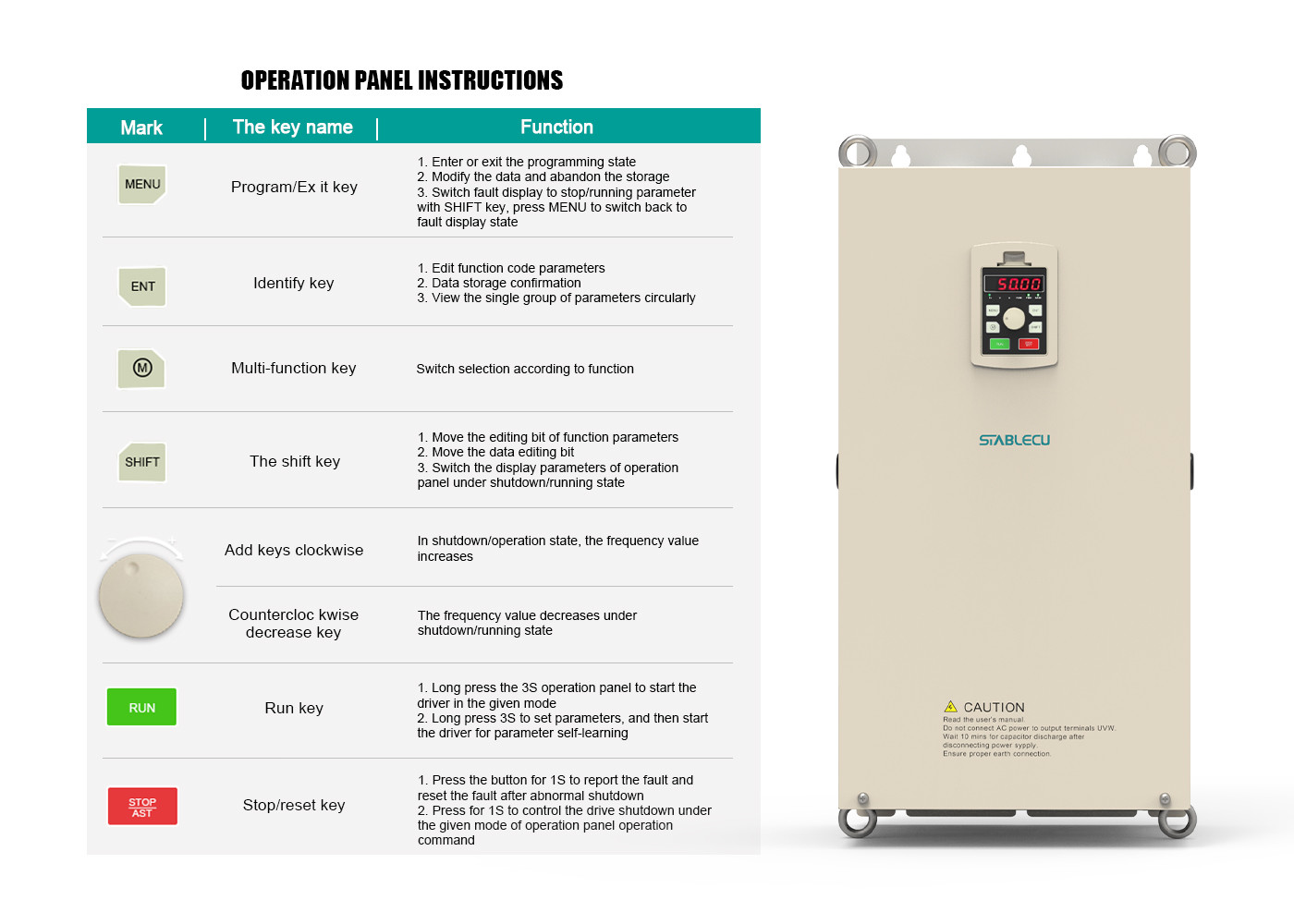

Detailed images of the frequency converter

Application of frequency converter

FAQ

1. Who are we?
We are a manufacturer based in Guangdong, China, start from 2009, sell to Domestic Market(100.00%).
There are a total of about 201-300 people in our office.
2. How can we guarantee the quality?
Always a pre-production sample before mass production; Always final Inspection before shipment.
3. What can you buy from us?
Ultrasonic Generator, PLC/Motion Controller, Servo Motor And Stepper Motor, Frequency Converter,
Automation System Development And Complete Set Of Electric Box.
4. Do you offer customization services?
Yes, we can customize the products according to your requirements. Please send us an inquiry, your inquiry
will be replied within 12 hours.
5. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, DDP, DDU, Express Delivery;
Accepted Payment Currency: USD, EUR, JPY, CAD, AUD, HKD, CNY;
Accepted Payment Type: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash;
Language Spoken: English, Chinese.
