15KW VFD Frequency Converter 1 Phase Input 3 Phase Output

220V 380V 1 Phase Input 3 Phase Output VFD 15KW Frequency Converter

Instruction of frequency inverter

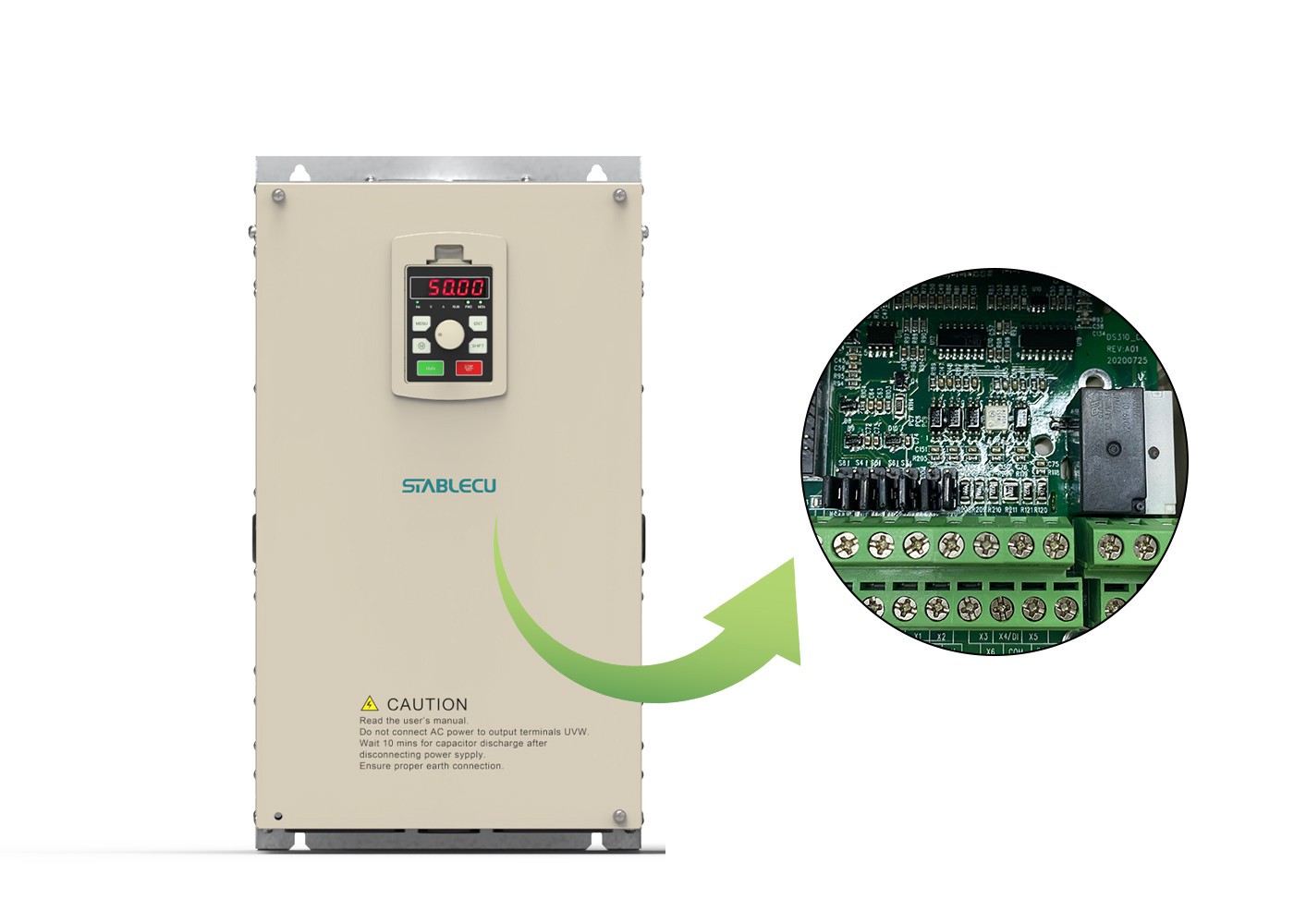

PCB material of the Jiesheng frequency converter is coated with three anti-paints, which have anti-corrosion,
moisture-proof, antistatic, and dust-proof functions. Shells are selected with flame-retardant metal shells that
have high impact and heat resistance, strong flame resistance, safety, reliability, and durability. A stable and
reliable product with excellent craftsmanship is provided by this manufacturer. Moreover, a powerful cooling fan
system increases durability and reduces noise, which extends the service life of the product. The button panel
is humanized, the layout of the buttons is reasonable, the panel can be detached, and the cable can be extended
to a distance of 500 meters. If the user is using dangerous equipment, the button panel can be remotely controlled.

Structural design of frequency inverter

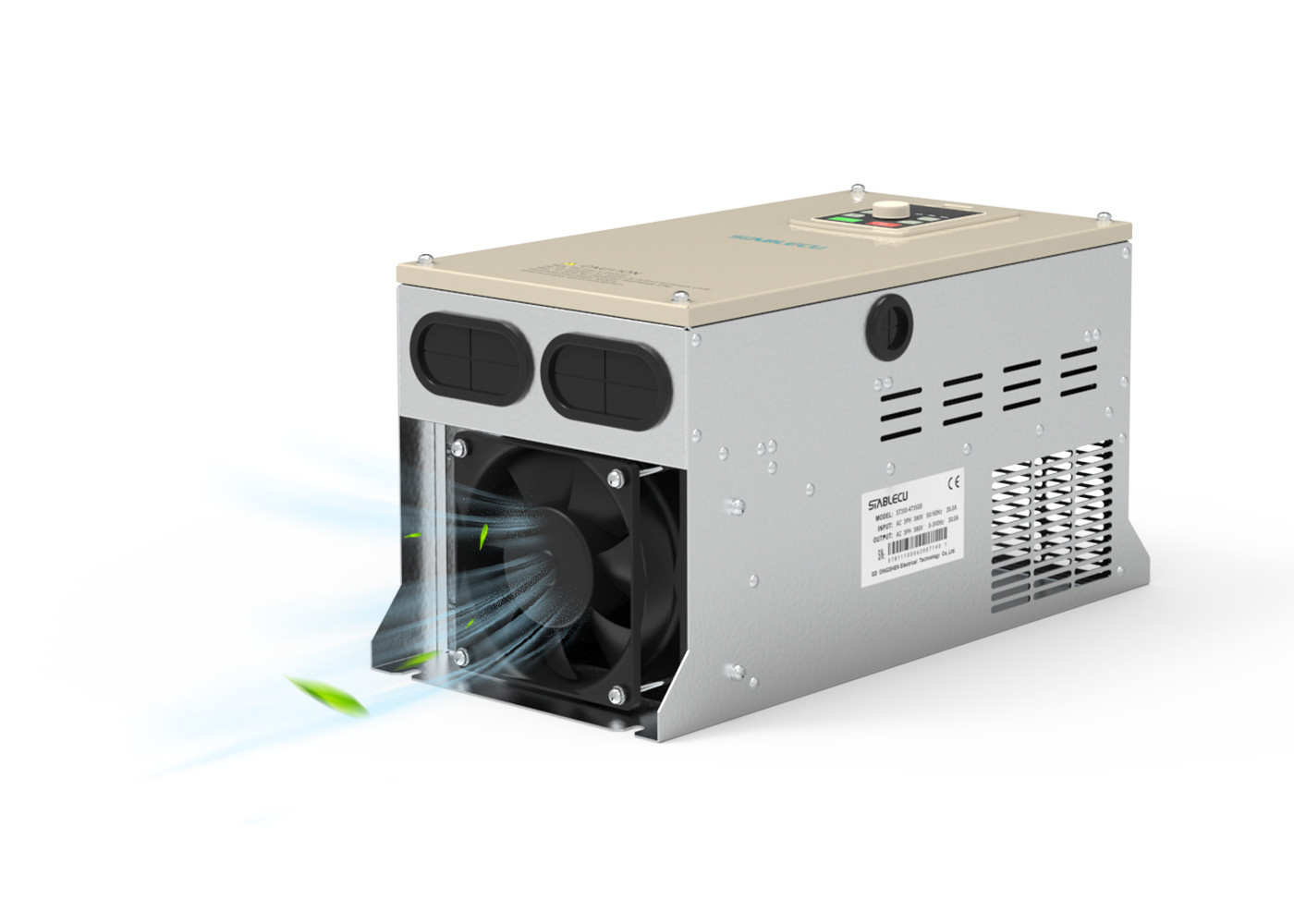

1. A duct that dissipates heat independently
In order to prevent dust, oil, and other pollution from entering the internal products, which can cause PCB, component,
or corrosion short circuits, we must choose cooling fans with long lives and large air volumes, reduce the temperature
rise of frequency converters, ensure reliable and stable operation.
2. Detail-oriented design that is more humane
1) The new design of the operation panel makes disassembling and installing it easier and more reliable.
2) A low-power machine bottom is matched to the installation dimensions drawing, and the whole series is matched to
The paper shell template of the installation hole position, which makes installation of an electric cabinet easier and faster.
3) There is a pull-out and detachable fan partition, and the fan can be removed directly from the unit. It makes it convenient
for users to perform daily maintenance. Thus, extending its service life.
4) Terminal blocks are designed as pull-out partitions, which make wiring easier. Wires should be separated even after
connecting them with partitions.

Detailed images of frequency inverter

FAQ

1. Who are we?
We are a manufacturer based in Guangdong, China, start from 2009, sell to Domestic Market(100.00%).
There are total about 201-300 people in our office.
2. How can we guarantee the quality?
Always a pre-production sample before mass production; Always final Inspection before shipment.
3. What can you buy from us?
Ultrasonic Generator, PLC/Motion Controller, Servo Motor And Stepper Motor, Frequency Converter,
Automation System Development And Complete Set Of Electric Box.
4. Do you offer customization services?
Yes, we can customize the products according to your requirements. Please send us an inquiry, your inquiry
will be replied within 12 hours.
5. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, DDP, DDU, Express Delivery；
Accepted Payment Currency: USD, EUR, JPY, CAD, AUD, HKD, CNY;
Accepted Payment Type: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash;
Language Spoken: English, Chinese.
