220V 380V Variable Frequency Inverter 15HP 11KW VFD With V/F Control

Basic Information
Place of Origin: China
Brand Name: STABLECU
Certification: CE
Model Number: ST310-411GB
Minimum Order Quantity: 1PCS
Packaging Details: 1pcs/Polybag,100pcs/big polybag, 300pcs/ctn
Delivery Time: 5-8 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000 pcs per month
Material: ABS+PC Power: 11KW
Voltage: 380V Phase: 3 Phase
Color: Huawei Gray Control Mode: V/F Control
Size: As Per Unit Name: Variable Frequency Drive
High Light:

380V Variable Frequency Inverter


15HP Variable Frequency Inverter


VF Control Variable Frequency Inverter

15HP 11KW VFD With V/F Control 220V 380V Variable Frequency Inverter


Description of variable frequency drive

With the ST-310 Series you can operate pumps, fans, conveyors, mixers, and many other applications
with variable and constant torque. The unique ventilation design, using vector control technology, DSP control system,
and Infineon's latest IGBT technology; the powerful large fan can be detached, which allows for easy maintenance;
the control panel can be disassembled, and remote operation can be selected; the product has stable performance,
is simple to operate, and is widely used across a variety of applications; well-recognized by customers.

Software design of VFD

1. The current control mode will be V/F control (open loop vector control and closed loop vector control are being developed).
2. The maximum control frequency is 3000Hz.
3. Using wave-by-wave current limiting algorithms may prevent hardware protection components from damaging current.
4. Conventional overload capacity: 130%, 150% 60s, 18% 10s, and 200% 0.5s.
5. Fast tracking startup mode, small current and voltage impacts, accurate tracking.
6. The four-time fault record: the current, voltage, and temperature recorded during the fault process of the frequency converter,
facilitating the analysis of faults
7. Multiple device debugging with parameter copying and parameter backup is convenient with the capabilities of the panel.
8. 0.7khz*16khz is the carrier frequency.
9. When high-frequency conversion temperature rises, the carrier frequency can be automatically adjusted to ensure reliable operation.
10. The temperature detection module, the overheat alarm, the temperature setting of the frequency converter, and the automatic
starting of the fan based on the temperatures greatly extends the service life of the thermostat.
11. Multi-speed: Supports up to 16 speeds.

Why choose us

1. As an inverter since 2009, Jiesheng has focused entirely on industrial automation, including independent research and
development, design, and development, with deep insight into inverters.
2. Achieved CE, ISO9001, FCC, and ROHS certifications, respectively.
3. With more than ten years of experience, we have earned the trust and support of many customers, who have made us
more confident in our ability to serve every customer with the best services.
4. Our own R&D team provides customers with professional solutions.

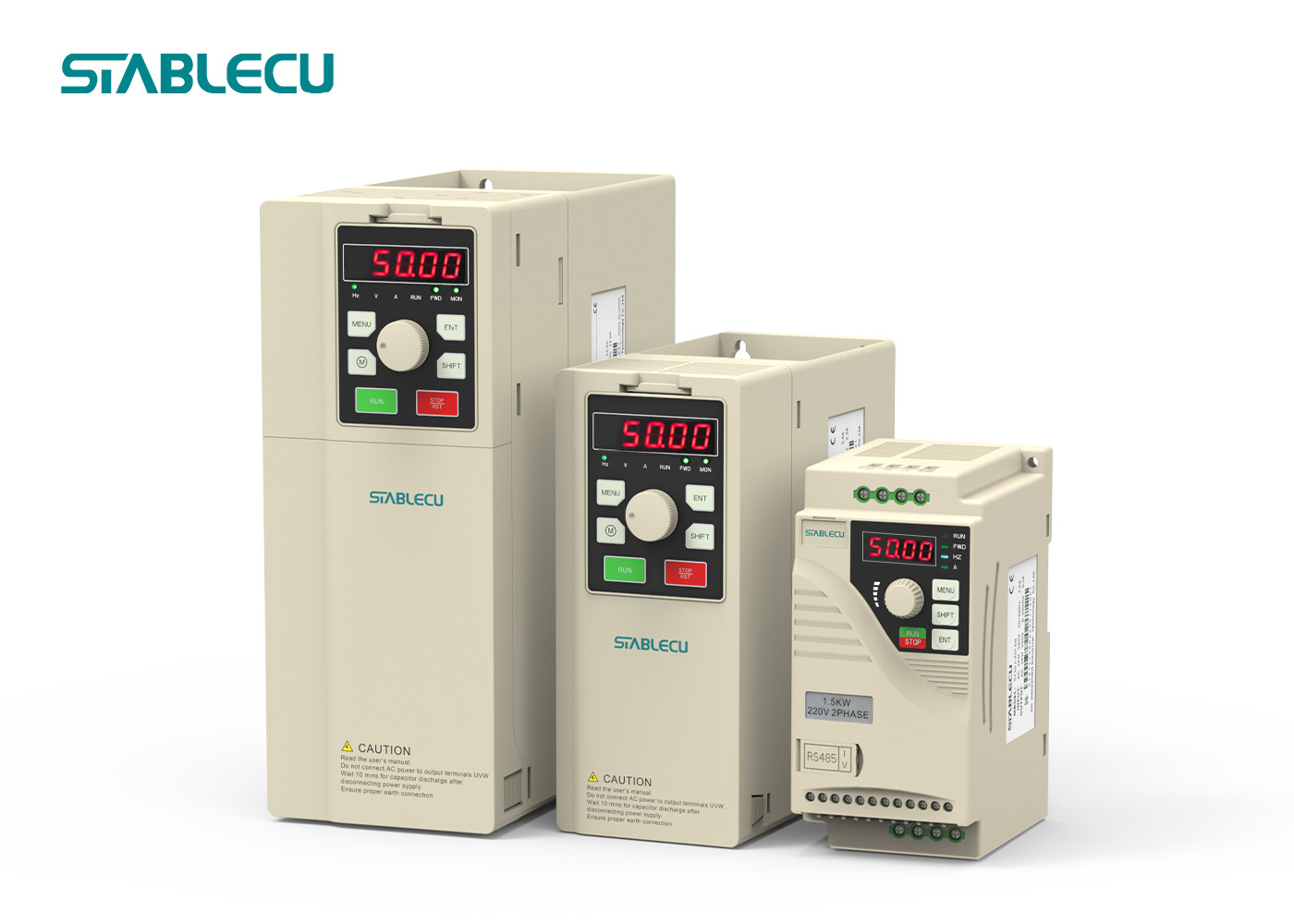

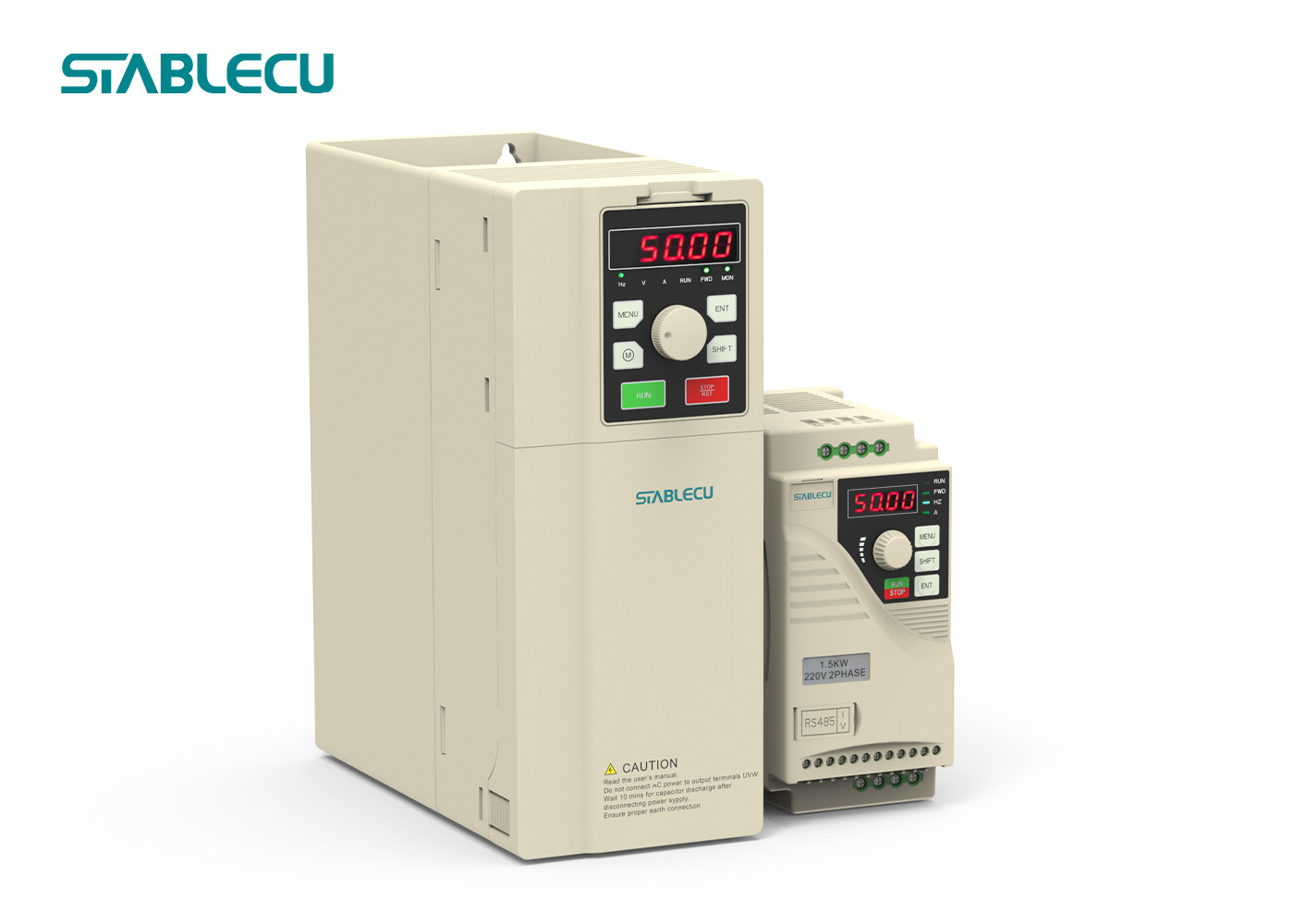

Detailed image of variable frequency drive

220V 380V Variable Frequency Inverter 15HP 11KW VFD With V/F Control 0

220V 380V Variable Frequency Inverter 15HP 11KW VFD With V/F Control 1

220V 380V Variable Frequency Inverter 15HP 11KW VFD With V/F Control 2


1. Who are we?
We are a manufacturer based in Guangdong, China, start from 2009, sell to Domestic Market(100.00%).
There are a total of about 201-300 people in our office.
2. How can we guarantee the quality?
Always a pre-production sample before mass production; Always final Inspection before shipment.
3. What can you buy from us?
Ultrasonic Generator, PLC/Motion Controller, Servo Motor And Stepper Motor, Frequency Converter,
Automation System Development And Complete Set Of Electric Box.
4. Do you offer customization services?
Yes, we can customize the products according to your requirements. Please send us an inquiry, your inquiry
will be replied within 12 hours.
5. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, DDP, DDU, Express Delivery;
Accepted Payment Currency: USD, EUR, JPY, CAD, AUD, HKD, CNY;
Accepted Payment Type: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash;
Language Spoken: English, Chinese.
