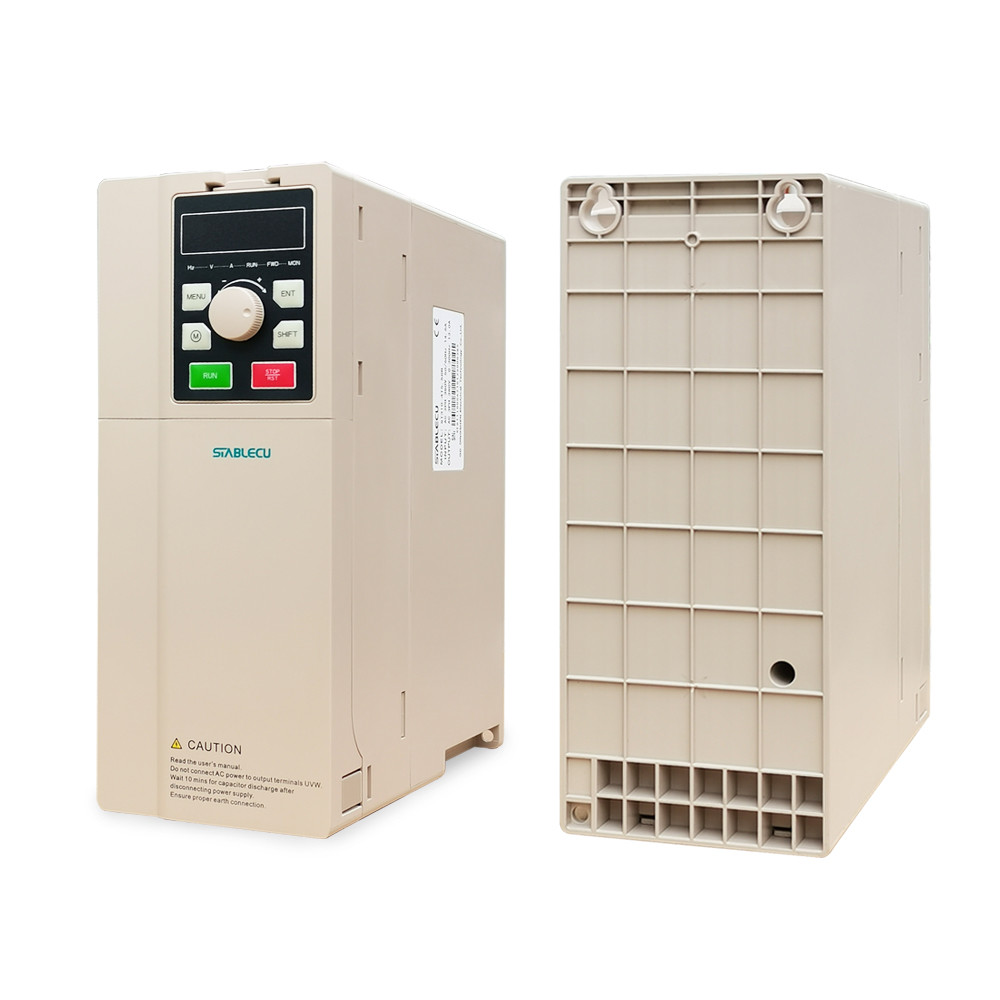

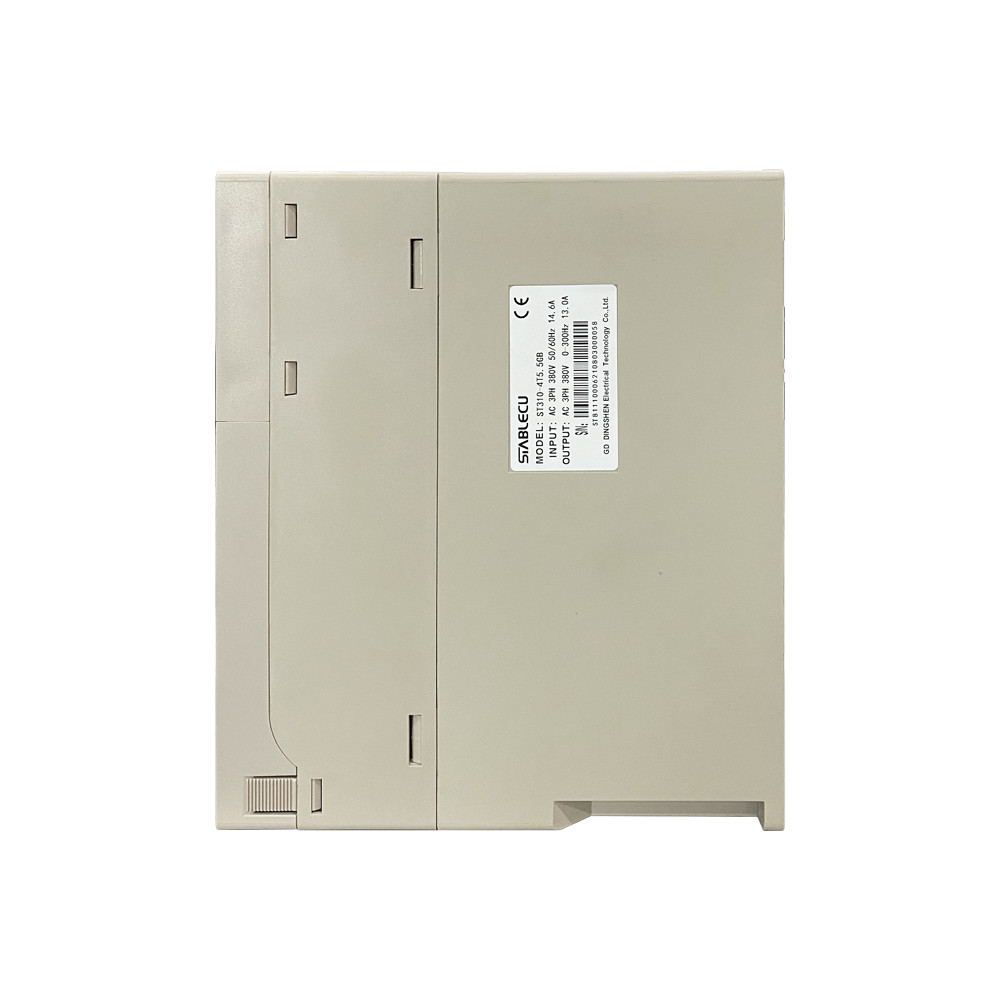

3 Phase Flux Vector Control VFD Water Supply Stable Driver

Structural design Advantages:
1. Independent heat dissipation air duct
2. Using 4-layer precision PCB board and a new generation of IGBT module technology, and mostly using IC integrated electronics.
3. The volume of the new generation inverter is smaller, and its weight is lighter
Software Design Advantages
1. Selected the latest HIGH-SPEED TI DSP chip
2. Used the control software with independent intellectual property rights
3. New wave-by-wave current limiting control algorithm, control current and voltage stability
4. Brand new current, voltage, control algorithm, plus unique excitation current control
5. Four times of fault parameter record,
6. Complete machine protection function
7. Perfect power protection function
8. Widely voltage design
Hardware Design Advantages
1. Panel knob adopts encoder knob
2. The operation panel adopts the latest design idea
3. Standard network ports
4. One communication port 485, supports Modbus protocol, RTU mode.
5. The heat dissipation fan adopts temperature control
6. The fan partition is removable and can be pulled out directly.
7. Choose the cooling fan with long life and large air volume
8. The wiring terminal is designed to be a pull-out partition
9. The bottom of the low-power machine is equipped with the installation size drawing
