45KW 55KW Pump Frequency Inverter 220V 480V Variable Frequency Drive

Basic Information
Place of Origin: China
Brand Name: STABLECU
Certification: CE
Model Number: ST310-4T55G
Minimum Order Quantity: 1PCS
Packaging Details: 1pcs/Polybag,100pcs/big polybag, 300pcs/ctn
Delivery Time: 5-8 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Material: ABS+PC Power: 55KW
Voltage: 380V IP: 20
Color: Huawei Gray Type: AC
OEM: Yes Control Mode: VF Control
High Light:

55KW Pump Frequency Inverter


Variable Frequency Drive Pump Frequency Inverter

220V 480V Variable Frequency Drive 45KW 55KW Frequency Inverter


Description of frequency converter

A wide range of variable and constant torque applications can be performed using the ST-310 Series, including pumps and
fans, conveyors, and mixers, as well as many other applications requiring constant and variable torque.
Infineon's latest IGBT technology, vector control, and DSP control; excellent unique ventilation design; a powerful large fan
that's easily removable; control panel can be disassembled, and distance operation can be selected; products stable performance,
simple operation, widely used in various applications; good customer feedback.

The finished product assembly of the frequency converter

In order to ensure consistency, follow the working instructions for every power section when assembling the finished product.
During the assembly process, self-inspection and protective inspections should be carried out for each process, followed by layers
of layer inspections by the quality personnel to ensure that the product quality is not compromised by assembly personnel negligence.

Working state of VFD

The ST310 series frequency converter can be divided into three states: shut down, running, and motor parameter self-tuning.
If there is no operation command input, or if the stop command is executed during operation, the converter's 3-phase U/V/W terminal
not has output, and the running status indicator light, RUN, is off on the operation panel.
If the frequency converter receives the running command, the 3phase U/V/W terminal of the frequency converter starts to have output,
and the operation status indicator light on the operation panel stays lit. Depending on the motor's current state, set motor parameters to
P02.00-P02.05, and select P02.07 as 2 static self-setting or 3 rotary self-setting.The tune will appear once Confirm has been selected.
As soon as it has completed self-setting, it will be shut down.

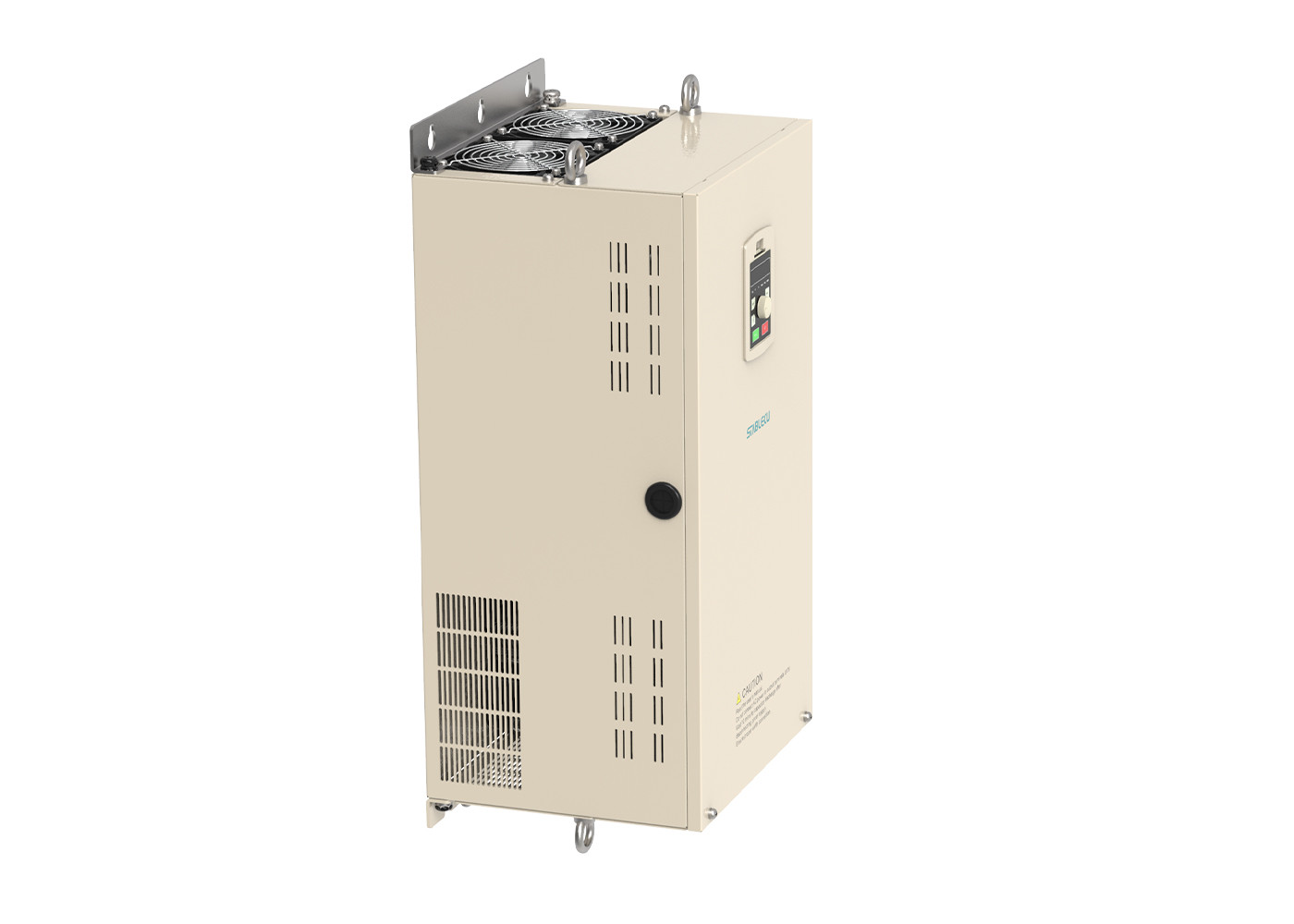

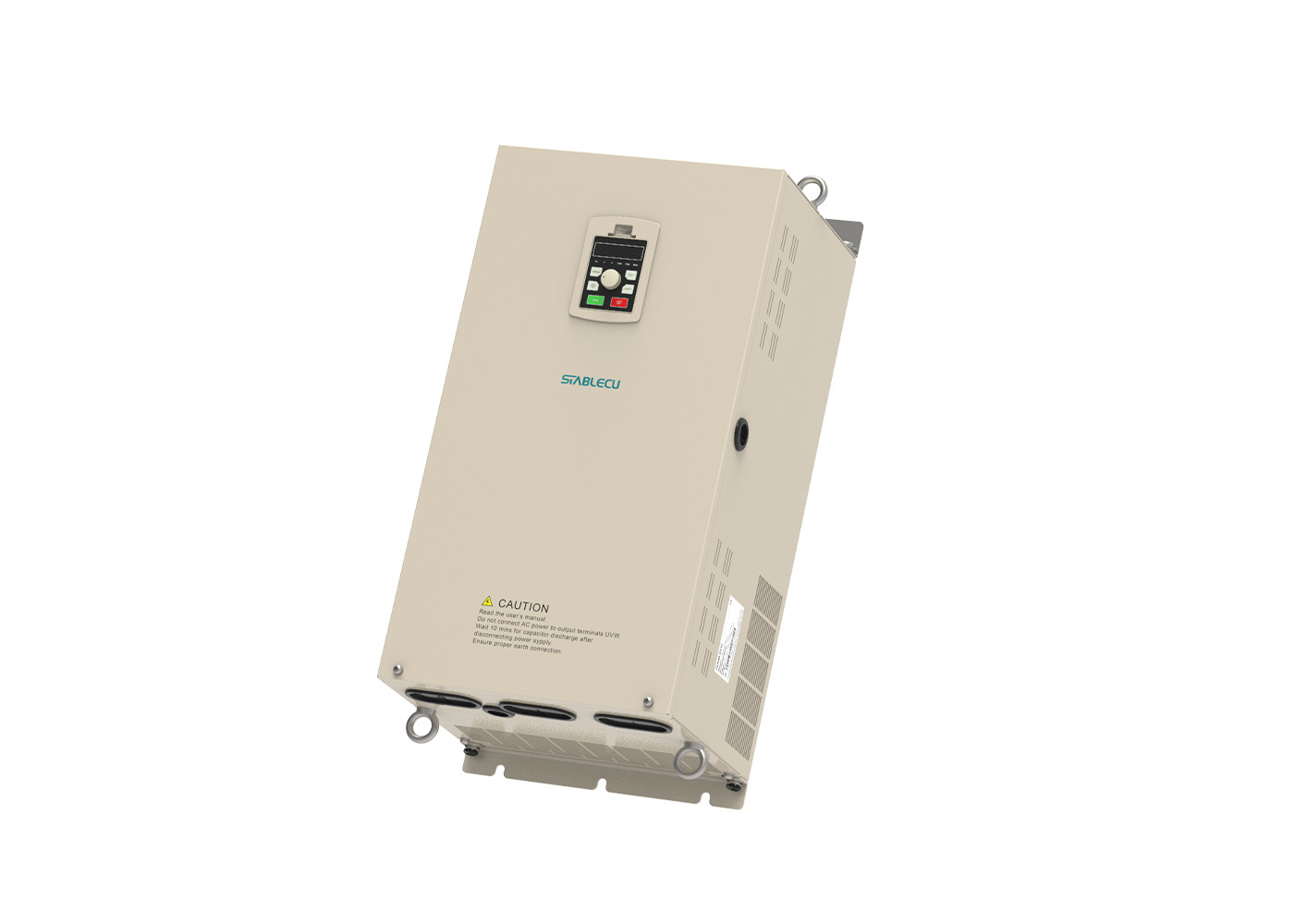

Detailed image of frequency converter.

45KW 55KW Pump Frequency Inverter 220V 480V Variable Frequency Drive 0

45KW 55KW Pump Frequency Inverter 220V 480V Variable Frequency Drive 1

Application of frequency converter

It is widely used in various industries and equipment, including spinning machines, stacker reclaimers, feeding machines,
calciners, cigarette makers, air compressors, steelmaking, crushers, drawing machines, dyeing machines, hoists,
injection molding machines, laundry facilities, paper machines, special power, water pumps, fans, mixer machines, roller mills,
rolling mills, etc.

45KW 55KW Pump Frequency Inverter 220V 480V Variable Frequency Drive 2


1. Who are we?
We are a manufacturer based in Guangdong, China, start from 2009, sell to Domestic Market(100.00%).
There are a total of about 201-300 people in our office.
2. How can we guarantee the quality?
Always a pre-production sample before mass production; Always final Inspection before shipment.
3. What can you buy from us?
Ultrasonic Generator, PLC/Motion Controller, Servo Motor And Stepper Motor, Frequency Converter,
Automation System Development And Complete Set Of Electric Box.
4. Do you offer customization services?
Yes, we can customize the products according to your requirements. Please send us an inquiry, your inquiry
will be replied within 12 hours.
5. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, DDP, DDU, Express Delivery;
Accepted Payment Currency: USD, EUR, JPY, CAD, AUD, HKD, CNY;
Accepted Payment Type: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash;
Language Spoken: English, Chinese.
