Mini 220V 380V VFD Frequency Inverter Variable Frequency Drive

Basic Information
Place of Origin: China
Brand Name: STABLECU
Certification: CE, ISO9001, FCC, ROHS
Model Number: ST-3002S0.75G
Minimum Order Quantity: 1 pcs
Packaging Details: 1pcs/Polybag,100pcs/big polybag, 300pcs/ctn
Delivery Time: 5-8 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000 pcs per month
Material: PC And ABS Color: Gray
Power: 0.75KW Output Type: Single,Triple
Key Words: Micro Drives Output Frequency: 0-300 HZ
Voltage: 220V/380V Control Mode: V/F Control
High Light:

380V VFD Frequency Inverter

,

Mini VFD Frequency Inverter

,

Triple Output VFD Frequency Inverter

0.75 Mini Variable Frequency Drive 220V 380V VFD Frequency Inverter



Description of variable frequency drive

St300 series inverters have a more refined and slim appearance, which allows customers to rationally plan their installation space. Generally, it is used to control asynchronous motors. It is a reliable and stable product that provides an ideal solution for controlling motors on a variety of occasions. There is one-phase 220v input, three-phase 220v output, or three-phase 380v output that are all available with this series.

Interface with hardware

1. The two analog inputs (AI1, and AI2), the current (0-20mA), and the voltage (0-10V) are both available

2. Dual analog output is provided (AO1, AO2), current (0-20mA), and voltage (0-10V).

3. There are six switch inputs (X1, X2, X3, X4, X5, X6)

4. Y1 is the high-speed pulse output. DI is the high-speed pulse input

5. Power terminal with a 24V output voltage

6. Support for the Modbus protocol, RTU mode, and communication port 485

The hardware features include

1. In the industry of outsourcing factories, there are well-known companies such as Jingli, Guide, etc.

2. ST310 series brakes with 0.75-22KW built-in, 30-110KW optional built-in, and 132-450KW optional built-in

3. ST310 (0.75-3.7KW)/ST300/ST200 (0.75-2.2KW), 5.5*37KW STAR module; above 45KW, Infineon modules are used.

4. The following electronic materials are available: ST, ON, Avago, Aceinna, Toshiba, and other international brands

5. There are three anti-paints: Brand: Peters, Germany

6. Texas Instruments, TI chip

7. Compared with oil-bearing fans, ball fans are wear-resistant and last longer

8. Brand: Zeasset electrolytic capacitor

9. Brands: Fenghua, Guoju, Houshen

10. The panel knob is an encoder knob with high precision, 360° step-less speed regulation, and a button (select 0.01-10.00Hz when moving one grid).

Details image of variable frequency drive

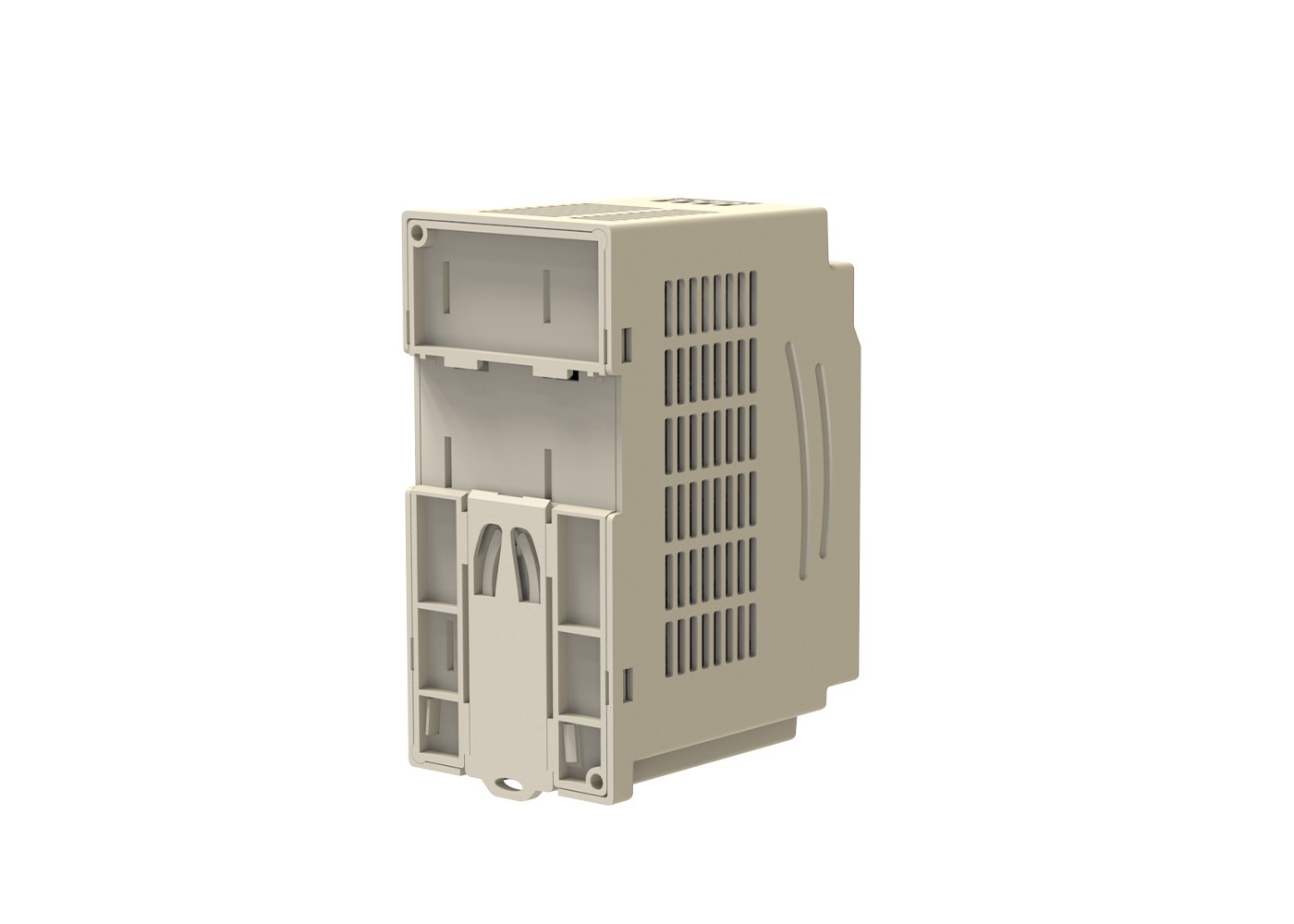

Mini 220V 380V VFD Frequency Inverter Variable Frequency Drive 0

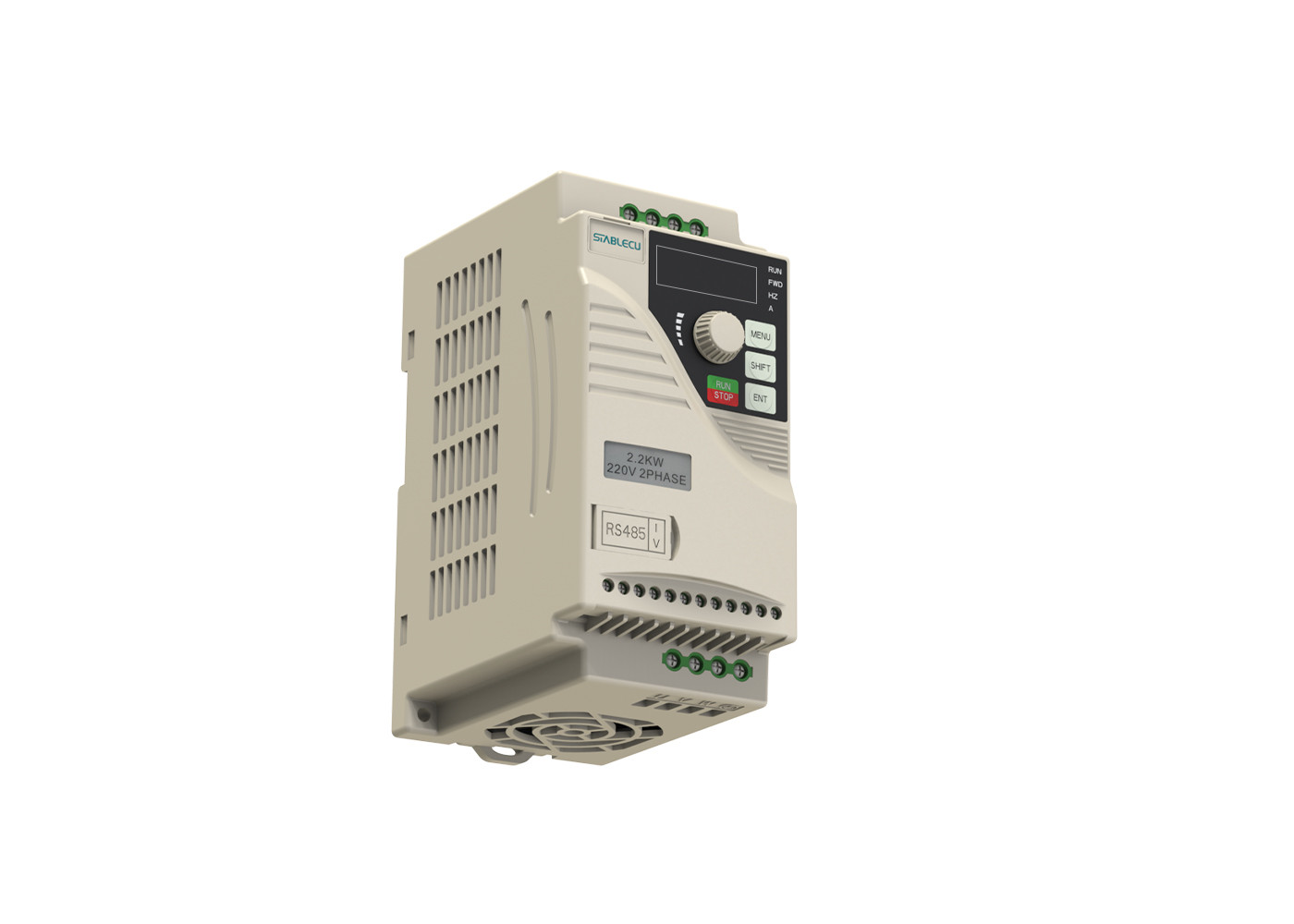

Mini 220V 380V VFD Frequency Inverter Variable Frequency Drive 1

Application for variable frequency drive

It's widely used in motors, water pumps, ball grinding mills, blenders, horizontal knitting machines, draught fans, conveyors, cnc machine tools, etc.

Mini 220V 380V VFD Frequency Inverter Variable Frequency Drive 2
