| Place of Origin: | China |
|---|---|
| Brand Name: | STABLECU |
| Certification: | CE, ROHS, ISO9001,FCC |
| Model Number: | ST310-4T0.75GB |
| Minimum Order Quantity: | 1PCS |
| Packaging Details: | 1pcs/Polybag,100pcs/big polybag, 300pcs/ctn |
| Delivery Time: | 5-8 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000 pcs per month |
| Material: | ABS+PC | Power: | 0.75KW |
|---|---|---|---|
| Voltage: | 380V | Phase: | 3 Phase |
| Color: | Huawei Gray | Type: | AC/AC Converters |
| IGBT: | Infineon | Usage: | AC Motor |
| High Light: | AC Motor 3 Phase Frequency Converter,VF Control 3 Phase Frequency Converter,0.75KW Variable Frequency Inverter |
||

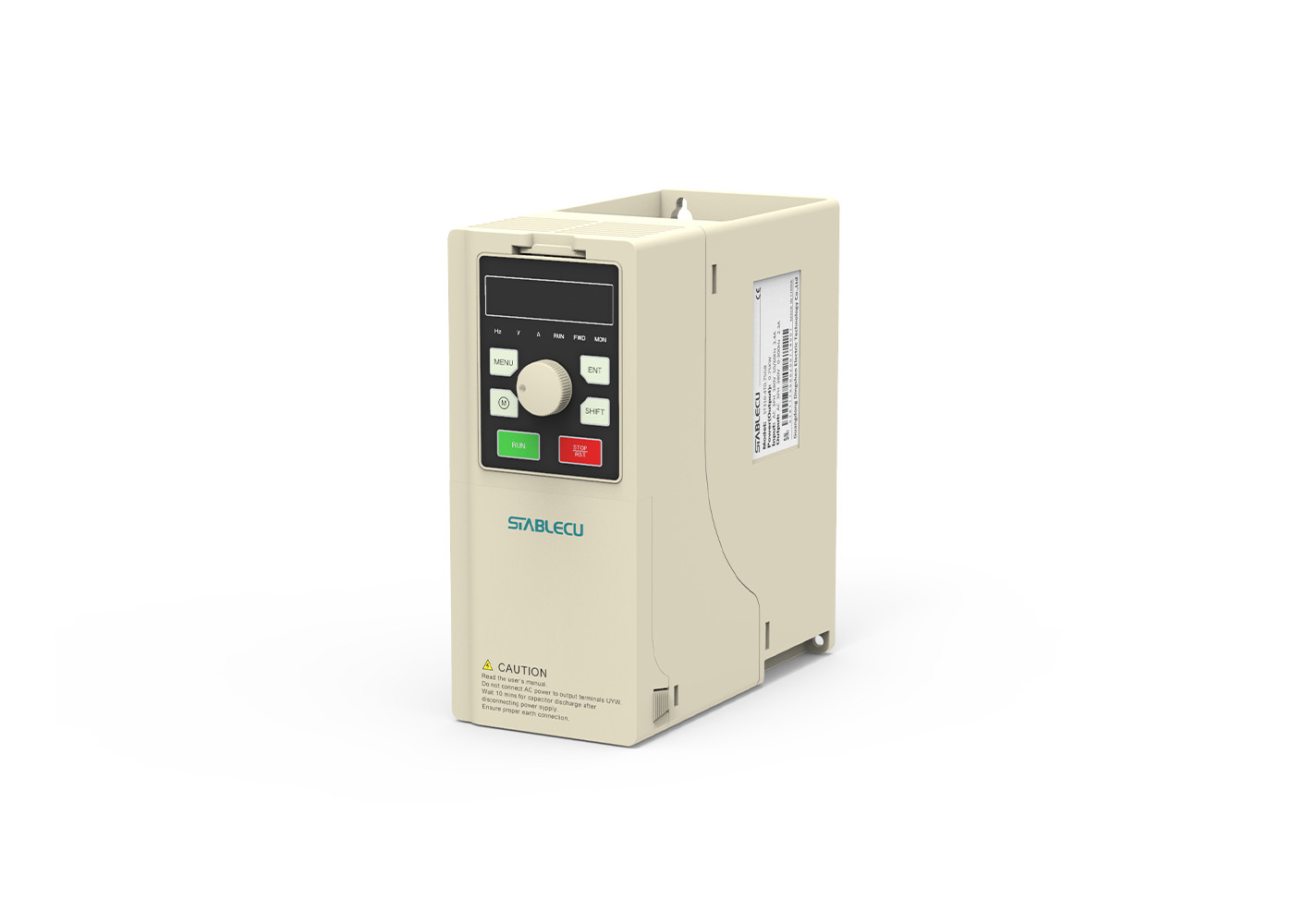

0.75KW To 110kw 3 Phase Output Frequency Converter For AC Motor
Quick details of frequency inverter
Rated Power: 0.75kw
Rated Voltage: 3 phase 380v
Rated Frequency: 50hz/60hz
Product Size: 80mm*185.5mm*167.5mm
Weight: 1.5kg
Input: 50/60hz 3.4A
Output:0-300hz 2.3A
Application: Printing industry, packing industry, etc.
Control Mode; V/F Control
Design of structural components for frequency inverter
An independent cooling air duct (full series)
Benefits include:
(1) The air duct can be isolated to prevent dust, water mist, and other harmful substances from entering the interior.
(2) No obstruction in the air duct, strong wind pressure, and good heat dissipation.
(3) Easily disassembled, easy cleaning, and replacement: air inlet fan design. (It is not possible to disassemble fans below 3.7kw, but it is possible to disassemble fans between 5.5kw and 11kw.)
Humanized design
(1) Pull-out wiring partition: The partition can be removed during wiring, which is convenient for installation.The partition plate can be inserted after the wires have been connected to maintain an even separation between them.
(2) To make the installation of the electrical cabinet more convenient and fast, the bottom of the low-power machine is matched with the installation dimension drawing, and the whole series is matched with a 1/1 scale paper shell template for installation holes.
(3) Panel extension: detachable panel, multi-angle installation, RJ45 interface (network port), can be connected directly via standard network cable, the interface is firm, and transmission distance is long (500m).
Operation panel of frequency inverter
| Mark | Key Name | Function |
| MENU | Program/Exit key |
1. Enter or exit the programming state 2. Modify the data and abandon the storage 3. Switch fault display to stop/running parameter with the SHIFT key, press MENU to switch back to fault display state |
| ENT | Identify key |
1. Edit function code parameters 2. Data storage confirmation 3. View the single group of parameters circularly |
| M | Multi-function key | Switch selection according to function |
| SHIFT | The shift key |
1. Move the editing bit of function parameters 2. Move the data editing bit 3. Switch the display parameters of the operation panel under shutdown/running state |
| Increase Decrease | Add keys clockwise | In shutdown/operation state, the frequency value increases |
| Increase Decrease | Countercloc kwise decrease key | The frequency value decreases under shutdown/running state |
| RUN | Run key |
1. Long press the 3S operation panel to start the driver in the given mode 2. Long press 3S to set parameters, and then start the driver for parameters self-learning |
| STOP/AST | Stop/reset key |
1. Press the button for 1S to report the fault and reset the fault after abnormal shutdown 2. Press for 1S to control the drive shutdown under the given mode of operation panel operation command |

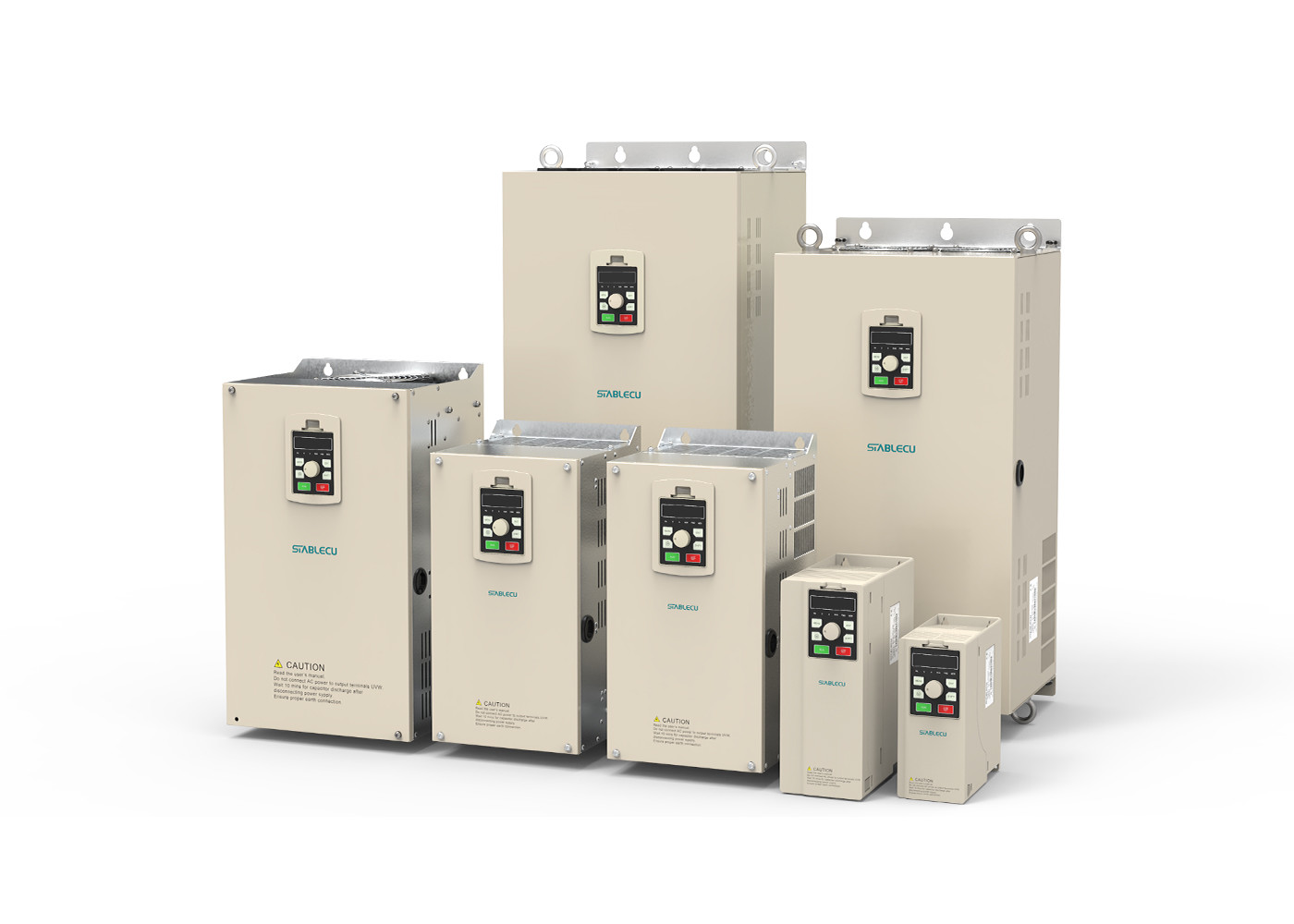

Details images of frequency inverter
Application for frequency inverter
Widely used in air compressors, Oil, Warming and Water Supply, Plastics machines, Mine, Fans and Water pumps, and so on.
