ABS PC 0.75KW Variable Frequency Converter For Three Phase Motor

Basic Information
Place of Origin: China
Brand Name: STABLECU
Certification: CE, ROHS, ISO9001,FCC
Model Number: ST310-4T0.75GB
Minimum Order Quantity: 1PCS
Price: $108-$128
Packaging Details: 1pcs/Polybag,100pcs/big polybag, 300pcs/ctn
Delivery Time: 5-8 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000 pcs per month
Material: ABS+PC Power: 0.75KW
Voltage: 380V Phase: 3 Phase
Color: Huawei Gray Type: AC/AC Converters
IGBT: Infineon Aoolication: Industrial Machinery
High Light:

0.75KW Variable Frequency Converter


Three Phase Motor Variable Frequency Converter

0.75KW Frequency Converter Variable Speed Drive For Three Phase Motor


Quick details for frequency converter

Rated Power: 0.75kw

Rated Voltage: 3 phase 380v

Rated Frequency: 50hz/60hz

Product Size: 80mm*185.5mm*167.5mm

Weight: 1.5kg

Input: 50/60hz 3.4A

Output:0-300hz 2.3A

Application: Printing industry, packing industry, etc.

Control Mode; V/F Control

Structural design of frequency converter

Independent cooling air duct (full series)


(1) Isolation: prevent dust, water mist, and other harmful substances from entering the interior through the air duct.

(2) Flowability: no obstruction in the air duct, strong wind pressure, good heat dissipation performance.

(3) Easy maintenance: air inlet fan design, can be directly disassembled separately, convenient cleaning, and replacement. (fans below 3.7kw have a long life and cannot be disassembled, and 5.5kw-11kw can be disassembled)

Humanized design

(1) Pull-out wiring partition: The partition can be removed when wiring, which is convenient for installation. After connecting the wires, insert the partition plate to evenly separate the wires.

(2) Installation dimension: The bottom of the low-power machine is matched with the installation dimension drawing, and the whole series is matched with a 1/1 scale paper shell template for installation holes, so as to realize more convenient and fast installation of the electrical cabinet.

(3) Panel extension: detachable panel, multi-angle installation design, RJ45 interface (network port), can be directly connected through standard network cable, the interface is firm, and the transmission distance is long (500m)

Operation Panel for frequency converter

Mark Key Name Function
MENU Program/Exit key

1. Enter or exit the programming state

2. Modify the data and abandon the storage

3. Switch fault display to stop/running parameter with the SHIFT key, press MENU to switch back to fault display state

ENT Identify key

1. Edit function code parameters

2. Data storage confirmation

3. View the single group of parameters circularly

M Multi-function key Switch selection according to function
SHIFT The shift key

1. Move the editing bit of function parameters

2. Move the data editing bit

3. Switch the display parameters of the operation panel under shutdown/running state

Increase Decrease Add keys clockwise In shutdown/operation state, the frequency value increases
Increase Decrease Countercloc kwise decrease key The frequency value decreases under shutdown/running state
RUN Run key

1. Long press the 3S operation panel to start the driver in the given mode

2. Long press 3S to set parameters, and then start the driver for parameters self-learning

STOP/AST Stop/reset key

1. Press the button for 1S to report the fault and reset the fault after abnormal shutdown

2. Press for 1S to control the drive shutdown under the given mode of operation panel operation command

Details Images of frequency converter

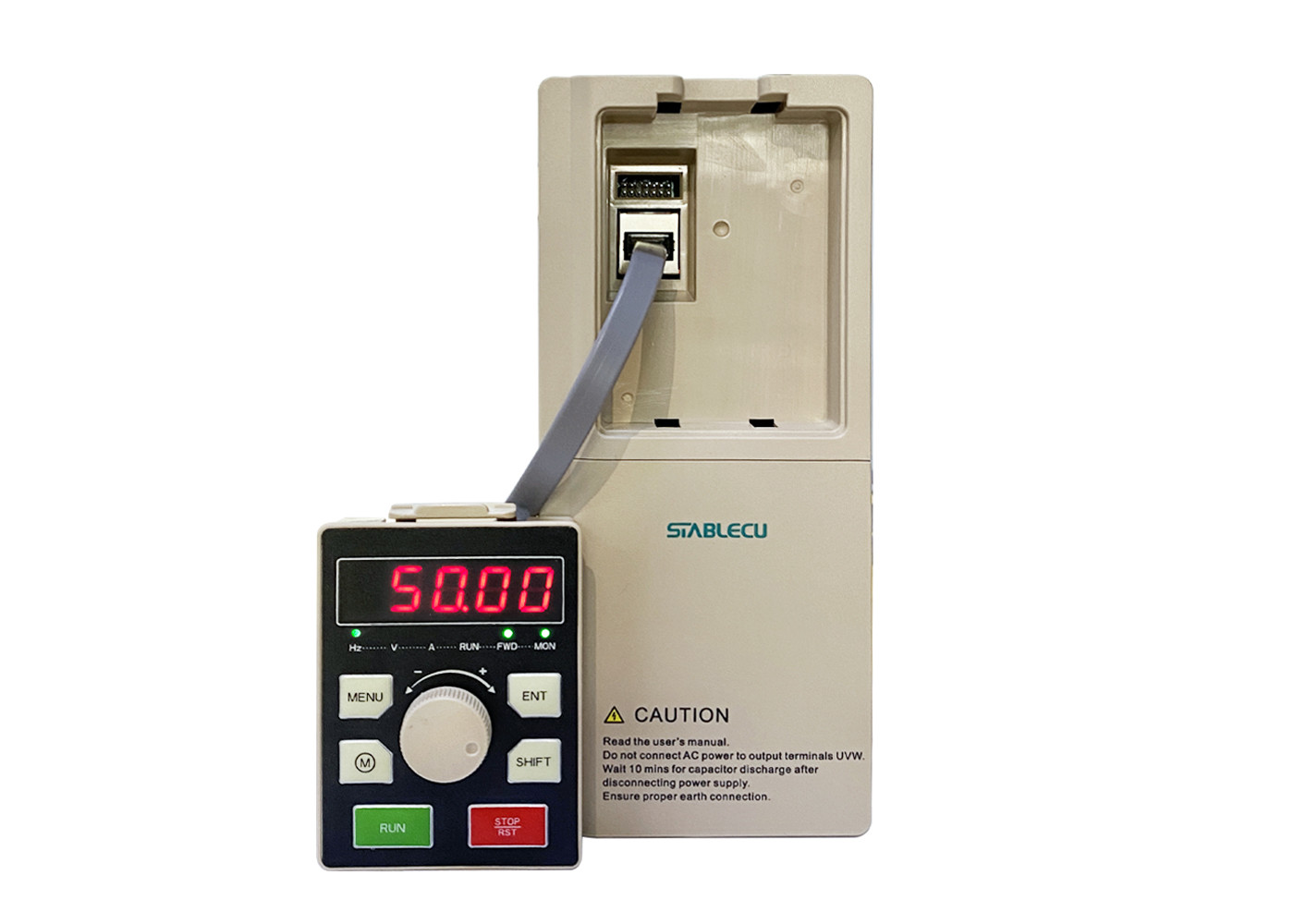

ABS PC 0.75KW Variable Frequency Converter For Three Phase Motor 0

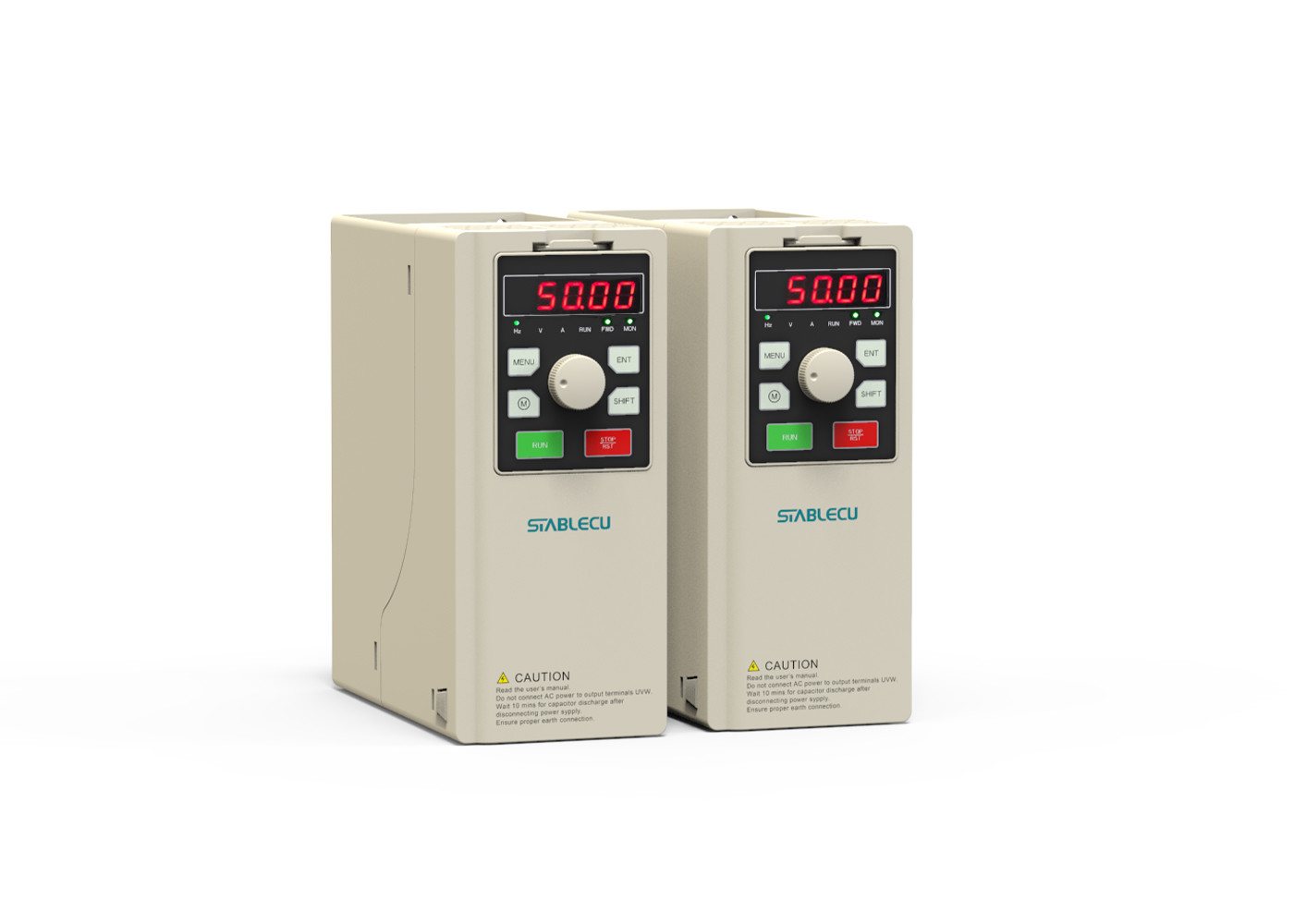

ABS PC 0.75KW Variable Frequency Converter For Three Phase Motor 1

Application for frequency converter

Widely used in air compressors, sites, factories, waterworks, central air conditioning water systems, metal processing, shipping mall escalators, farms, machine tools, automation equipment, oil, warming and water supply, Plastics machines, mines, Fans, and Water pumps, so on.

ABS PC 0.75KW Variable Frequency Converter For Three Phase Motor 2
