3 Phase AC Variable Frequency Drive Inverter 5.5KW 7.5KW For Industric Machinery

Basic Information
Place of Origin: China
Brand Name: STABLECU
Certification: CE
Model Number: ST310-45.5GB
Minimum Order Quantity: 1PCS
Price: $155-$166
Packaging Details: 1pcs/Polybag,100pcs/big polybag, 300pcs/ctn
Delivery Time: 5-8 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000 pcs per month
Material: ABS+PC Power: 5.5KW
Voltage: 380V Phase: 3 Phase
Color: Huawei Gray Type: AC/AC Converters
Apply For: Industric Machinery Control Mode: V/F Control
High Light:

AC Variable Frequency Drive Inverter


3 Phase Variable Frequency Drive Inverter


5.5KW Variable Frequency Drive Inverter

5.5KW 7.5KW 11KW 3 Phase AC Variable Frequency Drive Inverter


Description of frequency inverter

ST310 series is a high-performance, multi-functional inverter for asynchronous motors, supports Modbus protocol, and RTU mode, and is easy to operate. We supply a majority of inverters ranging from 0.75kw to 450kw ( voltage optional 220v 380v 480v, single/ three-phase).

Hardware design of frequency inverter

Hardware Interface

1. Analog input two (AI1, AI2), current (0-20mA), voltage (0-10V)
2. Analog output two (AO1, AO2), current (0-20mA), voltage (0-10V)
3. Switch input six (X1, X2,X3, X4,X5, X6)
4. Switching output three collector output Y1, relay output Ra-Rb-RC, TA-TC
5. High-speed pulse input DI, high-speed pulse output Y1
6. One 24V output power terminal
7. Communication port 485, support Modbus protocol, RTU mode

Hardware Feature:

1. Outsourcing factories: Well-known companies in the industry Guide, Jingli
2. Braking unit:ST310 series 0.75-22KW built-in, 30-110KW optional built-in, 132-450KW optional external
3. Module:ST310(0.75-3.7KW)/ST300/ST200 0.75-2.2KW single tube with core energy; 5.5~37KW STAR module; Above 45KW, Infineon module is used. Some electronic materials: ST, ON, Avago, Aceinna, Toshiba, and other international brands
4. Three anti-paint:Brand: Peters, Germany
5. Chip: TI, Texas Instruments
6. Cooling fan: ball fan, wear resistance, longer life than oil-bearing fan
7. Electrolytic capacitor:Brand: Zeasset
8. Patch resistance:Brand: Fenghua, Guoju, Houshen
9. Panel knob: adopts encoder knob, high precision, 360° step-less speed regulation, with button (select 0.01-10.00Hz when moving one grid).

Quick details of frequency inverter

Model ST310-4T5.5GB
Rated Voltage 3 phase AC 220V-480V
Output Frequency Range 0-300hz
Control Mode V/F Control
Product Name AC Drive
Input Voltage 220V-480V
Input Frequency 50/60HZ
Max Output Frequency 3000HZ

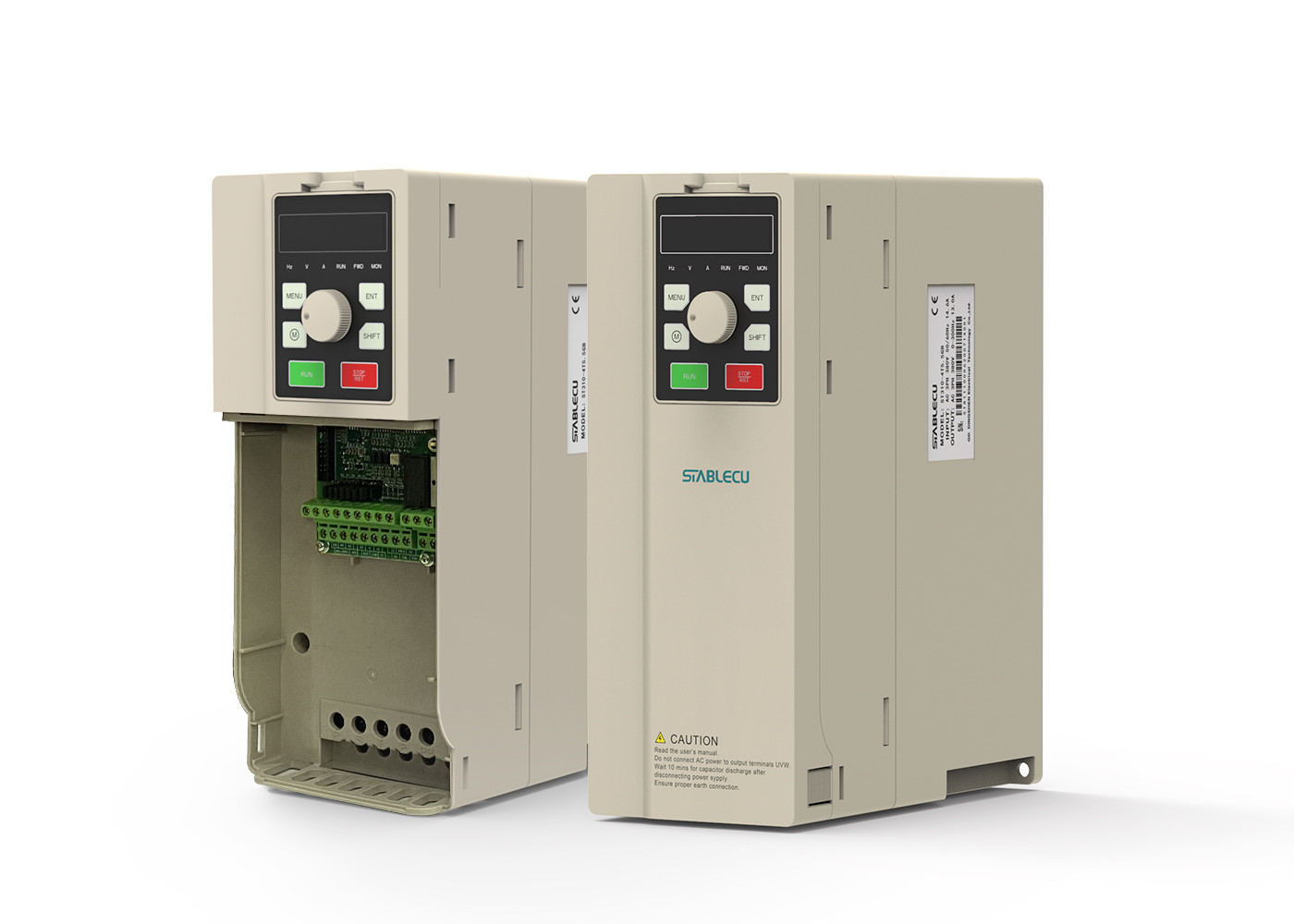

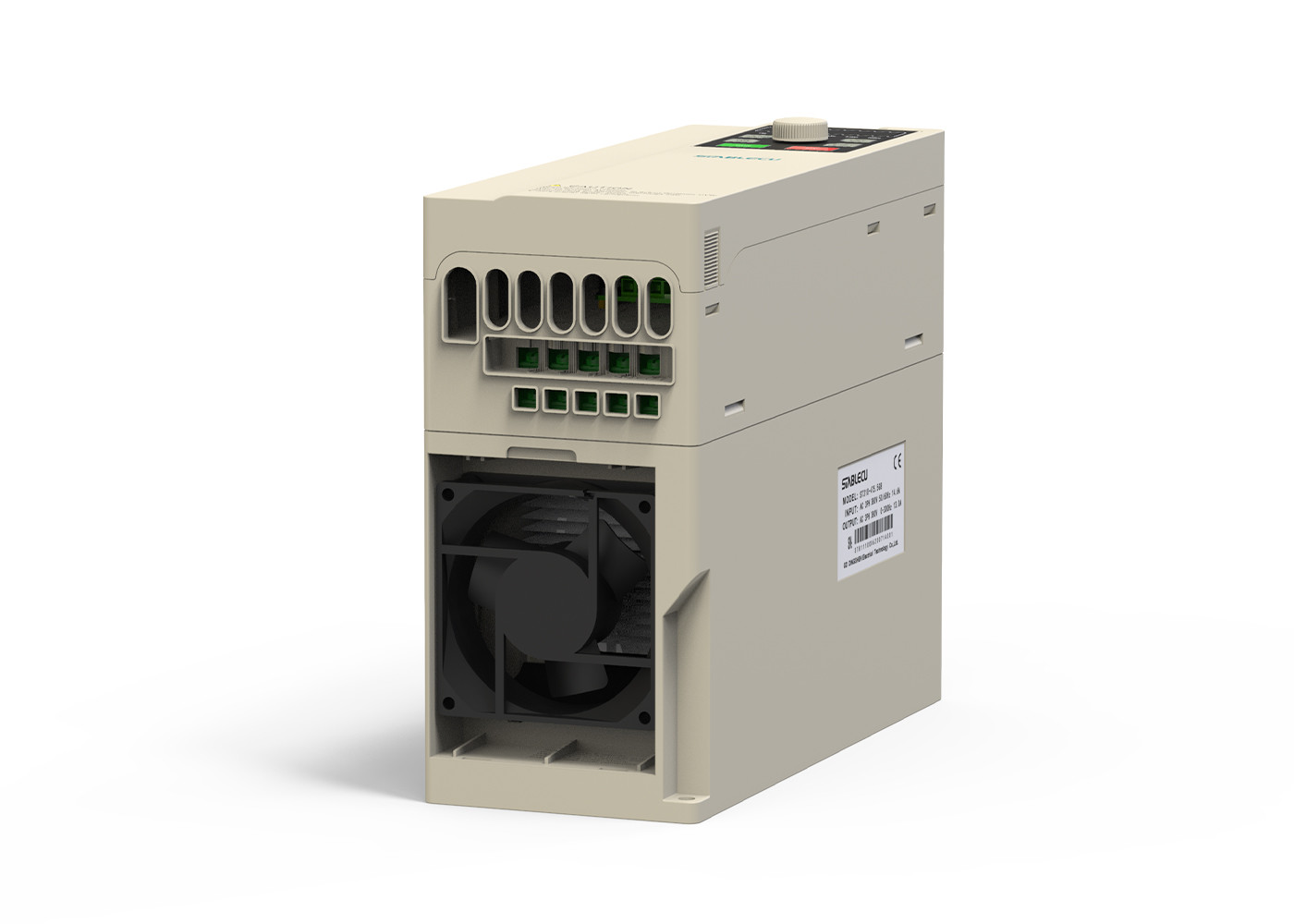

Details image of frequency inverter

3 Phase AC Variable Frequency Drive Inverter 5.5KW 7.5KW For Industric Machinery 03 Phase AC Variable Frequency Drive Inverter 5.5KW 7.5KW For Industric Machinery 13 Phase AC Variable Frequency Drive Inverter 5.5KW 7.5KW For Industric Machinery 2

Application of frequency inverter

Textile machinery, food machinery, heavy industrial equipment, plastic machinery, constant pressure water supply, printing and packaging, centrifuges, energy-saving renovation, and other environmental protection equipment.

3 Phase AC Variable Frequency Drive Inverter 5.5KW 7.5KW For Industric Machinery 3


1. Who are we?
We are a manufacturer based in Guangdong, China, start from 2009, sell to Domestic Market(100.00%). There are a total of about 201-300 people in our office.

2. How can we guarantee the quality?
Always a pre-production sample before mass production; Always final Inspection before shipment.

3. What can you buy from us?
Ultrasonic Generator, PLC/Motion Controller, Servo Motor And Stepper Motor, Frequency Converter, Automation System Development And Complete Set Of Electric Box.

4. Do you offer customization services?
Yes, we can customize the products according to your requirements. Please send us an inquiry, your inquiry will be replied within 12 hours.

5. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, DDP, DDU, Express Delivery;
Accepted Payment Currency: USD, EUR, JPY, CAD, AUD, HKD, CNY;
Accepted Payment Type: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash;
Language Spoken: English, Chinese.
