0.75KW To 450KW Variable Frequency Drive Inverter 380V Three Phase Converter

Basic Information
Place of Origin: China
Brand Name: STABLECU
Certification: CE, ROHS, ISO9001,FCC
Model Number: ST310-4T0.75GB-450G
Minimum Order Quantity: 1PCS
Price: To be negotiated
Packaging Details: 1pcs/Polybag,100pcs/big polybag, 300pcs/ctn
Delivery Time: 5-8 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000 pcs per month
Material: ABS+PC Power: 0.75KW-450KW
Voltage: 380V Phase: 3 Phase
Color: Huawei Gray Type: AC/AC Converters
IGBT: Infineon Warranty: 18 Months
High Light:

450KW Variable Frequency Drive Inverter


Three Phase Variable Frequency Drive Inverter

0.75KW To 450KW Variable Frequency Drive 380V Three Phase Converter


Quick details of variable frequency drive

Rated Power: 0.75kw-450kw
Rated Voltage: 3 phase 380v
Rated Frequency: 50hz/60hz
Product Size: 80mm*185.5mm*167.5mm-810mm*1234mm*430mm
Weight: 1.5kg-225kg
Input: 50/60hz 3.4A-770A
Output:0-300hz 2.3A-755
Application: Printing industry, packing industry, etc.
Control Mode; V/F Control

Introduction of variable frequency drive

With the continuous development of industrial automation, inverter as a key device to control motor speed has
become an indispensable device in many industrial fields. Our ST310 inverter, which adopts V/F control mode,
is suitable for three-phase asynchronous motors and can operate at 220V, 380V and 480V. Moreover, the ST310
inverter offers extreme flexibility and reliability for various industrial equipment applications in the power range of
0.75KW-450KW. The control mode of ST310 inverter adopts V/F control method, which can adjust the motor speed
as needed, thus achieving higher efficiency and more accurate control. In addition, the ST310 inverter has advanced
protection functions, including overload, overvoltage, undervoltage and overheating, which can ensure the reliability and
safety of the equipment.Our ST310 inverters are widely used in various industrial equipment fields, such as industrial
production lines, ventilation systems, pumps and fans. Our inverters have been proven to improve equipment performance
and energy efficiency in practical applications and have received positive feedback from many customers.

Structural design of variable frequency drive

Shell material (full series)
ABS+PC (Polycarbonate and acrylonitrile-butadiene-styrene copolymer and mixture, is a thermoplastic
plastic made from Polycarbonate and acrylonitrile-butadiene-styrene copolymer (ABS), combining the
excellent properties of both materials)
High-temperature resistance, flame retardant (thermal deformation temperature 80-125°)
High flexibility and impact resistance
High UV resistance and long service life
Thin, samll and exquisite volume (All series)
Advantages: save space and save installation costs.
① Internal design: there is an independent circuit designer, using 4-layer PCB board, electronic components,
integrated circuits, and using the most reasonable design, so that the PCBA has no flying wires (jumpers) and
is small in size.
② Structural design: There are independent structural development engineers, which do not use male molds,
and are completely independent and independent research and development combined with heat dissipation,
easy disassembly and assembly, and aesthetics.

Operation Panel of variable frequency drive

Mark Key Name Function
MENU Program/Exit key

1. Enter or exit the programming state
2. Change the data and abandon the storage
3. Switch fault display to stop/running parameter with the SHIFT key, press MENU to switch back to fault display state

ENT Identify key

1. Edit function code parameters
2. Data storage confirmation
3. View the single group of parameters circularly

M Multi-function key Switch selection according to function
SHIFT The shift key

1. Move the editing bit of function parameters
2. Move the data editing bit
3. Switch the display parameters of the operation panel under shutdown/running state

Increase Decrease Add keys clockwise In shutdown/operation state, the frequency value increases
Increase Decrease Countercloc kwise decrease key The frequency value decreases under shutdown/running state
RUN Run key

1. Long press the 3S operation panel to start the driver in the given mode
2. Long press 3S to set parameters, and then start the driver for parameters self-learning

STOP/AST Stop/reset key

1. Press the button for 1S to report the fault and reset the fault after abnormal shutdown
2. Press for 1S to control the drive shutdown under the given mode of operation panel operation command

Details images of variable frequency drive

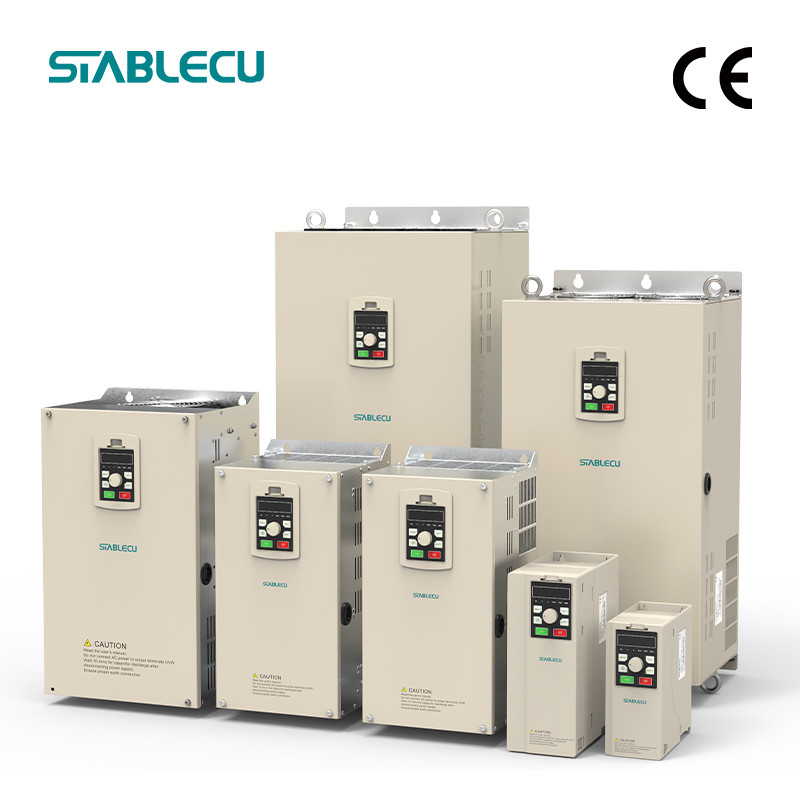

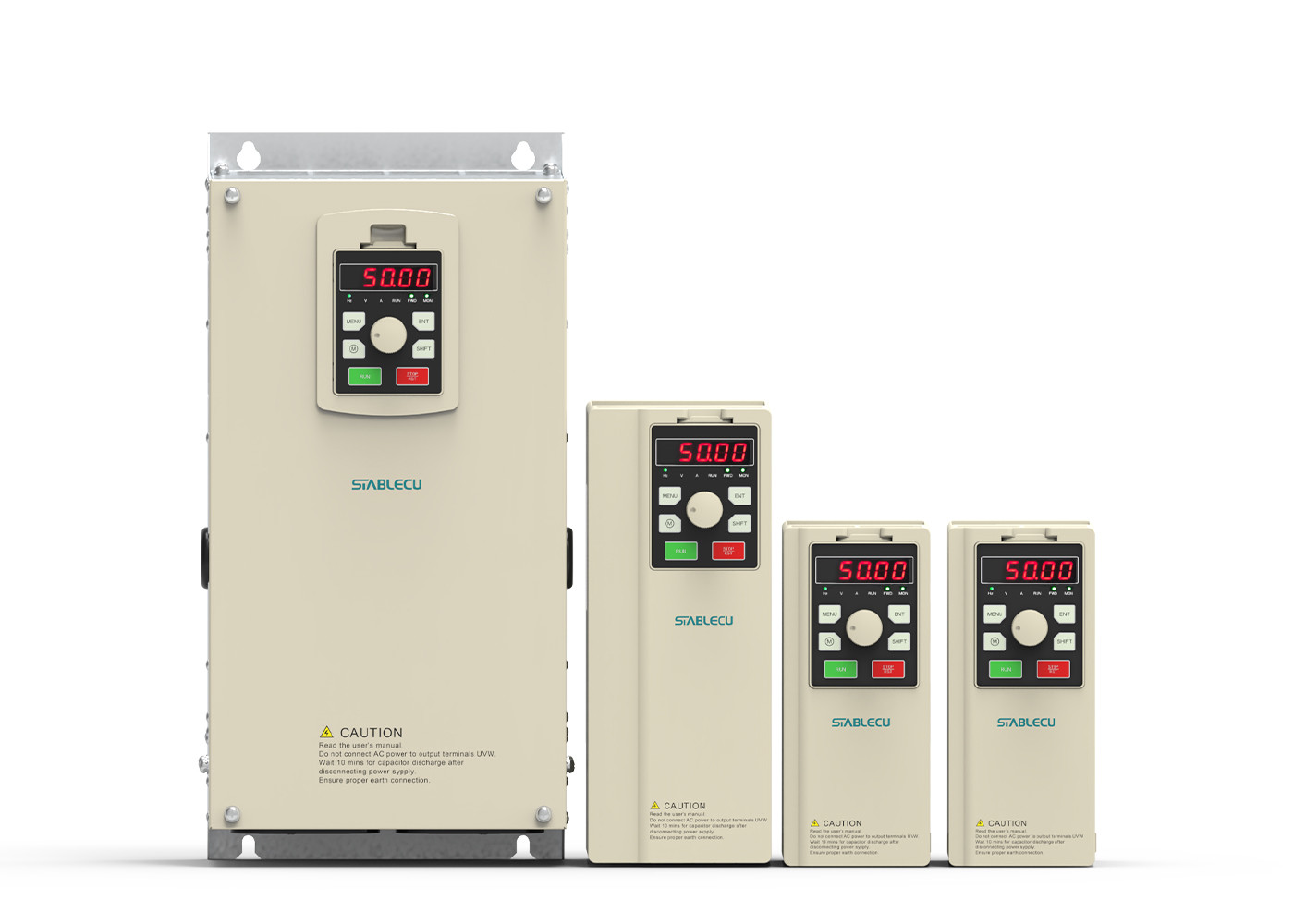

0.75KW To 450KW Variable Frequency Drive Inverter 380V Three Phase Converter 0

0.75KW To 450KW Variable Frequency Drive Inverter 380V Three Phase Converter 1

Application of variable frequency drive

Frequency converters have a wide range of applications and can be used for various types of motor control,
including air conditioning, ventilation, pumps, conveyor belts, mining equipment, compressors, printing machinery,
and more. In short, whether in industrial production lines or in home appliances, inverters play an important role in
helping to control the operation of motors, reduce energy consumption and improve efficiency.

0.75KW To 450KW Variable Frequency Drive Inverter 380V Three Phase Converter 2
