75KW VSD Frequency Inverter Converter 380V For Machine Tool Industry

Basic Information
Place of Origin: China
Brand Name: STABLECU
Certification: CE
Model Number: ST310-4T75G
Minimum Order Quantity: 1PCS
Packaging Details: 1pcs/Polybag,100pcs/big polybag, 300pcs/ctn
Delivery Time: 5-8 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Material: ABS+PC Power: 75KW
Voltage: 380V Phase: Triple Phase
Color: Huawei Gray Type: AC/AC Inverter
Control Mode: V/F Control Application: Water Pump
High Light:

75KW VSD Frequency Inverter

,

380V VSD Frequency Inverter

75KW Frequency Inverter Converter 380V VSD For Machine Tool Industry



Description of variable frequency drive

Independent cooling air duct design
Effectively prevent external pollution from entering the product, causing corrosion and short circuit of PCB, components, etc.
To improve the stability of the product, the cooling fan with long life and large air volume is selected to effectively reduce the temperature rise of the inverter and ensure the reliable and stable operation of the product.
Strict component selection
Select first-class suppliers in the industry for capacitors, fans, electronic components, PCB boards, etc. to ensure the health and stability of the product life cycle.
Unique conformal paint
The three-proof paint adopts a special process to increase the environmental resistance of the circuit board and comprehensively improve the protection ability of the veneer. Special industries can be customized according to the site environment
Brand new design
A new generation of IGBT module technology is selected, with high junction temperature, high power density, smaller machine size, and saving installation space.
EMC/EMI design is strict
After a variety of equipment tests, the product is guaranteed to run stably in various environments with minimal interference to the entire environment.
Wide voltage design
In line with international standards, it meets the needs of 380-480V three-phase power grids including Europe, North America, India, etc.

Parameters of variable frequency drive

Model ST310-75G ST310-90G ST310-110G
Specific Parameters
Weight 40KG
Applicable Motor (kw) 75 90 110
Input Current (A) 157 160* 192*
Output Current (A) 150 176 210
Breaker (A) 225 250 315
Contactor (A) 185 225 265
Brake Unit Standard Built-in
Braking Resistor Power 15KW 18KW 22KW
Resistance/ Ultimate resistance  8(≥5)  5(≥3.3)  5(≥3.3)
Power Input
Rated Voltage 3 Phase 380V
Rated Frequency 50HZ/60HZ
Allow Frequency Fluctuation ±5%
Allow voltage fluctuation Voltage imbalance<3%, distortion rate meets the requirements of 1EC61800-2
Allow voltage fluctuation The constant voltage fluctuation is ±10%, and the short fluctuation is115%~+10%, that is, 323V~528V
Power Output
Output Voltage 3-Phase:0~rated input voltage, error less than ±3%
Output Frequency 0.00~300.00HZ,each unit 0.01HZ
Overload Capacity 150% 60s, 180% 10s, 200% 0.5s

Details image of variable frequency drive

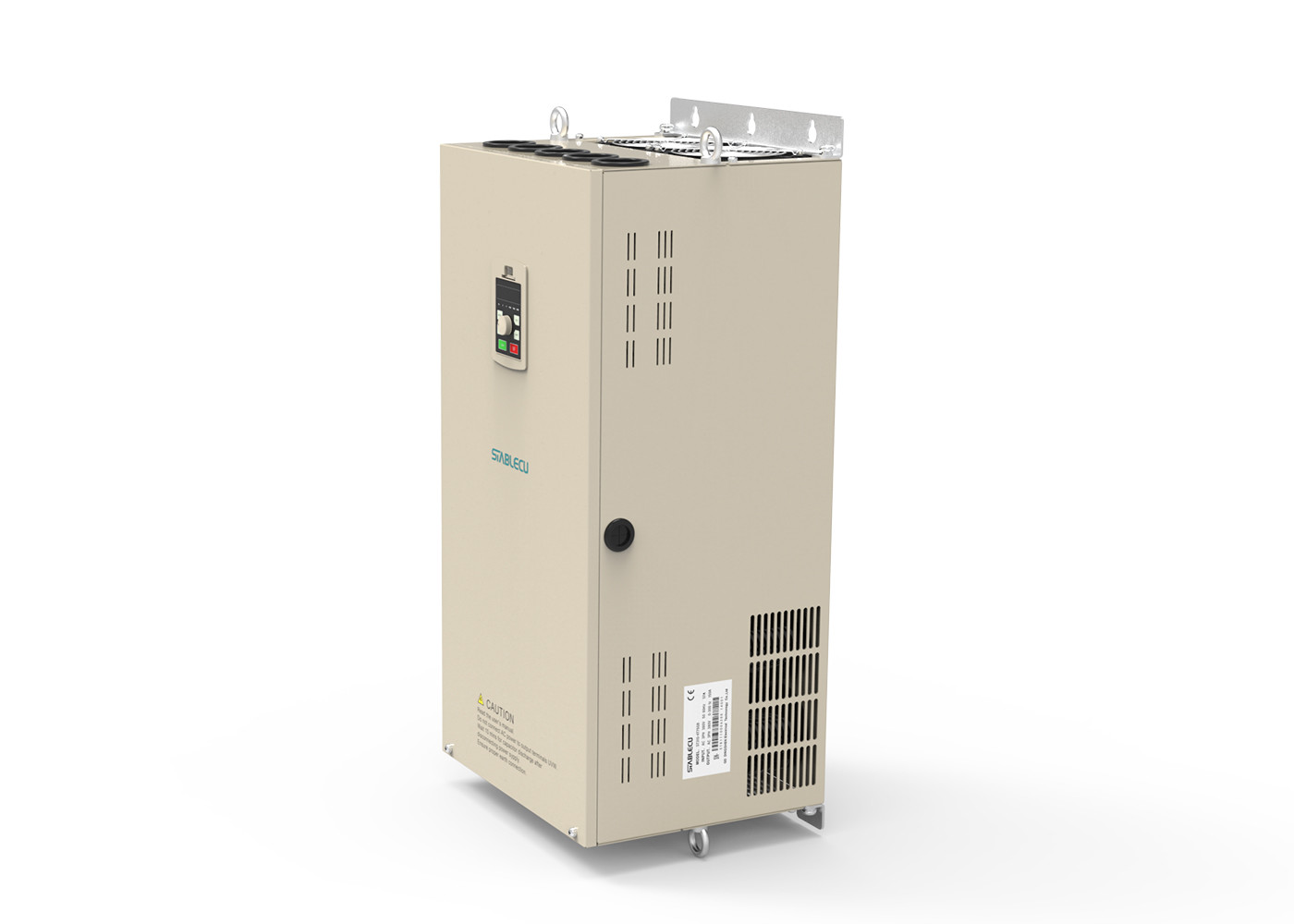

75KW VSD Frequency Inverter Converter 380V For Machine Tool Industry 0

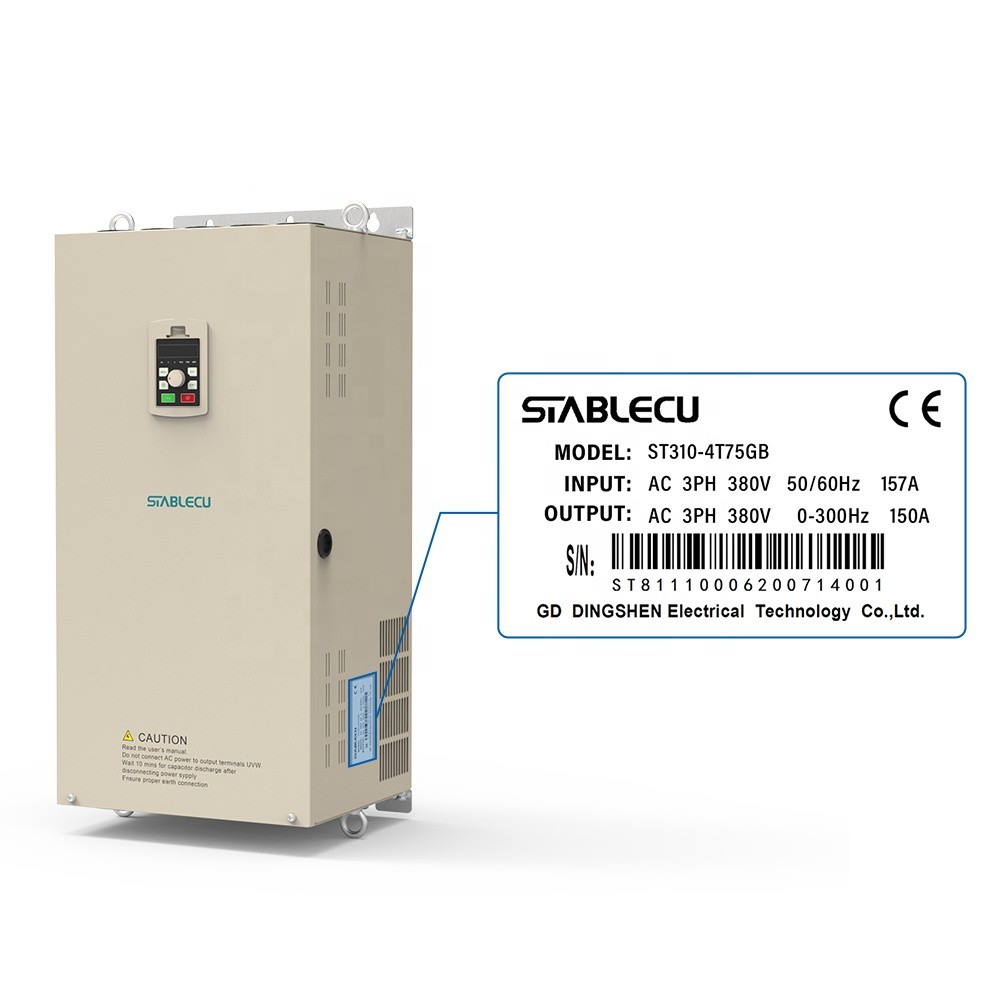

75KW VSD Frequency Inverter Converter 380V For Machine Tool Industry 1

Application fot variable frequency drive

Widely used in the industrial machine tool industry, elevator, crane industry, air compressor industry, paper industry, oil field, plastic industry, metal processing, municipal engineering, textile industry, printing and packaging, industrial mining, machining center, wood processing, cable machinery, Food packaging, electric vehicles, centrifuges, and high-end applications, etc.

75KW VSD Frequency Inverter Converter 380V For Machine Tool Industry 2
