0.75KW 220V 380V Mini Frequency Inverter For Single Triple Phase Motor

Basic Information
Place of Origin: China
Brand Name: STABLECU
Certification: CE, ISO9001, FCC, ROHS
Model Number: ST-3002S0.75G
Minimum Order Quantity: 1 pcs
Packaging Details: 1pcs/Polybag,100pcs/big polybag, 300pcs/ctn
Delivery Time: 5-8 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000 pcs per month
Material: PC And ABS Color: Gray
Power: 0.75KW Output Type: Single,Triple
Key Words: Micro Drives Output Frequency: 0-300 HZ
Voltage: 220V/380V
High Light:

0.75KW Mini Frequency Inverter

,

Triple Phase Mini Frequency Inverter

,

Single Phase Micro Drive VFD

0.75KW 220V 380V Mini Frequency Inverter For Single Triple Phase Motor



Description of frequency inverter

This inverter 300 series is only suitable for single-phase 220v or three-phase 380v asynchronous motors. If your motor load is heavier than 2.2kw, please choose an inverter with higher horsepower than your motor, and choose our other series such as the 310 series inverter.

Warranty: 18 months. If there is an error with the product or an installation problem and you don't know what to do, please contact us.
Good noise control: This product has the advantages of low noise and low electromagnetic interference.

Long life: The shell adopts abs+pc, which has the characteristics of high-temperature resistance, flame retardant, and high ultraviolet resistance. The use of ball fans and independent cooling air duct design makes the heat dissipation performance of the inverter better and prolongs the service life.

Feature:

All-round machine protection
Overcurrent and overvoltage protection
Short circuit protection to ground
IGBT shoot-through protection
Current detection abnormality protection
Relay pull-in abnormality and other protection functions

Other Models of frequency inverter

Model Power Class (KW) Output Current (A) Input Current (A) Adaptation Motor (KW) Normal Voltage (V)
ST300-2S0.75G 0.75 5 5.5  0.75 220
ST300-2S1.5G 1.5 7.5 8.3 1.5 220
ST300-2S2.2G 2.2 10 12 2.2 220
ST300-XT0.75G 0.75 2.3 3.4 0.75 380
ST300-4T1.5G 1.5 3.8 5.0 1.5 380
ST300-4T2.2G 2.2 5.3 6.0 2.2 380

Terminal and Wiring for frequency inverter

Main loop terminal symbol Terminal name and function description
R, S, T Three (220 single phase AC input R, T) phase AC input terminal
U, V, W Three-phase AC output terminal
PE Earthing terminal

Detailed images of frequency inverter

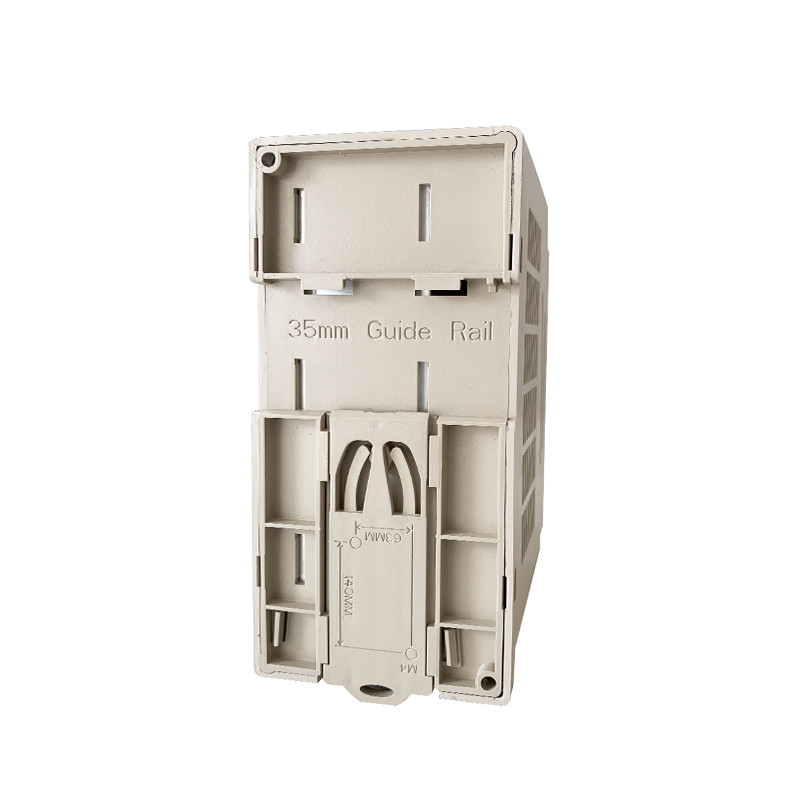

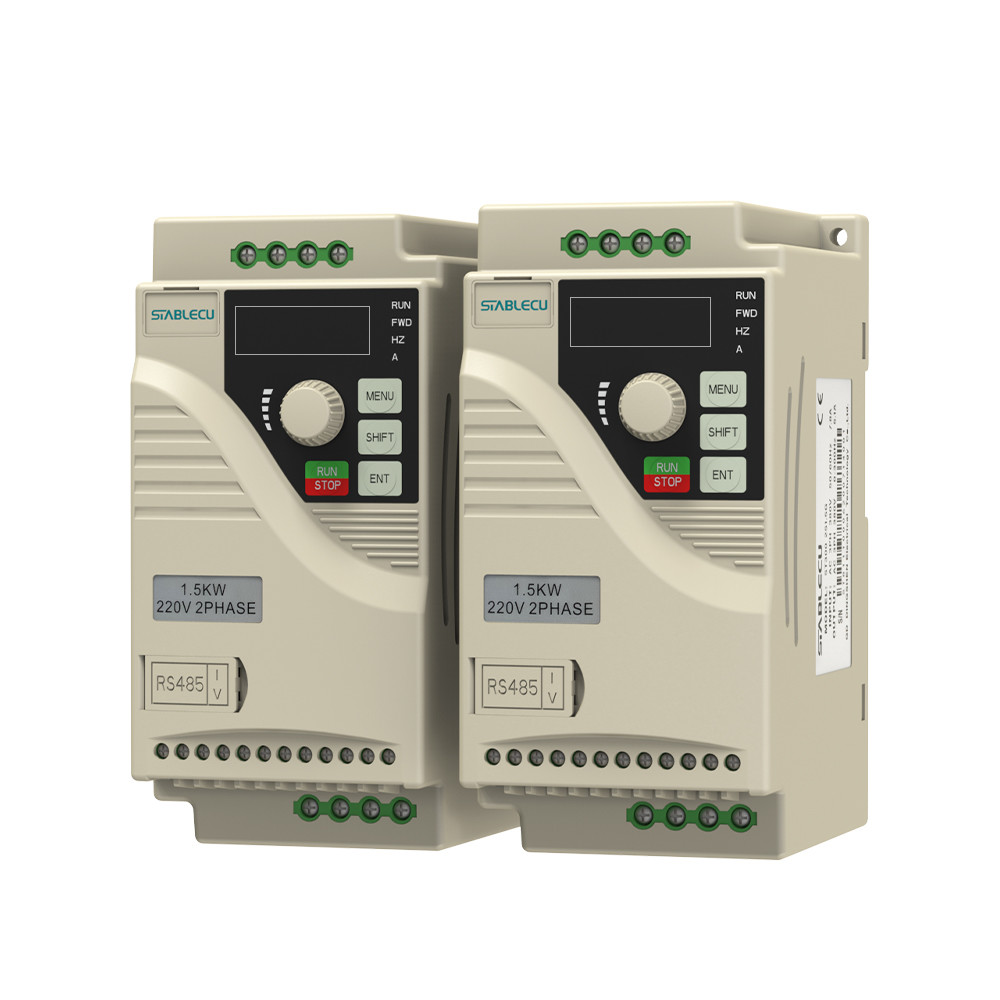

0.75KW 220V 380V Mini Frequency Inverter For Single Triple Phase Motor 0

0.75KW 220V 380V Mini Frequency Inverter For Single Triple Phase Motor 1

0.75KW 220V 380V Mini Frequency Inverter For Single Triple Phase Motor 2

FAQ

1. Who are we?
We are a manufacturer based in Guangdong, China, start from 2009, sell to Domestic Market(100.00%). There are total about 201-300 people in our office.

2. How can we guarantee the quality?
Always a pre-production sample before mass production; Always final Inspection before shipment.

3. What can you buy from us?
Ultrasonic Generator, PLC/Motion Controller, Servo Motor And Stepper Motor, Frequency Converter, Automation System Development And Complete Set Of Electric Box.

4. Do you offer customization services?
Yes, we can customize the products according to your requirements. Please send us an inquiry, your inquiry will be replied within 12 hours.

5. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, DDP, DDU, Express Delivery;
Accepted Payment Currency: USD, EUR, JPY, CAD, AUD, HKD, CNY;
Accepted Payment Type: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash;
Language Spoken: English, Chinese.
