| Place of Origin: | China |
|---|---|
| Brand Name: | STABLECU |
| Certification: | CE |
| Model Number: | ST310-4T75G-110G |
| Minimum Order Quantity: | 1PCS |
| Packaging Details: | 1pcs/Polybag,100pcs/big polybag, 300pcs/ctn |
| Delivery Time: | 5-8 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Material: | ABS+PC | Power: | 75KW-110KW |
|---|---|---|---|
| Voltage: | 380V | Phase: | Triple Phase |
| Color: | Huawei Gray | Type: | AC/AC Inverter |
| Control Mode: | V/F Control | Application: | Water Pump |
| High Light: | 75KW 100 hp variable frequency drive,380V 100 hp variable frequency drive,75KW 100 hp VFD drive |
||
Triple Phase 380V 100HP 125HP 150HP Variable Frequency Inverter
Quick details of frequency converter
Rated Power: 75kw
Rated Voltage: Three-phase 380v
Rated Frequency: 50hz/60hz

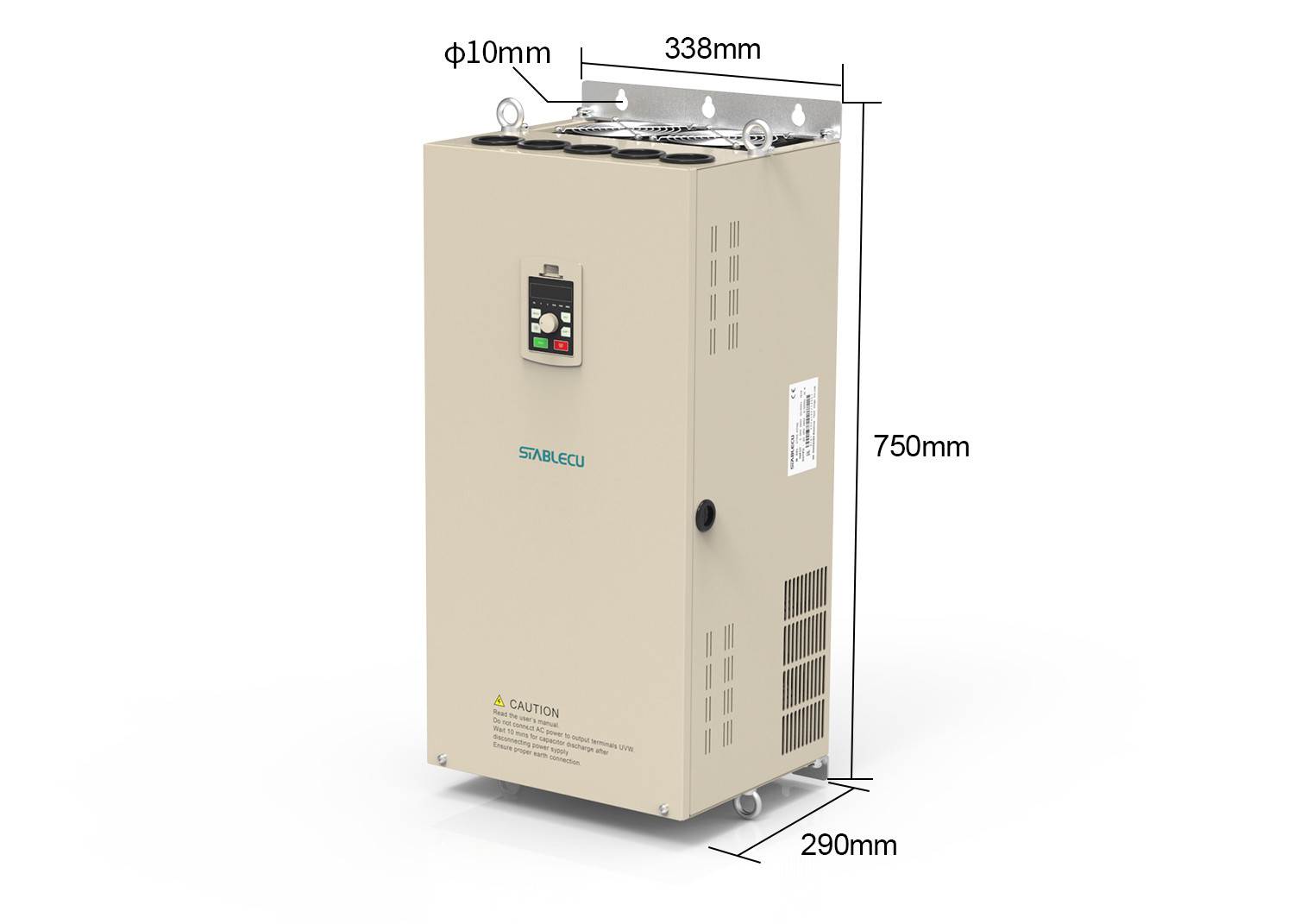

Product Size: 338mm*750mm*290mm
Installation Size: 230mm*730mm
Weight: 40kg
Input: 50/60hz 157A
Output:0-300hz 150A
Description of frequency converter
First of all, choose industrial flame-retardant abs and pc as the material. This material has strong flame retardancy,
high heat resistance, good toughness, and strength, which can effectively prevent the product from deformation and
embrittlement under high temperatures and harsh environments.
Secondly, an independent heat dissipation air duct is made to effectively prevent external dust and oil from entering
the product. On this basis, a fan is installed to effectively reduce the temperature of the inverter. Raw materials
such as components, PCBs, and IGBT are selected from top domestic suppliers to ensure the quality of incoming materials.
More models of frequency converter
| Model | ST310-75G | ST310-90G | ST310-110G |
| Specific Parameters | |||
| Weight | 40KG | ||
| Applicable Motor (kw) | 75 | 90 | 110 |
| Input Current (A) | 157 | 160* | 192* |
| Output Current (A) | 150 | 176 | 210 |
| Breaker (A) | 225 | 250 | 315 |
| Contactor (A) | 185 | 225 | 265 |
| Brake Unit | Standard Built-in | ||
| Braking Resistor Power | 15KW | 18KW | 22KW |
| Resistance/ Ultimate resistance | 8(≥5) | 5(≥3.3) | 5(≥3.3) |
| Power Input | |||
| Rated Voltage | 3 Phase 380V | ||
| Rated Frequency | 50HZ/60HZ | ||
| Allow Frequency Fluctuation | ±5% | ||
| Allow voltage fluctuation | Voltage imbalance＜3%, distortion rate meets the requirements of 1EC61800-2 | ||
| Allow voltage fluctuation | The constant voltage fluctuation is ±10%, and the short fluctuation is115%~+10%, that is, 323V~528V | ||
| Power Output | |||
| Output Voltage | 3-Phase:0~rated input voltage, error less than ±3% | ||
| Output Frequency | 0.00~300.00HZ,each unit 0.01HZ | ||
| Overload Capacity | 150% 60s, 180% 10s, 200% 0.5s | ||
Detailed images of frequency converter
Application of frequency converter
Widely used in factory sites, hotel complexes, central air-conditioning systems, equipment, shopping escalator,
breeding farm, sewage treatment, fire hospital transportation, machine tool equipment, and automation equipment.
