| Place of Origin: | China |
|---|---|
| Brand Name: | STABLECU |
| Certification: | CE |
| Model Number: | ST310-4T45G |
| Minimum Order Quantity: | 1PCS |
| Price: | To be negotiated |
| Packaging Details: | 1pcs/Polybag,100pcs/big polybag, 300pcs/ctn |
| Delivery Time: | 5-8 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Material: | ABS+PC | Power: | 45KW |
|---|---|---|---|
| Voltage: | 380V | IP: | 20 |
| Color: | Huawei Gray | Type: | AC |
| Machine Case: | Aluminum Coated Zinc Plate,cold Rolled Plate Powder Spraying | OEM: | Yes |
| Name: | AC Drive | ||
| High Light: | 3PH 300Hz Pump Frequency Inverter,380V 300Hz Pump Frequency Inverter,380V 300Hz AC Drive VFD Variable Frequency Drive |
||
380V AC Drives Frequency Drive Speed Controller Pump Inverter
Introduction of variable frequency drive
ST310 series inverters are used for three-phase variable speed drives, asynchronous motors
ranging from 0.75kw to 110kW. The frequency converter is durable, easy to debug, and easy to use.
Features:
Independent cooling dust design
Rapid acceleration and deceleration
Tl’S latest high-speed DSP chip is selected
The autonomous vector control algorithm
Specification of variable frequency drive
|
item
|
Frequency Inverter |
| Place of Origin | China |
|
Brand Name
|
STABLECU |
| Model Number | ST-3104T45G |
| Warranty | 18 Months |
| Type | speed driver/AC driver |
| Certification |
CE
|
| Customized | Yes |
| Rated Power | 45kw |
| Nominal Voltage | 380V |
| power phase number | 3 |
| Power | 45kw |
| Input rated voltage and frequency | 3PH AC380V 50/60Hz |
| Allowable voltage range | 380V |
| Output voltage | 380V: 380V-480V |
| Control Mode | Vector Control |
| Output frequency | 0.1~300.0 Hz |
Size of Model of variable frequency drive
| Drive Model | Outline and mounting dimensions(mm) | weight(Kg) | |||||||
| W | H | D | W1 | H1 | D1 | H2 | Mounting holes(d) | ||
| ST310-4T0.75GB | 80 | 185.8 |
|
56 | 174.5 | — | — | 5.0 | 1.5 |
| ST310-4T1.5GB | |||||||||
| ST310-4T2.2GB | |||||||||
| ST310-4T3.7GB | |||||||||
| ST310-4T5.5GB | 100 | 249 | 209 | 70 | 228 | — | — | 6.0 | 4.0 |
| ST310-4T7.5GB | |||||||||
| ST310-4T11GB | |||||||||
| ST310-4T15GB | 192 | 397 | 199 | 150 | 379 | — | — | 7.0 | 12 |
| ST310-4T18.5GB | |||||||||
| ST310-4T22GB | |||||||||
| ST310-4T30G | 257.2 | 466 | 217 | 200 | 448 | — | — | 7.0 | 20 |
| ST310-4T37G | |||||||||
| ST310-4T45G | 315 | 645 | 265 | 230 | 625 | 148 | 575 | 10 | 40 |
| ST310-4T55G | |||||||||
| ST310-4T75G | 338 | 750 | 290 | 230 | 730 | 148 | 680 | 10 | 40 |
| ST310-4T90G | |||||||||
| ST310-4T110G | |||||||||
| ST310-4T132G | 430 | 785 | 345 | 280 | 761 | 132 | 710 | 12 | 75 |
| ST310-4T160G | 540 | 964 | 385 | 350 | 938 | 176 | 881 | 14 | 118 |
| ST310-4T185G | |||||||||
| ST310-4T200G | |||||||||
| ST310-4T220G | |||||||||
| ST310-4T250G | 700 | 1004 | 385 | 520 | 978 | 176 | 922 | 14 | 155 |
| ST310-4T280G | |||||||||
| ST310-4T315G | |||||||||
| ST310-4T355G | 810 | 1234 | 430 | 630 | 1208 | 176 | 1150 | 14 | 225 |
| ST310-4T400G | |||||||||
| ST310-4T450G | |||||||||

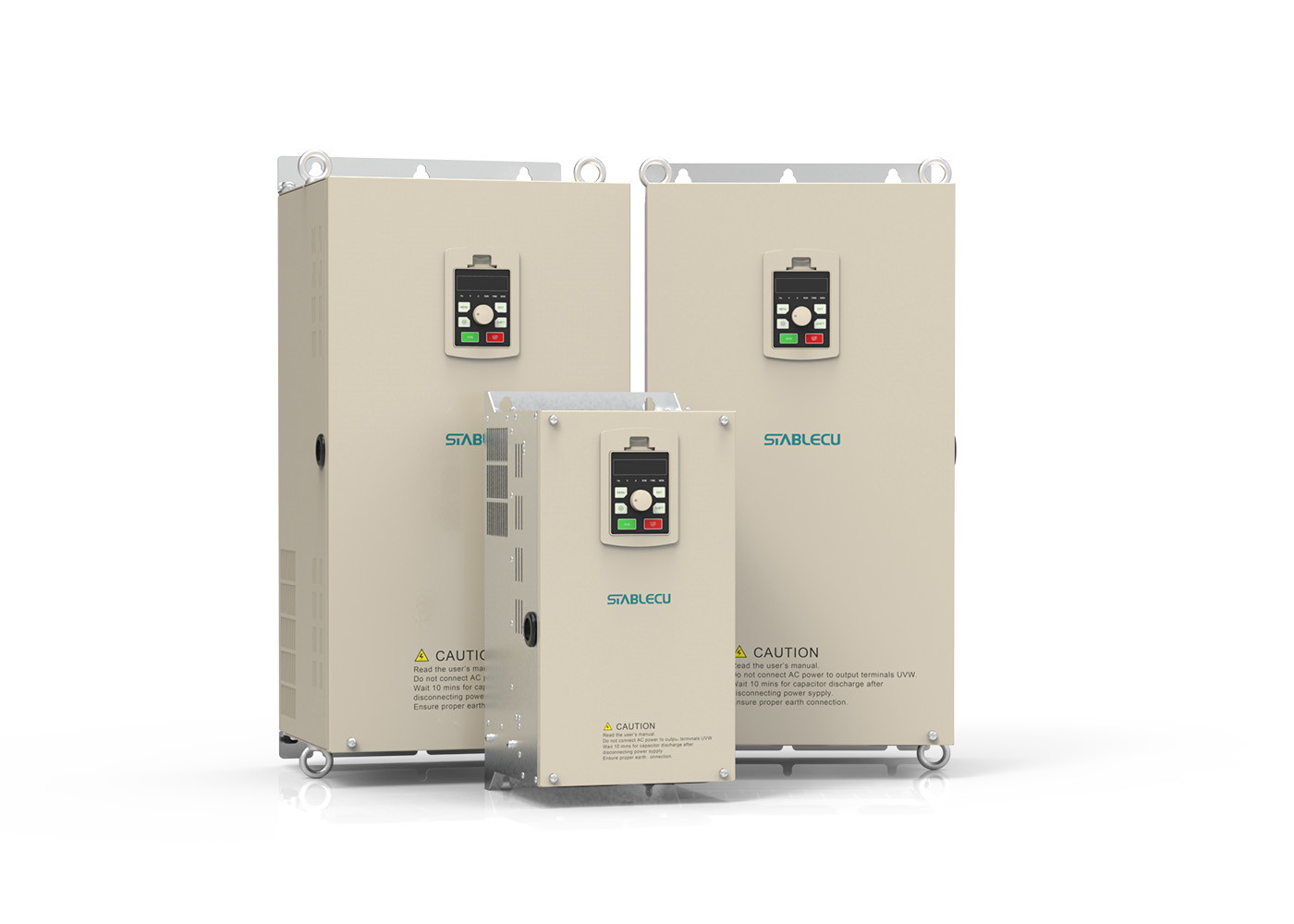

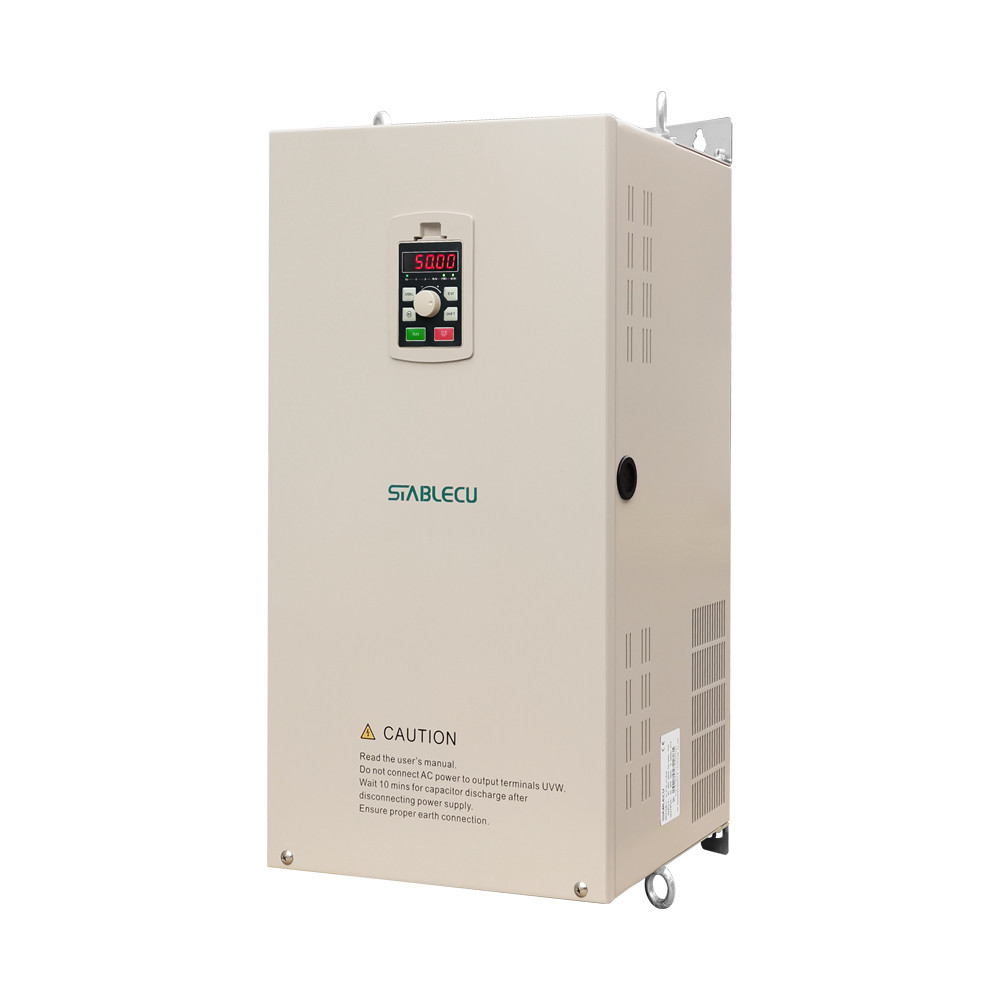

Detail images of variable frequency drive
FAQ
1. Who are we?
We are a manufacturer based in Guangdong, China, start from 2009, sell to Domestic Market(100.00%).
There are a total of about 201-300 people in our office.
2. How can we guarantee the quality?
Always a pre-production sample before mass production; Always final Inspection before shipment.
3. What can you buy from us?
Ultrasonic Generator, PLC/Motion Controller, Servo Motor And Stepper Motor, Frequency Converter,
Automation System Development And Complete Set Of Electric Box.
4. Do you offer customization services?
Yes, we can customize the products according to your requirements. Please send us an inquiry, your inquiry
will be replied within 12 hours.
5. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, DDP, DDU, Express Delivery；
Accepted Payment Currency: USD, EUR, JPY, CAD, AUD, HKD, CNY;
Accepted Payment Type: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash;
Language Spoken: English, Chinese.
