| Place of Origin: | China |
|---|---|
| Brand Name: | STABLECU |
| Certification: | CE |
| Model Number: | ST310-4T30G-37G |
| Minimum Order Quantity: | 1PCS |
| Packaging Details: | 1pcs/Polybag,100pcs/big polybag, 300pcs/ctn |
| Delivery Time: | 5-8 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Material: | ABS+PC | Power: | 30KW-37KW |
|---|---|---|---|
| Voltage: | 380V | Phase: | 3 Phase |
| Color: | Huawei Gray | Type: | Variable Frequency Inverter |
| Application: | Induction Motor | Control Mode: | Vector Control |
| High Light: | Heavy Duty Inverter 40HP,37KW 50 hp variable frequency drive,30KW 40 hp variable frequency drive |
||

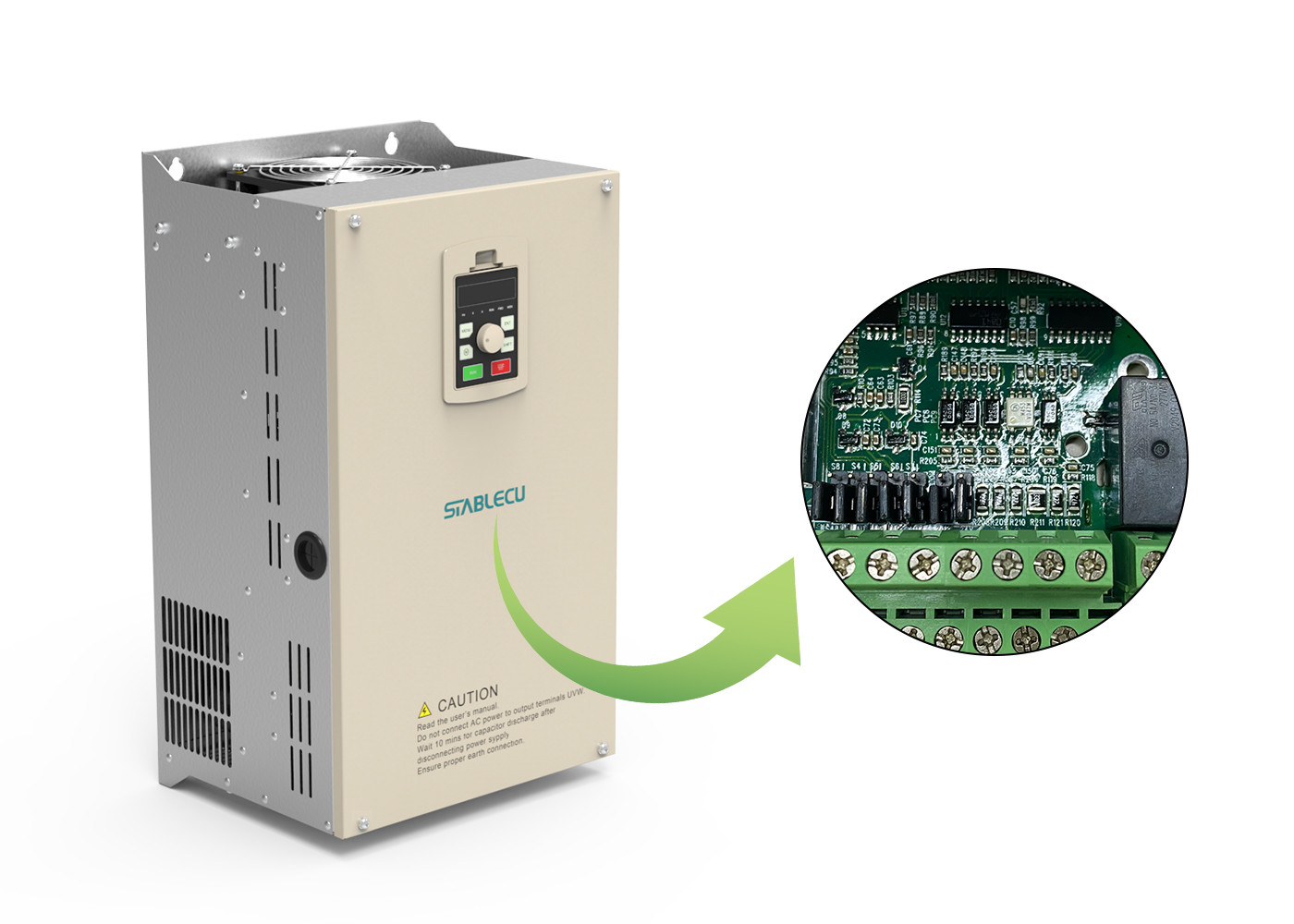

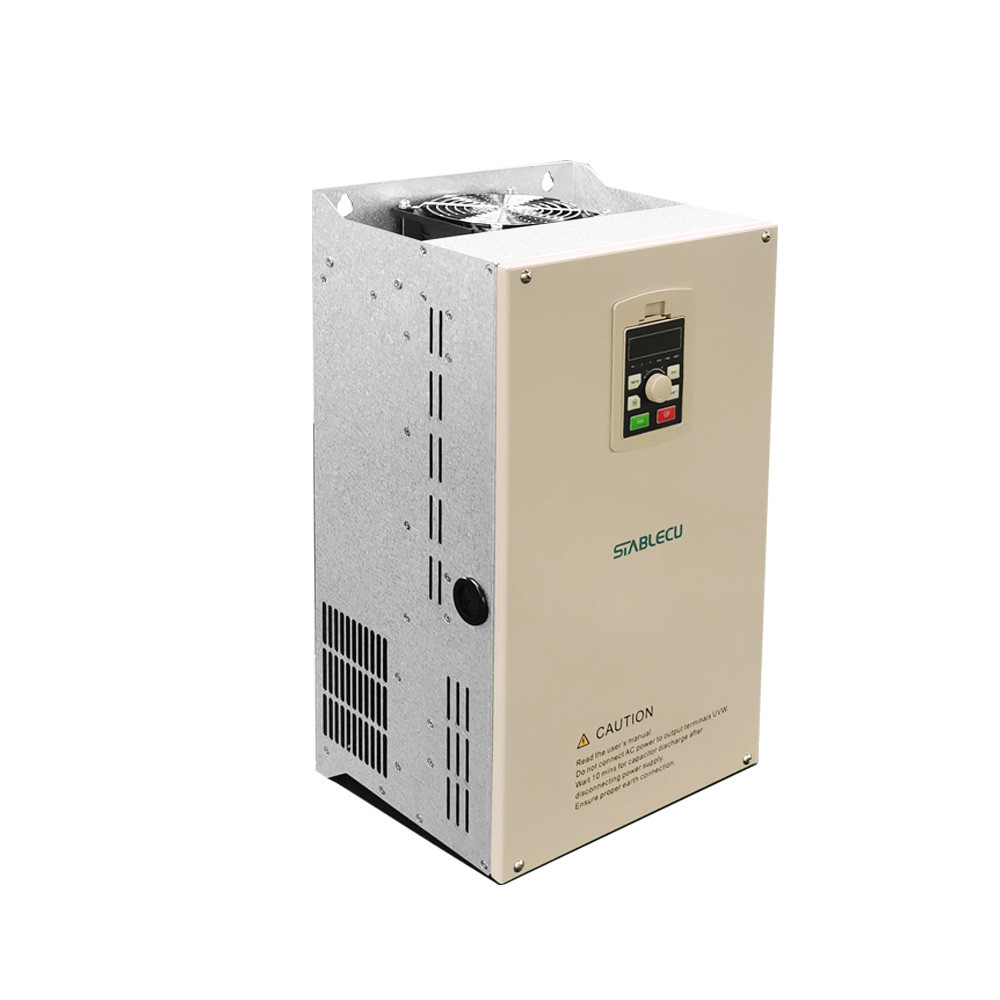

30KW 37KW Variable Frequency Drive 380V AC Motor Three Phase Inverter
Introduction of variable frequency drive
ST310 series inverter adopts vector control technology, has excellent drive and control performance,
rich hardware configuration and software function improves usability and reliability and meets different
industrial applications. 0.75 ~ 22KW built-in standard brake unit, 30 ~ 110KW optional built-in brake unit,
independent cooling air duct design, and thousands of revolutions of the fan, improve product stability
and performance, extend product life, and improve product quality, and Competitiveness.
Model specification and technical data of variable frequency drive
| Frequency converter Model | The power rating(kW) | The output current(A) | The input current(A) | Adaptation motor(kW) | The braking unit |
| ST310-4T0.75GB | 0.75 | 2.3 | 3.4 | 0.75 |
The standard built-in
|
| ST310-4T1.5GB | 1.5 | 3.8 | 5.0 | 1.5 | |
| ST310-4T2.2GB | 2.2 | 5.5 | 6.0 | 2.2 | |
| ST310-4T3.7GB | 3.7 | 9.0 | 10.5 | 3.7 | |
| ST310-4T5.5GB | 5.5 | 13 | 14.6 | 5.5 | |
| ST310-4T7.5GB | 7.5 | 17 | 20.5 | 7.5 | |
| ST310-4T11GB | 11 | 24 | 29 | 11 | |
| ST310-4T15GB | 15 | 30 | 35 | 15 | |
| ST310-4T18.5GB | 18.5 | 39 | 44 | 18.5 | |
| ST310-4T22GB | 22 | 45 | 50 | 22 | |
| ST310-4T30G | 30 | 60 | 65 | 30 |
optional built-in |
| ST310-4T37G | 37 | 75 | 80 | 37 | |
| ST310-4T45G | 45 | 91 | 95 | 45 | |
| ST310-4T55G | 55 | 112 | 118 | 55 | |
| ST310-4T75G | 75 | 150 | 157 | 75 | |
| ST310-4T90G | 90 | 176 | 160* | 90 | |
| ST310-4T110G | 110 | 210 | 192* | 110 | |
| ST310-4T132G | 132 | 253 | 232* | 132 | Built-out |
| ST310-4T160G | 160 | 310 | 285* | 160 | |
| ST310-4T185G | 185 | 350 | 326* | 185 | |
| ST310-4T200G | 200 | 380 | 354* | 200 | |
| ST310-4T220G | 220 | 430 | 403* | 220 | |
| ST310-4T250G | 250 | 470 | 441* | 250 | |
| ST310-4T280G | 280 | 520 | 489* | 280 | |
| ST310-4T315G | 315 | 590 | 571* | 315 | |
| ST310-4T355G | 355 | 650 | 624* | 355 | |
| ST310-4T400G | 400 | 725 | 699* | 400 | |
| ST310-4T450G | 450 | 755 | 770* | 450 | |
| * 185KW ~ 450KW products are equipped with external DC reactor. Please be sure to connect the reactor to use, otherwise the product will not be able to operate normally |
|||||
