220V Single Phase Frequency Converter 0.75KW 1HP Input Mini VFD

Basic Information
Place of Origin: China
Brand Name: STABLECU
Certification: CE
Model Number: ST300-2S0.75GB
Minimum Order Quantity: 1PCS
Price: $49-$59
Packaging Details: 1pcs/Polybag,100pcs/big polybag, 300pcs/ctn
Delivery Time: 5-8 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000 pcs per month
Material: ABS+PC Power: 0.75KW
Voltage: 220V/380V Color: Huawei Gray
Type: AC Application: Industry
Frequency: 0-300 HZ Control Mode: V/F Control
High Light:

single phase frequency converter 0.75KW

,

1HP single phase frequency converter

,

single phase VFD 1 hp 0.75KW

220V Single Phase Frequency Converter inverter 1 Phase 0.75KW 1HP Input Mini VFD



Introduction of variable frequency inverter

ST300 series inverter is a high-performance vector inverter, which is newly developed based on customer demand
and market research and can be used to control and adjust single or three-phase speed. Optional voltage 220v or 380v,
used for AC asynchronous motors.
With good load adaptability, high-precision speed controllability, low-speed high-torque output performance, excellent overload capacity,
and rich setting functions. The size design of this economical and applicable inverter is made smaller, which is conducive to the user to
reasonably plan the space of the electric box.

Description of variable frequency inverter

item
Frequency Inverter
Place of Origin China
Brand Name
STABLECU
Model Number ST300-2S0.75GB
Warranty 18 Months
Type speed driver/AC driver
Certification
CE
Customized Yes
Rated Power 0.75kw
Nominal Voltage 220v/380V
power phase number 1/3 Phase
Power 0.75kw
Input rated voltage and frequency 1PH AC 220V 50/60HZ / 3PH AC380V 50/60Hz
Allowable voltage range 220V/ 380V
Output voltage
220V, 380V: 380V-480V
Control Mode Vector Control
Output frequency 0.1~300.0 Hz

Indicator Description of variable frequency inverter

Indicator mark The name of the Meaning Color
Hz Frequency indicator light On: The current parameter is running frequency
Blinking: The current display parameter is the set frequency
Green
A Current indicator light On: Current is displayed Green
MON Run command mode indicator On: The operation panel runs the command in the specified mode
Off: Indicates the specified mode of the terminal running command
Blinking: The upper computer runs the specified command mode
Green
RUN Operating status indicator light On: The drive is running
Off: The drive is stopped
Blinking: The drive is being stopped
Green
FWD Positive/reverse indicator light On: The drive is in positive rotation
Off: The driver is in reverse direction when it is running
Green

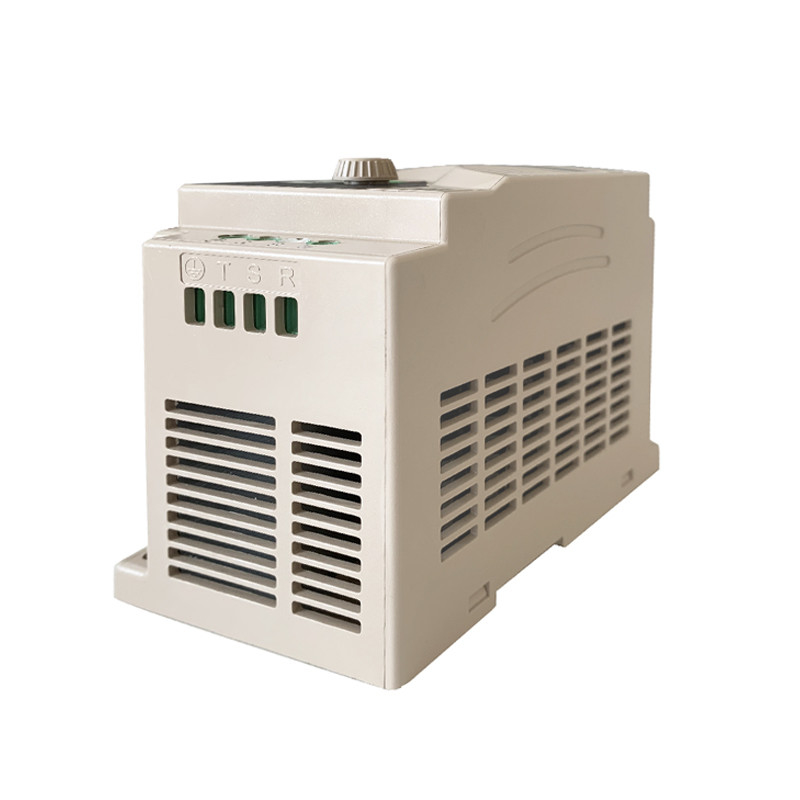

Details Image of variable frequency inverter

220V Single Phase Frequency Converter 0.75KW 1HP Input Mini VFD 0

220V Single Phase Frequency Converter 0.75KW 1HP Input Mini VFD 1

Application of variable frequency inverter

It is used to drive various automation production equipment involving textile, machine tool equipment, water pump, fan,
paper-making, food machine, packing machine, etc.

220V Single Phase Frequency Converter 0.75KW 1HP Input Mini VFD 2

FAQ

1. Who are we?
We are a manufacturer based in Guangdong, China, start from 2009, sell to Domestic Market(100.00%).
There are total about 201-300 people in our office.
2. How can we guarantee the quality?
Always a pre-production sample before mass production; Always final Inspection before shipment.
3. What can you buy from us?
Ultrasonic Generator, PLC/Motion Controller, Servo Motor And Stepper Motor, Frequency Converter,
Automation System Development And Complete Set Of Electric Box.
4. Do you offer customization services?
Yes, we can customize the products according to your requirements. Please send us an inquiry, your inquiry
will be replied within 12 hours.
5. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, DDP, DDU, Express Delivery;
Accepted Payment Currency: USD, EUR, JPY, CAD, AUD, HKD, CNY;
Accepted Payment Type: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash;
Language Spoken: English, Chinese.
