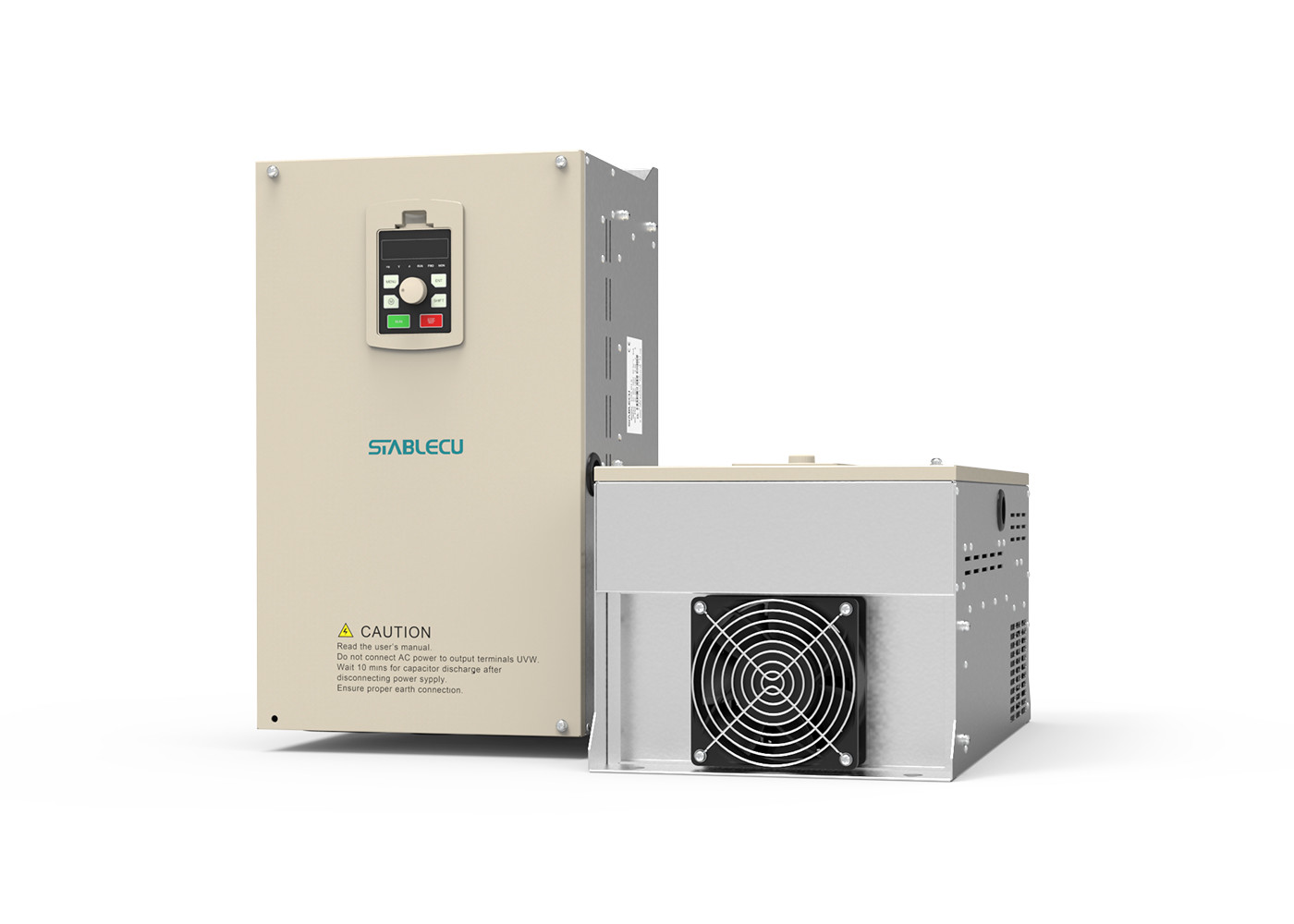

VFD 3 Phase Converter Power Frequency Converter 30KW To 110KW
Quick detail of variable frequency drive
18 Months Warranty
CE,ISO9001, FCC, ROHS
IP20 Protection Grade
300V-480V AC
V/F Control
Working state of VFD
The working state of the ST310 series frequency converter is divided into shutdown state, running state, and
motor parameter self-tuning state.
Shutdown state: After the frequency converter is powered on and initialized if there is no operation command input,
or after the stop command is executed during operation, the 3-phase U/V/W terminal of the converter has no output,
and the running status indicator light of the operation panel, RUN, is not on.
Running state: After the frequency converter receives the running command, the 3phase U/V/W terminal of the
frequency converter starts to have output, and the operation status indicator light on the operation panel is always on.
Motor parameter self-tuning state: Set motor parameters to P02.00-P02.05, and select P02.07 as 2 static self-setting or
3 rotary self-setting according to the current state of the motor. After selecting Confirm, the panel will display Tune.
Press Run to enter the self-setting state. After the self-setting, it will return to the shutdown state.
Specification of variable frequency drive
| Output current | 75A |
| Input current | 80A |
| Adaptation motor | 37KW |
| Braking resistor power | 9000W |
| Mounting dimension | 257.2*466*217MM |
| Weight | 20kg |
| Packing Size | 286*327*504MM |
Other models of variable frequency drive
| Model | ST310-30G | ST310-37G |
| Specific Parameters |
| Applicable Motor (kw) | 30 | 37 |
| Input Current (A) | 65 | 80 |
| Output Current (A) | 60 | 75 |
| Breaker (A) | 100 | 100 |
| Contactor (A) | 65 | 80 |
| Brake Unit | Standard Built-in |
| Braking Resistor Power | 6kW | 9kW |
| Resistance/ Ultimate resistance | 20(≥16) | 16(≥10) |
| Power Input |
| Allow Frequency Fluctuation | ±5% |
| Allow voltage fluctuation | Voltage imbalance＜3%, distortion rate meets the requirements of 1EC61800-2 |
| Allow voltage fluctuation | The constant voltage fluctuation is ±10%, and the short fluctuation is115%~+10%, that is, 323V~528V |
| Power Output |
| Output Voltage | 3-Phase:0~rated input voltage, error less than ±3% |
| Output Frequency | 0.00~300.00HZ,each unit 0.01HZ |
| Overload Capacity | 150% 60s, 180% 10s, 200% 0.5s |

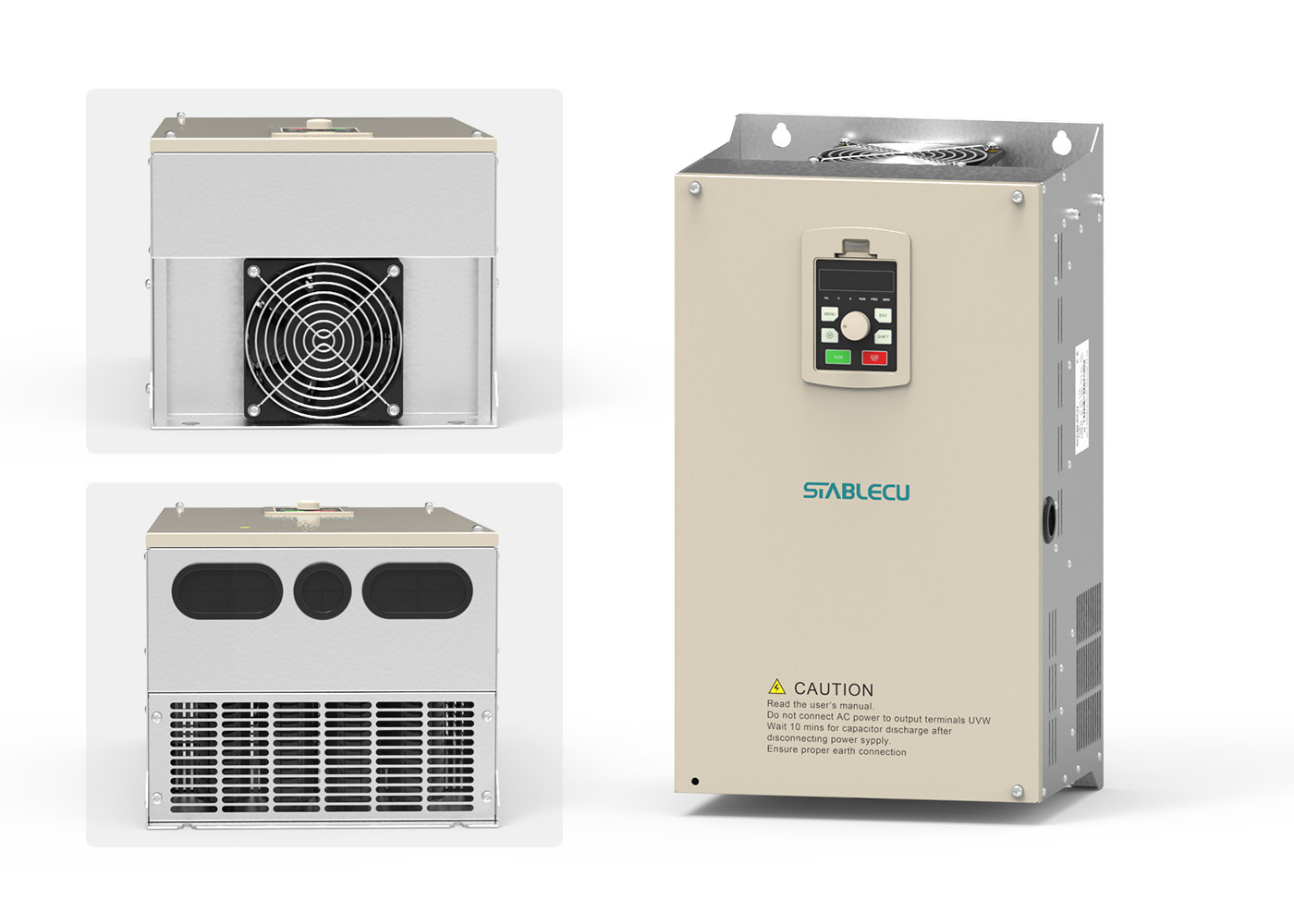

Detailed images of variable frequency drive
Application of variable frequency drive
Widely used in machinery industry, woodworking industry, packaging industry, chemical industry, textile industry,
printing industry, food processing, water pump, TM electric box, and so on.
FAQ
1. Who are we?
We are a manufacturer based in Guangdong, China, start from 2009, sell to Domestic Market(100.00%).
There are a total of about 201-300 people in our office.
2. How can we guarantee the quality?
Always a pre-production sample before mass production; Always final Inspection before shipment.
3. What can you buy from us?
Ultrasonic Generator, PLC/Motion Controller, Servo Motor And Stepper Motor, Frequency Converter,
Automation System Development And Complete Set Of Electric Box.
4. Do you offer customization services?
Yes, we can customize the products according to your requirements. Please send us an inquiry, your inquiry
will be replied within 12 hours.
5. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, DDP, DDU, Express Delivery；
Accepted Payment Currency: USD, EUR, JPY, CAD, AUD, HKD, CNY;
Accepted Payment Type: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash;
Language Spoken: English, Chinese.
