| Place of Origin: | China |
|---|---|
| Brand Name: | STABLECU |
| Certification: | CE |
| Model Number: | ST310-4T45G-110G |
| Minimum Order Quantity: | 1PCS |
| Packaging Details: | 1pcs/Polybag,100pcs/big polybag, 300pcs/ctn |
| Delivery Time: | 5-8 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Material: | ABS+PC | Power: | 45KW-110KW |
|---|---|---|---|
| Voltage: | 380V | IP: | 20 |
| Color: | Huawei Gray | Type: | AC |
| OEM: | Yes | Control Mode: | VF Control |
| High Light: | 110KW Pump Frequency Inverters,110KW VFD Pump Frequency Inverter,45KW To 110KW 3 phase motor VFD |
||

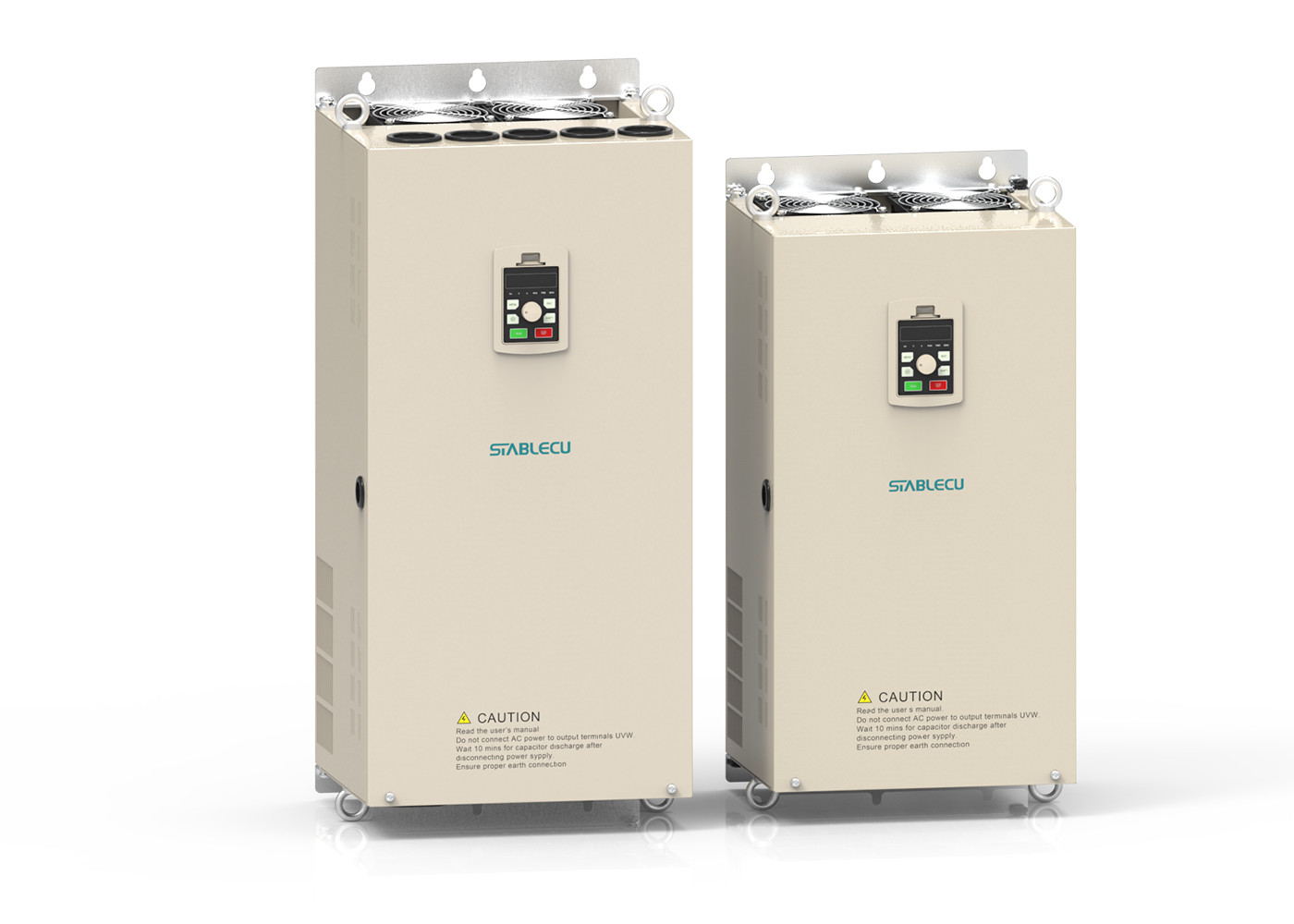

380V AC Motor Controller 45KW To 110KW VFD Pump Frequency Inverter
Introduction of frequency inverter
The ST-310 Series is ideal for variable and constant torque applications from pumps and fans to conveyors
and mixers, as well as many other variables and constant torque applications.
Adopting the most advanced v/f control technology, DSP control system, and Infineon’s latest IGBT technology;
excellent unique ventilation design; powerful large fan detachable, which is conducive to customer maintenance;
control panel can be disassembled, and distance operation can be selected; products Stable performance,
simple operation, widely used in various applications, and good customer feedback.
The finished product assembly of the frequency inverter
When the finished product is assembled, work according to the working instruction standard of different power sections
to ensure the consistency of each machine.
In the assembly process, self-inspection and protective inspection should be carried out for each process, and then the
quality personnel should carry out layer by layer inspections to ensure that the product quality will not be affected due to
the negligence of the assembly personnel, so as to ensure the reliability of the production process.
Product parameter of frequency inverter
| Variable Frequency Drive | Module | ST310-4T55G |
| Max. Applicable Motor Capacity | 55kW | |
| Rated Input Current | 118A | |
| Rated Output Current | 112A | |
| Max. Output Voltage | Three-phase 380V | |
| Max. Output Frequency | 3000Hz | |
| Braking Resistor | Optional Built-in | |
| Resistance | 10Ω | |
| Power Rated Voltage/Rated Frequency | Three-phase AC power supply 380 V | |
| 50 / 60 Hz |

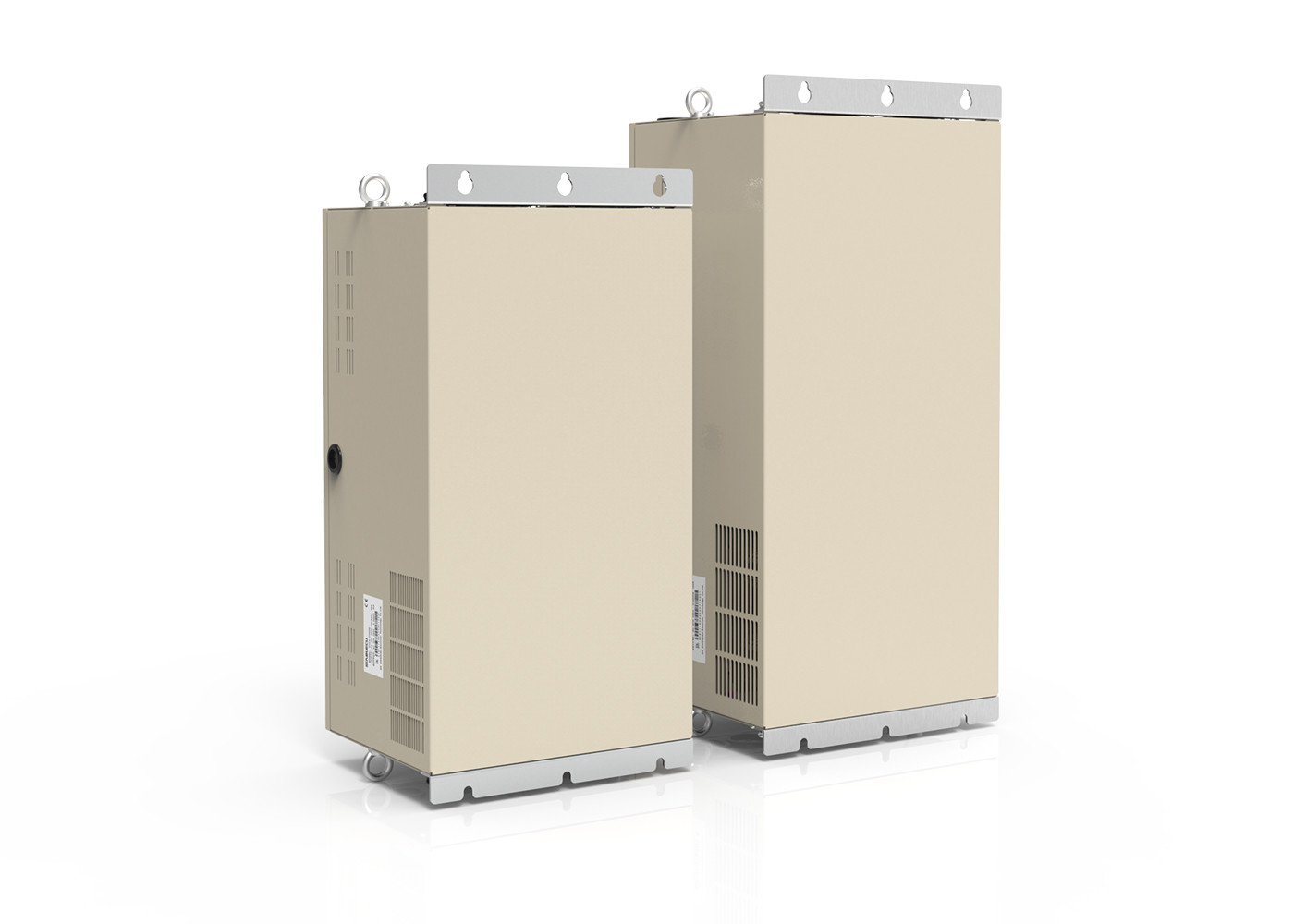

Product details of frequency inverter
Application of frequency inverter
Widely used in various industries and equipment such as spinning machines, stacker reclaimer, feeding machines,
calciner, cigarette maker, air compressor, steelmaking, crusher, drawing machine, dyeing machine, hoist,
injection molding machine, laundry facilities, paper machine, special power, water pump, fan, mixer machine,
rolling mill, and so on.
