| Place of Origin: | China |
|---|---|
| Brand Name: | STABLECU |
| Certification: | CE |
| Model Number: | ST310-4T0.75GB |
| Minimum Order Quantity: | 1PCS |
| Packaging Details: | 1pcs/Polybag,100pcs/big polybag, 300pcs/ctn |
| Delivery Time: | 5-8 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000 pcs per month |
| Material: | ABS+PC | Power: | 0.75KW |
|---|---|---|---|
| Voltage: | 380V | Phase: | 3 Phase |
| Color: | Huawei Gray | Type: | AC/AC Converters |
| IGBT: | Infineon | Warranty: | 18 Months |
| High Light: | 750W Motor Frequency Inverter,380V Motor Frequency Inverter,Electric Frequency Converter 380V |
||
VFD Motor Control 0.75KW To 3.7KW Electric Frequency Converter 380V
Quick details of frequency converter
Rated Power: 0.75kw
Rated Voltage: 3 phase 380v
Rated Frequency: 50hz/60hz
Product Size: 80mm*185.5mm*167.5mm
Installation Size: 56mm*174.5mm
Weight: 1.5kg
Input: 50/60hz 3.4A
Output: 0-300hz 2.3A
Certificate: CE
Application: Printing industry and packing industry
Control Mode; V/F Control
Description of frequency converter
The selection of materials is very strict. Based on years of experience, our structural designers choose ABS+PC
as the product shell; use a new generation of IGBT technology modules, and use IC integrated electronic components
as much as possible to reduce the use of plug-in electronic materials. On the one hand, the volume of the product
becomes smaller, which is helpful for users to rationally plan the space of the electric box, avoid congestion,
and extend the service life of the product. On the other hand, the reduction of solder joints also reduces the failure rate,
so the stability of the product is improved.
Specification of frequency converter
| Model | Rated Voltage | Rated Power(KW) | Rated Input Current (A) | Rated Output Current(A) | Adaption Motor(KW) |
| ST300-2S0.75GB-2.2GB | 220V | 0.75-2.2 | 5.5-12 | 5-10 | 0.75-2.2 |
| ST300-4T0.75GB-2.2GB | 380V | 0.75-2.2 | 3.4-6.0 | 2.3-5.5 | 0.75-2.2 |
| ST310-4T0.75GB-3.7GB | 380V | 0.75-3.7 | 3.4-10.5 | 2.3-9.0 | 0.75-3.7 |
| ST310-4T5.5GB-11GB | 380V | 5.5-11 | 14.6-29 | 13-24 | 5.5-11 |
| ST310-4T15GB-22GB | 380V | 15-22 | 33-50 | 30-45 | 15-22 |
| ST310-4T30GB-37GB | 380V | 30-37 | 65-80 | 60-75 | 30-37 |
| ST310-4T45GB-55GB | 380V | 45-55 | 95-118 | 91-112 | 45-55 |
| ST310-4T75GB-110GB | 380V | 75-110 | 157-192 | 150-210 | 75-110 |

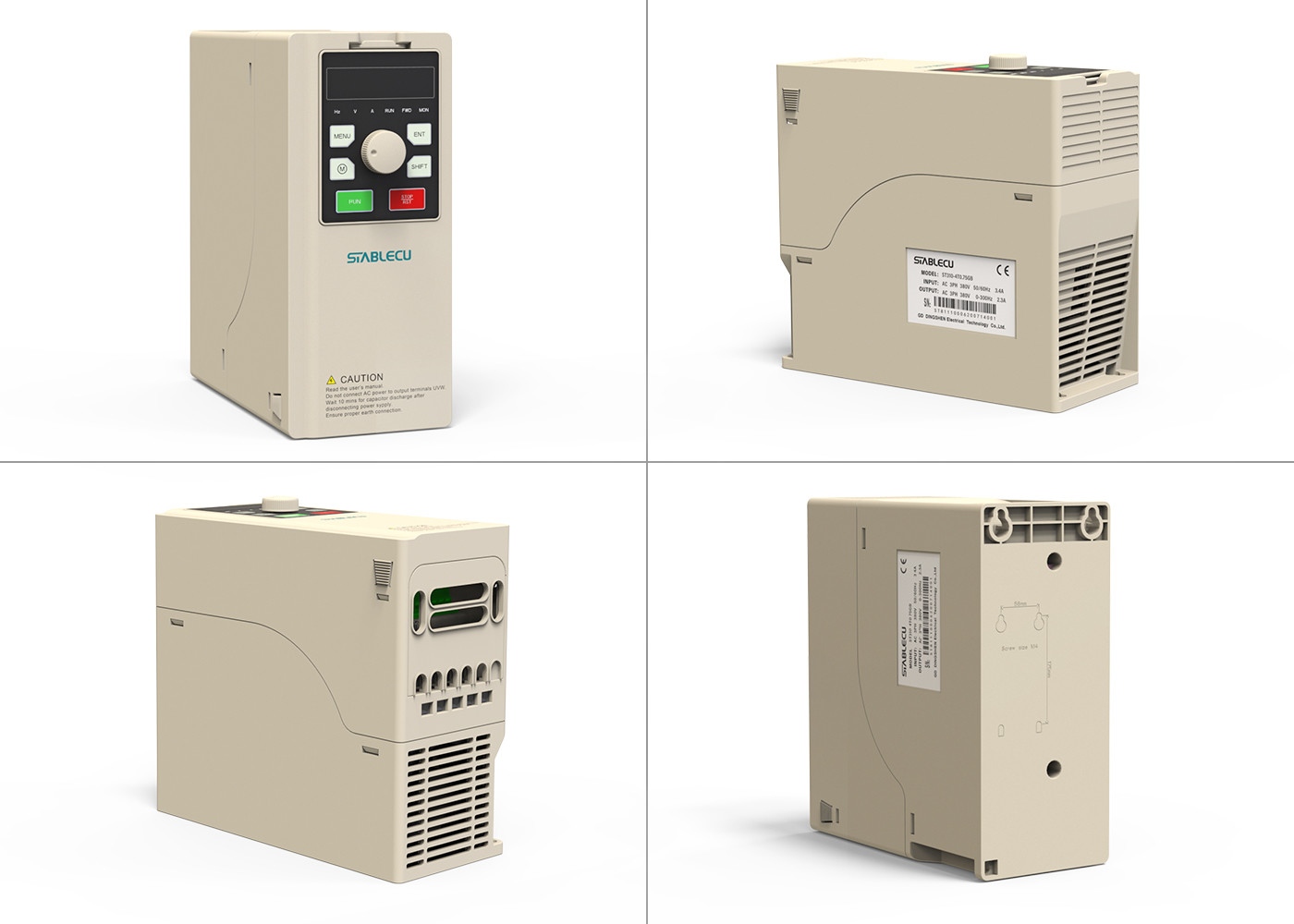

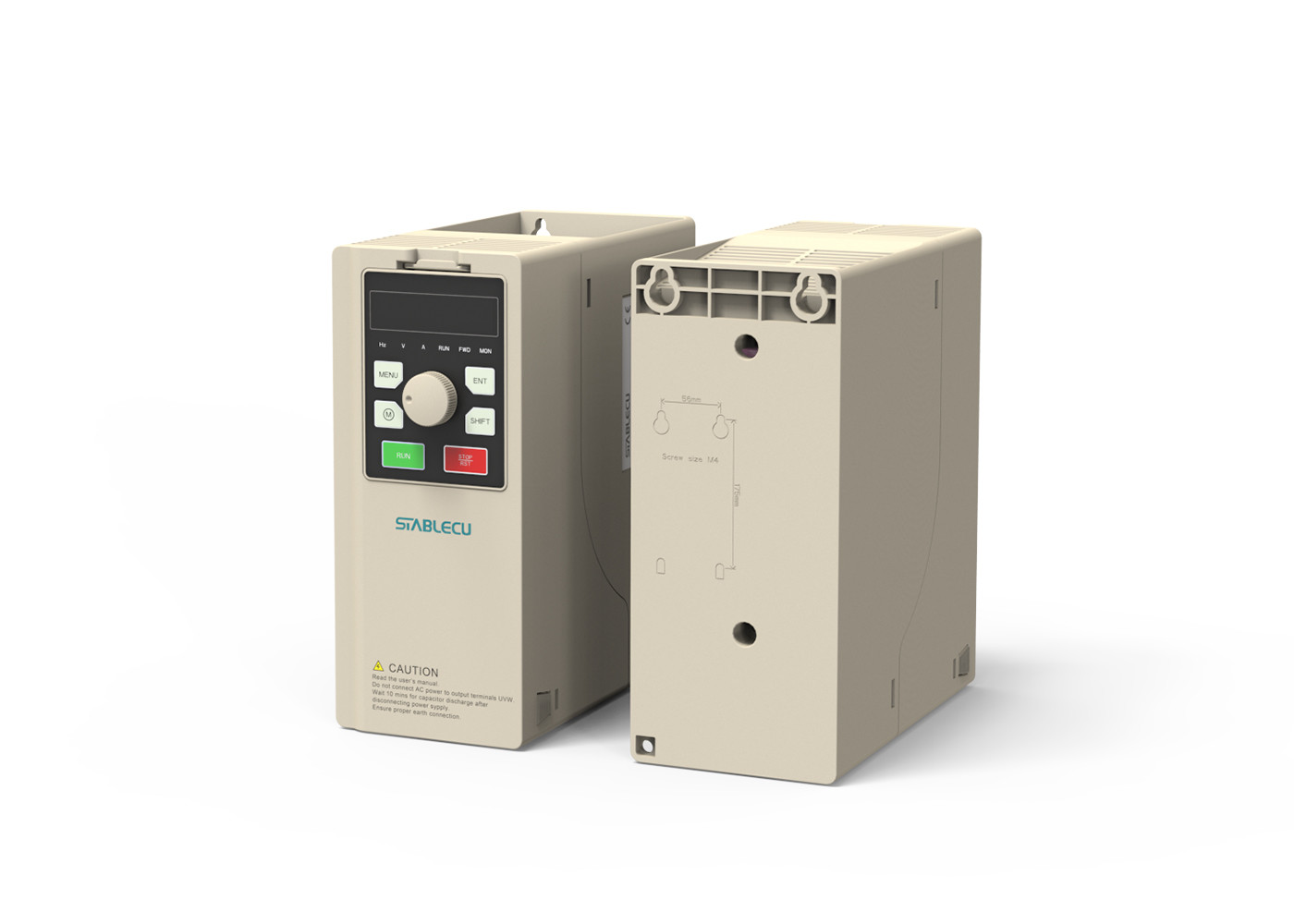

Details image of frequency converter
Application case of frequency converter
VFDs for industrial washing machines
Advantage:
1. Large low-frequency torque
2. High-frequency acceleration time is short
3. High-frequency dehydration motor current sound is small, weak magnetic control effect is good.
VFDs for CNC machine tools
Advantages
1. Short acceleration and deceleration time
2. Low noise in the process of motor operation
3. Long time running motor temperature is low
4, Low-frequency torque is large, high-frequency speed is stable
FAQ
1. Who are we?
We are a manufacturer based in Guangdong, China, start from 2009, sell to Domestic Market(100.00%).
There are total about 201-300 people in our office.
2. How can we guarantee the quality?
Always a pre-production sample before mass production; Always final Inspection before shipment.
3. What can you buy from us?
Ultrasonic Generator, PLC/Motion Controller, Servo Motor And Stepper Motor, Frequency Converter,
Automation System Development And Complete Set Of Electric Box.
4. Do you offer customization services?
Yes, we can customize the products according to your requirements. Please send us an inquiry, your inquiry
will be replied within 12 hours.
5. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, DDP, DDU, Express Delivery;
Accepted Payment Currency: USD, EUR, JPY, CAD, AUD, HKD, CNY;
Accepted Payment Type: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash;
Language Spoken: English, Chinese.
