| Place of Origin: | China |
|---|---|
| Brand Name: | STABLECU |
| Certification: | CE |
| Model Number: | ST310-4T1.5GB |
| Minimum Order Quantity: | 1PCS |
| Packaging Details: | 1pcs/Polybag,100pcs/big polybag, 300pcs/ctn |
| Delivery Time: | 5-8 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Material: | ABS+PC | Power: | 1.5KW |
|---|---|---|---|
| Voltage: | 380V | Phase: | Three Phase |
| Transport Package: | Standard Carton | Input Frequency: | 50/60HZ |
| Function: | Constant Torque | Warranty: | 18 Months |
| High Light: | ST310 Series Variable Frequency Inverter,ST310 Variable Frequency Inverter 1.5KW,ST310 2HP three phase variable speed drive |
||
ST310 Series VFD 1.5KW 2HP Three Phase Variable Frequency Speed Drive
Description of frequency converter
ST310 series products are high-performance inverters based on the core technology platform of v/f control and torque control.
They have v/f control functions and are more suitable for high-end control requirements in terms of control accuracy.
The knob on the operation panel is more precise and the adjustment range is small. Modular hardware and software functions
meet the needs of high-end industries such as jack-up, lifting, papermaking, chemical fiber, elevator, rolling mill, and packaging.
Parameters of frequency converter
| Rated Power | 0.75kw 1.5kw 2.2kw 3.7kw |
| Rated Voltage | 3 Phase 380V |
| Rated Frequency | 50HZ/60HZ |
| Product Size | 80MM*185.8MM*167.5MM |
| Installation Size | 56MM*174.5MM |
| Weight | 1.5KG |

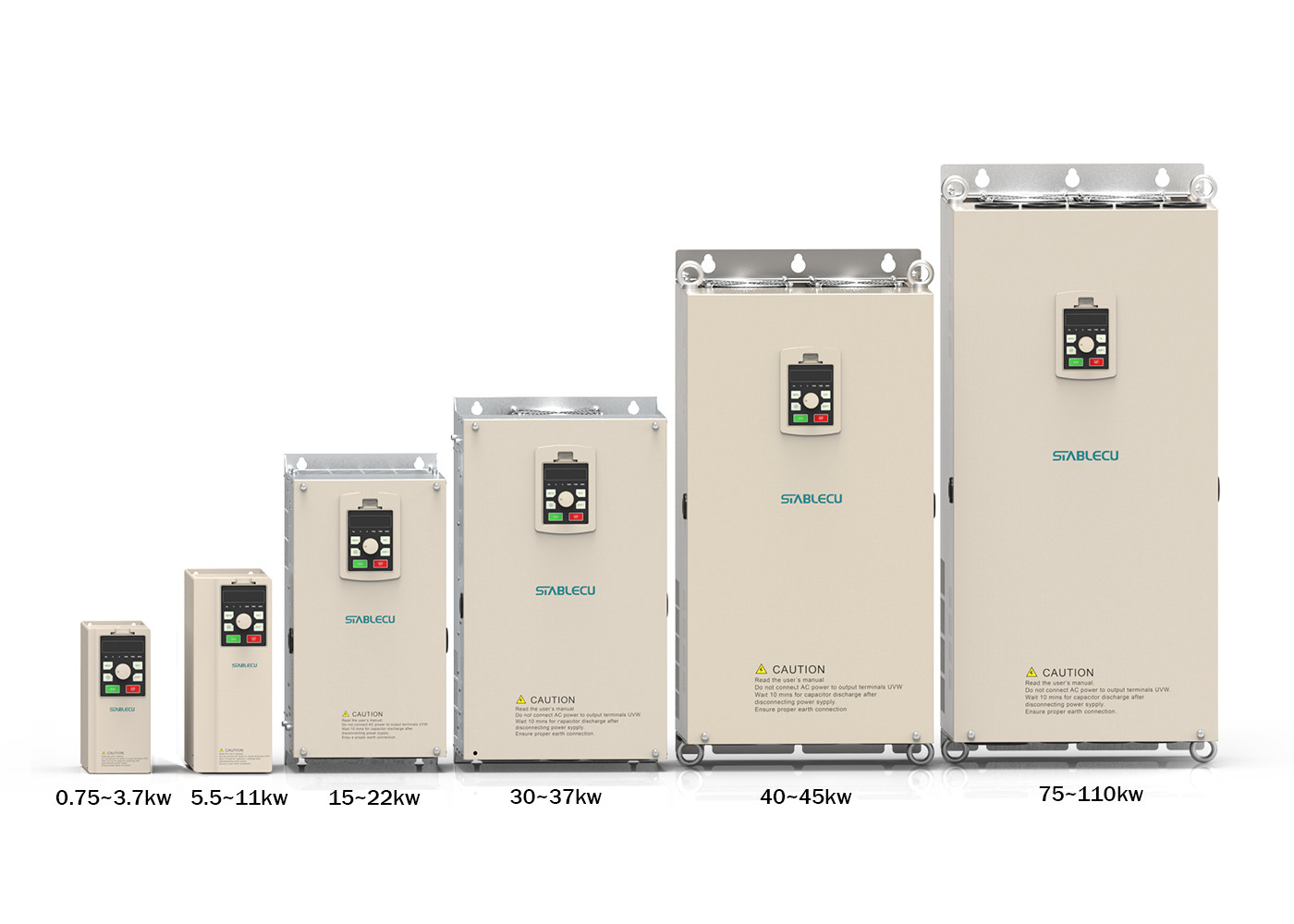

More models of frequency converter
| Model | ST310-0.75GB | ST310-1.5GB | ST310-2.2GB | ST310-3.7GB |
| Specific Parameters | ||||
| Applicable Motor (kw) | 0.75 | 1.5 | 2.2 | 3.7 |
| Input Current (A) | 3.4 | 5.0 | 6.0 | 10.5 |
| Output Current (A) | 2.3 | 3.8 | 5.5 | 9.0 |
| Breaker (A) | 10.0 | 10.0 | 10.0 | 16.0 |
| Contactor (A) | 9.0 | 9.0 | 9.0 | 12.0 |
| Brake Unit | Standard Built-in | |||
| Braking Resistor Power | 150W | 150W | 300W | 800W |
| Resistance/ Ultimate resistance | 300 (≥125) | 250 (≥100) | 200 (≥100) | 100 (≥75) |
| Power Input | ||||
| Allow Frequency Fluctuation | ±5% | |||
| Allow voltage fluctuation | Voltage imbalance＜3%, distortion rate meets the requirements of 1EC61800-2 | |||
| Allow voltage fluctuation | The constant voltage fluctuation is ±10%, and the short fluctuation is115%~+10%, that is, 323V~528V | |||
| Power Output | ||||
| Output Voltage | 3-Phase:0~rated input voltage, error less than ±3% | |||
| Output Frequency | 0.00~300.00HZ,each unit 0.01HZ | |||
| Overload Capacity | 150% 60s, 180% 10s, 200% 0.5s | |||

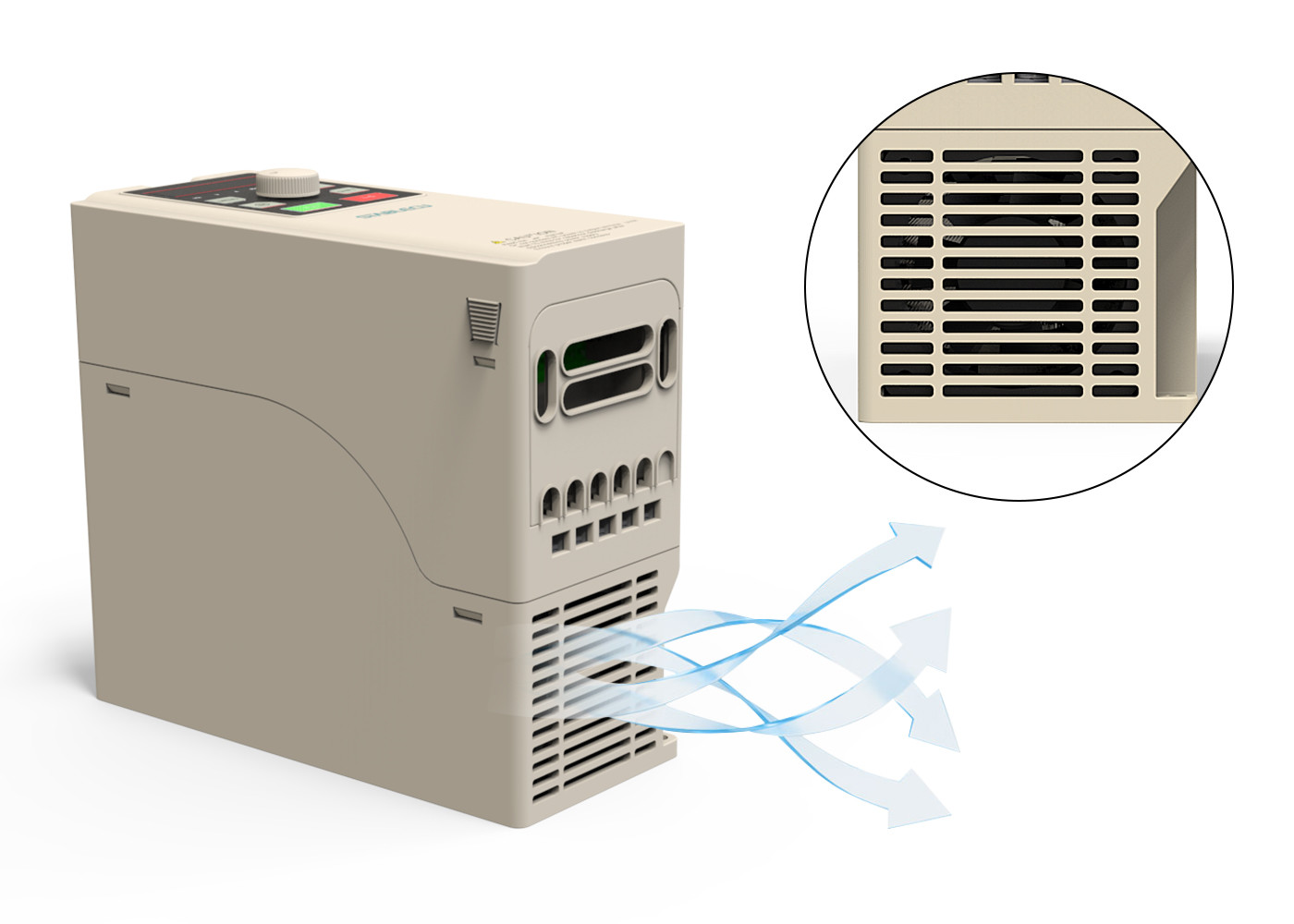

Detailed images of frequency converter
Application of frequency converter
The products are widely used in industrial fields and equipment and facilities, such as fan water collapse, textile equipment,
electrical equipment, techy's equipment, engraving equipment, conveyor belt, blender, woodworking machinery, and so on.
FAQ
1. Who are we?
We are a manufacturer based in Guangdong, China, start from 2009, sell to Domestic Market(100.00%).
There are total about 201-300 people in our office.
2. How can we guarantee the quality?
Always a pre-production sample before mass production; Always final Inspection before shipment.
3. What can you buy from us?
Ultrasonic Generator, PLC/Motion Controller, Servo Motor And Stepper Motor, Frequency Converter,
Automation System Development And Complete Set Of Electric Box.
4. Do you offer customization services?
Yes, we can customize the products according to your requirements. Please send us an inquiry, your inquiry
will be replied within 12 hours.
5. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, DDP, DDU, Express Delivery；
Accepted Payment Currency: USD, EUR, JPY, CAD, AUD, HKD, CNY;
Accepted Payment Type: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash;
Language Spoken: English, Chinese.
