| Place of Origin: | China |
|---|---|
| Brand Name: | STABLECU |
| Certification: | CE |
| Model Number: | ST310-4T0.75GB |
| Minimum Order Quantity: | 1PCS |
| Packaging Details: | 1pcs/Polybag,100pcs/big polybag, 300pcs/ctn |
| Delivery Time: | 5-8 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Material: | ABS+PC | Power: | 0.75KW |
|---|---|---|---|
| Voltage: | 380V | Phase: | 3 Phase |
| Color: | Huawei Gray | Type: | AC/AC Converters |
| Machine Case: | Aluminum Coated Zinc Plate,cold Rolled Plate Powder Spraying | IGBT: | Infineon |
| High Light: | Variable Frequency Inverter 750W,3PH Variable Frequency Inverter,0.75KW Motor Frequency Converter |
||

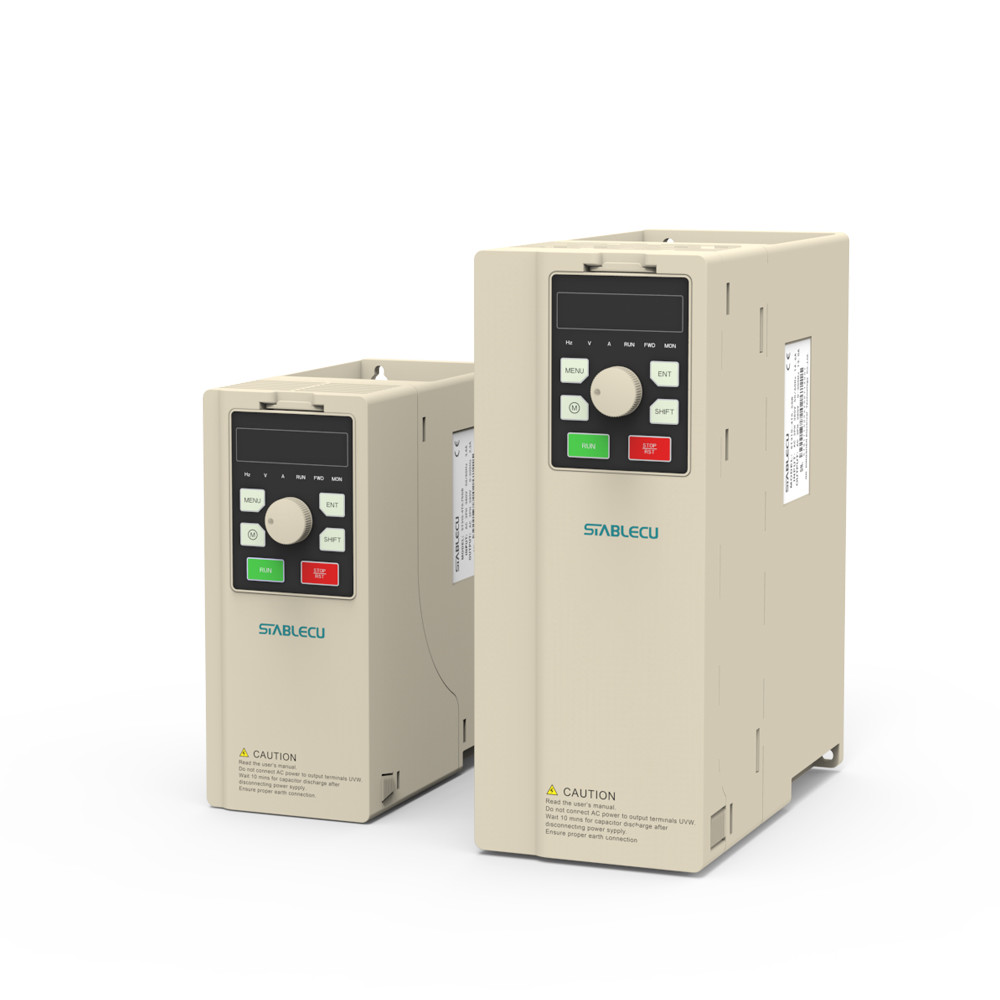

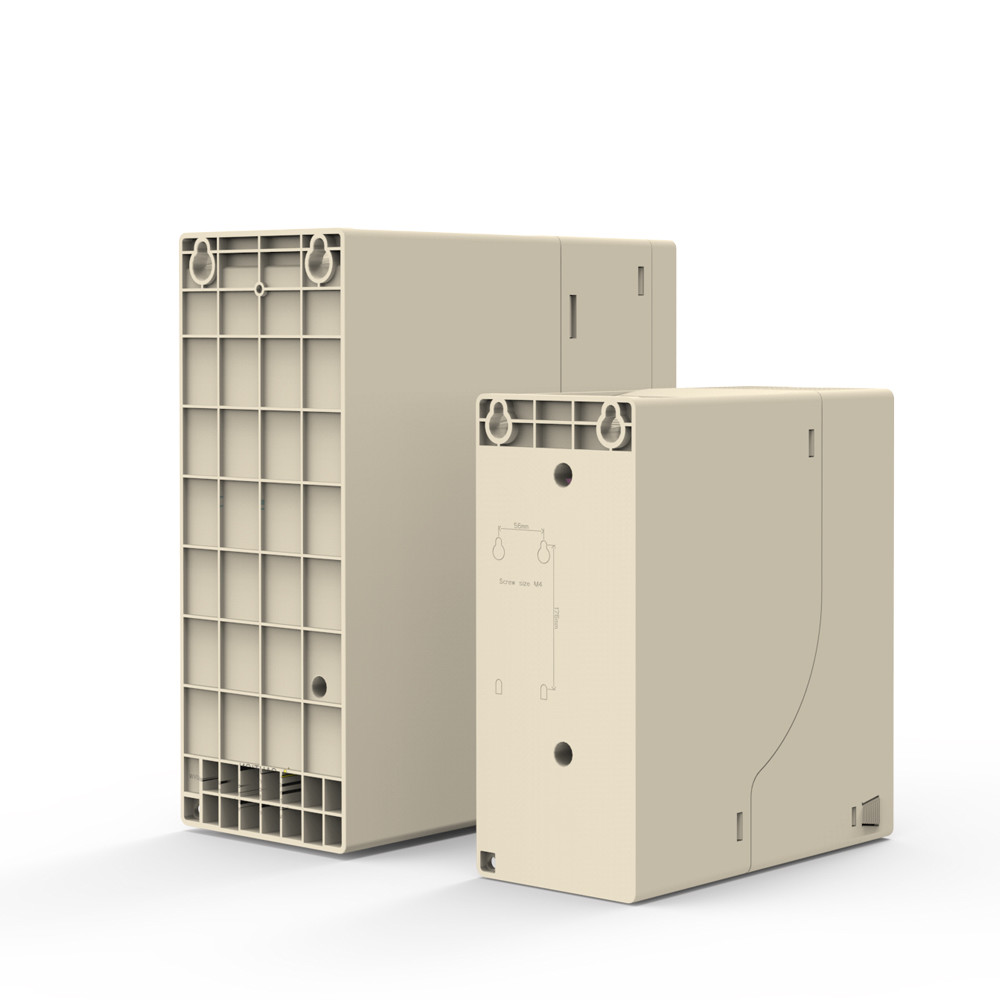

0.75KW Motor Frequency Converter 380V 3PH Variable Frequency Inverter
Quick details of variable frequency drive
Rated Power: 0.75kw
Rated Voltage: 3 phase 380v
Rated Frequency: 50hz/60hz
Product Size: 80mm*185.5mm*167.5mm
Installation Size: 56mm*174.5mm
Weight: 1.5kg
Input: 50/60hz 3.4A
Output:0-300hz 2.3A
Certificate: CE
Application: Printing industry and packing industry
Control Mode; V/F Control
Description of variable frequency drive
The selection of materials is very strict. Based on years of experience, our structural designers choose
ABS+PC as the product shell; use a new generation of IGBT technology modules, and use IC integrated
electronic components as much as possible to reduce the use of plug-in electronic materials.
On the one hand, the volume of the product becomes smaller, which is helpful for users to rationally plan the
space of the electric box, avoid congestion, and extend the service life of the product. On the other hand, the
reduction of solder joints also reduces the failure rate, so the stability of the product is improved.
Specification of variable frequency drive
| Model | Rated Voltage | Rated Power(KW) | Rated Input Current (A) | Rated Output Current(A) | Adaption Motor(KW) |
| ST300-2S0.75GB-2.2GB | 220V | 0.75-2.2 | 5.5-12 | 5-10 | 0.75-2.2 |
| ST300-4T0.75GB-2.2GB | 380V | 0.75-2.2 | 3.4-6.0 | 2.3-5.5 | 0.75-2.2 |
| ST310-4T0.75GB-3.7GB | 380V | 0.75-3.7 | 3.4-10.5 | 2.3-9.0 | 0.75-3.7 |
| ST310-4T5.5GB-11GB | 380V | 5.5-11 | 14.6-29 | 13-24 | 5.5-11 |
| ST310-4T15GB-22GB | 380V | 15-22 | 33-50 | 30-45 | 15-22 |
| ST310-4T30GB-37GB | 380V | 30-37 | 65-80 | 60-75 | 30-37 |
| ST310-4T45GB-55GB | 380V | 45-55 | 95-118 | 91-112 | 45-55 |
| ST310-4T75GB-110GB | 380V | 75-110 | 157-192 | 150-210 | 75-110 |
Product details of variable frequency drive
Application case
VFDs for industrial washing machine
Advantage:
1. Large low-frequency torque
2. High-frequency acceleration time is short
3. High-frequency dehydration motor current sound is small, weak magnetic control effect is good.
CNC Machine Tools
Advantages of VFD
1. Short acceleration and deceleration time
2. Low noise in the process of motor operation
3. Long time running motor temperature is low
4, Low-frequency torque is large, high-frequency speed is stable
FAQ
1. Who are we?
We are a manufacturer based in Guangdong, China, start from 2009, sell to Domestic Market(100.00%).
There are total about 201-300 people in our office.
2. How can we guarantee the quality?
Always a pre-production sample before mass production; Always final Inspection before shipment.
3. What can you buy from us?
Ultrasonic Generator, PLC/Motion Controller, Servo Motor And Stepper Motor, Frequency Converter,
Automation System Development And Complete Set Of Electric Box.
4. Do you offer customization services?
Yes, we can customize the products according to your requirements. Please send us an inquiry, your inquiry
will be replied within 12 hours.
5. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, DDP, DDU, Express Delivery；
Accepted Payment Currency: USD, EUR, JPY, CAD, AUD, HKD, CNY;
Accepted Payment Type: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash;
Language Spoken: English, Chinese.
