Low Power 1.5KW Variable Frequency Inverter , IP20 Three Phase Frequency Converter

Basic Information
Place of Origin: China
Brand Name: STABLECU
Certification: CE
Model Number: ST310-4T2.2GB
Minimum Order Quantity: 1PCS
Packaging Details: 1pcs/Polybag,100pcs/big polybag, 300pcs/ctn
Delivery Time: 5-8 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000 pcs per month
Material: ABS+PC Power: 1.5KW
Voltage: 380V Phase: 3 Phase
Color: Huawei Gray Type: AC/AC Converters
Ingress Protectio: IP 20 Built-in Brake Unit: Yes
High Light:

1.5KW Variable Frequency Inverter IP20

,

CE 1.5KW Variable Frequency Inverter

,

IP20 Three Phase Frequency Converters

Low Power Three Phase Frequency Converter Variable Frequency Inverter



Quick details of frequency inverter

Rated Power: 2.2kw
Rated Voltage: 3 phase 380v
Rated Frequency: 50hz/60hz
Product Size: 80mm*185.5mm*167.5mm
Installation Size: 56mm*174.5mm
Weight: 1.5kg
Input: 50/60hz 6A
Output:0-300hz 5.5A
Certificate: CE
Application: Printing industry and packing industry
Control Mode; V/F Control

Description of frequency inverter

A thin and small volume of VFD
1) PCB and PCBA based on 15 years of experience, new design.Using 4 layer precision PCB board,
using new generation IGBT module technology, high junction temperature, high power density.
Use IC-integrated electronic components as much as possible, and use the SMC patch process.
Minimize the use of plug-in electronic materials.
2) At the same time, the independent air duct is designed as the core of the tooling structure to improve
the product's stability and life. The tooling structure is simple and easy to disassemble and install,
thus reducing the quality risk in the process of production and assembly.
3) Based on the development strength of the above core, the volume of the converter can be greatly reduced.
The reduction of the volume is conducive to the reasonable distribution of the space of the electric box, making
the layout of the whole electric box more relaxed and relaxed, to avoid crowding. In a sense, it can also reduce t
he overall temperature rise of the electrical cabinet, which has a positive effect on the service life of the equipment.

Product parameter of frequency inverter

Type Drive motor Input current Output current Dimension(mm)
(KW) (A) (A)
Three-phase power supply: 380V, 50/60hx
ST310-4T0.75GB 0.75 3.4 2.3 80*185.8*167.5
ST310-4T1.5GB 1.5 5.0 3.8 80*185.5*167.5
ST310-4T2.2GB 2.2 6.0 5.5 80*185.5*167.5
ST310-4T3.7GB 3.7 10.5 9.0 80*185.5*167.5

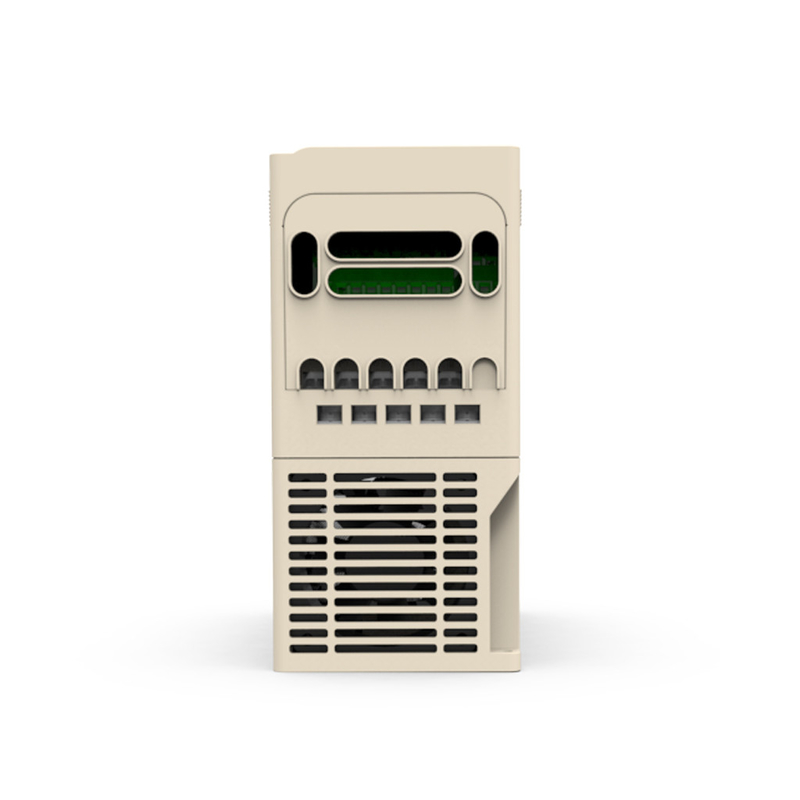

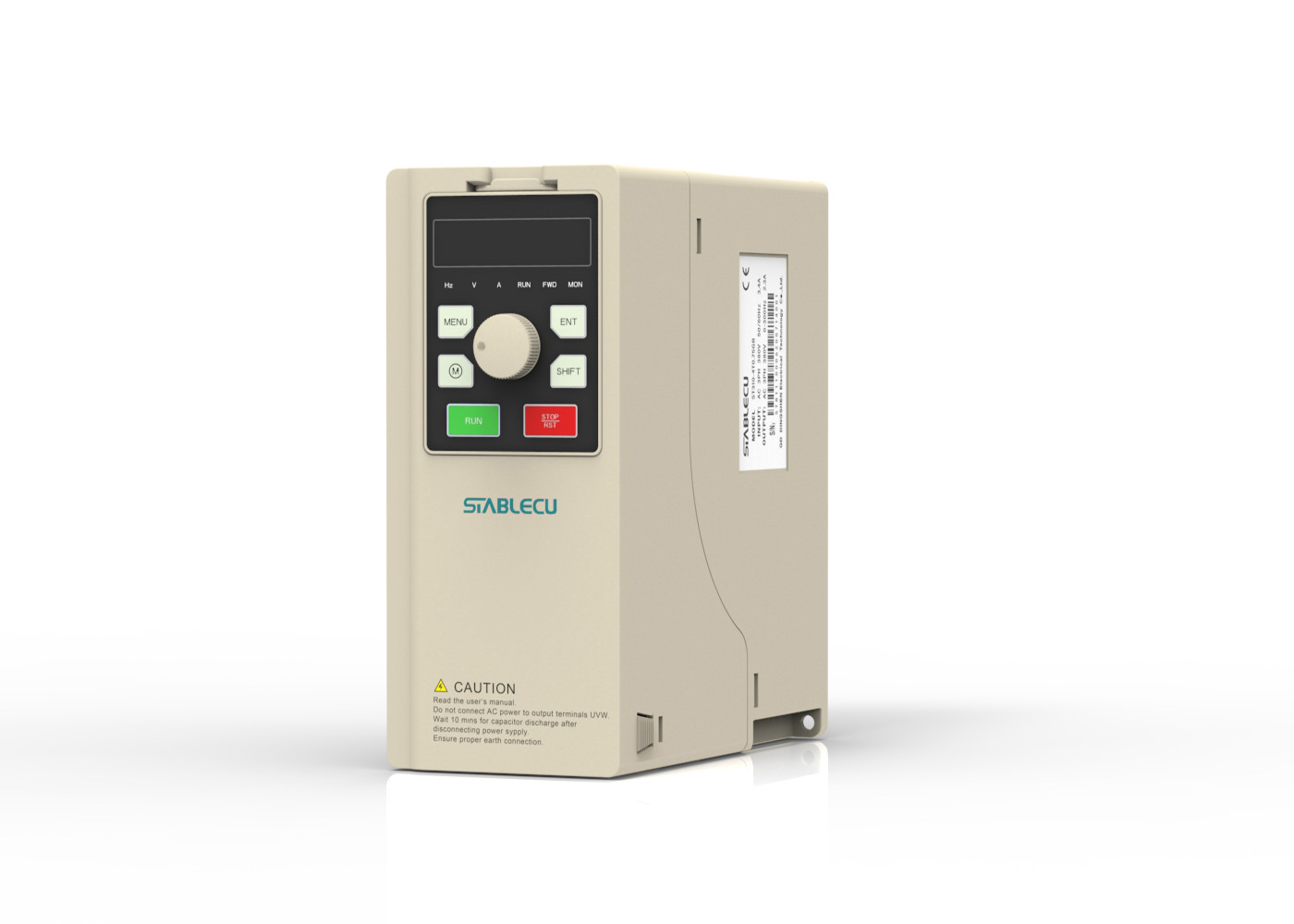

Detailed image of frequency inverter

Low Power 1.5KW Variable Frequency Inverter , IP20 Three Phase Frequency Converter 0Low Power 1.5KW Variable Frequency Inverter , IP20 Three Phase Frequency Converter 1

Application of frequency inverter

Widely used in leather machines, paper printing, petroleum industry, wire and cable, textile industry, plastic machine, etc.

Low Power 1.5KW Variable Frequency Inverter , IP20 Three Phase Frequency Converter 2

FAQ

1. Who are we?
We are a manufacturer based in Guangdong, China, start from 2009, and sell to Domestic Market(100.00%).
There are total about 201-300 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment.
3. What can you buy from us?
Ultrasonic Generator, PLC/Motion Controller, Servo Motor And Stepper Motor, Frequency Converter,
Automation System Development And Complete Set Of Electric Box.
4. Do you offer customization services?
Yes, we can customize the products according to your requirements. Please send us an inquiry, your inquiry
will be replied within 12 hours.
5. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, DDP, DDU, Express Delivery;
Accepted Payment Currency: USD, EUR, JPY, CAD, AUD, HKD, CNY;
Accepted Payment Type: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash;
Language Spoken: English, Chinese.
