220V Single Phase Frequency Inverter For Motor

Basic Information
Place of Origin: China
Brand Name: STABLECU
Certification: CE
Model Number: ST310-2S0.75
Minimum Order Quantity: 1PCS
Price: $49-59
Packaging Details: 1pcs/Polybag,100pcs/big polybag, 300pcs/ctn
Delivery Time: 5-8 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000 pcs per month
Material: ABS+PC Power: 0.75KW
Voltage: 220V Phase: Single Phase
Customized: Yes Condition:: 100% New
Machine Case: Aluminum Coated Zinc Plate,cold Rolled Plate Powder Spraying Warranty: 18 Months
High Light:

220V Single Phase Frequency Inverter

,

Single Phase Frequency Inverter 0.75KW

,

220V VFD drive for single phase motor

220V 0.75KW/1.5KW/2.2KW Mini VFD Variable Frequency Inverter For Motor





In order to meet the needs of customers, Jiesheng's engineers have developed a new economical product - ST300 series. The volume becomes smaller, which is conducive to the rational distribution of electric box space and avoid crowding, reduce the overall temperature rise of electric cabinet and prolong the service life of products.



Product Feature



Structural Design
1. Independent air duct for heat dissipation, effectively isolating pollutants from inside.
2. Using 4-layer precision PCB board and a new generation of IGBT module technology, and mostly using IC integrated electronics.

3. The volume and weight of new generation inverters are lighter, saving installation space.

Software Design
1. ST310 inverter control modes include:
– V/F mode
0: straight line V/F
1: Multi-stage V/F
2: 1.2, 1.4, 1.6, 1.8, 2.0 powers
3: V/F separation method
2. Overload capacity: 150% for 60 sec, 180% for 10 sec, 200% for 0.5 sec.
3. The drives adopt a new software speed tracking algorithm, which have low impact on current and voltage when tracking, also have the accurate tracking speed.
4. Maximum frequency of 3000 Hz, can be used in different machines. They have been successfully applied to chemical, metallurgy, machine tools, woodworking, textile, and many other industries.

Hardware Design
1. Full protection function. IGBT through protection, current abnormal protection, over-current, and over-voltage protection, etc.
2. Wide voltage design of input power supply, works normally between 220V-380V AC.

Humanized Design
1. Multiple sets of motor parameters can be customized.
2. Provide parameters for four failure records.
3. The whole series is equipped with a 1/1 scale paper shell template for mounting holes, so as to realize more convenient and fast electrical cabinet installation.
4. The fan partition is pull-out and detachable, and the fan can be taken out directly, which is convenient for daily maintenance.


Use of Operation Panel



Mark  Key Name Function
 MENU  Program/ Exit key

 1. Enter or exit the programming state

 2. Modify the data and abandon the storage

 3. Switch fault display to stop/running parameter with the SHIFT key, press MENU to switch back to fault display   state

 ENT  Identify key

 1. Edit function code parameters

 2. Data storage confirmation

 3. View the single group of parameters circularly

 SHIFT  The shift key

 1. Move the editing bit of function parameters

 2. Move the data editing bit

 3. Switch the display parameters of the operation panel   under shutdown/running state

 Knob+

 Add keys clockwise



 1. The number of selected bits of the function code   is increased

 2. The selected bit of parameter value increases

 3. In shutdown/operation state, the frequency value   increases

 Knob-  Counterclockwise   decrease key

 1. The serial number of the function code is reduced

 2. The selected bit of parameter value decreases

 3. The frequency value decreases under   shutdown/running state

 RUN


 Stop

 Run, Stop and reset   keys

 1. Long press the 3S operation panel to start the driver in   the given mode

 2. Long press 3S to set parameters, and then start the   driver for parameters self-learning

 3. Press the button for 1S to report the fault and reset   the fault after abnormal shutdown

 4. Press for 1S to control the drive shutdown under the   given mode of operation panel operation command



Details Images

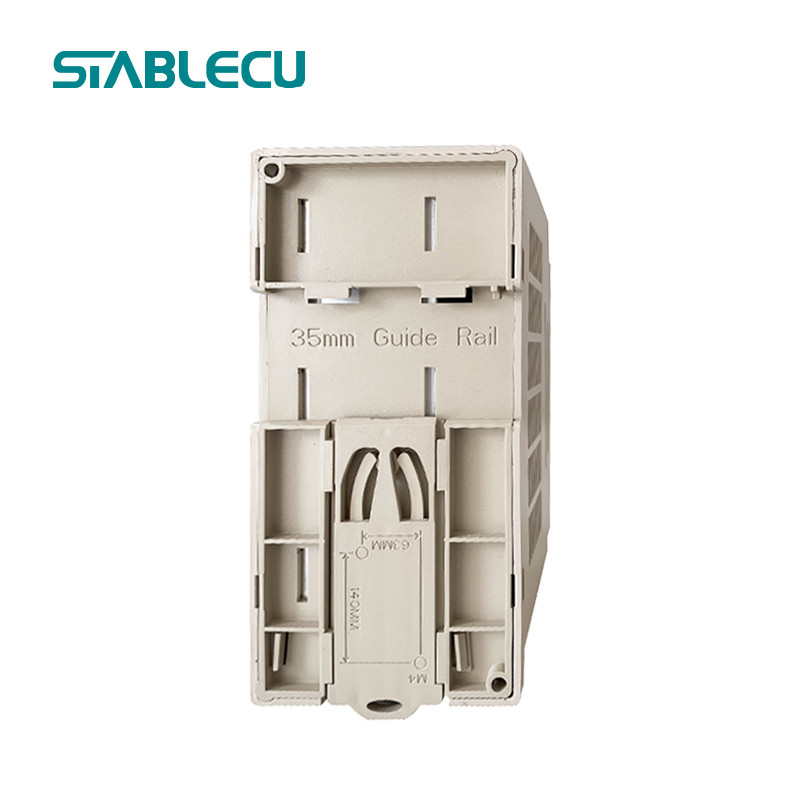

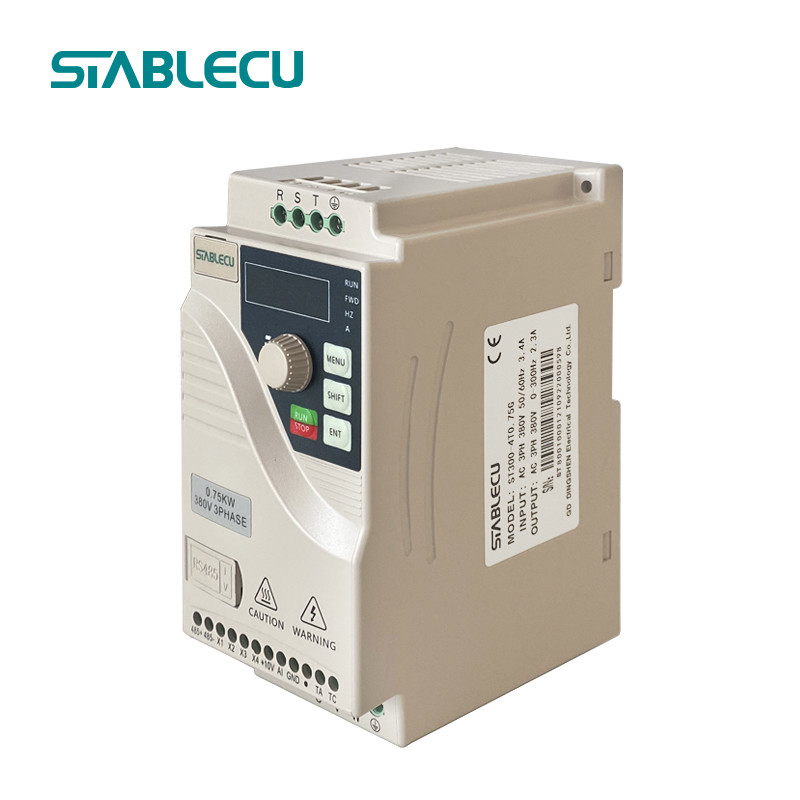

220V Single Phase Frequency Inverter For Motor 0220V Single Phase Frequency Inverter For Motor 1



FAQ



1. Who are we?
We are a manufacturer based in Guangdong, China, start from 2009, sell to Domestic Market(100.00%). There are total about 201-300 people in our office.

2. How can we guarantee the quality?
Always a pre-production sample before mass production; Always final Inspection before shipment.

3. What can you buy from us?
Ultrasonic Generator, PLC/Motion Controller, Servo Motor And Stepper Motor, Frequency Converter, Automation System Development And Complete Set Of Electric Box.

4. Do you offer customization services?
Yes, we can customize the products according to your requirements. Please send us an inquiry, your inquiry will be replied within 12 hours.

5. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, DDP, DDU, Express Delivery;
Accepted Payment Currency: USD, EUR, JPY, CAD, AUD, HKD, CNY;
Accepted Payment Type: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash;
Language Spoken: English, Chinese.
