| Place of Origin: | China |
|---|---|
| Brand Name: | STABLECU |
| Certification: | CE |
| Model Number: | ST310-4T45G |
| Minimum Order Quantity: | 1PCS |
| Packaging Details: | 1pcs/Polybag,100pcs/big polybag, 300pcs/ctn |
| Delivery Time: | 5-8 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Material: | ABS+PC | Power: | 45KW |
|---|---|---|---|
| Voltage: | 380V | IP: | 20 |
| Color: | Huawei Gray | Type: | AC |
| OEM: | Yes | Control Mode: | VF Control |
| High Light: | vector control frequency inverter 45KW,CE vector control frequency inverter,45KW vector control VFD |
||

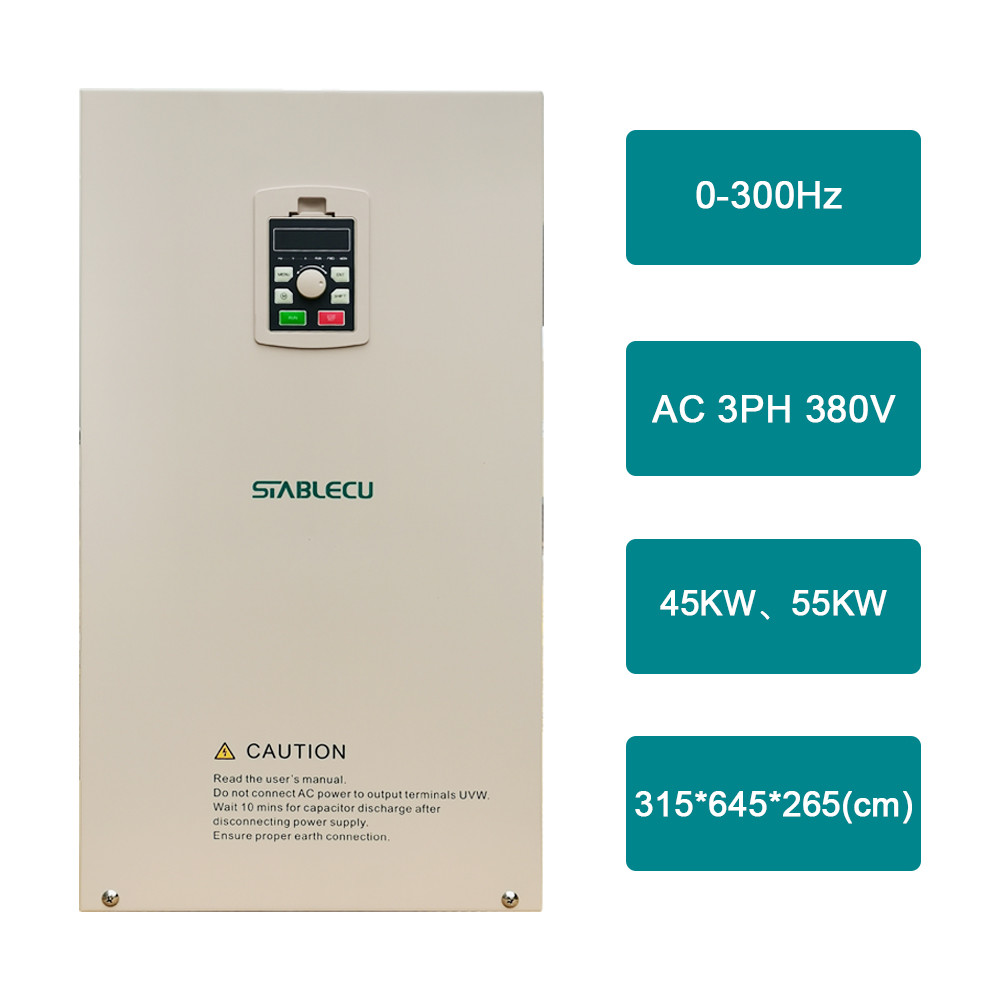

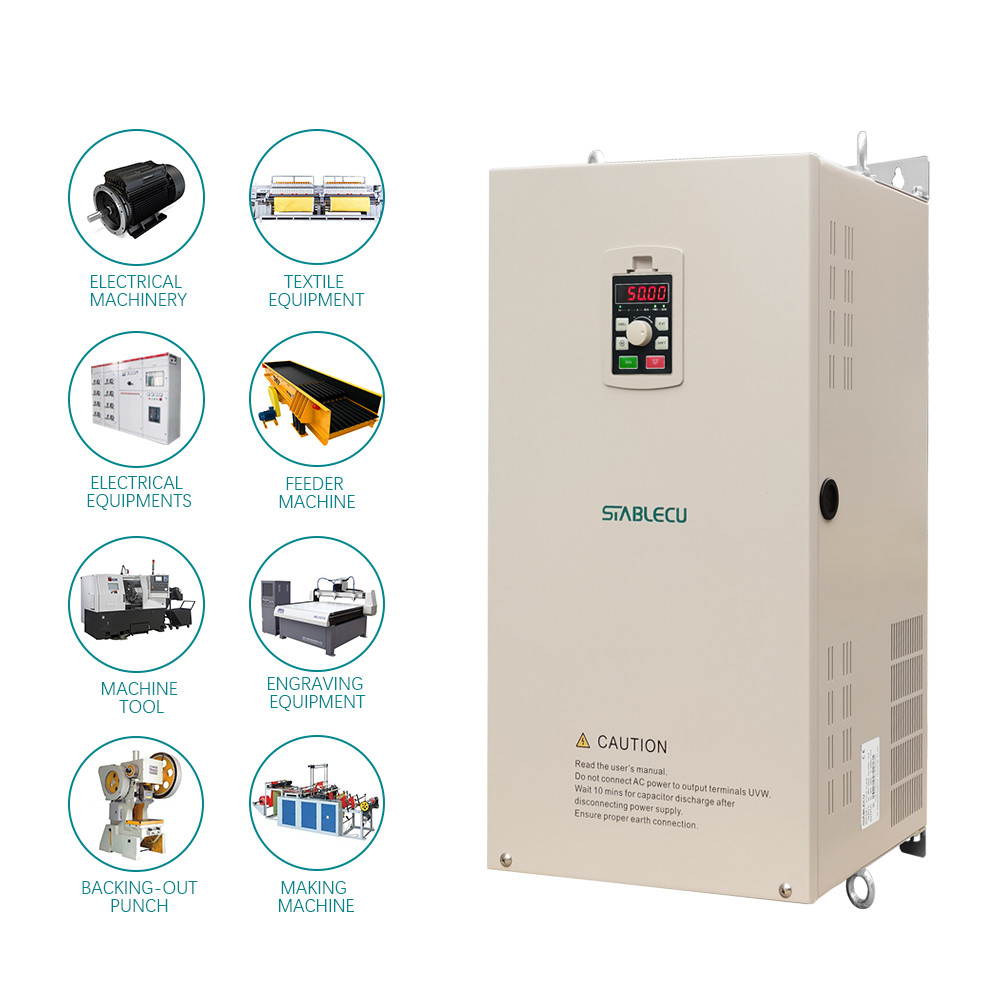

45KW Three-Phase Inverter General Use Vector Control AC Frequency Converter
Introduction of frequency converter
ST310 series inverters are used for three-phase variable speed drives, asynchronous motors
ranging from 0.75kw to 110kW. The frequency converter is durable, easy to debug, and easy to use.
Features:
Independent cooling dust design
Rapid acceleration and deceleration
Tl’S latest high-speed DSP chip is selected
The autonomous vector control algorithm
Specification of frequency converter
|
item
|
Frequency Inverter |
| Place of Origin | China |
|
Brand Name
|
STABLECU |
| Model Number | ST-3104T45G |
| Warranty | 18 Months |
| Type | speed driver/AC driver |
| Certification |
CE
|
| Customized | Yes |
| Rated Power | 45kw |
| Nominal Voltage | 380V |
| power phase number | 3 |
| Power | 45kw |
| Input rated voltage and frequency | 3PH AC380V 50/60Hz |
| Allowable voltage range | 380V |
| Output voltage | 380V: 380V-480V |
| Control Mode | Vector Control |
| Output frequency | 0.1~300.0 Hz |
Model size of frequency converter
| Drive Model | Outline and mounting dimensions(mm) | weight(Kg) | |||||||
| W | H | D | W1 | H1 | D1 | H2 | Mounting holes(d) | ||
| ST310-4T0.75GB | 80 | 185.8 |
|
56 | 174.5 | — | — | 5.0 | 1.5 |
| ST310-4T1.5GB | |||||||||
| ST310-4T2.2GB | |||||||||
| ST310-4T3.7GB | |||||||||
| ST310-4T5.5GB | 100 | 249 | 209 | 70 | 228 | — | — | 6.0 | 4.0 |
| ST310-4T7.5GB | |||||||||
| ST310-4T11GB | |||||||||
| ST310-4T15GB | 192 | 397 | 199 | 150 | 379 | — | — | 7.0 | 12 |
| ST310-4T18.5GB | |||||||||
| ST310-4T22GB | |||||||||
| ST310-4T30G | 257.2 | 466 | 217 | 200 | 448 | — | — | 7.0 | 20 |
| ST310-4T37G | |||||||||
| ST310-4T45G | 315 | 645 | 265 | 230 | 625 | 148 | 575 | 10 | 40 |
| ST310-4T55G | |||||||||
| ST310-4T75G | 338 | 750 | 290 | 230 | 730 | 148 | 680 | 10 | 40 |
| ST310-4T90G | |||||||||
| ST310-4T110G | |||||||||
| ST310-4T132G | 430 | 785 | 345 | 280 | 761 | 132 | 710 | 12 | 75 |
| ST310-4T160G | 540 | 964 | 385 | 350 | 938 | 176 | 881 | 14 | 118 |
| ST310-4T185G | |||||||||
| ST310-4T200G | |||||||||
| ST310-4T220G | |||||||||
| ST310-4T250G | 700 | 1004 | 385 | 520 | 978 | 176 | 922 | 14 | 155 |
| ST310-4T280G | |||||||||
| ST310-4T315G | |||||||||
| ST310-4T355G | 810 | 1234 | 430 | 630 | 1208 | 176 | 1150 | 14 | 225 |
| ST310-4T400G | |||||||||
| ST310-4T450G | |||||||||
FAQ
1. Who are we?
We are a manufacturer based in Guangdong, China, start from 2009, sell to Domestic Market(100.00%). There are a total of about 201-300 people in our office.
2. How can we guarantee the quality?
Always a pre-production sample before mass production; Always final Inspection before shipment.
3. What can you buy from us?
Ultrasonic Generator, PLC/Motion Controller, Servo Motor And Stepper Motor, Frequency Converter, Automation System Development And Complete Set Of Electric Box.
4. Do you offer customization services?
Yes, we can customize the products according to your requirements. Please send us an inquiry, your inquiry will be replied within 12 hours.
5. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, DDP, DDU, Express Delivery；
Accepted Payment Currency: USD, EUR, JPY, CAD, AUD, HKD, CNY;
Accepted Payment Type: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash;
Language Spoken: English, Chinese.
