| Place of Origin: | China |
|---|---|
| Brand Name: | STABLECU |
| Certification: | CE |
| Model Number: | ST310-4T18.5GB |
| Minimum Order Quantity: | 1PCS |
| Packaging Details: | 1pcs/Polybag,100pcs/big polybag, 300pcs/ctn |
| Delivery Time: | 5-8 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Material: | ABS+PC | Power: | 18.5KW |
|---|---|---|---|
| Voltage: | 380V | Phase: | 3 Phase |
| Color: | Huawei Gray | Type: | AC/AC Converters |
| Packaging Material: | Carton Or Wood | After-sales Service Provided: | Technical Support |
| High Light: | 18.5KW Three Phase Frequency Inverter,OEM Three Phase Frequency Inverter,18.5KW variable speed drive for 3 phase motor |
||
18.5KW Frequency Converter Three Phase AC Motor Adjustable Speed Drives
Description of variable frequency drive
ST310 inverter series is a powerful high-performance current vector inverter, which can realize the
control of the asynchronous motor, V/F control mode, one machine with multiple functions, can realize
multiple frequency switching, and can be used for textile, Drives for automated production equipment
such as papermaking, wIre drawing, machine tools, packaging, and food.
Product Testing of variable frequency drive
Semi-finished product testing
After all semi-finished products are processed, the quality department will carry out a comprehensive
appearance test and electrification test. After the test is completed, professionals will apply three layers
of three-proof paint, and some products will undergo electrification aging test.
All test data are archived to ensure the consistency of product testing. Abnormal test data can be recalled
and investigated later.
The finished product testing
At least 12 hours after the production is completed, the aging temperature is 55 degrees to ensure the reliability
of the internal electronic components.
After the aging is completed, load tests such as loading, impact, rapid acceleration, and deceleration are carried out
with the excitation motor, and the input and output ports of the product are tested to ensure the consistency of product
performance and various functions
Technical Parameters of variable frequency drive
| Power input | Rated voltage | 3 phase 380 v |
| Rated frequency | 50Hz/60Hz | |
| Allowable voltage fluctuation | The constant voltage fluctuation is ±10%, and the short fluctuation is -15% ~ +10%, that is, 323V ~ 528V | |
| The voltage imbalance rate is less than 3%, and the distortion rate meets the requirements of IEC61800-2 | ||
| Allowable frequency fluctuation | ±5% | |
| Rated input current | See section 2.4 | |
| Power output | Standard motor | See section 2.4 |
| Rated current | See section 2.4 | |
| Output voltage | 3 phase:0 ~ rated input voltage, error less than ±3% | |
| Output frequency | 0.00～300.00Hz,each unit 0.01Hz | |
| Overload capacity | 150% 1min, 180% 10s, 200% 0.5s | |
|
Control feature |
Control mode | Simple vector control |
| Speed range | 1:100 | |
| Speed control accuracy | ±0.5% | |
| Start torque | 0.5Hz:180% | |
|
The basic performance of the product
|
Start frequency | 0.00～600.00Hz |
| Acceleration and deceleration time | 0.00～60000s | |
| Carrier frequency | 0.7kHz～16kHz | |
| Frequency setting mode | Digital setting+UP/DOWN Simulation setting Communication setting Pulse setting Primary and auxiliary operations |
|
| start mode | Start from start frequency DC injection start Speed tracking start |
|
| Stop mode | Slowing stop Free stop Deceleration + DC braking stop |
|
| Energy consumption braking capacity |
Built-in braking units of 22KW and below can be selected from 30 to 110KW braking units |
|
| DC breaking capacity | Start frequency of DC braking: 0.00Hz～50.00Hz DC braking current: 0%～100% DC braking time: 0.00s～10.00s |
|
| features | Parameters copy, parameters backup, common DC bus, Flexible function code to show recessive, All kinds of primary and auxiliary given and switching, Reliable speed search, A variety of acceleration and deceleration curve selection, Automatic correction of analog quantity, Slug control function, Up to 16 speeds can be supported (two speeds support flexible frequency setting mode), Fixed length control function, The count function, Three sets of breakdown records, Over-excitation braking function, Over-voltage stall, Under-voltage stall, Power down restart function, Jump frequency function, Frequency binding function, Four stages of acceleration and deceleration time free switching function, Motor temperature protection function, Flexible fan control function, Process PID control function, Simple PLC control function, Flexible multifunctional key setting function, Droop control function, Parameter identification of asynchronous machine, Weak magnetic control function | |
| Using environment | Using place | Indoor, out of direct sunlight. No dust, corrosive gas, flammable gas, oil mist, water vapor, dripping or salt, etc |
| The altitude | 0～2000m Over 1000 meters, the rated output current is reduced by 1% for every 100 meters rise |
|
| Temperature | Between -10℃~40℃ and 40℃~50℃, the rated output current decreases by 1% for every 1℃ increase | |
| Humidity | 5～95%, No condensation is allowed | |
| Vibration | Less than 5.9 m/s2(0.6g) | |
| Storage temperature | -40℃～+70℃ | |
| Protection grade | IP20 | |

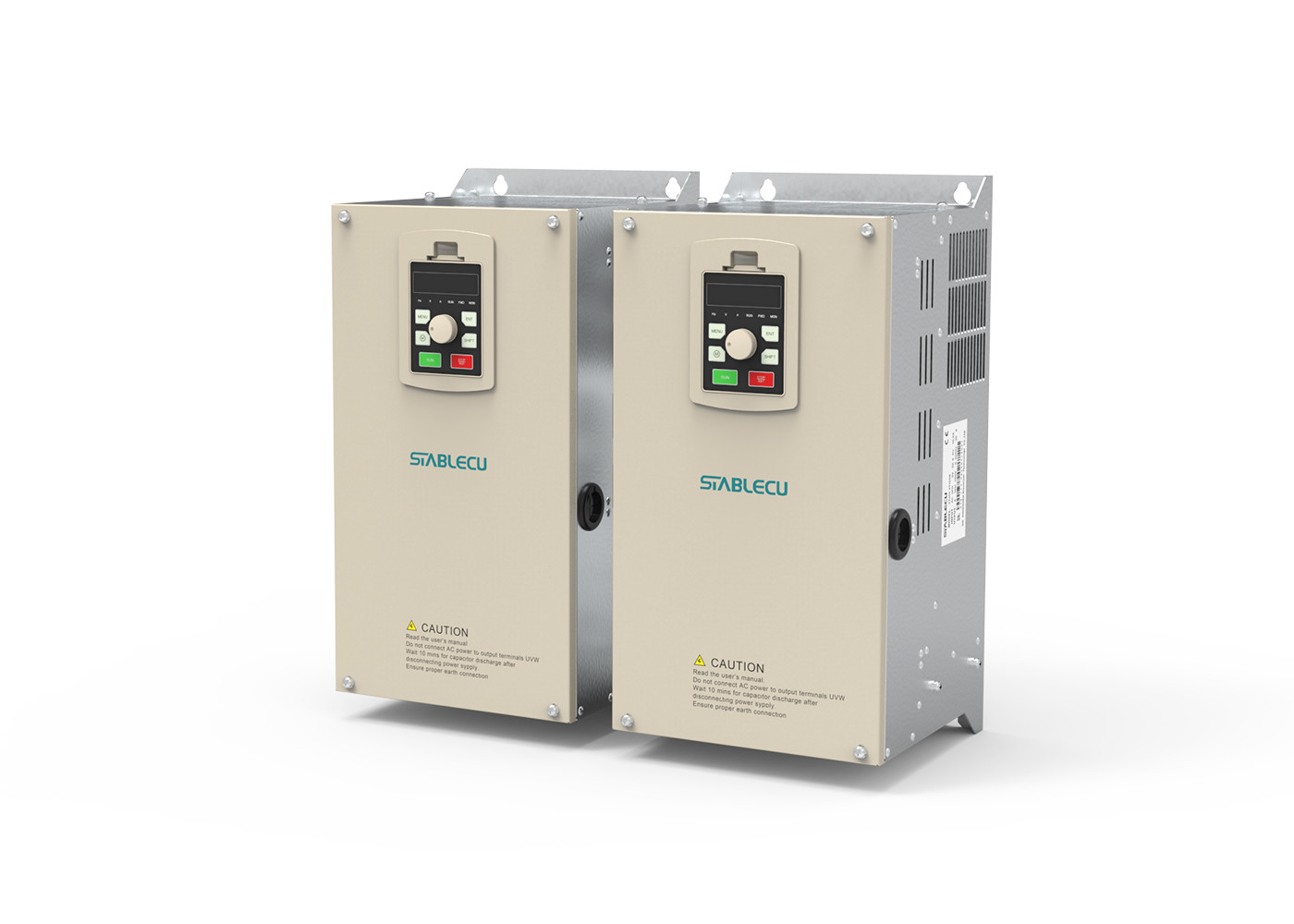

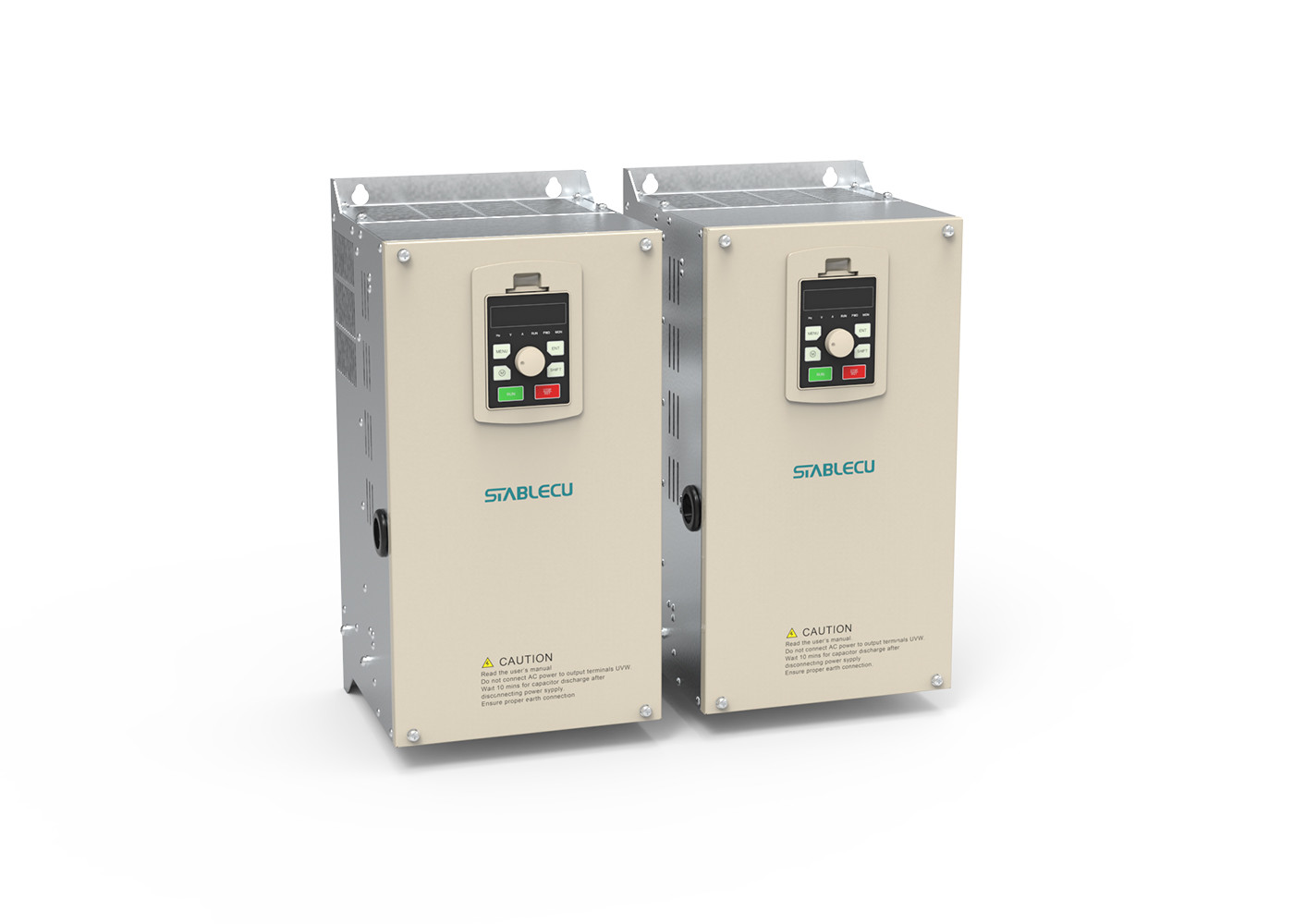

Detail images of variable frequency drive
FAQ
1. Who are we?
We are a manufacturer based in Guangdong, China, start from 2009, sell to Domestic Market(100.00%).
There are a total of about 201-300 people in our office.
2. How can we guarantee the quality?
Always a pre-production sample before mass production; Always final Inspection before shipment.
3. What can you buy from us?
Ultrasonic Generator, PLC/Motion Controller, Servo Motor And Stepper Motor, Frequency Converter,
Automation System Development And Complete Set Of Electric Box.
4. Do you offer customization services?
Yes, we can customize the products according to your requirements. Please send us an inquiry,
your inquiry will be replied within 12 hours.
5. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, DDP, DDU, Express Delivery;
Accepted Payment Currency: USD, EUR, JPY, CAD, AUD, HKD, CNY;
Accepted Payment Type: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash;
Language Spoken: English, Chinese.
