Material: | ABS+PC | Power: | 11KW |
---|---|---|---|
Voltage: | 380V | Phase: | 3 Phase |
Color: | Huawei Gray | Type: | AC/AC Converters |
Communication: | RS485 | Function: | Constant Torque |
High Light: | 11KW vector frequency converter,380V vector frequency converter,11KW pump frequency converter |
Frequency Converter Pump 380V AC Power Inverter For Washing Machine
Instruction of variable frequency drive
ST310 series vector control inverter is a functionally enhanced product with strong stability. Using IGBT and
TI DSP chipsets, vector control and V/F control are fully optimized.
It has been widely used in various industrial environments, especially for occasions where speed control is required to
control the torque response speed and low-frequency output of precision pumps.
Hardware of variable frequency drive
1.Analog input (AI1, AI2), current (0-20MA), voltage (0 - 10v)
2.Analog output (AO1, AO2), current (0-20 ma), voltage (0-10 v)
3. Switch input and six (X1 - X6)
4. Switching output three collector output Y1, relay output RA- RB- RC, TA-TC
5. High-speed pulse input DI, high-speed pulse output DO
6. One communication port 485, supports Modbus protocol, RTU mode
7. Standard network ports are used to connect the control board and operation panel. Signal transmission speed
is high and the distance is long
8. Panel knob adopts encoder knob, high-speed precision, stable speed, long service life
9. Built-in brake unit is the default standard for those below 22KW and is optional for those between 30-110kW.
Parameter of variable frequency drive
Model | Input Voltage | Output Voltage | Frequency | Power | Suitable Motor |
ST310-4T5.5GB | 380V Three Phase | 380V Three Phase |
50 60HZ/ 0-300HZ |
5.5KW | 5.5KW |
ST310-4T7.5GB | 380V Three Phase | 380V Three Phase |
50 60HZ/ 0-300HZ |
7.5KW | 7.5KW |
ST310-4T11GB | 380V Three Phase | 380V Three Phase |
50 60HZ/ 0-300HZ |
11KW | 11KW |

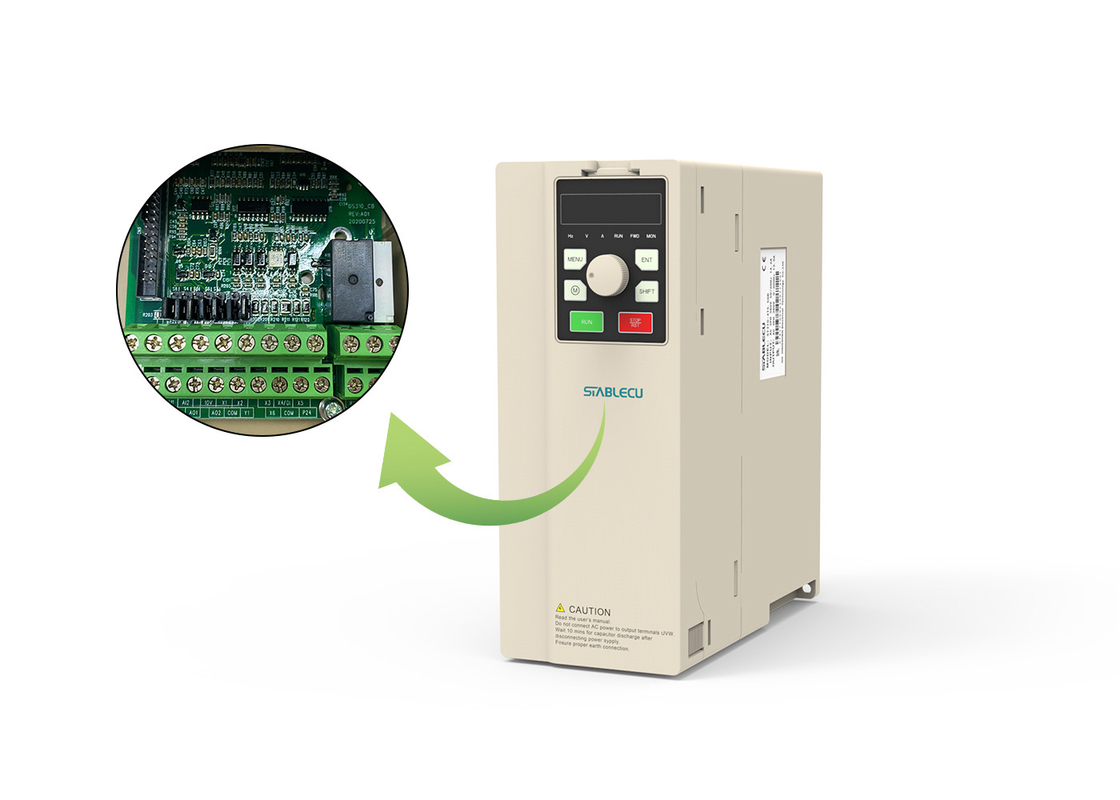

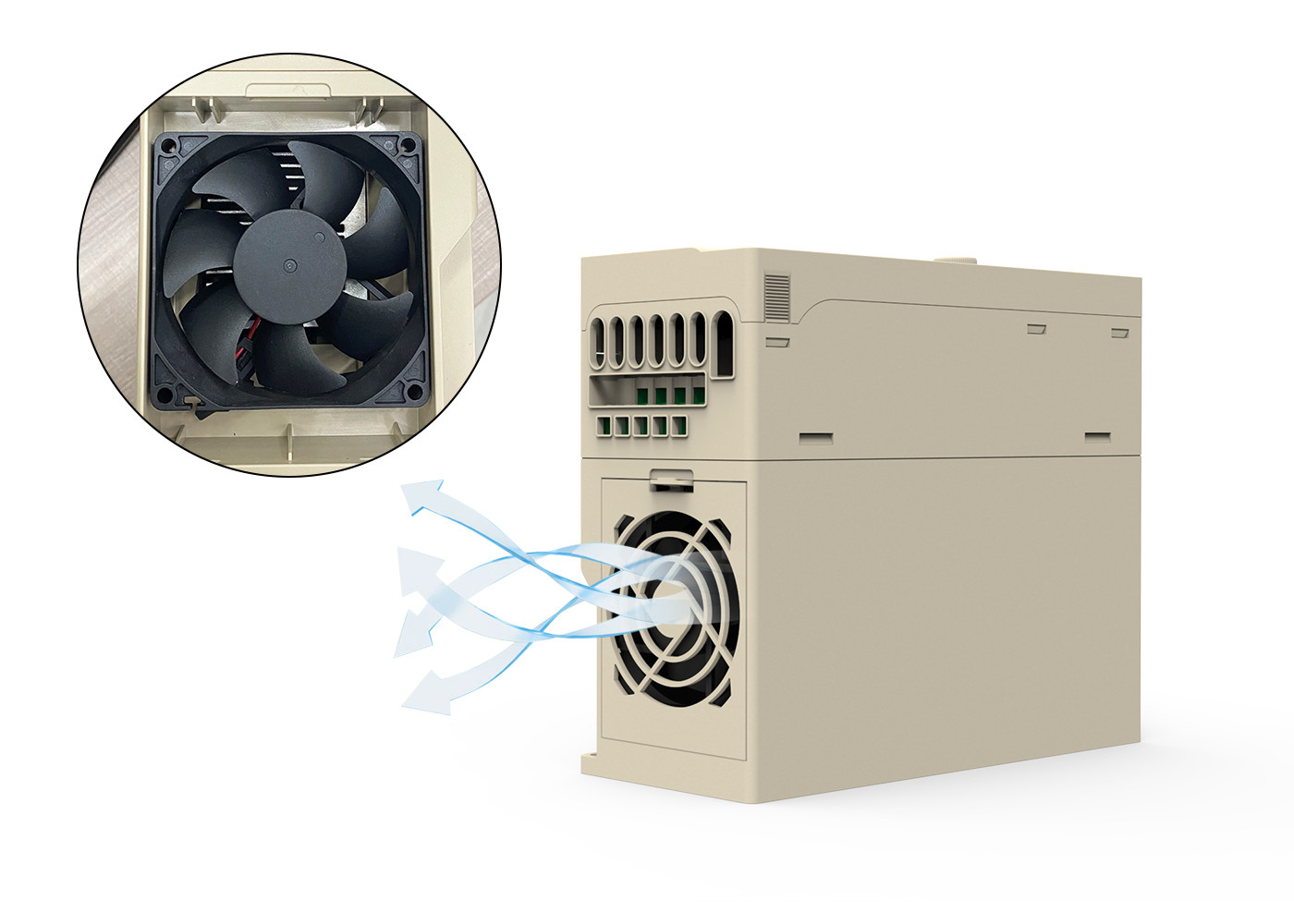

Details image of variable frequency drive
Application of variable frequency drive
Electronics, textile, light industry, building materials, food machinery, printing and dyeing, paper, wire drawing machine,
winding machine, washing machine, welding machine, mixer, extruding machine, chemical industry, and so on.
FAQ
1. Who are we?
We are a manufacturer based in Guangdong, China, start from 2009, sell to Domestic Market(100.00%).
There are a total of about 201-300 people in our office.
2. How can we guarantee the quality?
Always a pre-production sample before mass production; Always final Inspection before shipment.
3. What can you buy from us?
Ultrasonic Generator, PLC/Motion Controller, Servo Motor And Stepper Motor, Frequency Converter,
Automation System Development And Complete Set Of Electric Box.
4. Do you offer customization services?
Yes, we can customize the products according to your requirements. Please send us an inquiry,
your inquiry will be replied within 12 hours.
5. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, DDP, DDU, Express Delivery;
Accepted Payment Currency: USD, EUR, JPY, CAD, AUD, HKD, CNY;
Accepted Payment Type: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash;
Language Spoken: English, Chinese.
