Micro 750W 220V Single Phase Output VFD Full Protection Function

Basic Information
Place of Origin: China
Brand Name: STABLECU
Certification: CE
Model Number: ST310-2S0.75
Minimum Order Quantity: 1PCS
Price: $49-59
Packaging Details: 1pcs/Polybag,100pcs/big polybag, 300pcs/ctn
Delivery Time: 5-8 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000 pcs per month
Material: ABS+PC Power: 0.75KW
Voltage: 220V Phase: Single Phase
Customized: Yes Condition:: 100% New
Warranty: 18 Months Application: Industry
High Light:

750W 220v single phase output VFD


220v single phase output VFD


0.75KW vfd 1 phase output

220V 750W Variable Frequency Drive Mini VFD Single Phase Output Inverter


In order to meet the needs of customers, Jiesheng's engineers have developed a new economical product - ST300 series.
The volume becomes smaller, which is conducive to the rational distribution of electric box space and avoid crowding,
reduce the overall temperature rise of electric cabinet and prolong the service life of products.

Product feature of frequency inverter

Structural Design
1. Independent air duct for heat dissipation, effectively isolating pollutants from inside.
2. Using 4-layer precision PCB board and a new generation of IGBT module technology, and mostly using IC integrated electronics.
3. The volume and weight of new generation inverters are lighter, saving installation space.
Software Design
1. ST310 inverter control modes include:
– V/F mode
0: straight line V/F
1: Multi-stage V/F
2: 1.2, 1.4, 1.6, 1.8, 2.0 powers
3: V/F separation method
2. Overload capacity: 150% for 60 sec, 180% for 10 sec, 200% for 0.5 sec.
3. The drives adopt a new software speed tracking algorithm, which have low impact on current and voltage when tracking,
also have the accurate tracking speed.
4. Maximum frequency of 3000 Hz, can be used in different machines. They have been successfully applied to chemical,
metallurgy, machine tools, woodworking, textile, and many other industries.
Hardware Design
1. Full protection function. IGBT through protection, current abnormal protection, over-current and over-voltage protection etc.
2. Wide voltage design of input power supply, works normally between 220V-380V AC.
Humanized Design
1. Multiple sets of motor parameters can be customized.
2. Provide parameters for four failure records.
3. The whole series is equipped with a 1/1 scale paper shell template for mounting holes, so as to realize more convenient
and fast electrical cabinet installation.
4. The fan partition is pull-out and detachable, and the fan can be taken out directly, which is convenient for daily maintenance.

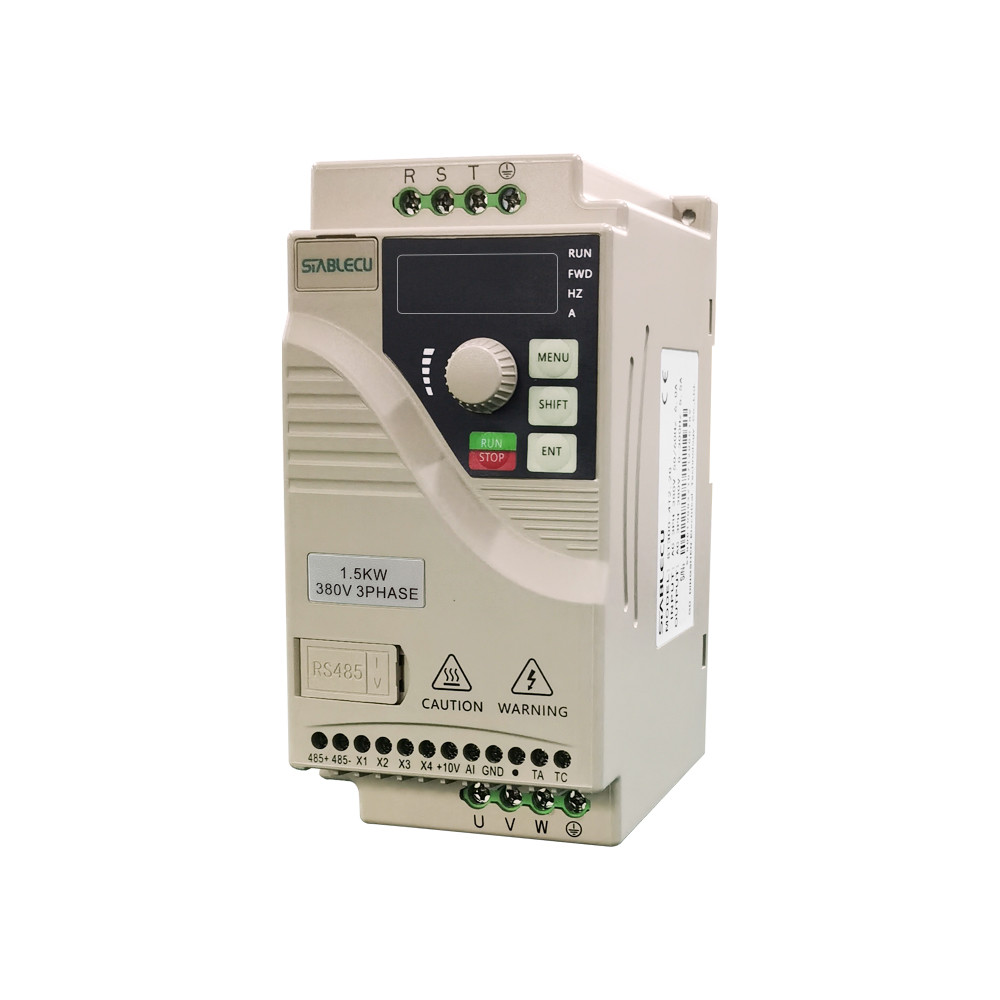

Use of operation panel of frequency inverter

Mark  Key Name Function
MENU Program/ Exit key 1. Enter or exit the programming state
2. Modify the data and abandon the storage
3. Switch fault display to stop/running parameter with the SHIFT key, press MENU to switch back to fault display state
ENT Identify key 1. Edit function code parameters
2. Data storage confirmation
3. View the single group of parameters circularly
SHIFT The shift key 1. Move the editing bit of function parameters
2. Move the data editing bit
3. Switch the display parameters of the operation panel under shutdown/running state
Knob+ Add keys clockwise 1. The number of selected bits of the function code is increased
2. The selected bit of parameter value increases
3. In shutdown/operation state, the frequency value increases
Knob- Counterclockwise decrease key 1. The serial number of the function code is reduced
2. The selected bit of parameter value decreases
3. The frequency value decreases under shutdown/running state
RUN Run, Stop and reset keys 1. Long press the 3S operation panel to start the driver in the given mode
2. Long press 3S to set parameters, and then start the driver for parameters self-learning
3. Press the button for 1S to report the fault and reset the fault after abnormal shutdown
4. Press for 1S to control the drive shutdown under the given mode of operation panel operation command

Detailed Images of frequency inverter

Micro 750W 220V Single Phase Output VFD Full Protection Function 0

Micro 750W 220V Single Phase Output VFD Full Protection Function 1

Micro 750W 220V Single Phase Output VFD Full Protection Function 2
