| Place of Origin: | China |
|---|---|
| Brand Name: | STABLECU |
| Certification: | CE |
| Model Number: | ST310-4T22GB |
| Minimum Order Quantity: | 1PCS |
| Packaging Details: | 1pcs/Polybag,100pcs/big polybag, 300pcs/ctn |
| Delivery Time: | 5-8 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Material: | ABS+PC | Power: | 22KW |
|---|---|---|---|
| Voltage: | 380V | Phase: | Three Phase |
| Power Phase: | 3 Phase | Usage: | Motor |
| Package: | Carton Box | Warranty: | 18 Months |
| High Light: | 22KW VFD to run 3 phase motor,Vector Control VFD for three phase motor,22KW VFD for three phase motor |
||

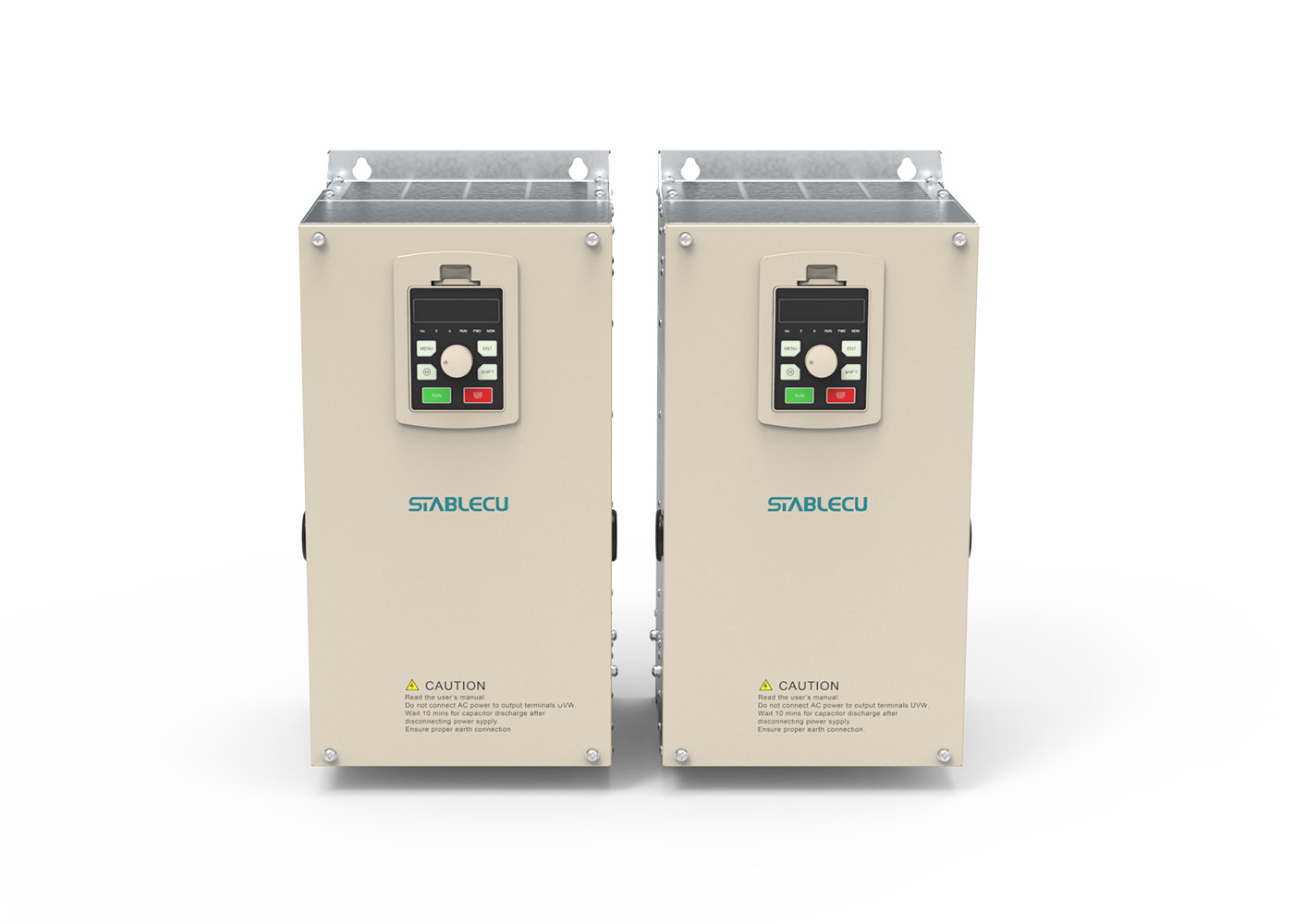

22KW Variable Frequency Drive Converter Vector Control For Motor Speed Control
Introduction of frequency converter
The frequency converter is a power control device that uses frequency conversion technology
and microelectronics technology to control AC motors by changing the frequency of the motor's
working power supply. The frequency converter is mainly composed of a rectifier (AC to DC), filtering,
inverter (DC to AC), braking unit, drive unit, a detection unit, and micro-processing unit. The inverter
adjusts the voltage and frequency of the output power supply by opening and closing the internal IGBT,
and provides the required power supply voltage according to the actual needs of the motor, thereby achieving
the purpose of energy-saving and speed regulation. In addition, the inverter has many protection functions. ,
Such as overcurrent, overvoltage, overload protection, and so on. With the continuous improvement of
industrial automation, frequency converters have also been widely used.
Operation panel of frequency converter
| Mark | Key Name | Function |
| MENU | Program/Exit key | 1. Enter or exit the programming state 2. Modify the data and abandon the storage 3. Switch fault display to stop/running parameter with the SHIFT key, press MENU to switch back to fault display state |
| ENT | Identify key | 1. Enter or exit the programming state 2. Modify the data and abandon the storage 3. Switch fault display to stop/running parameter with the SHIFT key, press MENU to switch back to fault display state |
| M | Multi-function key | Switch selection according to function |
| SHIFT | The shift key | 1. Move the editing bit of function parameters 2. Move the data editing bit 3. Switch the display parameters of the operation panel under shutdown/running state |
| Increase Decrease | Add keys clockwise | In shutdown/operation state, the frequency value increases |
| Increase Decrease | Counterclockwise decrease key | The frequency value decreases under shutdown/running state |
| RUN | Run key | 1. Long press the 3S operation panel to start the driver in the given mode 2. Long press 3S to set parameters, and then start the driver for parameters self-learning |
| STOP/AST | Stop/reset key | 1. Press the button for 1S to report the fault and reset the fault after abnormal shutdown 2. Press for 1S to control the drive shutdown under the given mode of operation panel operation command |

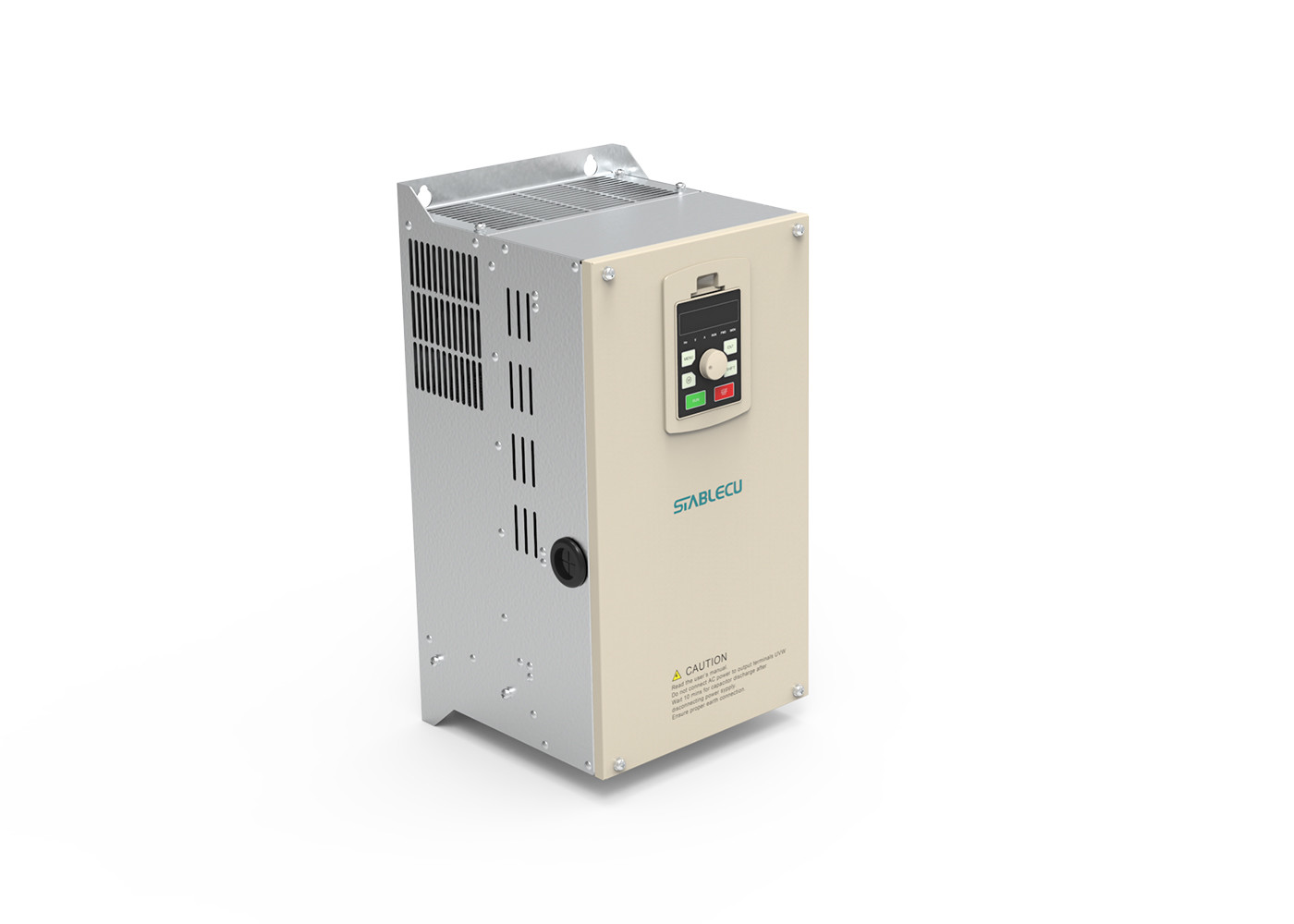

Details image of frequency converter
FAQ
1. Who are we?
We are a manufacturer based in Guangdong, China, start from 2009, sell to Domestic Market(100.00%).
There are total about 201-300 people in our office.
2. How can we guarantee the quality?
Always a pre-production sample before mass production; Always final Inspection before shipment.
3. What can you buy from us?
Ultrasonic Generator, PLC/Motion Controller, Servo Motor And Stepper Motor, Frequency Converter,
Automation System Development And Complete Set Of Electric Box.
4. Do you offer customization services?
Yes, we can customize the products according to your requirements. Please send us inquiry, your inquiry
will be replied within 12 hours.
5. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, DDP, DDU, Express Delivery;
Accepted Payment Currency: USD, EUR, JPY, CAD, AUD, HKD, CNY;
Accepted Payment Type: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash;
Language Spoken: English, Chinese.
