380V 22KW 30HP Three Phase Variable Frequency Drive

Basic Information
Place of Origin: China
Brand Name: STABLECU
Certification: CE
Model Number: ST310-4T22GB
Minimum Order Quantity: 1PCS
Price: $368-388
Packaging Details: 1pcs/Polybag,100pcs/big polybag, 300pcs/ctn
Delivery Time: 5-8 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000 pcs per month
Material: ABS+PC Power: 22KW
Voltage: 380V Phase: Three Phase
Power Phase: 3 Phase Usage: Motor
Machine Case: Aluminum Coated Zinc Plate,cold Rolled Plate Powder Spraying Package: Carton Box
High Light:

30HP three phase variable frequency drive

,

22KW three phase variable frequency drive

,

30HP VFD 3 phase drive

380V Variable Frequency Drive 22KW 30HP VFD Three Phase Power Converter





Introduction:



The frequency converter is a power control device that uses frequency conversion technology and microelectronics technology to control AC motors by changing the frequency of the motor's working power supply. The frequency converter is mainly composed of rectifier (AC to DC), filtering, inverter (DC to AC), braking unit, drive unit, a detection unit, and micro-processing unit. The inverter adjusts the voltage and frequency of the output power supply by opening and closing the internal IGBT, and provides the required power supply voltage according to the actual needs of the motor, thereby achieving the purpose of energy-saving and speed regulation. In addition, the inverter has many protection functions, such as overcurrent, overvoltage, overload protection, and so on. With the continuous improvement of industrial automation, frequency converters have also been widely used.



Operation Panel



Mark  Key Name Function
 MENU  Program/Exit key

 1. Enter or exit the programming state

 2. Modify the data and abandon the storage

 3. Switch fault display to stop/running parameter with SHIFT   key, press MENU to switch back to fault display state

 ENT  Identify key

 1. Edit function code parameters

 2. Data storage confirmation

 3. View the single group of parameters circularly

 M  Multi-function key  Switch selection according to function
 SHIFT  The shift key

 1. Move the editing bit of function parameters

 2. Move the data editing bit

 3. Switch the display parameters of the operation panel under   shutdown/running state

 Increase Decrease

 Add keys clockwise

 In shutdown/operation state, the frequency value increases
 Increase Decrease  Counterclockwise   decrease key  The frequency value decreases under shutdown/running   state
 RUN  Run key

 1. Long press the 3S operation panel to start the driver in the given mode

 2. Long press 3S to set parameters, and then start the driver   for parameters self-learning

 STOP/AST  Stop/reset key

 1. Press the button for 1S to report the fault and reset the   fault after abnormal shutdown

 2. Press for 1S to control the drive shutdown under the given   mode of operation panel operation command



Details Image

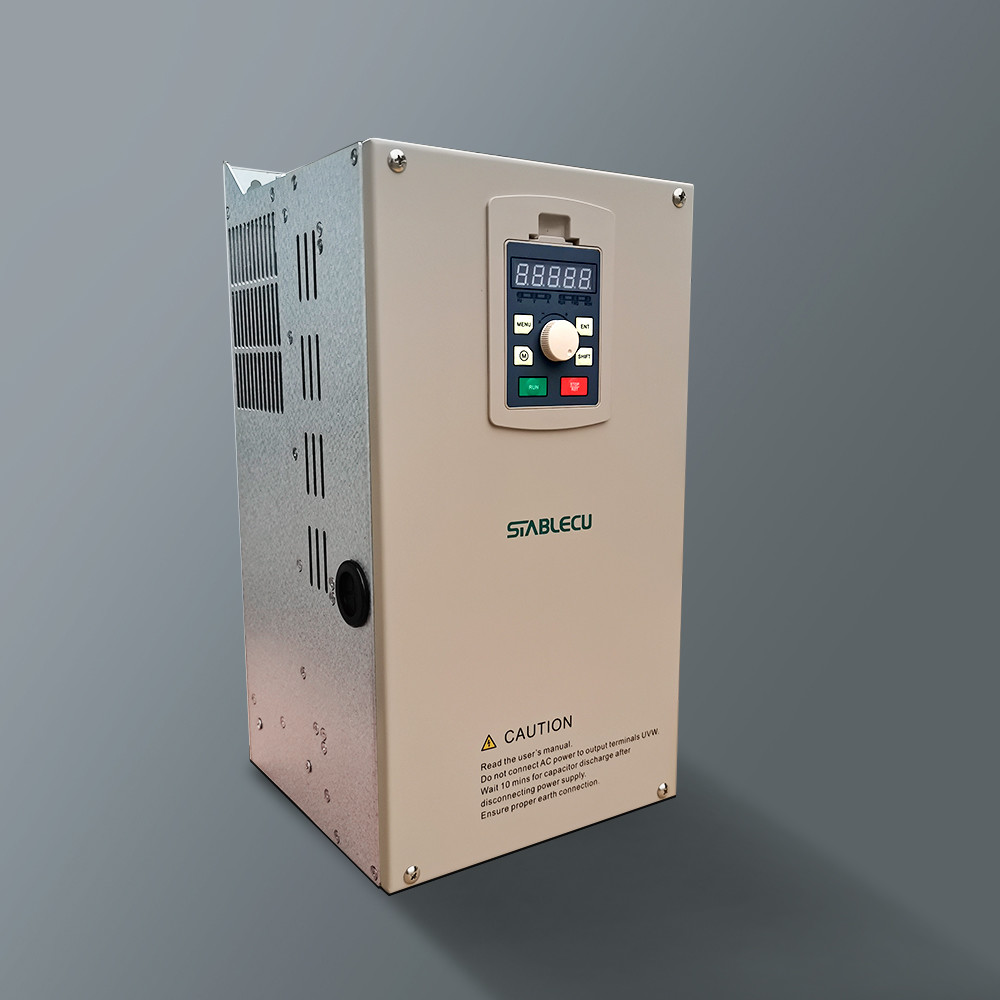

380V 22KW 30HP Three Phase Variable Frequency Drive 0

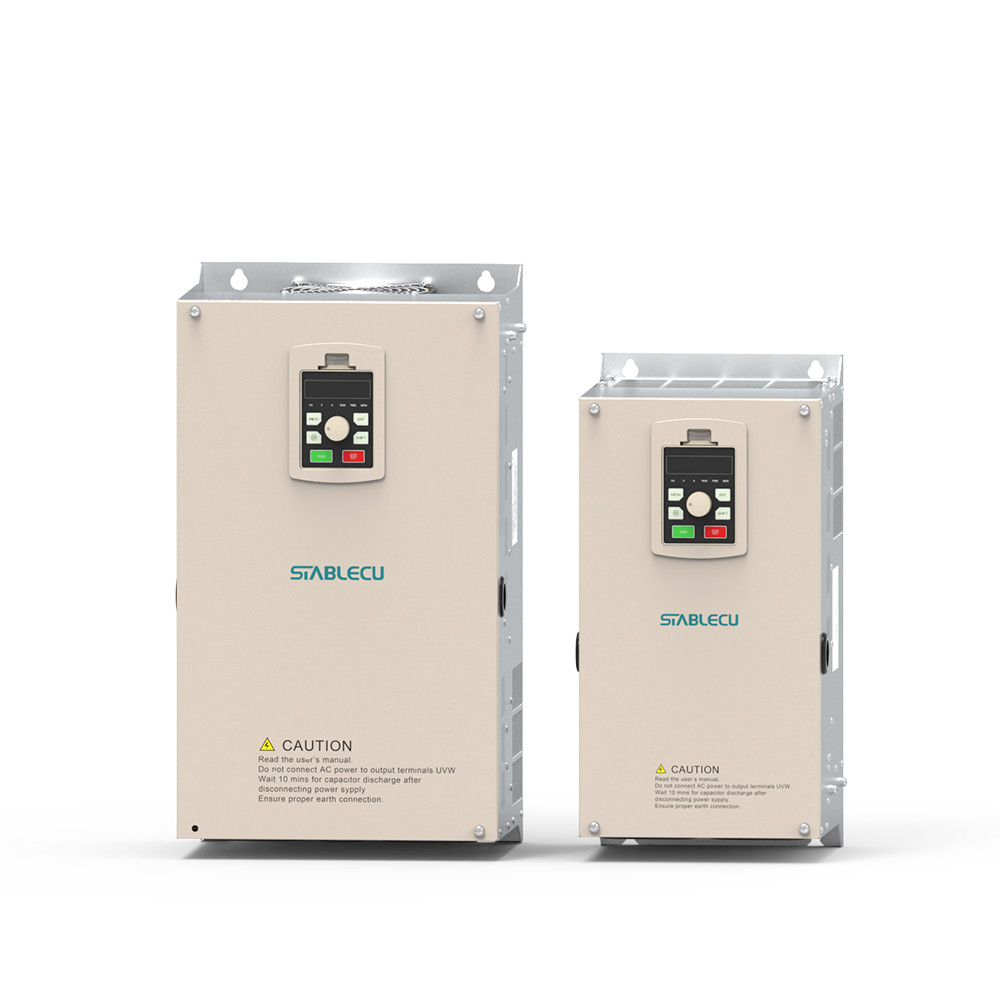

380V 22KW 30HP Three Phase Variable Frequency Drive 1



380V 22KW 30HP Three Phase Variable Frequency Drive 2
