75KW VSD Variable Speed Drive AC Drive Frequency Inverter

Basic Information
Place of Origin: China
Brand Name: STABLECU
Certification: CE
Model Number: ST310-4T75G-110G
Minimum Order Quantity: 1PCS
Packaging Details: 1pcs/Polybag,100pcs/big polybag, 300pcs/ctn
Delivery Time: 5-8 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Material: ABS+PC Power: 75KW-110KW
Voltage: 380V Phase: Triple Phase
Color: Huawei Gray Type: AC/AC Inverter
Control Mode: V/F Control Application: Water Pump
High Light:

VSD Variable Speed Drive


75KW VSD Variable Speed Drive


vsd inverter

75KW 90KW 110KW VSD Variable Speed Drive AC Drive Frequency Inverter


Quick details of variable frequency drive

Potencia nominal: 75kw
Voltaje nominal: trifásico 380v
Frecuencia nominal: 50 Hz/60 Hz.
Tamaño del producto: 338 mm * 750 mm * 290 mm
Tamaño de instalación: 230 mm * 730 mm
Peso: 40kg
Entrada: 50/60 Hz 157A
Salida: 0-300 Hz 150A

Description of variable frequency drive

First of all, choose industrial flame-retardant abs and pc as the material. This material has strong flame retardancy,
high heat resistance, good toughness, and strength, which can effectively prevent the product from deformation and
embrittlement under high temperatures and harsh environments.
Secondly, an independent heat dissipation air duct is made to effectively prevent external dust and oil from entering
the product. On this basis, a fan is installed to effectively reduce the temperature of the inverter. Raw materials
such as components, PCBs, and IGBT are selected from top domestic suppliers to ensure the quality of incoming materials.

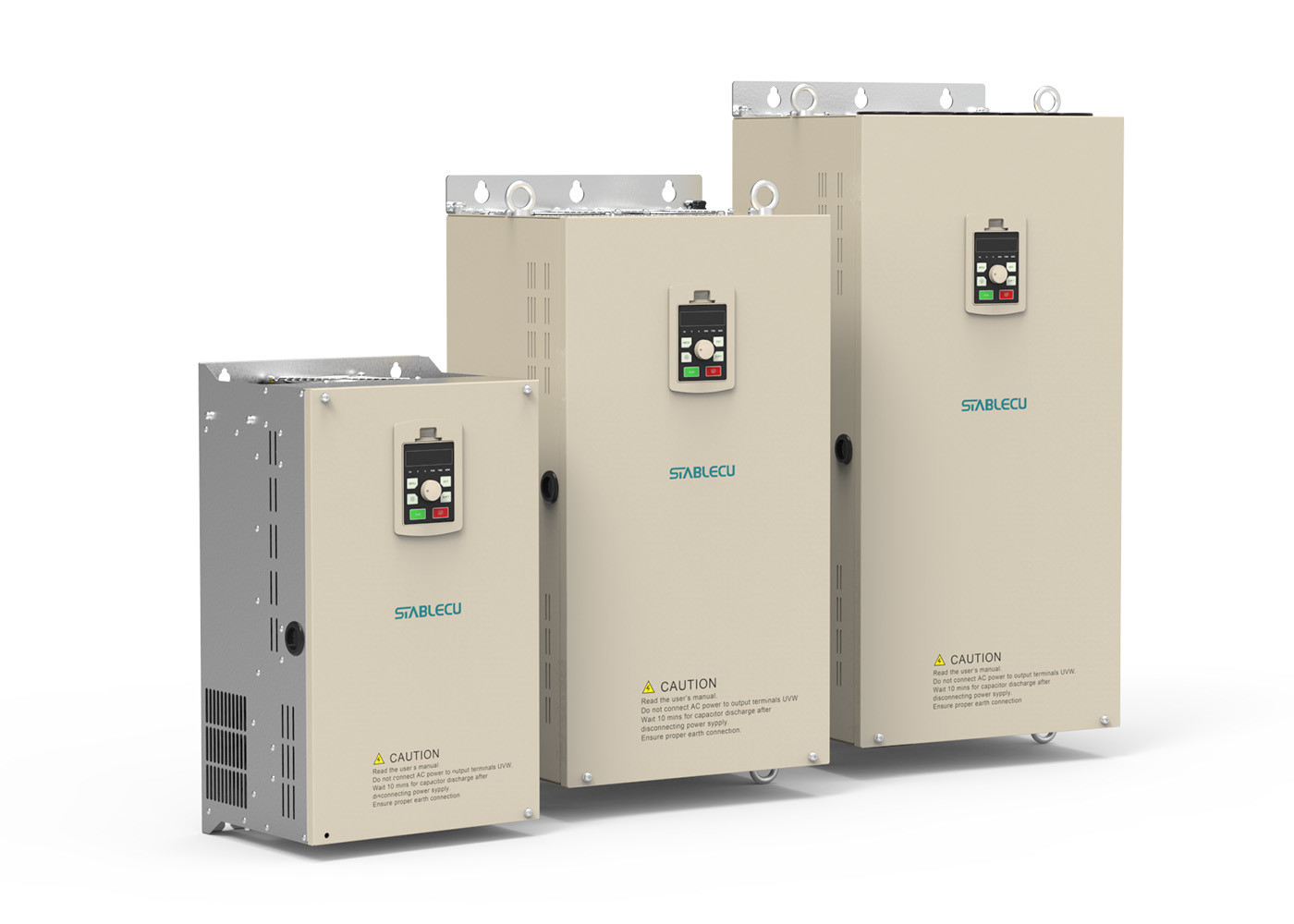

More models of variable frequency drive

Model ST310-75G ST310-90G ST310-110G
Specific Parameters
Weight 40KG
Applicable Motor (kw) 75 90 110
Input Current (A) 157 160* 192*
Output Current (A) 150 176 210
Breaker (A) 225 250 315
Contactor (A) 185 225 265
Brake Unit Standard Built-in
Braking Resistor Power 15KW 18KW 22KW
Resistance/ Ultimate resistance  8(≥5)  5(≥3.3)  5(≥3.3)
Power Input
Rated Voltage 3 Phase 380V
Rated Frequency 50HZ/60HZ
Allow Frequency Fluctuation ±5%
Allow voltage fluctuation Voltage imbalance<3%, distortion rate meets the requirements of 1EC61800-2
Allow voltage fluctuation The constant voltage fluctuation is ±10%, and the short fluctuation is115%~+10%, that is, 323V~528V
Power Output
Output Voltage 3-Phase:0~rated input voltage, error less than ±3%
Output Frequency 0.00~300.00HZ,each unit 0.01HZ
Overload Capacity 150% 60s, 180% 10s, 200% 0.5s

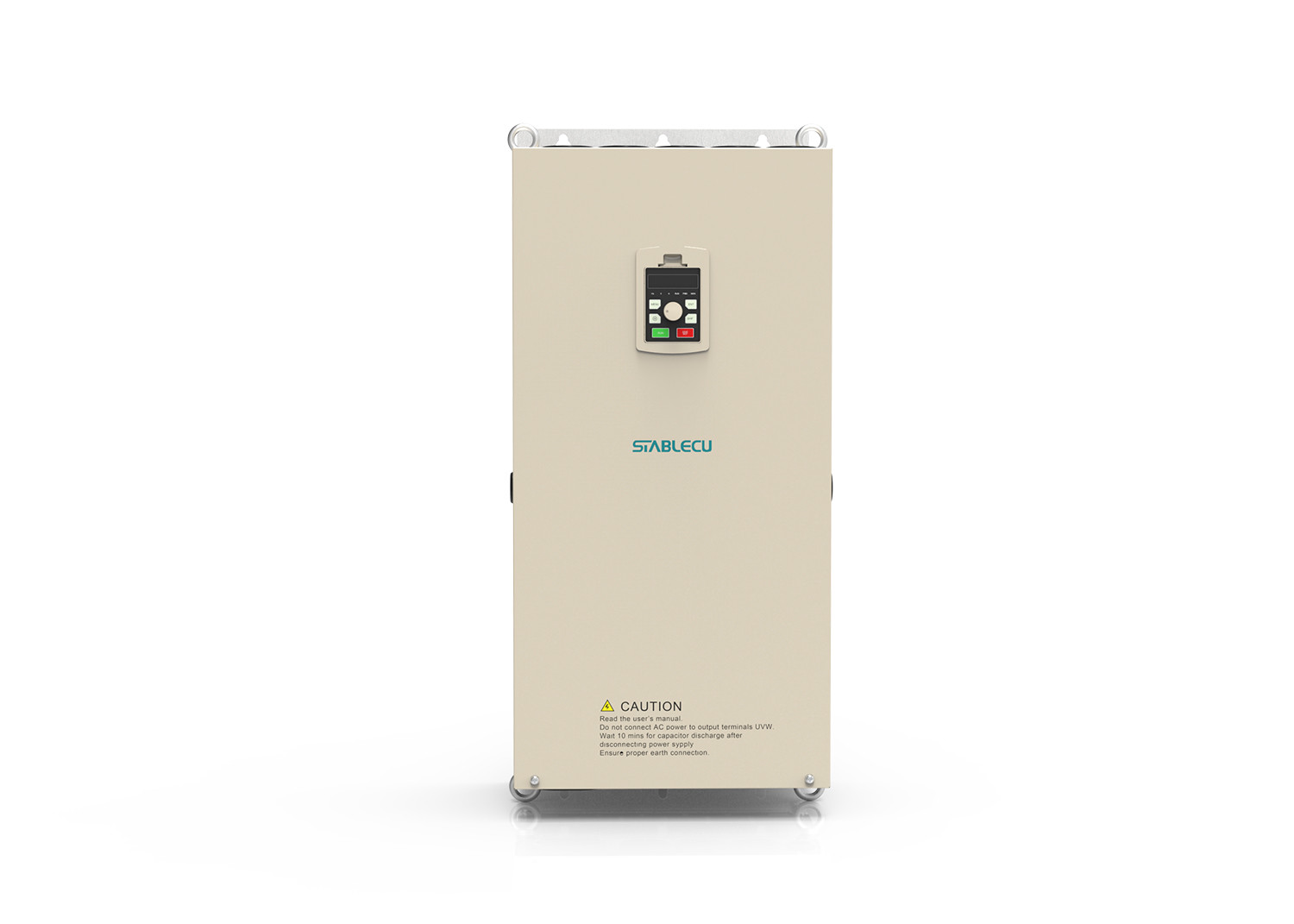

Detailed images of variable frequency drive

75KW VSD Variable Speed Drive AC Drive Frequency Inverter 0

75KW VSD Variable Speed Drive AC Drive Frequency Inverter 1

Application of variable frequency drive

Widely used in factory sites, hotel complexes, central air-conditioning systems, equipment, shopping escalator,
breeding farm, sewage treatment, fire hospital transportation, machine tool equipment, and automation equipment.

75KW VSD Variable Speed Drive AC Drive Frequency Inverter 2
