| Place of Origin: | China |
|---|---|
| Brand Name: | STABLECU |
| Certification: | CE |
| Model Number: | ST310-4T45G-55G |
| Minimum Order Quantity: | 1PCS |
| Packaging Details: | 1pcs/Polybag,100pcs/big polybag, 300pcs/ctn |
| Delivery Time: | 5-8 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Material: | ABS+PC | Power: | 45KW-55KW |
|---|---|---|---|
| Voltage: | 380V | Color: | Huawei Gray |
| Type: | AC | OEM: | Yes |
| Name: | 3 Phase VFD | Protection: | IP20 |
| High Light: | 45KW 3 phase variable speed drive,55KW 3 phase variable speed drive,45KW three phase motor inverter |
||

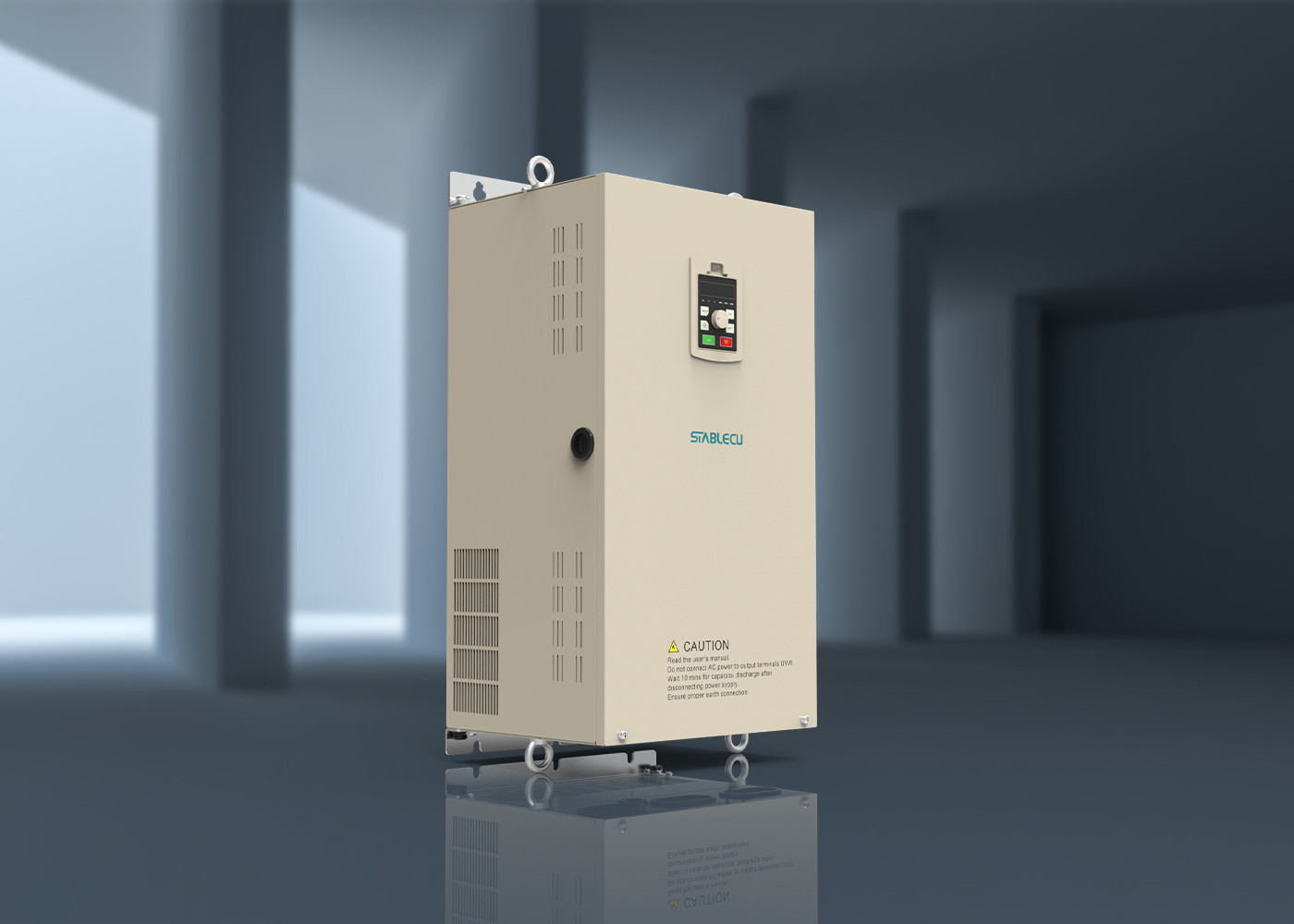

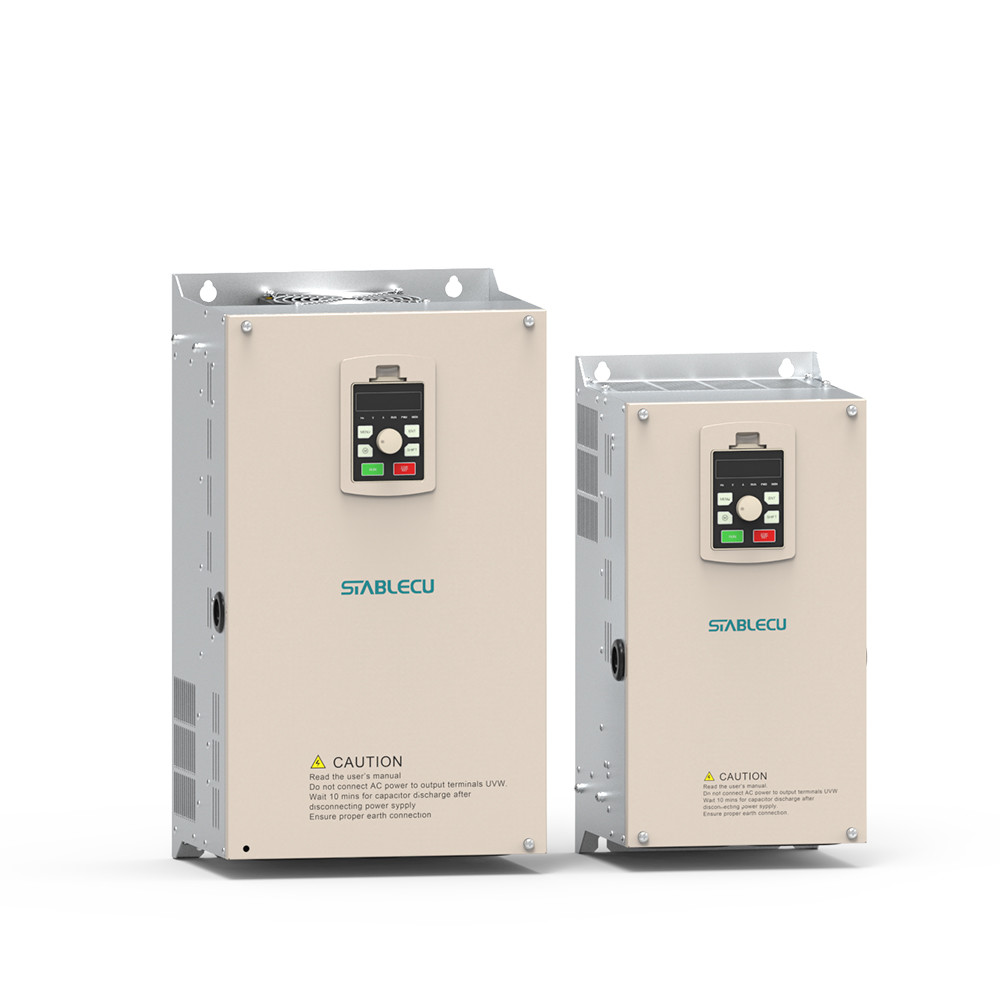

45KW 55KW Electric Motor Inverter 3 Phase Variable Speed Drive For Heat Pump Water
Introduction of variable frequency drive
The ST310 series is the latest version of high-function vector inverters. V/F control mode; wave-by-wave current-limiting
control algorithm, which can instantly control the current and voltage; strong low-frequency load capacity; can realize
closed-loop control of asynchronous motors. The function is powerful, and the motion control function is obviously improved.
Inverter applications are very wide
1. Steel: rolling mills, roller tables, fans, pumps, cranes, ladle cars, converter tilting, etc.
2. Rolling steel wire: wire drawing machine, winding machine, blower, pump, hoisting machinery, fixed-length shearing,
automatic feeding.
3. Electricity: blower for boiler drum, feed water pump, centrifugal mixer, conveyor belt, pumping power station, flywheel, etc.
4. Petroleum: oil pumps, electric submersible pumps, water injection pumps, pumping units, etc.
5. Paper industry: paper machines, pumps, shredders, fans, mixers, blowers, etc.
Description of variable frequency drive
| Model | ST310-4T45G | ST310-4T55G |
| Specific Parameters | ||
| Applicable Motor (kw) | 45KW | 55KW |
| Input Current (A) | 95 | 118 |
| Output Current (A) | 91 | 112 |
| Breaker (A) | 125 | 160 |
| Contactor (A) | 95 | 150 |
| Brake Unit | Optional Built-in | |
| Braking Resistor Power | 9KW | 11KW |
| Resistance/ Ultimate resistance | 13(≥10) | 10(≥8) |
| Power Input | ||
| Allow Frequency Fluctuation | ±5% | |
| Allow voltage fluctuation | Voltage imbalance＜3%, distortion rate meets the requirements of 1EC61800-2 | |
| Allow voltage fluctuation | The constant voltage fluctuation is ±10%, and the short fluctuation is115%~+10%, that is, 323V~528V | |
| Power Output | ||
| Output Voltage | 3-Phase:0~rated input voltage, error less than ±3% | |
| Output Frequency | 0.00~300.00HZ,each unit 0.01HZ | |
| Overload Capacity | 150% 60s, 180% 10s, 200% 0.5s | |
Product details of variable frequency drive
