| Place of Origin: | China |
|---|---|
| Brand Name: | STABLECU |
| Certification: | CE |
| Model Number: | ST310-4T22GB |
| Minimum Order Quantity: | 1PCS |
| Price: | $368-388 |
| Packaging Details: | 1pcs/Polybag,100pcs/big polybag, 300pcs/ctn |
| Delivery Time: | 5-8 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000 pcs per month |
| Material: | ABS+PC | Power: | 22KW |
|---|---|---|---|
| Voltage: | 380V | Phase: | Three Phase |
| Power Phase: | 3 Phase | Usage: | Motor |
| Package: | Carton Box | ||
| High Light: | 22KW 3 phase variable speed drive,3 phase variable speed drive VFD,22KW inverter variable speed drive |
||

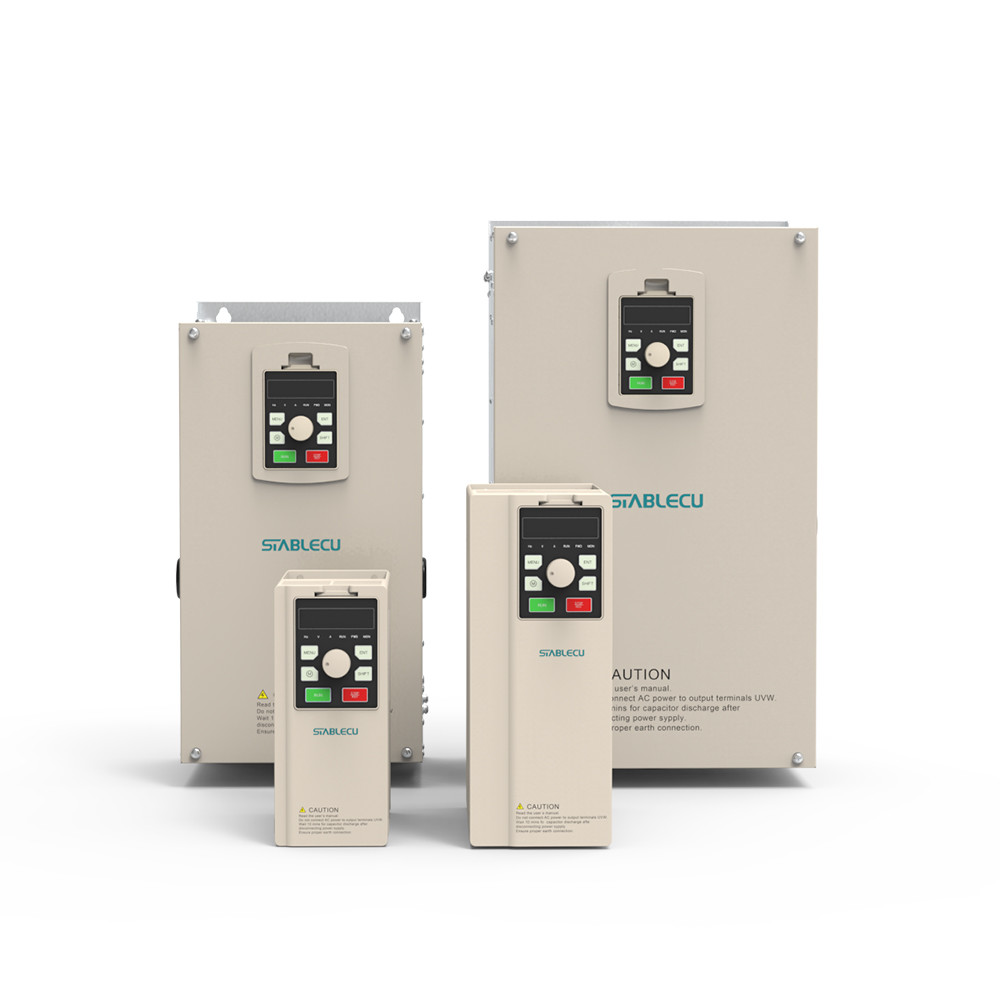

Variable Speed Drive VFD Motor Drive 22KW High Frequency Inverter
Introduction of variable frequency drive
The frequency converter is a power control device that uses frequency conversion technology
and microelectronics technology to control AC motors by changing the frequency of the motor's
working power supply. The frequency converter is mainly composed of a rectifier (AC to DC), filtering,
inverter (DC to AC), braking unit, drive unit, a detection unit, and micro-processing unit. The inverter
adjusts the voltage and frequency of the output power supply by opening and closing the internal IGBT,
and provides the required power supply voltage according to the actual needs of the motor, thereby achieving
the purpose of energy-saving and speed regulation. In addition, the inverter has many protection functions. ,
Such as overcurrent, overvoltage, overload protection, and so on. With the continuous improvement of
industrial automation, frequency converters have also been widely used.
Operation Panel of variable frequency drive
| Mark | Key Name | Function |
| MENU | Program/Exit key | 1. Enter or exit the programming state 2. Modify the data and abandon the storage 3. Switch fault display to stop/running parameter with the SHIFT key, press MENU to switch back to fault display state |
| ENT | Identify key | 1. Enter or exit the programming state 2. Modify the data and abandon the storage 3. Switch fault display to stop/running parameter with the SHIFT key, press MENU to switch back to fault display state |
| M | Multi-function key | Switch selection according to function |
| SHIFT | The shift key | 1. Move the editing bit of function parameters 2. Move the data editing bit 3. Switch the display parameters of the operation panel under shutdown/running state |
| Increase Decrease | Add keys clockwise | In shutdown/operation state, the frequency value increases |
| Increase Decrease | Counterclockwise decrease key | The frequency value decreases under shutdown/running state |
| RUN | Run key | 1. Long press the 3S operation panel to start the driver in the given mode 2. Long press 3S to set parameters, and then start the driver for parameters self-learning |
| STOP/AST | Stop/reset key | 1. Press the button for 1S to report the fault and reset the fault after abnormal shutdown 2. Press for 1S to control the drive shutdown under the given mode of operation panel operation command |

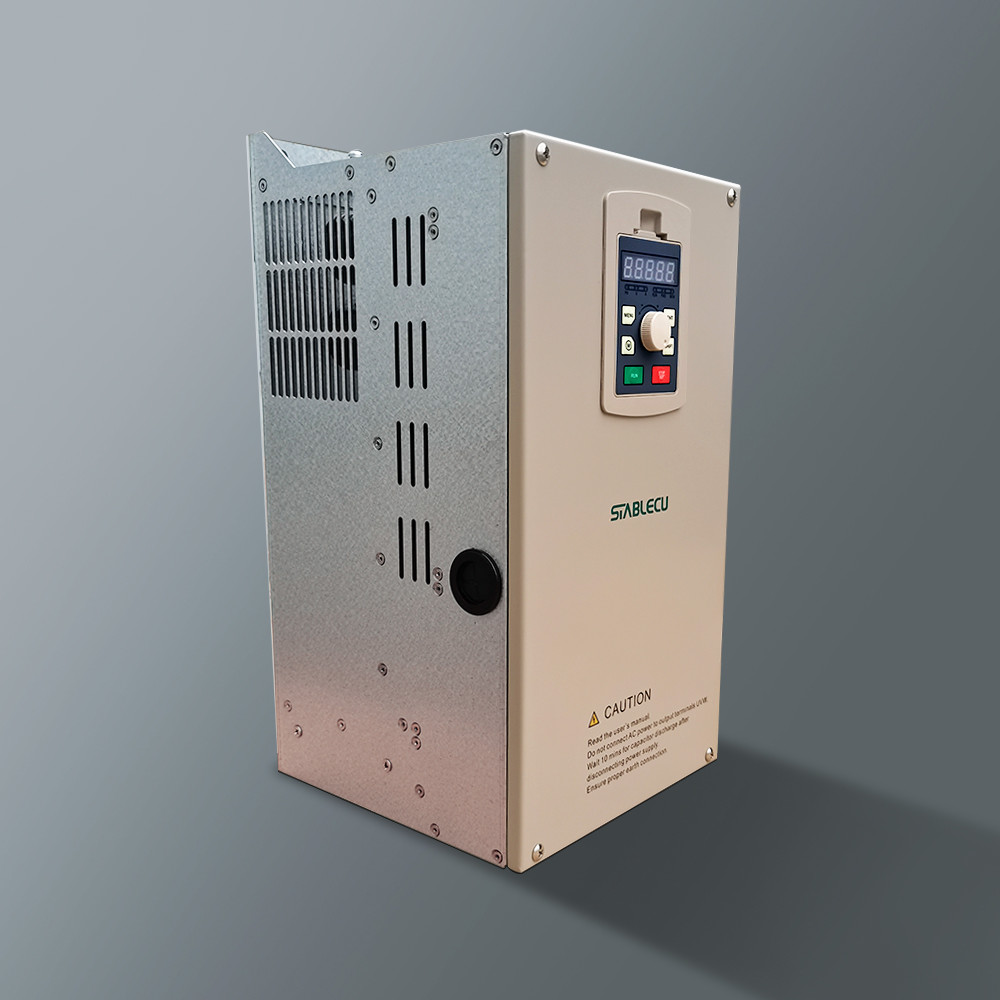

Details image of variable frequency drive
