18.5KW VSD Three Phase Frequency Inverter For Cutting Machine

Basic Information
Place of Origin: China
Brand Name: STABLECU
Certification: CE
Model Number: ST310-4T18.5GB
Minimum Order Quantity: 1PCS
Packaging Details: 1pcs/Polybag,100pcs/big polybag, 300pcs/ctn
Delivery Time: 5-8 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Material: ABS+PC Power: 18.5KW
Voltage: 380V Phase: Three Phase
Protector: Overload Circuit Mode: IGBT
Frequency: 300HZ Control Mode: V/F Control
High Light:

18.5KW Three Phase Frequency Inverter

,

VSD Three Phase Frequency Inverter

,

3 phase frequency drive 18.5KW

18.5KW VSD Variable Frequency Drive Three Phase Drive For Cutting Machine



Description of variable frequency drive

ST310 adopts DSP control system to realize vector control and effectively suppress low-frequency oscillation.
Abundant terminals make the application more flexible. It is mainly used for fans and pump loads.
It has higher requirements for speed control accuracy, torque response speed, and low-frequency output.

Specification of variable frequency drive

Output current 39A
Input current 44A
Adaptation motor 18.5KW
Braking resistor power 5KW
Mounting dimension 192*199*397MM
Weight 12KG
Packing Size 271*260*424MM

Other models of variable frequency drive

Model ST310-15GB ST310-18.5GB ST310-22GB
Specific Parameters
Applicable Motor (kw) 15 18.5 20
Input Current (A) 35.0 44.0 50.0
Output Current (A) 30.0 39.0 45.0
Breaker (A) 50.0 63.0 63.0
Contactor (A) 10.0 50.0 50.0
Brake Unit Standard Built-in
Braking Resistor Power 2.0KW 5.0KW 5.0KW
Resistance/ Ultimate resistance 40 (≥25)  30(≥16)  30(≥16)
Power Input
Rated Voltage 3 Phase 380V
Rated Voltage 50HZ/60HZ
Allow Frequency Fluctuation ±5%
Allow voltage fluctuation Voltage imbalance<3%, distortion rate meets the requirements of 1EC61800-2
Allow voltage fluctuation The constant voltage fluctuation is ±10%, and the short fluctuation is115%~+10%, that is, 323V~528V
Power Output
Output Voltage 3-Phase:0~rated input voltage, error less than ±3%
Output Frequency 0.00~300.00HZ,each unit 0.01HZ
Overload Capacity 150% 60s, 180% 10s, 200% 0.5s

Details image of variable frequency drive

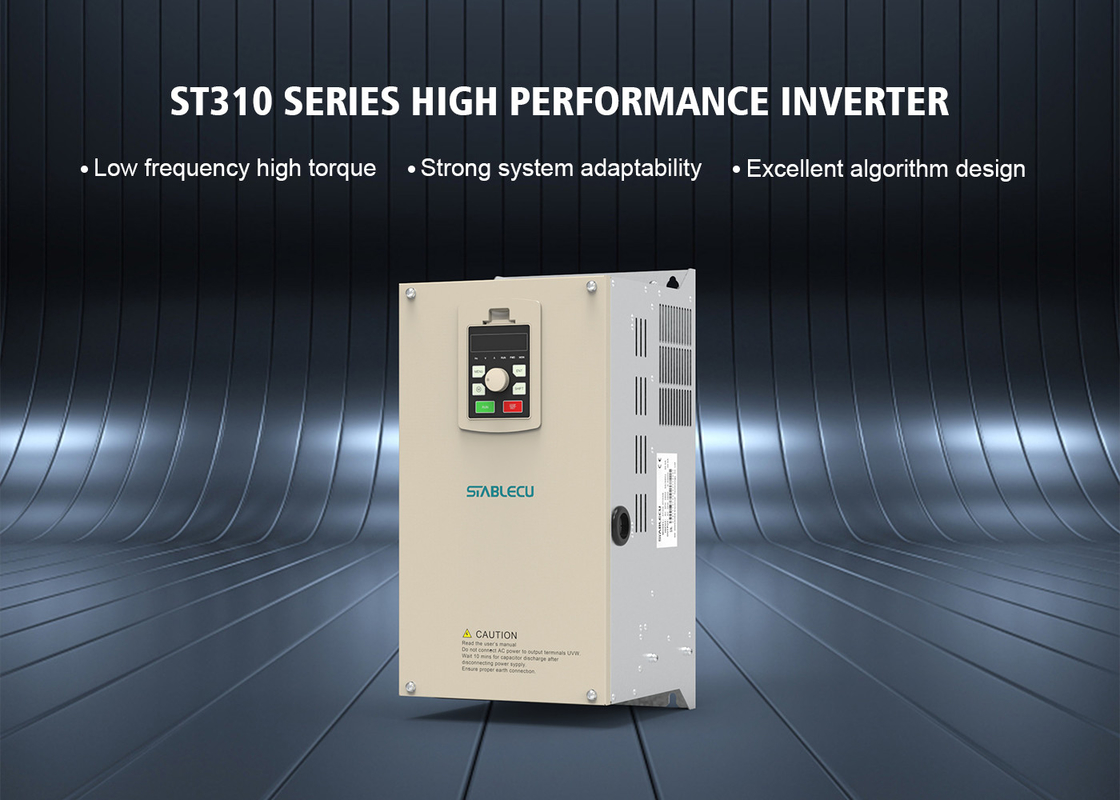

18.5KW VSD Three Phase Frequency Inverter For Cutting Machine 0

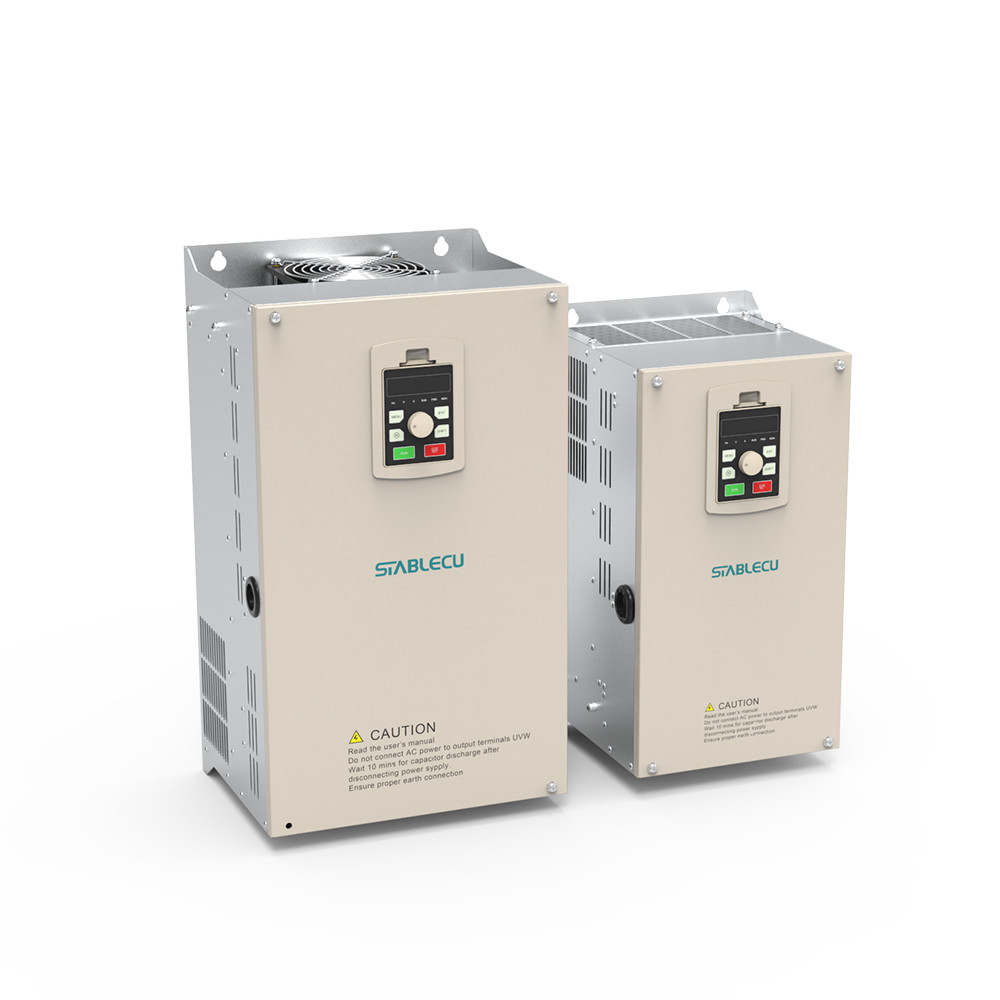

18.5KW VSD Three Phase Frequency Inverter For Cutting Machine 1

Application of variable frequency drive

Inverters are widely used in pharmaceutical machinery, packaging machinery, textile machinery, food machinery,
auto parts production lines, precision printing, welding, automated production lines, etc.



18.5KW VSD Three Phase Frequency Inverter For Cutting Machine 2
