| Place of Origin: | China |
|---|---|
| Brand Name: | STABLECU |
| Certification: | CE |
| Model Number: | ST310-4T1.5GB |
| Minimum Order Quantity: | 1PCS |
| Packaging Details: | 1pcs/Polybag,100pcs/big polybag, 300pcs/ctn |
| Delivery Time: | 5-8 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Material: | ABS+PC | Power: | 1.5KW |
|---|---|---|---|
| Voltage: | 380V | Phase: | Three Phase |
| Transport Package: | Standard Carton | Input Frequency: | 50/60HZ |
| Function: | Constant Torque | Control Mode: | V/F Control |
| High Light: | 2HP AC Variable Frequency Drive,5HP AC Variable Frequency Drive,1HP VFD for three phase motor |
||
1.5KW 1HP 2HP 3HP 5HP AC Variable Frequency Drive For Motor 380V
Description of variable frequency drive
ST310 series products are high-performance inverters based on the core technology platform of vector control
and torque control. They have v/f control functions and are more suitable for high-end control requirements
in terms of control accuracy. The knob on the operation panel is more precise and the adjustment range is small.
Modular hardware and software functions meet the needs of high-end industries such as jack-up, lifting, papermaking,
chemical fiber, elevator, rolling mill, and packaging.
Parameters of variable frequency drive
| Rated Power | 0.75kw 1.5kw 2.2kw 3.7kw |
| Rated Voltage | 3 Phase 380V |
| Rated Frequency | 50HZ/60HZ |
| Product Size | 80MM*185.8MM*167.5MM |
| Installation Size | 56MM*174.5MM |
| Weight | 1.5KG |
Other models of variable frequency drive
| Model | ST310-0.75GB | ST310-1.5GB | ST310-2.2GB | ST310-3.7GB |
| Specific Parameters | ||||
| Applicable Motor (kw) | 0.75 | 1.5 | 2.2 | 3.7 |
| Input Current (A) | 3.4 | 5.0 | 6.0 | 10.5 |
| Output Current (A) | 2.3 | 3.8 | 5.5 | 9.0 |
| Breaker (A) | 10.0 | 10.0 | 10.0 | 16.0 |
| Contactor (A) | 9.0 | 9.0 | 9.0 | 12.0 |
| Brake Unit | Standard Built-in | |||
| Braking Resistor Power | 150W | 150W | 300W | 800W |
| Resistance/ Ultimate resistance | 300 (≥125) | 250 (≥100) | 200 (≥100) | 100 (≥75) |
| Power Input | ||||
| Allow Frequency Fluctuation | ±5% | |||
| Allow voltage fluctuation | Voltage imbalance＜3%, distortion rate meets the requirements of 1EC61800-2 | |||
| Allow voltage fluctuation | The constant voltage fluctuation is ±10%, and the short fluctuation is115%~+10%, that is, 323V~528V | |||
| Power Output | ||||
| Output Voltage | 3-Phase:0~rated input voltage, error less than ±3% | |||
| Output Frequency | 0.00~300.00HZ,each unit 0.01HZ | |||
| Overload Capacity | 150% 60s, 180% 10s, 200% 0.5s | |||

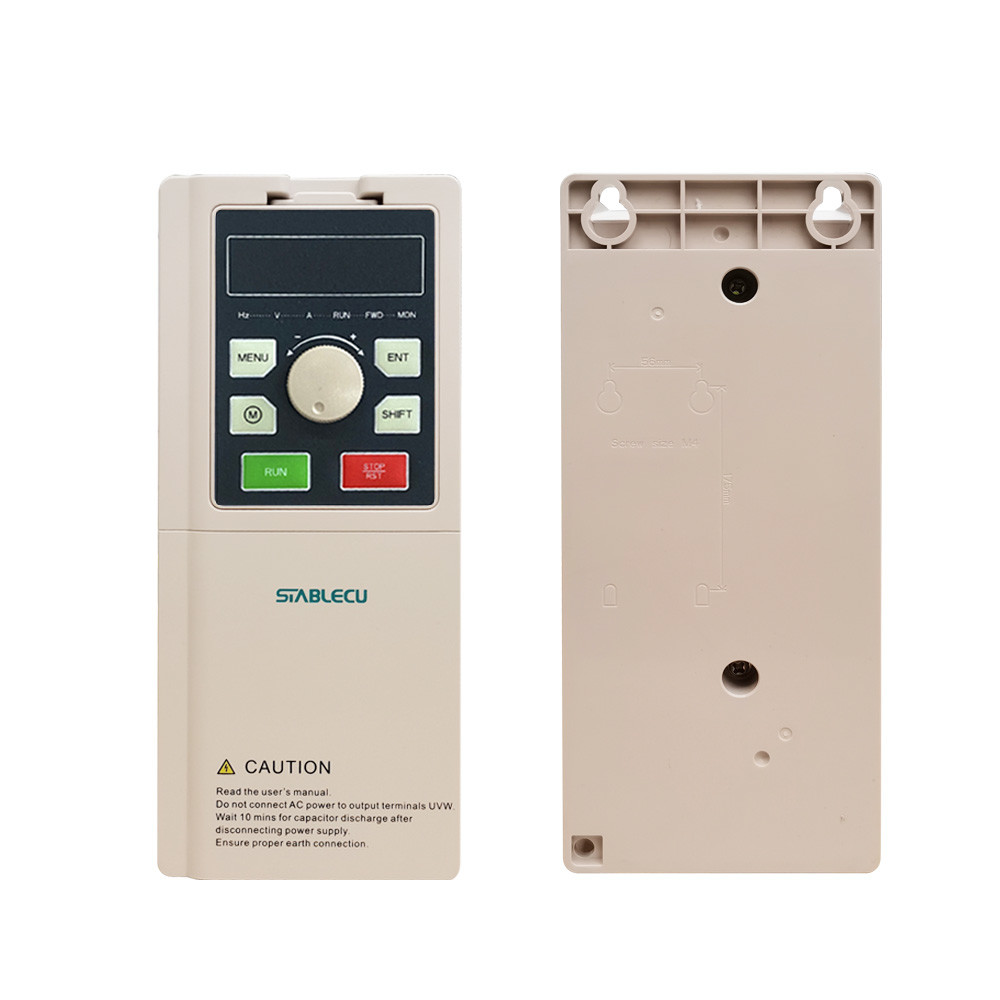

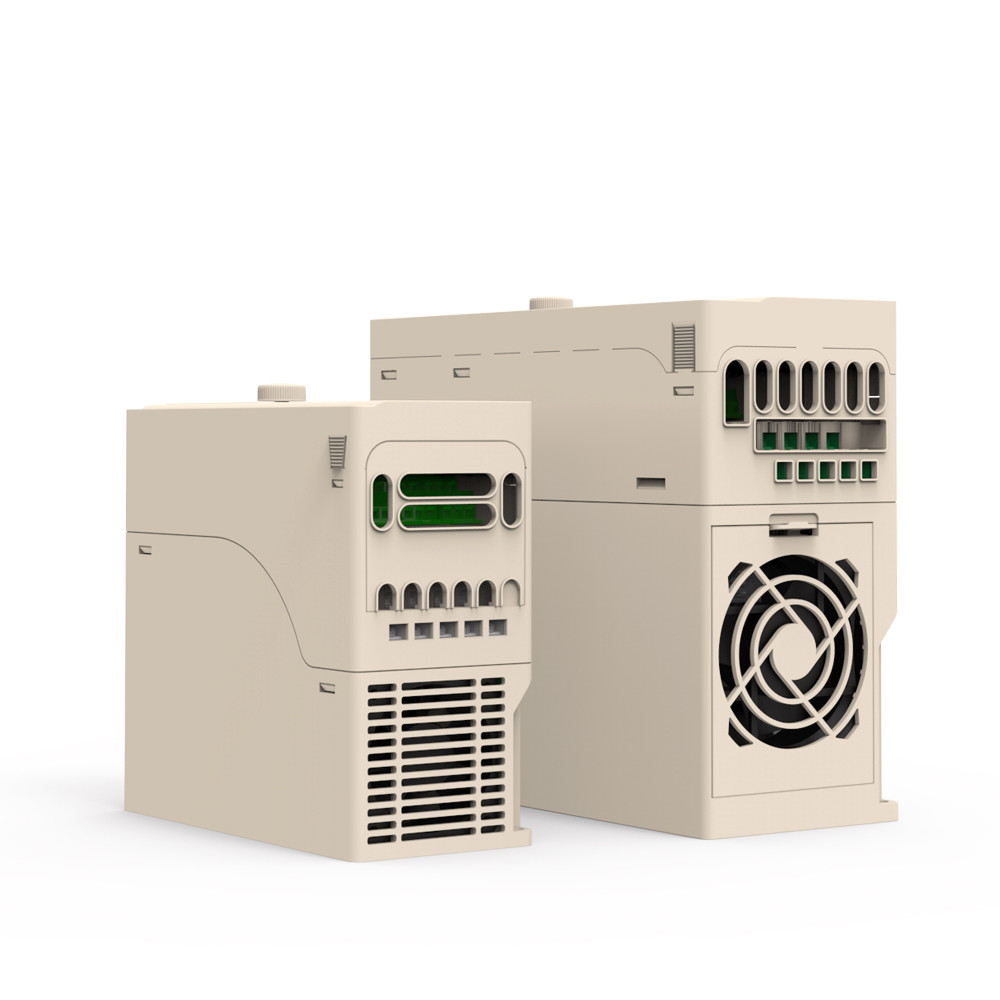

Product details of variable frequency drive
Application of variable frequency drive
The products are widely used in industrial fields and equipment and facilities, such as fan water collapse,
textile equipment, electrical equipment, techy's equipment, engraving equipment, conveyor belt, blender,
woodworking machinery, and so on.
