1HP IP20 Single Phase Variable Frequency Drive

Basic Information
Place of Origin: China
Brand Name: STABLECU
Certification: CE
Model Number: ST300-2S1.5GB
Minimum Order Quantity: 1PCS
Packaging Details: 1pcs/Polybag,100pcs/big polybag, 300pcs/ctn
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000 pcs per month
Material: ABS+PC Power: 0.75KW
Voltage: 220V/380V IP: 20
Color: Huawei Gray Type: AC
Machine Case: Aluminum Coated Zinc Plate,cold Rolled Plate Powder Spraying OEM: Yes
High Light:

CE IP20 Single Phase Variable Frequency Drive

,

1HP IP20 Single Phase Variable Frequency Drive

,

1hp IP20 single phase VFD

0.75KW 1HP Mini Type 220V Single Phase Variable Frequency Drive





Introduction:



ST300 series inverter is a high-performance vector inverter, which is newly developed based on customer demand and market research and can be used to control and adjust single or three-phase speed. Optional voltage 220v or 380v, used for AC asynchronous motors. With good load adaptability, high-precision speed controllability, low-speed high-torque output performance, excellent overload capacity, and rich setting functions. The size design of this economical and applicable inverter is made smaller, which is conducive to the user to reasonably plan the space of the electric box.



Quick Details:



item
Frequency Inverter
Place of Origin China
Brand Name
STABLECU
Model Number
ST300-2S0.75GB
ST300-2S1.5GB
ST300-2S2.2GB
Warranty 18 Months
Type speed driver/AC driver
Certification
CE
Customized Yes
Rated Power
0.75kw
1.5kw
2.2kw
Nominal Voltage 220v/380V
power phase number 1/3 Phase
Power

0.75kw

1.5kw

2.2kw

Input rated voltage and frequency 1PH AC 220V 50/60HZ / 3PH AC380V 50/60Hz
Allowable voltage range 220V/ 380V
Output voltage
220V
380V: 380V-480V
Control Mode Vector Control
Output frequency 0.1~300.0 Hz



Indicator Description



Indicator mark The name of the Meaning Color
Hz Frequency indicator light

On: The current parameter is running frequency

Blinking: The current display parameter is the set frequency

green
A Current indicator light On: Current is displayed green
MON Run command mode indicator

On: The operation panel runs the command in the specified mode

Off: Indicates the specified mode of the terminal running command

Blinking: The upper computer runs the specified command mode

green
RUN Operating status indicator light

On: The drive is running

Off: The drive is stopped

Blinking: The drive is being stopped

green
FWD Positive/reverse indicator light

On: The drive is in positive rotation

Off: The driver is in reverse direction when it is running

green


Details Images:

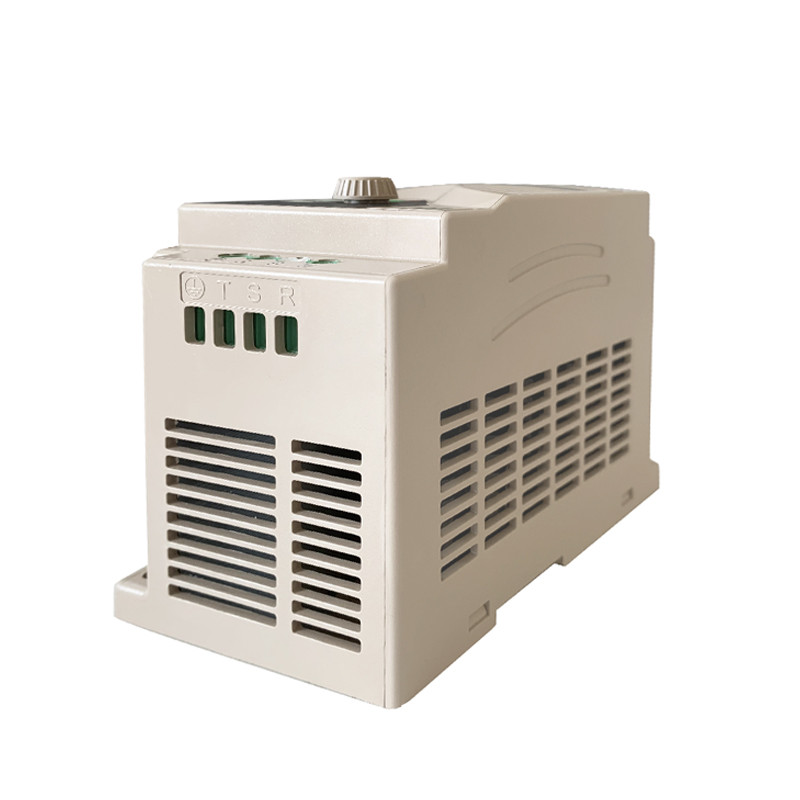

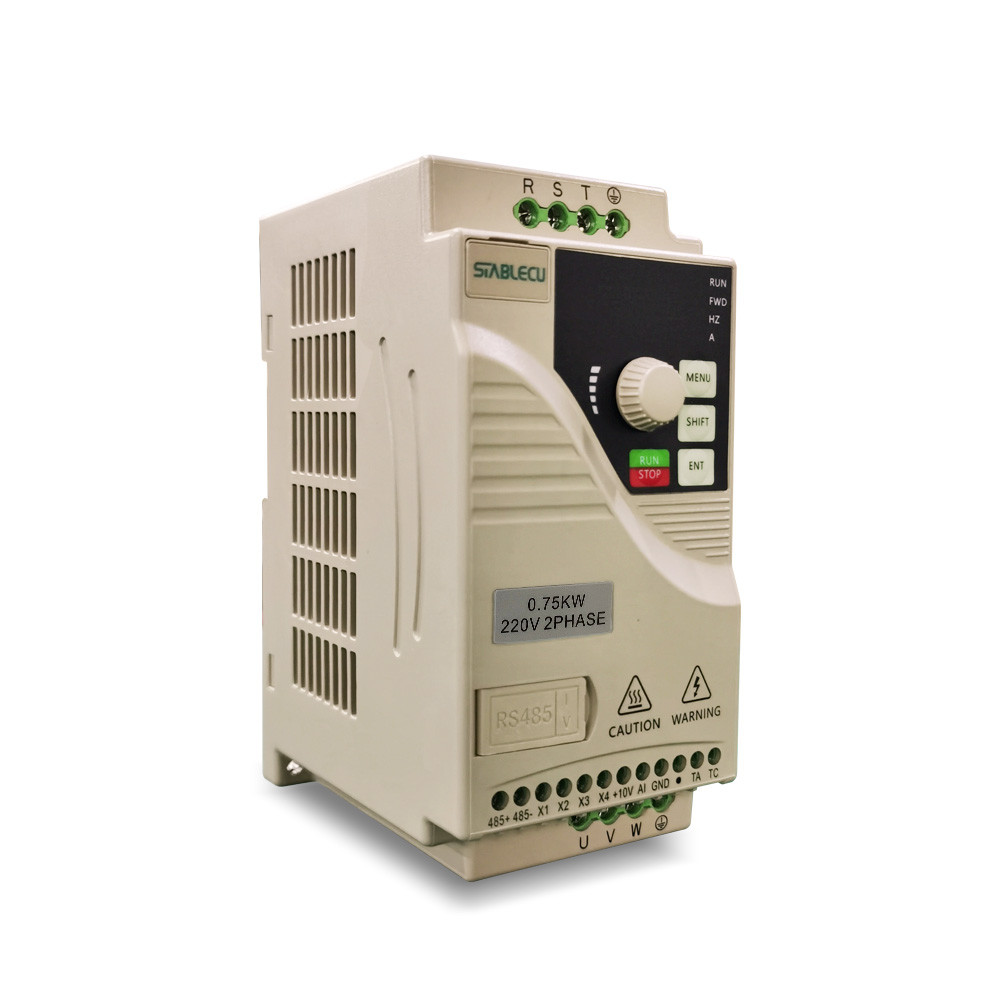

1HP IP20 Single Phase Variable Frequency Drive 0

1HP IP20 Single Phase Variable Frequency Drive 1

1HP IP20 Single Phase Variable Frequency Drive 2

Application



It is used to drive various automation production equipment involving textile, machine tool equipment, water pump, fan, paper-making,food machine, packing machine, etc.



FAQ



1. Who are we?
We are a manufacturer based in Guangdong, China, start from 2009, sell to Domestic Market(100.00%). There are total about 201-300 people in our office.

2. How can we guarantee the quality?
Always a pre-production sample before mass production; Always final Inspection before shipment.

3. What can you buy from us?
Ultrasonic Generator, PLC/Motion Controller, Servo Motor And Stepper Motor, Frequency Converter, Automation System Development And Complete Set Of Electric Box.

4. Do you offer customization services?
Yes, we can customize the products according to your requirements. Please send us an inquiry, your inquiry will be replied within 12 hours.

5. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, DDP, DDU, Express Delivery;
Accepted Payment Currency: USD, EUR, JPY, CAD, AUD, HKD, CNY;
Accepted Payment Type: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash;
Language Spoken: English, Chinese.
