ST310 Series Vector Control Frequency Inverter 11KW 380V AC Drive

Basic Information
Place of Origin: China
Brand Name: STABLECU
Certification: CE
Model Number: ST310-4T11GB
Minimum Order Quantity: 1PCS
Packaging Details: 1pcs/Polybag,100pcs/big polybag, 300pcs/ctn
Delivery Time: 5-8 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Material: ABS+PC Power: 11KW
Voltage: 380V Phase: 3 Phase
Color: Huawei Gray Type: AC/AC Converters
Certificate: CE Control Mode: V/F Control
High Light:

ST310 vector control frequency inverter 11KW

,

ST310 vector control frequency inverters

,

ST310 11KW three phase AC drive

11KW Vector Control VFD Frequency Inverter 380v AC Drive​



Instruction of frequency inverter

ST310 series vector control inverter is a functionally enhanced product with strong stability. Using IGBT and
TI DSP chipsets, vector control and V/F control are fully optimized.
It has been widely used in various industrial environments, especially for occasions where speed control is required
to control the torque response speed and low-frequency output of precision pumps.

Hardware of frequency inverter

1.Analog input (AI1, AI2), current (0-20MA), voltage (0 - 10v)
2.Analog output (AO1, AO2), current (0-20 ma), voltage (0-10 v)
3. Switch input and six (X1 - X6)
4. Switching output three collector output Y1, relay output RA- RB- RC, TA-TC
5. High-speed pulse input DI, high-speed pulse output DO
6. One communication port 485, supports Modbus protocol, RTU mode
7. Standard network ports are used to connect the control board and operation panel. Signal transmission speed is high and the distance is long
8. Panel knob adopts encoder knob, high-speed precision, stable speed, long service life
9. Built-in brake unit is the default standard for those below 22KW and is optional for those between 30-110kW.

Quick details of frequency inverter

Model 310-4T11GB
Rated Voltage 3 phase AC 380V-480V
Output Frequency Range 0-300hz
Control Mode V/F Control
Product Name AC Drive
Input Voltage 380V
Input Frequency 50/60HZ
Output Frequency 0-300HZ
Warranty 18 months

Details image of frequency inverter

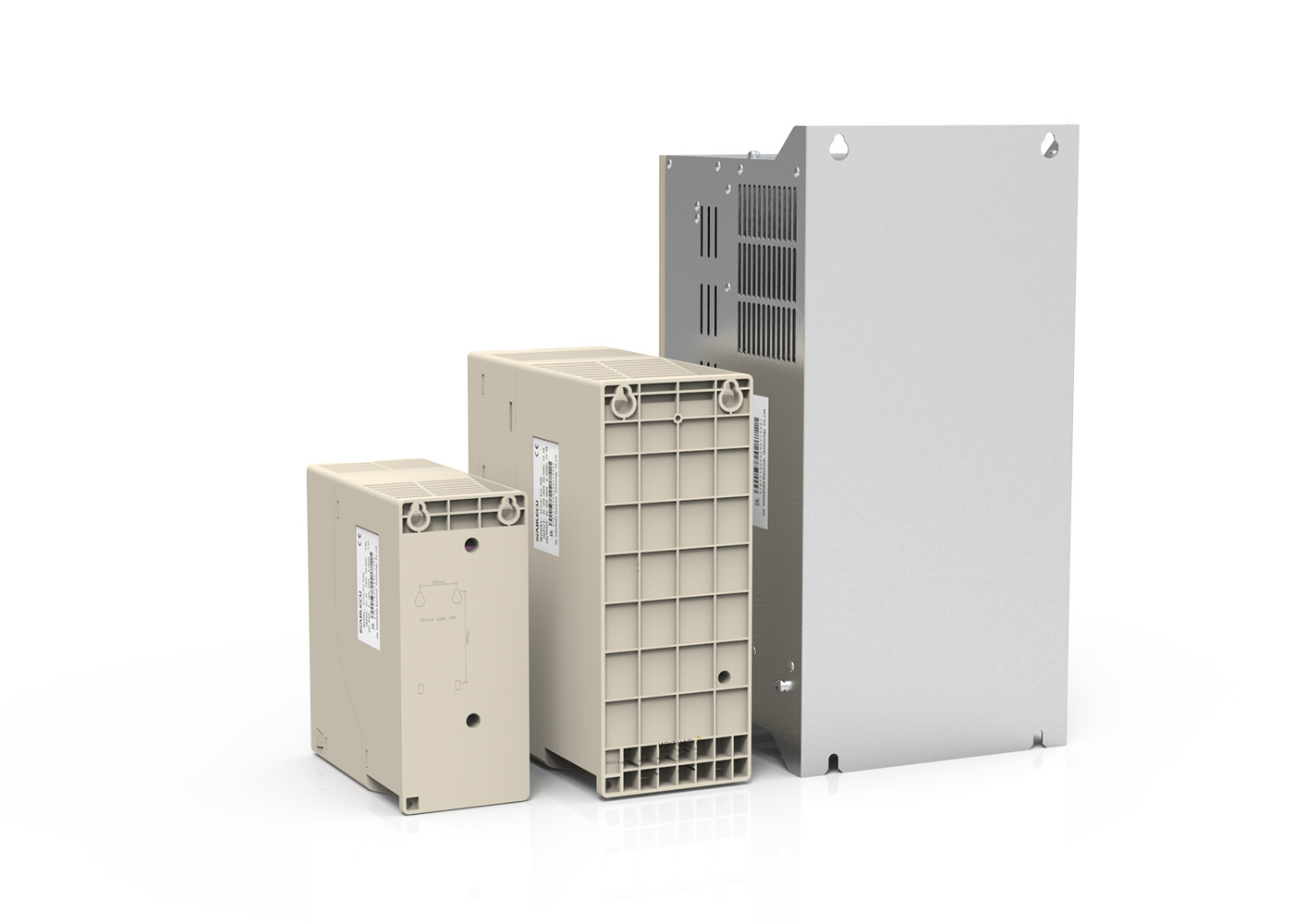

ST310 Series Vector Control Frequency Inverter 11KW 380V AC Drive 0

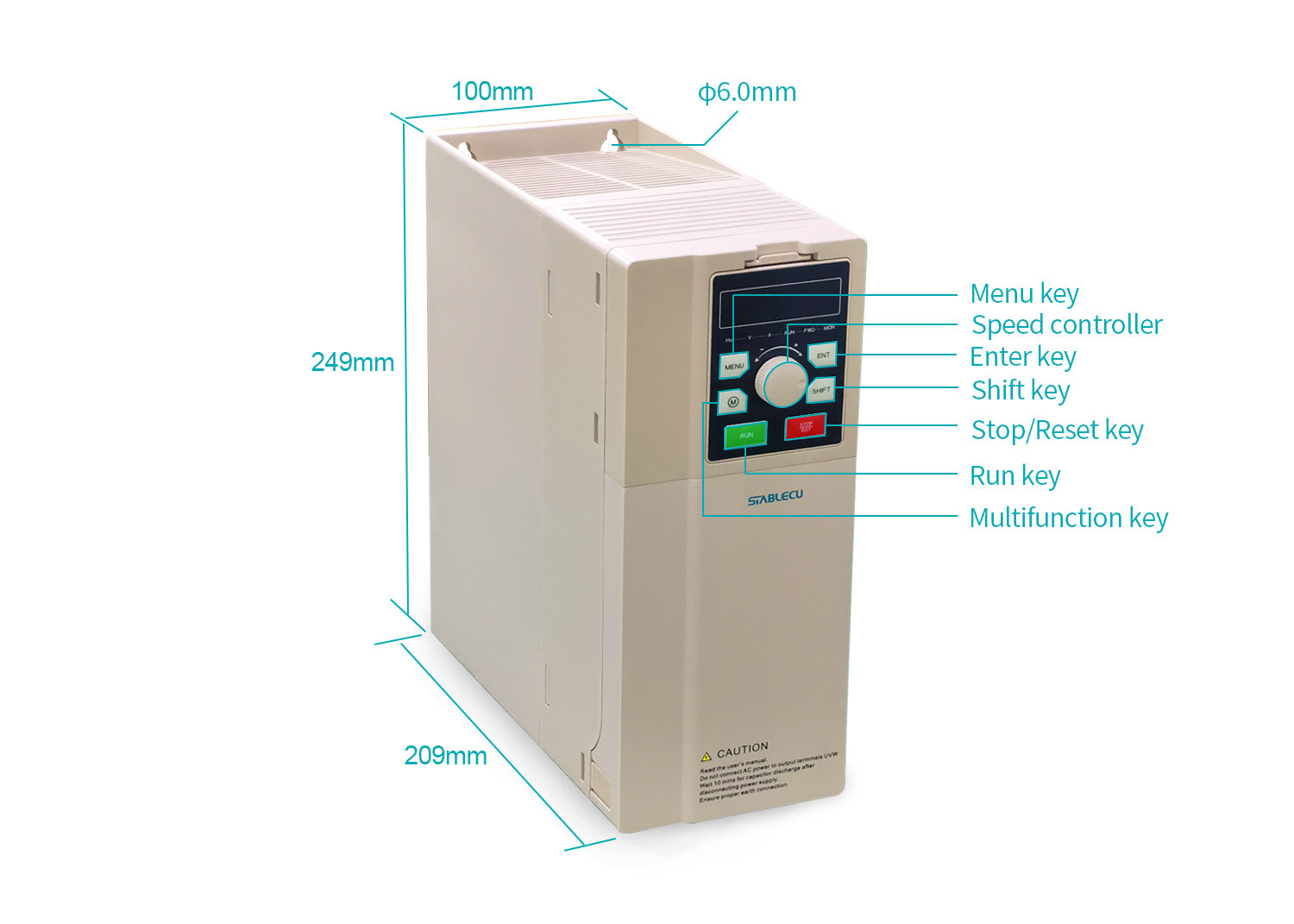

ST310 Series Vector Control Frequency Inverter 11KW 380V AC Drive 1

Application of frequency inverter

Electronics, textile, light industry, building materials, food machinery, printing and dyeing, paper, wire drawing machine,
winding machine, washing machine, welding machine, mixer, extruding machine, chemical industry, and so on.

ST310 Series Vector Control Frequency Inverter 11KW 380V AC Drive 2
