| Place of Origin: | China |
|---|---|
| Brand Name: | STABLECU |
| Certification: | CE |
| Model Number: | ST310-4T3.7GB |
| Minimum Order Quantity: | 1PCS |
| Packaging Details: | 1pcs/Polybag,100pcs/big polybag, 300pcs/ctn |
| Delivery Time: | 5-8 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000 pcs per month |
| Material: | ABS+PC | Power: | 3.7KW |
|---|---|---|---|
| Voltage: | 380V | Phase: | 3 Phase |
| Color: | Huawei Gray | Type: | AC/AC Converters |
| Machine Case: | Aluminum Coated Zinc Plate,cold Rolled Plate Powder Spraying | IGBT: | Infineon |
| High Light: | 3700W 3 phase frequency converters,AC Motor 3700W 3 phase frequency converter,3.7kw variable frequency controllers |
||
3700W 3 Phase Frequency Converter Variable Frequency Controller For AC Motor Driver
Quick details of variable frequency drive
Rated Power: 3.7kw
Rated Voltage: 3 phase 380v
Rated Frequency: 50hz/60hz
Product Size: 80mm*185.5mm*167.5mm
Installation Size: 56mm*174.5mm
Weight: 1.5kg
Input: 50/60hz 10.5A
Output:0-300hz 9A
Certificate: CE
Application: Printing industry and packing industry
Control Mode; V/F Control
Description of variable frequency drive
1. independent heat dissipation air duct
Effectively prevent external dust, oil pollution, and other pollution into the internal products, causing PCB, components and
other corrosion short circuit faults, improve product stability, choose long life and large air volume cooling fan, effectively reduce
the temperature rise of frequency converter, ensure reliable and stable operation of products.
2.. Humanized design with more intimate details
1) The operation panel adopts the latest design ideas, making it more convenient and reliable to disassemble and install.
2) The bottom of the low-power machine is matched with the installation dimension drawing, and the whole series is matched with
the 1/1 scale paper shell template of the installation hole position, so as to realize more convenient and fast electric cabinet installation.
3) The fan partition is pull-out and detachable, and the fan can be taken out directly. It is convenient for users to carry out daily
maintenance. Thereby extending the service life of the machine.
4) The terminal block is designed as a pull-out partition, which can be removed during wiring for easy installation. After connecting the wires,
insert the partitions to separate the wires evenly.

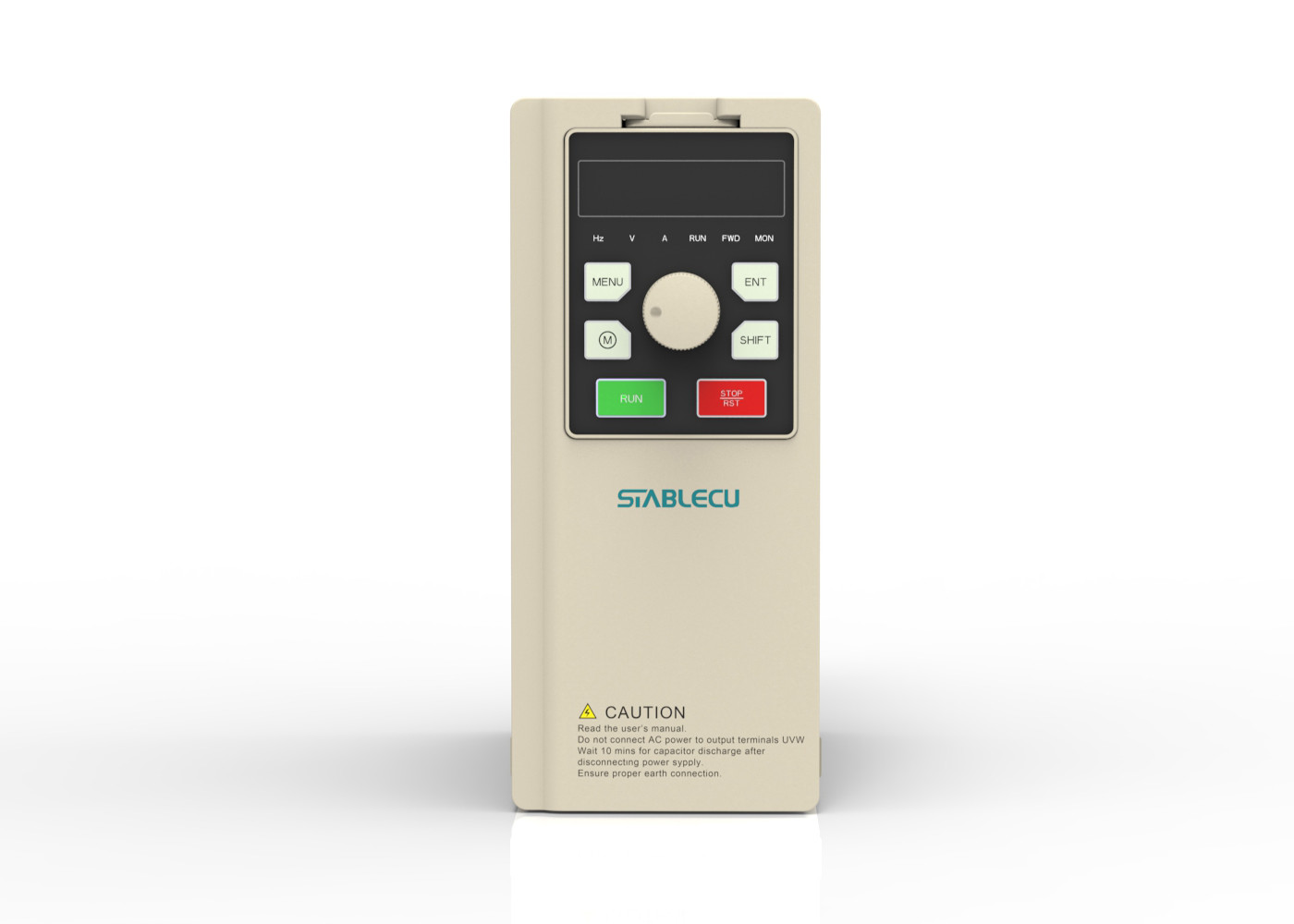

Operation panel of variable frequency drive
| Mark | Key Name | Function |
| MENU | Program/Exit key | 1. Enter or exit the programming state 2. Modify the data and abandon the storage 3. Switch fault display to stop/running parameter with the SHIFT key, press MENU to switch back to fault display state |
| ENT | Identify key | 1. Edit function code parameters 2. Data storage confirmation 3. View the single group of parameters circularly |
| M | Multi-function key | Switch selection according to function |
| SHIFT | The shift key | 1. Move the editing bit of function parameters 2. Move the data editing bit 3. Switch the display parameters of the operation panel under shutdown/running state |
| Increase Decrease | Add keys clockwise | In shutdown/operation state, the frequency value increases |
| Increase Decrease | Countercloc kwise decrease key | The frequency value decreases under shutdown/running state |
| RUN | Run key | 1. Long press the 3S operation panel to start the driver in the given mode 2. Long press 3S to set parameters, and then start the driver for parameters self-learning |
| STOP/AST | Stop/reset key | 1. Press the button for 1S to report the fault and reset the fault after abnormal shutdown 2. Press for 1S to control the drive shutdown under the given mode of operation panel operation command |
| Increase Decrease | Countercloc kwise decrease key | The frequency value decreases under shutdown/running state |

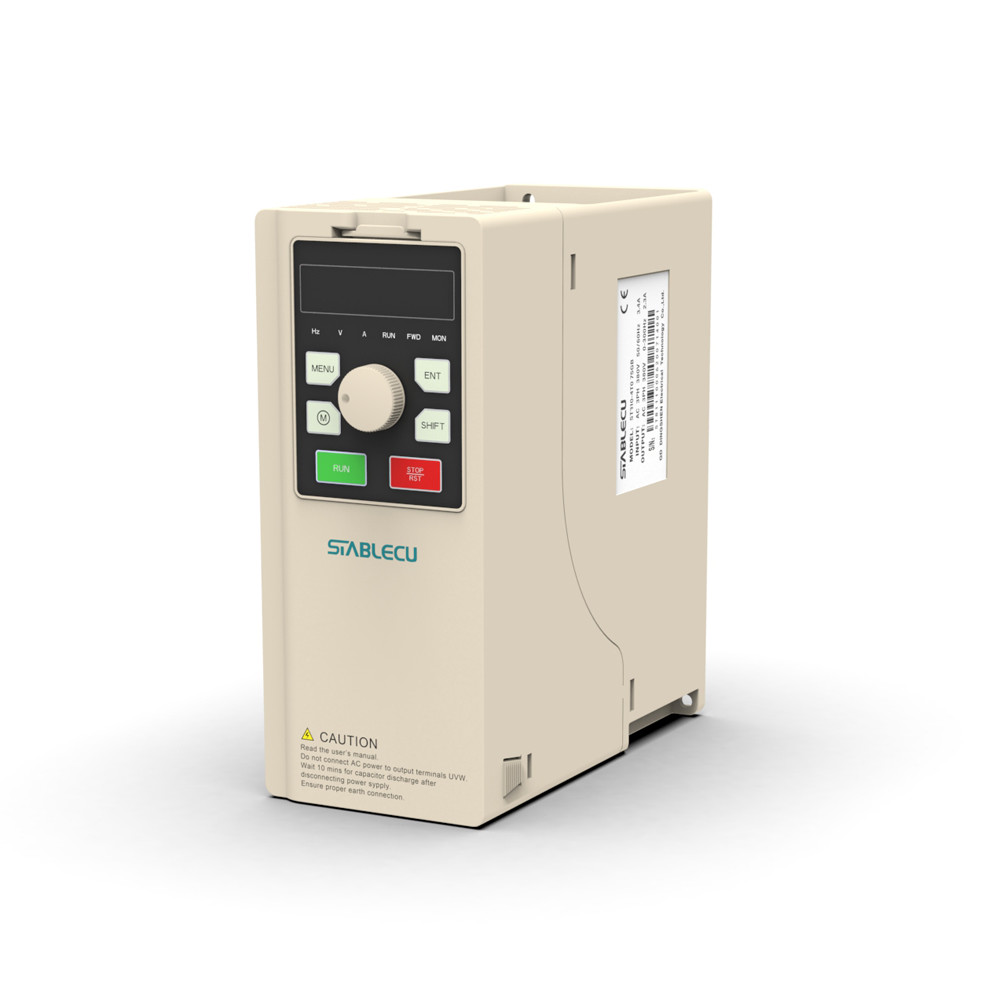

Detailed images of variable frequency drive
Application of variable frequency drive
Widely used in air compressors, Oil, Warming and Water Supply, Plastics machines, Mine, Fans and Water pumps, so on.
