0.75KW Motor Speed Control Inverter For Three Phase Pumps

Basic Information
Place of Origin: China
Brand Name: STABLECU
Certification: CE
Model Number: ST310-4T0.75GB
Minimum Order Quantity: 1PCS
Price: $88-$1288
Packaging Details: 1pcs/Polybag,100pcs/big polybag, 300pcs/ctn
Delivery Time: 5-8 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000 pcs per month
Material: ABS+PC Power: 0.75KW
Voltage: 380V Phase: 3 Phase
Color: Huawei Gray Type: AC/AC Converters
Machine Case: Aluminum Coated Zinc Plate,cold Rolled Plate Powder Spraying IGBT: Infineon
High Light:

CE 0.75KW motor speed control inverters

,

CE 0.75KW motor speed control inverter

,

CE 0.75KW variable speed drive for 3 phase motor

0.75KW To 110KW Variable Speed Motors 50HZ To 60HZ Converter For Three Phase Pumps





Quick Details:



Rated Power: 0.75kw-110kw

Rated Voltage: 3 phase 380v

Rated Frequency: 50hz/60hz

Weight: 1.5kg-40kg

Input: 50/60hz

Output:0-300hz

Certificate: CE

Application: Printing industry and packing industry

Control Mode; V/F Control



Advantage Features:


1. Independent air duct for heat dissipation
Effectively prevent external dust, oil, and other pollution from entering the interior of the product.

2. Quick acceleration and deceleration



Excellent wave-by-wave current limiting, short-circuit protection, over-current protection, and over-voltage protection to ensure long-term stable operation of the product.

3. Rigorous EMC/EMI design and testing
Tested by a variety of equipment to ensure stable operation of the product in various electromagnetic environments and minimal interference with the external environment.

4. New design
Using 4-layer PCB board and a new generation of IGBT module technology, and mostly using IC integrated electronics so that 80% reduction in installation area and 20% reduction in volume.

5. Adopt the latest Texas Instrument’s high-speed chips

6. Large low-frequency torque, smoothly output

7. Maximum frequency up to 3000Hz, can be used in different machines.



Operating Panel



Mark Key Name Function
MENU Program/Exit key

1. Enter or exit the programming state

2. Modify the data and abandon the storage

3. Switch fault display to stop/running parameter with the SHIFT key, press MENU to switch back to fault display state

ENT Identify key

1. Edit function code parameters

2. Data storage confirmation

3. View the single group of parameters circularly

M Multi-function key Switch selection according to function
SHIFT The shift key

1. Move the editing bit of function parameters

2. Move the data editing bit

3. Switch the display parameters of the operation panel under shutdown/running state

Increase Decrease Add keys clockwise In shutdown/operation state, the frequency value increases
Increase Decrease Counterclockwise decrease key The frequency value decreases under shutdown/running state
RUN Run key

1. Long press the 3S operation panel to start the driver in the given mode

2. Long press 3S to set parameters, and then start the driver for parameters self-learning

STOP/AST Stop/reset key

1. Press the button for 1S to report the fault and reset the fault after abnormal shutdown

2. Press for 1S to control the drive shutdown under the given mode of operation panel operation command


Details Image:

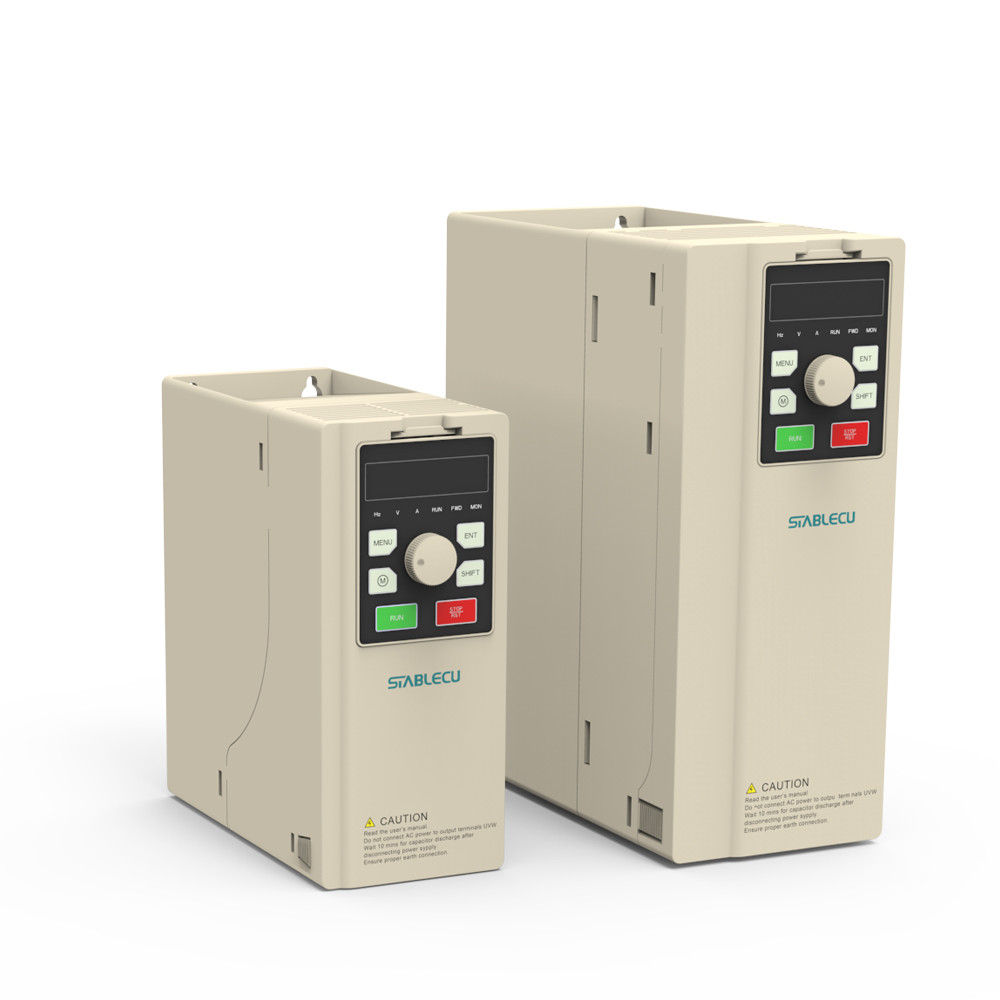

0.75KW Motor Speed Control Inverter For Three Phase Pumps 0

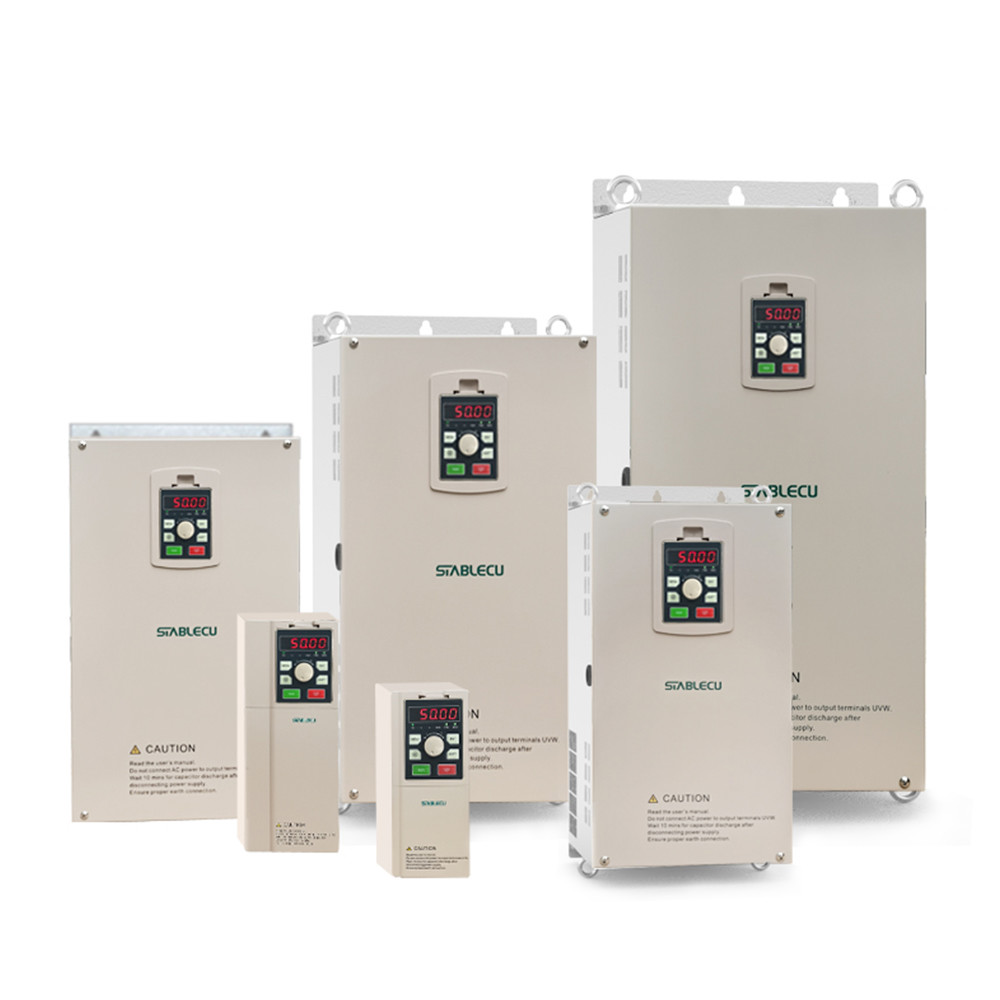

0.75KW Motor Speed Control Inverter For Three Phase Pumps 1



Application Case



VFDs for industrial washing machine

Advantage:

1. Large low-frequency torque

2. High-frequency acceleration time is short

3. High-frequency dehydration motor current sound is small, weak magnetic control effect is good.



CNC Machine Tools
Advantages of VFD
1. Short acceleration and deceleration time
2. Low noise in the process of motor operation
3. Long time running motor temperature is low
4, Low-frequency torque is large, high-frequency speed is stable


0.75KW Motor Speed Control Inverter For Three Phase Pumps 2

FAQ



1. Who are we?
We are a manufacturer based in Guangdong, China, start from 2009, sell to Domestic Market(100.00%). There are total about 201-300 people in our office.

2. How can we guarantee the quality?
Always a pre-production sample before mass production; Always final Inspection before shipment.

3. What can you buy from us?
Ultrasonic Generator, PLC/Motion Controller, Servo Motor And Stepper Motor, Frequency Converter, Automation System Development And Complete Set Of Electric Box.

4. Do you offer customization services?
Yes, we can customize the products according to your requirements. Please send us an inquiry, your inquiry will be replied within 12 hours.

5. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, DDP, DDU, Express Delivery;
Accepted Payment Currency: USD, EUR, JPY, CAD, AUD, HKD, CNY;
Accepted Payment Type: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash;
Language Spoken: English, Chinese.
