AC Drive 11KW 380V Mini Vector Inverter Triple Phase

Basic Information
Place of Origin: China
Brand Name: STABLECU
Certification: CE
Model Number: ST310-4T11GB
Minimum Order Quantity: 1PCS
Price: $190-$210
Packaging Details: 1pcs/Polybag,100pcs/big polybag, 300pcs/ctn
Delivery Time: 5-8 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000 pcs per month
Material: ABS+PC Power: 11KW
Voltage: 380V Phase: 3 Phase
Color: Huawei Gray Type: AC/AC Converters
Communication: RS485 Function: Constant Torque
High Light:

11KW mini vector inverters

,

11KW 380V mini vector inverter

,

380V 11KW vector control frequency inverter

Small Power Frequency Inverter AC Drive 11KW 380V Triple Phase Converter





Instruction:



ST310 series vector control inverter is a functionally enhanced product with strong stability. Using IGBT and TI DSP chipsets, vector control and V/F control are fully optimized. It has been widely used in various industrial environments, especially for occasions where speed control is required to control the torque response speed and low-frequency output of precision pumps.



Hardware:



1.Analog input (AI1, AI2), current (0-20MA), voltage (0 - 10v)
2.Analog output (AO1, AO2), current (0-20 ma), voltage (0-10 v)
3. Switch input and six (X1 - X6)
4. Switching output three collector output Y1, relay output RA- RB- RC, TA-TC
5. High-speed pulse input DI, high-speed pulse output DO
6. One communication port 485, supports Modbus protocol, RTU mode
7. Standard network ports are used to connect the control board and operation panel. Signal transmission speed is high and the distance is long
8. Panel knob adopts encoder knob, high-speed precision, stable speed, long service life
9. Built-in brake unit is the default standard for those below 22KW and is optional for those between 30-110kW.



Parameter



Model Input Voltage Output Voltage Frequency Power Suitable Motor
ST310-4T5.5GB 380V Three Phase 380V Three Phase

50 60HZ/

0-300HZ

5.5KW 5.5KW
ST310-4T7.5GB 380V Three Phase 380V Three Phase

50 60HZ/

0-300HZ

7.5KW 7.5KW
ST310-4T11GB 380V Three Phase 380V Three Phase

50 60HZ/

0-300HZ

11KW 11KW



Details Image:

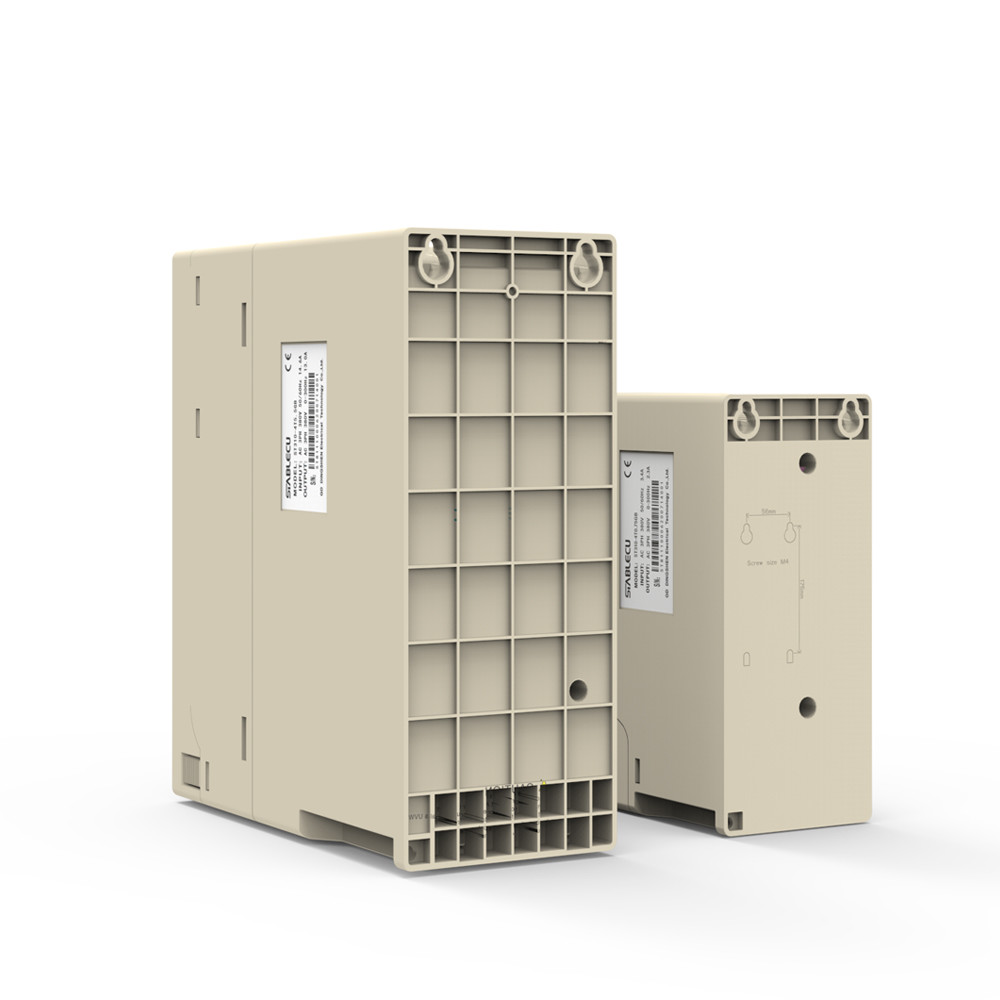

AC Drive 11KW 380V Mini Vector Inverter Triple Phase 0

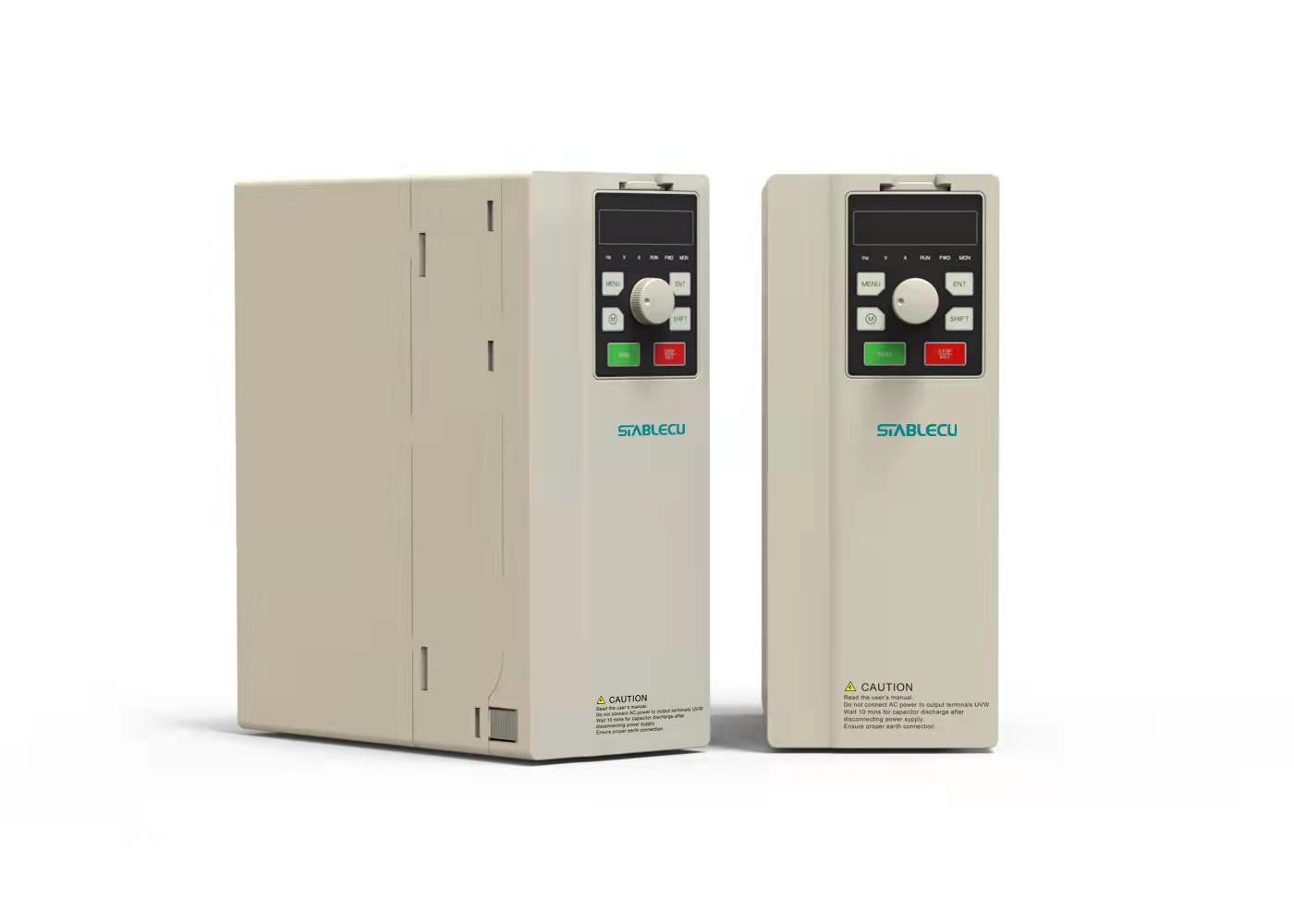

AC Drive 11KW 380V Mini Vector Inverter Triple Phase 1



Application



Electronics, textile, light industry, building materials, food machinery, printing and dyeing, paper, wire drawing machine, winding machine, washing machine, welding machine, mixer, extruding machine, chemical industry, and so on.



AC Drive 11KW 380V Mini Vector Inverter Triple Phase 2



FAQ



1. Who are we?
We are a manufacturer based in Guangdong, China, start from 2009, sell to Domestic Market(100.00%). There are total about 201-300 people in our office.

2. How can we guarantee the quality?
Always a pre-production sample before mass production; Always final Inspection before shipment.

3. What can you buy from us?
Ultrasonic Generator, PLC/Motion Controller, Servo Motor And Stepper Motor, Frequency Converter, Automation System Development And Complete Set Of Electric Box.

4. Do you offer customization services?
Yes, we can customize the products according to your requirements. Please send us an inquiry, your inquiry will be replied within 12 hours.

5. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, DDP, DDU, Express Delivery;
Accepted Payment Currency: USD, EUR, JPY, CAD, AUD, HKD, CNY;
Accepted Payment Type: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash;
Language Spoken: English, Chinese.
