Place of Origin: | China |
---|---|
Brand Name: | STABLECU |
Certification: | CE |
Model Number: | ST310-4T18.5GB |
Minimum Order Quantity: | 1PCS |
Packaging Details: | 1pcs/Polybag,100pcs/big polybag, 300pcs/ctn |
Delivery Time: | 5-8 days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 10000 pcs per monthhttps://mao.ecer.com/index.php?r=product/list |
Material: | ABS+PC | Power: | 18.5KW |
---|---|---|---|
Voltage: | 380V | Phase: | Three Phase |
Protector: | Overload | Circuit Mode: | IGBT |
Frequency: | 300HZ | ||
High Light: | 25HP 3 phase variable speed drive,3 phase variable speed drive 18.5KW,25HP 3 phase AC drive |
18.5KW VFD 3 Phase 25HP Variable Speed Drive For Woodworking Machine
Description of variable frequency drive
ST310 adopts a DSP control system to realize vector control and effectively suppress low-frequency oscillation.
Abundant terminals make the application more flexible. It is mainly used for fans and pump loads.
It has higher requirements for speed control accuracy, torque response speed, and low-frequency output.
Specification of variable frequency drive
Output current | 39A |
Input current | 44A |
Adaptation motor | 18.5KW |
Braking resistor power | 5KW |
Mounting dimension | 192*199*397MM |
Weight | 12KG |
Packing Size | 271*260*424MM |
Other Models of variable frequency drive
Model | ST310-15GB | ST310-18.5GB | ST310-22GB |
Specific Parameters | |||
Applicable Motor (kw) | 15 | 18.5 | 20 |
Input Current (A) | 35.0 | 44.0 | 50.0 |
Output Current (A) | 30.0 | 39.0 | 45.0 |
Breaker (A) | 50.0 | 63.0 | 63.0 |
Contactor (A) | 10.0 | 50.0 | 50.0 |
Brake Unit | Standard Built-in | ||
Braking Resistor Power | 2.0KW | 5.0KW | 5.0KW |
Resistance/ Ultimate resistance | 40 (≥25) | 30(≥16) | 30(≥16) |
Power Input | |||
Rated Voltage | 3 Phase 380V | ||
Rated Voltage | 50HZ/60HZ | ||
Allow Frequency Fluctuation | ±5% | ||
Allow voltage fluctuation | Voltage imbalance<3%, distortion rate meets the requirements of 1EC61800-2 | ||
Allow voltage fluctuation | The constant voltage fluctuation is ±10%, and the short fluctuation is115%~+10%, that is, 323V~528V | ||
Power Output | |||
Output Voltage | 3-Phase:0~rated input voltage, error less than ±3% | ||
Output Frequency | 0.00~300.00HZ,each unit 0.01HZ | ||
Overload Capacity | 150% 60s, 180% 10s, 200% 0.5s |

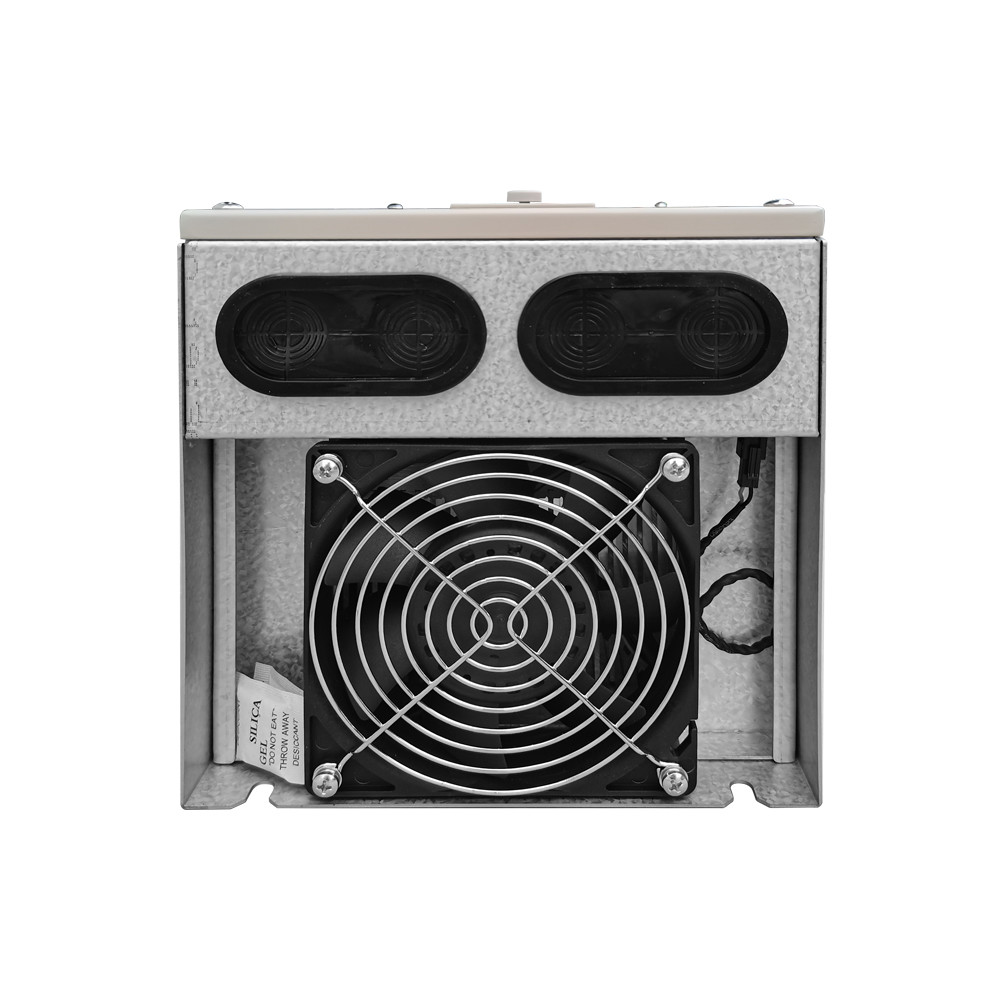

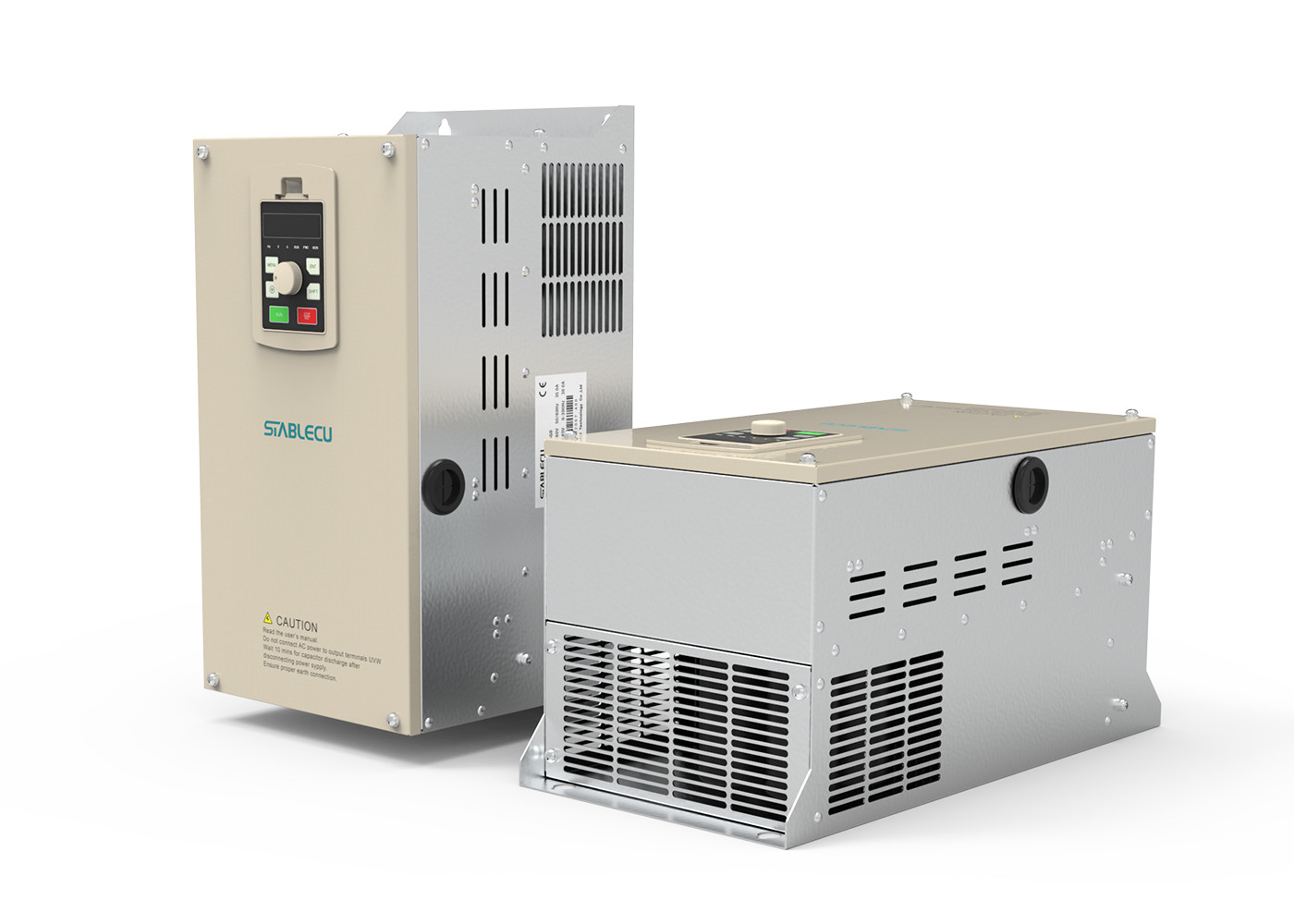

Detail images of variable frequency drive
Application of variable frequency drive
nverters are widely used in pharmaceutical machinery, packaging machinery, textile machinery,
food machinery, auto parts production lines, precision printing, welding, automated production lines, etc.
