Small Size Mini VFD Variable Frequency Converter 380V 0.75KW VSD For Welding Machine

Basic Information
Place of Origin: China
Brand Name: STABLECU
Certification: CE
Model Number: ST310-4T0.75GB
Minimum Order Quantity: 1pcs
Packaging Details: 1pcs/Polybag,100pcs/big polybag, 300pcs/ctn
Delivery Time: 5-8 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000 pcs per month
Material: PP And ABS Color: Gray
Power: 750W Voltage: 380V
Key Words: Frequency Converter/Variable Frequency Drive Usage: Textile Machinery, Woodworking Machinery, Fans, Pumps
Machine Case: Aluminum Coated Zinc Plate,cold Rolled Plate Powder Spraying Phase: 3
High Light:

variable frequency converter 0.75KW

,

VFD variable frequency converter

,

380V 750W mini VFD

380V Frequency Converter Small Size Mini VFD 0.75KW VSD For Welding Machine



Products description of variable frequency drive

1. With TI's latest high-speed DSP chip and independent intellectual property control software,
the motor can run stably in various application environments by giving full play to the characteristics
of software and hardware.
2. New wave by wave current limiting control algorithm, stable current, and voltage control, ensure the
inverter to run without fault under limit conditions
3. New current, voltage, control algorithm, plus a unique excitation current control, to ensure that the motor
fault free fast start and stop.
4. New motor model, low-frequency motor running speed stability, high torque, current control accuracy, no-fault shutdown,
high-frequency motor running speed stability, low current.
5. New software speed tracking algorithm, tracking current, voltage impact is small, tracking speed is accurate
6. The carrier frequency can be automatically adjusted with the frequency conversion temperature and operation
frequency to ensure reliable operation under the condition of a small frequency conversion temperature rise.
7. The maximum frequency of a standard machine is 3000hz, one machine is multi-purpose, which can meet the
multi-purpose processing needs. It can realize a variety of frequency switching.
8. Super overload capacity, 150% 60s, 180% 10s, 200% 0.5s
9. Default one set of motor parameters, can customize multiple sets of motor parameters, can drive different types of motor.
10. Four times of fault parameter record, detailed record of the detailed state of the inverter when the fault occurs, and
record the maximum current, maximum voltage and maximum temperature during the operation of the inverter, so as
to facilitate the analysis and treatment after the fault occurs

Quality assurance of variable frequency drive

1. All products have passed CE, ROHS, ISO9001, FCC Certifications
2. Every production link of the product is tested by professional personnel
3. Professional product engineer is responsible for after-sales service

Technological parameters of variable frequency drive

Terminal symbols Terminal name and function description
R,S,T 3-phase AC input terminal
U,V,W 3-phase AC output terminal
PB,P Braking resistor terminal
P,DC- DC power input terminal; DC input terminal of external braking unit
PE Grounding terminal

Detailed Images of variable frequency drive

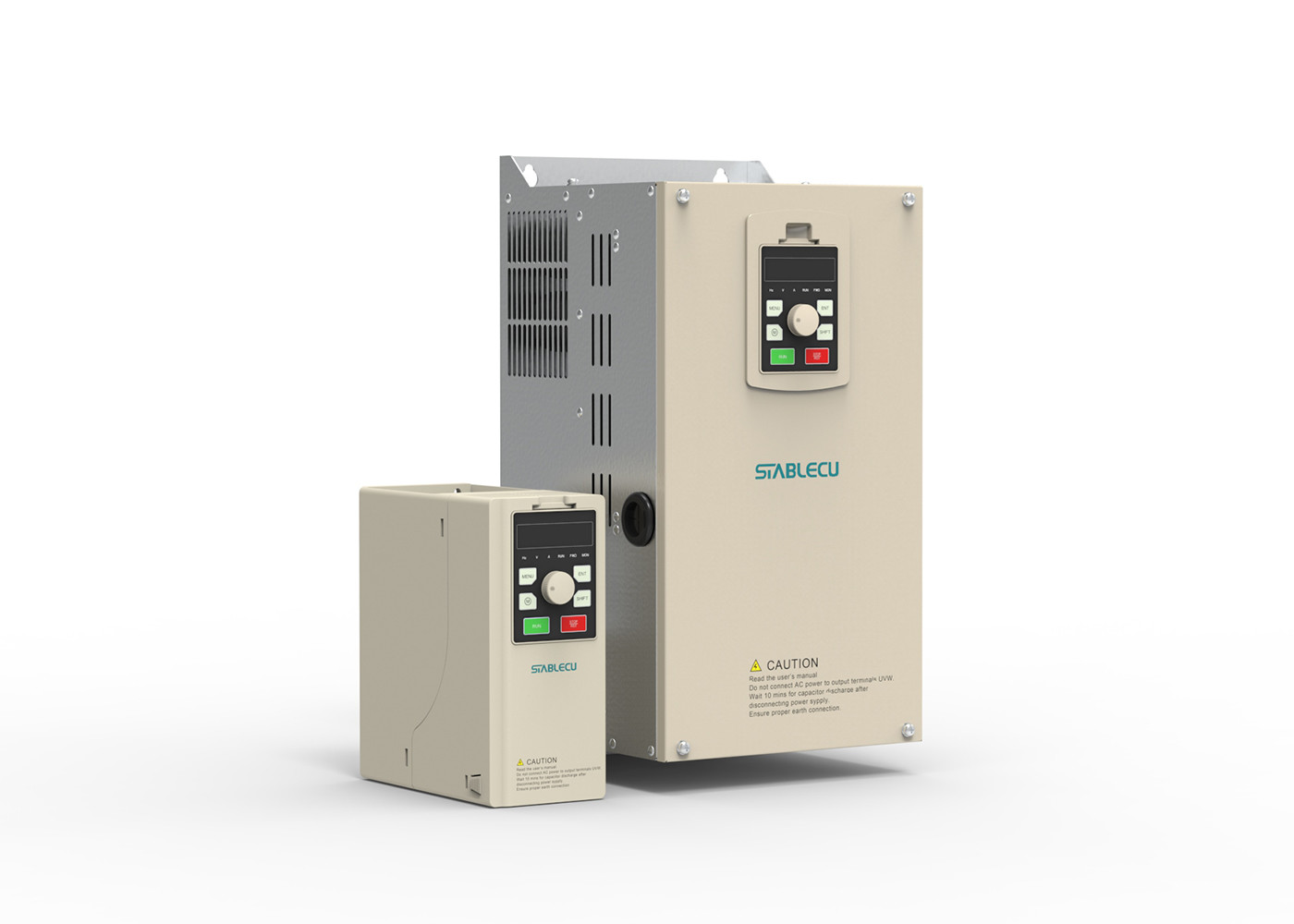

Small Size Mini VFD Variable Frequency Converter 380V 0.75KW VSD For Welding Machine 0

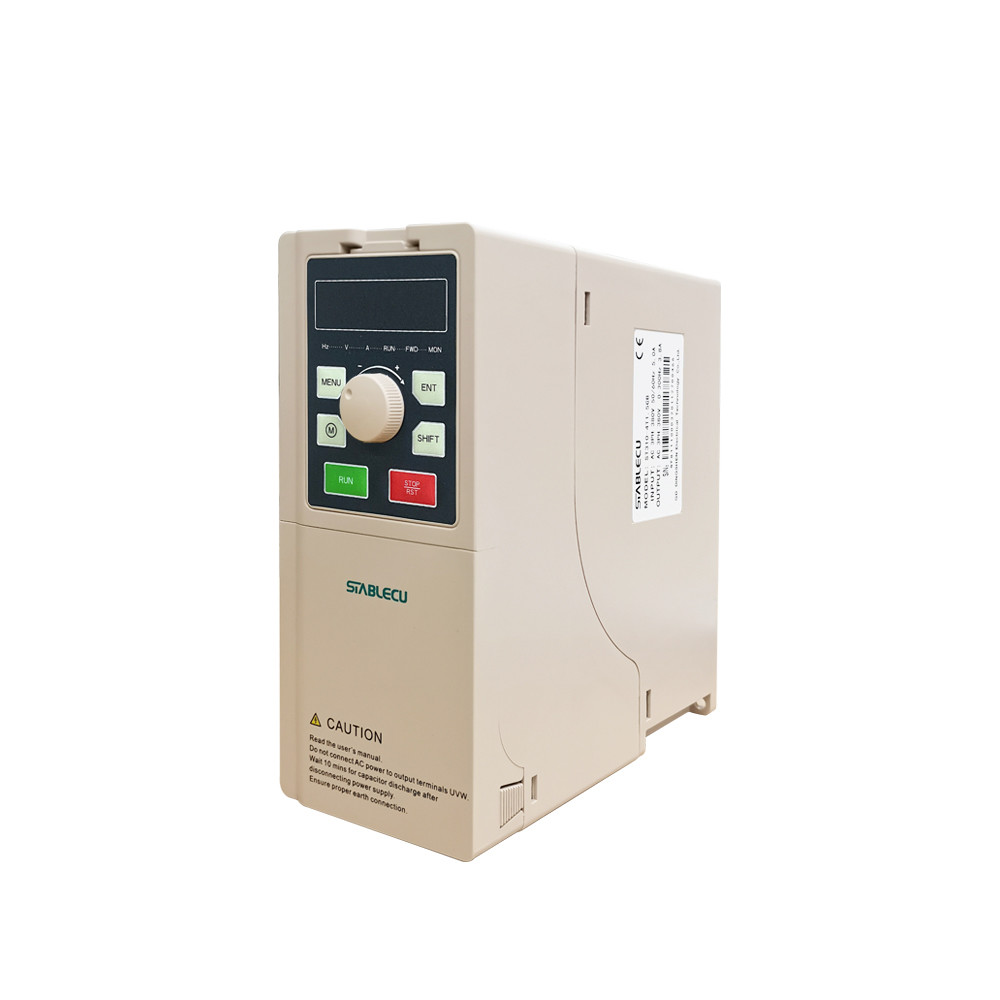

Small Size Mini VFD Variable Frequency Converter 380V 0.75KW VSD For Welding Machine 1
