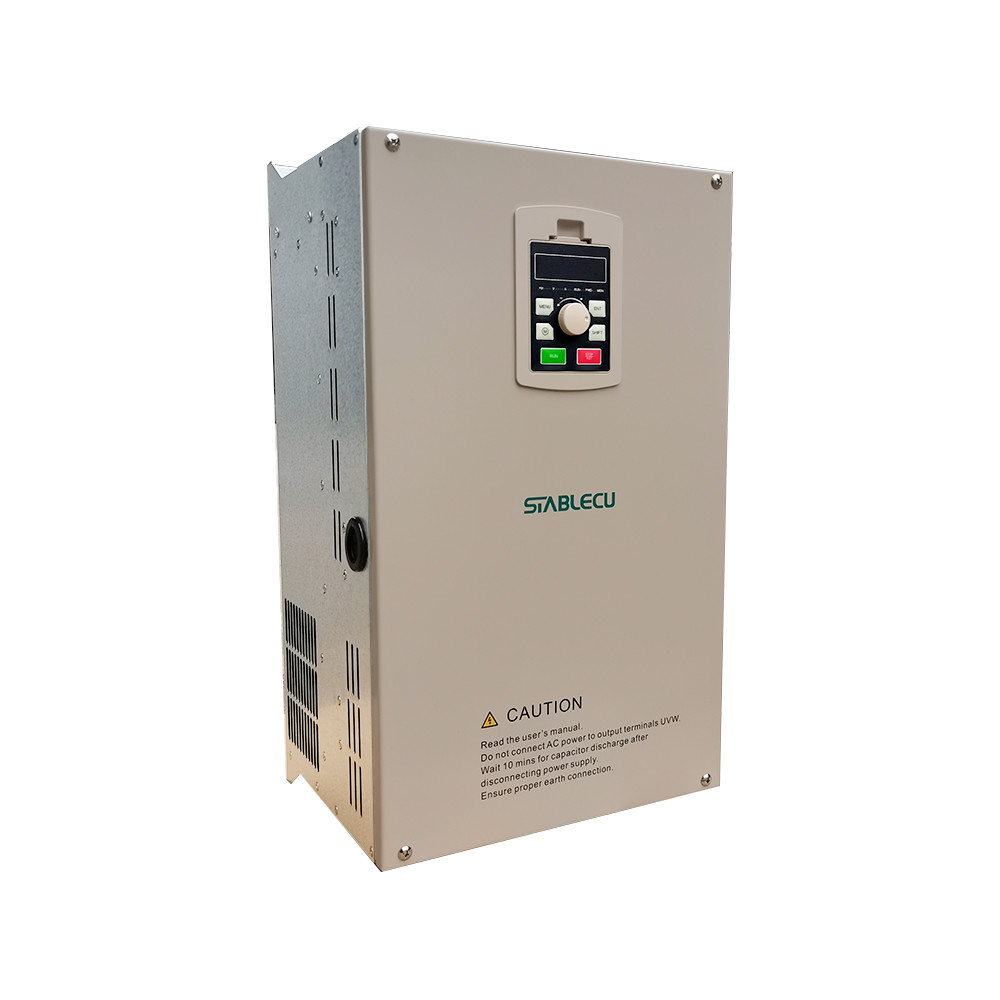

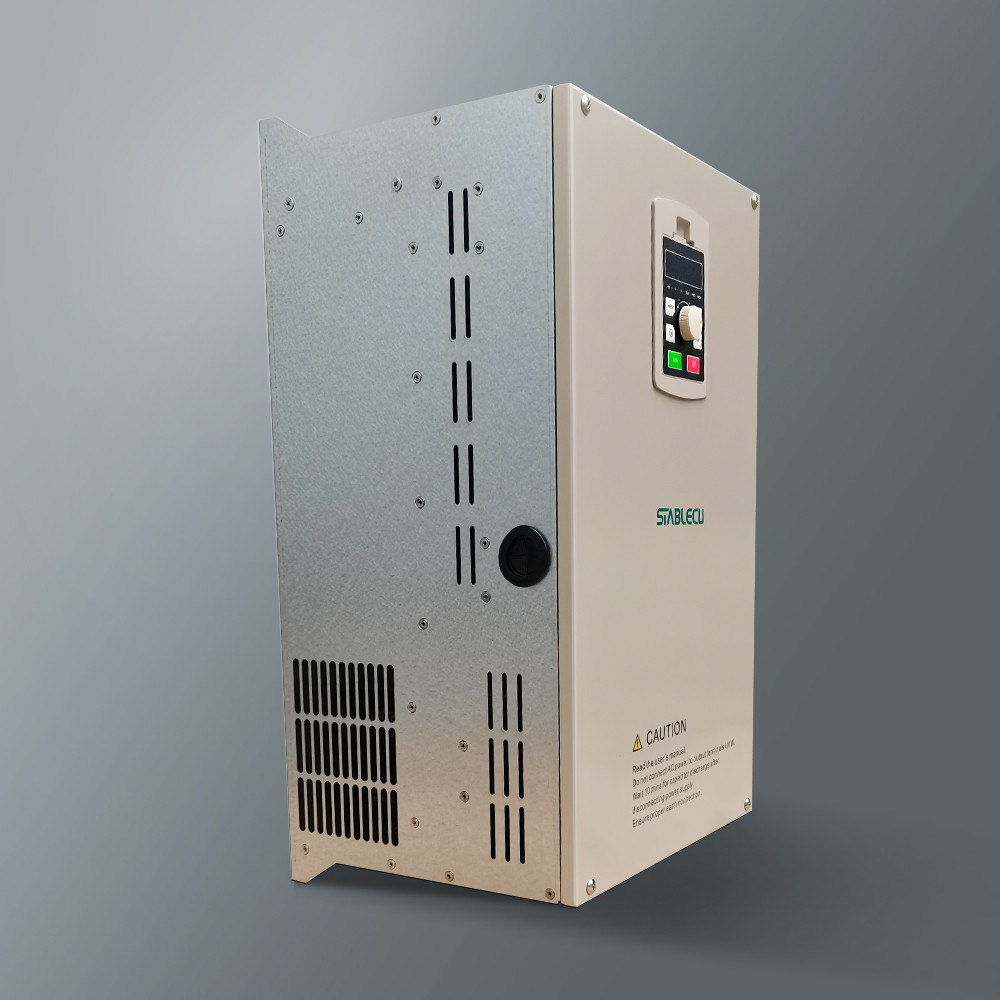

PID Control 22KW Three Phase Variable Frequency Drive

22KW Variable Frequency Drive With PID Control Frequency Converter

Our advantages:

1. Structural design team:
With many years of experience in industrial product structure design, familiarity with plastic material, hardware, mold, and other product development, with a deep understanding of product heat dissipation, safety regulations, protection, and so on

2. Hardware Design team:
Proficient in hardware topology of various motor control products, and can avoid various hidden dangers when designing circuit schematic diagram and PCB layout; Capable of the selection and design of main loop power devices, including rectifier bridge, IGBT, current sensor, capacitor, etc., proficient in IGBT, MOS characteristics and driving characteristics, capable of power device loss calculation and simulation, to ensure the stability of the design scheme.

3. Software Development team:
Proficient in DSP application and software development, with many years of power electronics control software development experience, In the bottom motor model building, current, voltage control has a unique view, has developed several products in the market stable operation for many years, by the customer's great recognition.

Product features for frequency inverter

1. Structural Design: Independent air duct for heat dissipation, effectively isolating pollutants from inside. Using 4-layer precision PCB board and a new generation of IGBT module technology, and mostly using IC integrated electronics. The volume and weight of new generation inverters are lighter, saving installation space.

2. Software Design: ST310 inverter control modes include: – V/F mode 0: straight line V/F 1: Multi-stage V/F 2: 1.2, 1.4, 1.6, 1.8, 2.0 powers 3: V/F separation method. Overload capacity: 150% for 60 sec, 180% for 10 sec, 200% for 0.5 sec. The drives adopt a new software speed tracking algorithm, which has a low impact on current and voltage when tracking and also has an accurate tracking speed. A maximum frequency of 3000 Hz, can be used in different machines. They have been successfully applied to chemical, metallurgy, machine tools, woodworking, textile, and many other industries.

3. Hardware Design: Full protection function. IGBT through protection, current abnormal protection, over-current, and over-voltage protection, etc. Wide voltage design of input power supply, works normally between 300-480V AC.

Product details of variable frequency drive
