| Place of Origin: | CHINA |
|---|---|
| Brand Name: | Stable |
| Certification: | CE IS9001 |
| Model Number: | st310-4T110GB |
| Minimum Order Quantity: | 1PCS |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100PCS/day |
| Warranty: | 18 Months | Type: | Custom Converter |
|---|---|---|---|
| Size: | 338*750*290MM | Customized: | Yes |
| Control Mode: | V/F，vector | Rated Power: | 110KW |
| Nominal Voltage: | 380v | Power Phase Number: | 3 Phase |
| IP Grade: | IP20 | Application: | Motors |
| High Light: | 380V mini VFD,110KW mini VFD,3 Phase micro VFD |
||
380V 110KW Mini VFD High Torque Environmental Protection Material
ST310 series universal variable frequency drive is a universal vector frequency converter for industrial control,
mainly used to control and adjust three-phase AC motor speed and torque, widely and not limited used in below regions:
Why choose our variable frequency drive
Guangdong Jiesheng electrical technology Co., Ltd. is a leading high-tech company specializing in industrial equipment,
including variable pitch servo motors, complete control systems, frequency converters, and frequency converters,
as well as energy-saving devices. Founded in 2009, the company currently has more than 200 employees, including more than
30 senior electrical engineers, senior research and development engineers, senior structural engineers.
Our Advantages:
1. Structural design team:
With many years of experience in industrial product structure design, familiar with plastic material, hardware,
mold and other product development, with a deep understanding of product heat dissipation, safety regulations,
protection and so on
2. Hardware Design team:
Proficient in hardware topology of various motor control products, and can avoid various hidden dangers when
designing circuit schematic diagram and PCB layout; Capable of the selection and design of main loop power
devices, including rectifier bridge, IGBT, current sensor, capacitor, etc., proficient in IGBT, MOS characteristics
and driving characteristics, capable of power device loss calculation and simulation, to ensure the stability of
the design scheme.
3. Software Development team:
Proficient in DSP application and software development, with many years of power electronics control software
development experience, In the bottom motor model building, current, voltage control has a unique view, has
developed several Products in the market stable operation for many years, by the customer's great recognition.
Model parameters of variable frequency drive
| MODEL | INPUT VOLTAGE | RATED POWER (KW) | RATED INPUT CURRENT (A) | RATED OUTPUT CURRENT (A) | BRAKING RESISTOR | THE BRAKING UNIT | |
| POWER(W) | Resistance/ Ultimate Resistance | ||||||
| ST300-2T0.75GB | 3 Phase 220V±10% | 0.75 | 5 | 5.5 | / | / | / |
| ST300-2T1.5GB | 1.5 | 7.5 | 8.3 | / | / | ||
| ST300-2T2.2GB | 2.2 | 10 | 12 | / | / | ||
| ST300-4T0.75GB | 3 Phase 380V±10% | 0.75 | 2.3 | 3.4 | / | / | |
| ST300-4T1.5GB | 1.5 | 3.8 | 5 | / | / | ||
| ST300-4T2.2GB | 2.2 | 5.5 | 6 | / | / | ||
| ST310-2T0.75GB | 3 Phase 220V±10% | 0.75 | 5.0 | 3.8 | 150 | 250( ≧100) | BUILT-IN |
| ST310-2T1.5GB | 1.5 | 6.0 | 5.5 | 300 | 200(≧100) | ||
| ST310-2T2.2GB | 2.2 | 10.5 | 9.0 | 800 | 100(≧75) | ||
| ST310-2T3.7GB | 3.7 | 10.5 | 9.0 | 800 | 100(≧75) | ||
| ST310-2T5.5GB | 5.5 | 20.5 | 17 | 1500 | 50(≧ 75) | ||
| ST310-2T7.5GB | 8 | 35 | 30 | 2000 | 40( ≧25) | ||
| ST310-2T11GB | 11 | 50 | 45 | 5000 | 30(≧16) | ||
| ST310-2T15G | 15 | 65 | 60 | 6000 | 20(≧16} | OPTIONAL | |
| ST310-2T18.5G | 18.5 | 80 | 75 | 9000 | 16(≧10) | ||
| ST310-2T22G | 22 | 95 | 91 | 9000 | 13(≧10) | ||
| ST310-2T30G | 30 | 118 | 112 | 11KW | 10(≧8) | ||
| ST310-2T37G | 37 | 80 | 75 | 9000 | 16(≧10) | ||
| ST310-2T45G | 45 | 95 | 91 | 9000 | 13(≧10) | ||
| ST310-2T55G | 55 | 192* | 210 | 22KW | 5(≧3.3) | ||
| ST310-4T0.75GB | 3 Phase 380V±10% | 0.75 | 3.4 | 2.3 | 150 | 300(≧125) | BUILT-IN |
| ST310-4T1.5GB | 1.5 | 5.0 | 3.8 | 150 | 250( ≧100) | ||
| ST310-4T2 2GB | 2.2 | 6.0 | 5.5 | 300 | 200(≧100) | ||
| ST310-4T3.7GB | 3.7 | 10.5 | 9.0 | 800 | 100(≧75) | ||
| ST310-4T55GB | 5.5 | 14.6 | 13 | 1500 | 50(≧75) | ||
| ST310-4T7.5GB | 8 | 20.5 | 17 | 1500 | 50(≧ 75) | ||
| ST310-4T11GB | 11 | 29 | 24 | 2000 | 40( ≧40W) | ||
| ST310-4T15GB | 15 | 35 | 30 | 2000 | 40( ≧25) | ||
| ST310-4T18.5GB | 18.5 | 44 | 39 | 5000 | 30(≧16) | ||
| ST310-4T22GB | 22 | 50 | 45 | 5000 | 30(≧16) | ||
| ST310-4T30G | 30 | 65 | 60 | 6000 | 20(≧16} | OPTIONAL | |
| ST310-4T37G | 37 | 80 | 75 | 9000 | 16(≧10) | ||
| ST310-4T45G | 45 | 95 | 91 | 9000 | 13(≧10) | ||
| ST310-4T55G | 55 | 118 | 112 | 11KW | 10(≧8) | ||
| ST310-4T75G | 75 | 157 | 150 | 15KW | 8(≧5) | ||
| ST310-4T90G | 90 | 160* | 176 | 18KW | 5( ≧3.3) | ||
| ST310-4T110G | 110 | 192* | 210 | 22KW | 5(≧3.3) | ||

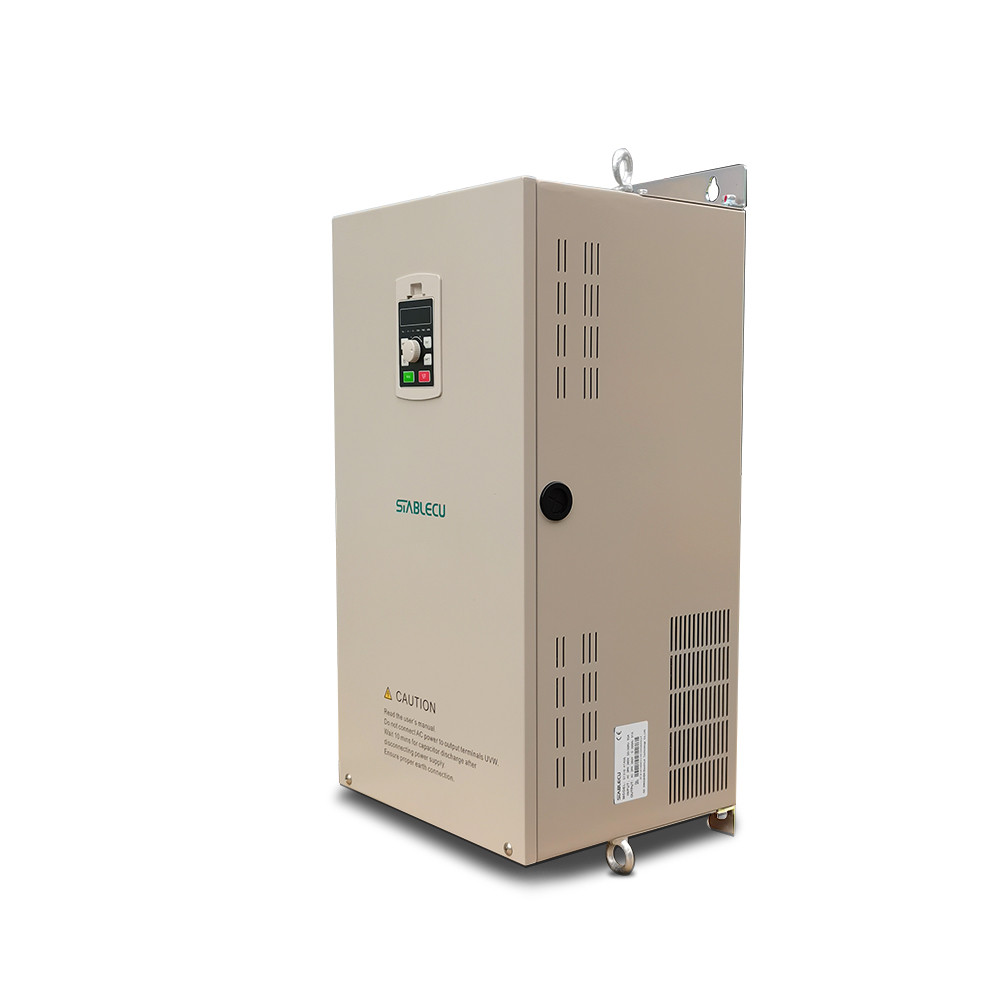

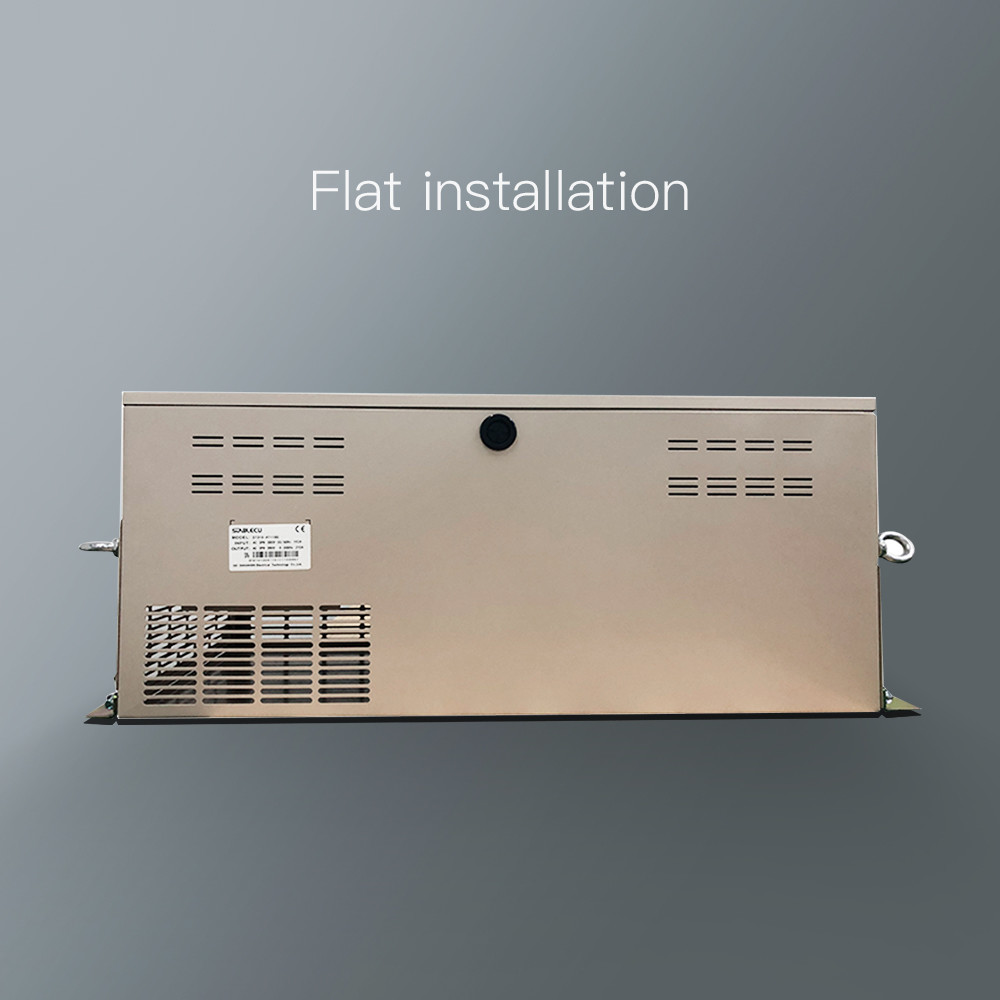

Model images of variable frequency drive
FAQ
1. Who are we?
We are a manufacturer based in Guangdong, China, start from 2009, sell to Domestic Market(100.00%).
There are total about 201-300 people in our office.
2. How can we guarantee the quality?
Always a pre-production sample before mass production; Always final Inspection before shipment.
3. What can you buy from us?
Ultrasonic Generator, PLC/Motion Controller, Servo Motor And Stepper Motor, Frequency Converter,
Automation System Development And Complete Set Of Electric Box.
4. Do you offer customization services?
Yes, we can customize the products according to your requirements. Please send us an inquiry, your inquiry
will be replied within 12 hours.
5. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, DDP, DDU, Express Delivery；
Accepted Payment Currency: USD, EUR, JPY, CAD, AUD, HKD, CNY;
Accepted Payment Type: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash;
Language Spoken: English, Chinese.
