Warranty: | 18 Months | Size: | 80mm*185.8mm*174.5mm |
---|---|---|---|
Customized: | YES | Material: | ABS*PC |
Control Mode: | V/F,Vector | Other Name: | AC Drive |
Power: | 2.2KW | Phase: | Triple Phase |
High Light: | 60HZ 2.2 kw variable frequency drive,2.2 KW Variable Frequency Drive Inverter,2200W variable frequency drive inverter |
2.2KW Three Phase Frequency Converter Vector Torque Control 50HZ To 60HZ
Product features of variable frequency drive
Structural design Advantages:
1. Independent heat dissipation air duct, on the one hand, can effectively prevent external dust, oil pollution,
and other pollution into the internal, causing PCB, components and other corrosion short circuit faults,
on the other hand, can play a very good heat dissipation effect, reduce the damage of corrosive gas to products,
improve product stability.
2. Using 4-layer precision PCB board and a new generation of IGBT module technology, and mostly using
IC integrated electronics.
3. The volume of the new generation inverter is smaller, and the weight is lighter, saving installation space,
saving transportation costs.
Software Design Advantages:
1. The latest HIGH-SPEED TI DSP chip is selected, and the control software with independent intellectual property
rights is used to maximize the software and hardware characteristics, which makes the motor run statically in various
application environments.
2. New wave-by-wave current limiting control algorithm, current and voltage control stability, to ensure the frequency converter
in the limit condition of failure-free operation.
3. Brand new current, voltage, control algorithm, plus unique excitation current control, to ensure the motor fault free
fast start and stop.
4. New motor model, low-frequency motor running speed is stable, torque is large, current control is accurate, no-fault stop,
high frequency running motor speed is stable, the current is small.
5. New software speed tracking algorithm, tracking current, voltage impact is small, accurate tracking speed.
6. Carrier frequency can be automatically adjusted with frequency conversion temperature and operating frequency to ensure
reliable operation under the condition of low-temperature rise of frequency conversion.
7. The highest frequency of the standard machine is 3000HZ, which can meet the requirements of multi-purpose processing,
Can realize a variety of frequency switching use.
8. Super overload capacity, 150% 60S,180% 10S,200% 0.5S
9. Default one set of motor parameters, can be customized multiple sets of motor parameters, can drive different types of motor.
10. Four times of fault parameter record, record the detailed state of the inverter when the fault occurs in detail, and record
the maximum current, maximum voltage, and maximum temperature during the operation of the inverter, which is convenient
for analysis and treatment after the fault occurs.
11. Complete machine protection function(including Overcurrent and overvoltage protection, short circuit protection to the
ground is over, IGBT pass-through protection, Protection against abnormal current detection, Relay pull in abnormal protection
functions).
12. Perfect power protection function(Control board terminal 24V, 10V, analog output AO1/AO2 power short circuit and
overload protection)
13. Wide voltage design: meet international standards, including Europe, North America, India, and other 380-480V
three-phase grid requirements.
Hardware Design Advantages:
1. Panel knob adopts encoder knob, high-speed precision, stable speed, long service life.
2. The operation panel adopts the latest design idea, which makes disassembly and installation more convenient and reliable.
3. Standard network ports are used to connect the control board and operation panel. Signal transmission speed is high and
the distance is long.
4. One communication port 485, supports Modbus protocol, RTU mode
5. The heat dissipation fan adopts temperature control to ensure effective heat dissipation and prolong the fan life.
6. The fan partition is removable and can be pulled out directly. Easy for users to carry out daily maintenance. Thus
extending the service life of the machine.
7. Choose the cooling fan with long life and large air volume, effectively reduce the temperature rise of frequency converter,
and ensure the reliable and stable operation of products.
8. The wiring terminal is designed to be a pull-out partition, which is convenient to install when wiring. After connecting the
line, insert the partition board, and evenly divide the line class.
9. The bottom of the low-power machine is equipped with the installation size drawing, and the whole series is equipped
with the mounting hole position of 1/1 proportion paper shell template, so as to achieve more convenient and fast installation
of electric cabinet.
Product parameters of variable frequency drive
ST310-2T0.75GB | 3 Phase 220V±10% | 0.75 | 5.0 | 3.8 | 150 | 250( ≧100) | BUILT-IN |
ST310-2T1.5GB | 1.5 | 6.0 | 5.5 | 300 | 200(≧100) | ||
ST310-2T2.2GB | 2.2 | 10.5 | 9.0 | 800 | 100(≧75) | ||
ST310-2T3.7GB | 3.7 | 10.5 | 9.0 | 800 | 100(≧75) | ||
ST310-2T5.5GB | 5.5 | 20.5 | 17 | 1500 | 50(≧ 75) | ||
ST310-2T7.5GB | 8 | 35 | 30 | 2000 | 40( ≧25) | ||
ST310-2T11GB | 11 | 50 | 45 | 5000 | 30(≧16) | ||
ST310-2T15G | 15 | 65 | 60 | 6000 | 20(≧16} | OPTIONAL | |
ST310-2T18.5G | 18.5 | 80 | 75 | 9000 | 16(≧10) | ||
ST310-2T22G | 22 | 95 | 91 | 9000 | 13(≧10) | ||
ST310-2T30G | 30 | 118 | 112 | 11KW | 10(≧8) | ||
ST310-2T37G | 37 | 80 | 75 | 9000 | 16(≧10) | ||
ST310-2T45G | 45 | 95 | 91 | 9000 | 13(≧10) | ||
ST310-2T55G | 55 | 192* | 210 | 22KW | 5(≧3.3) |

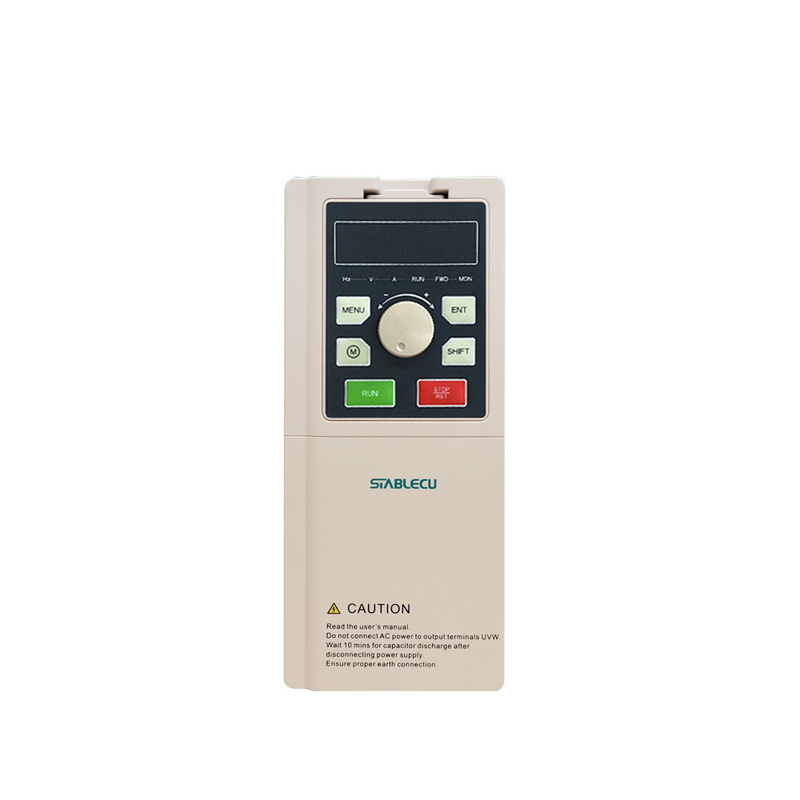

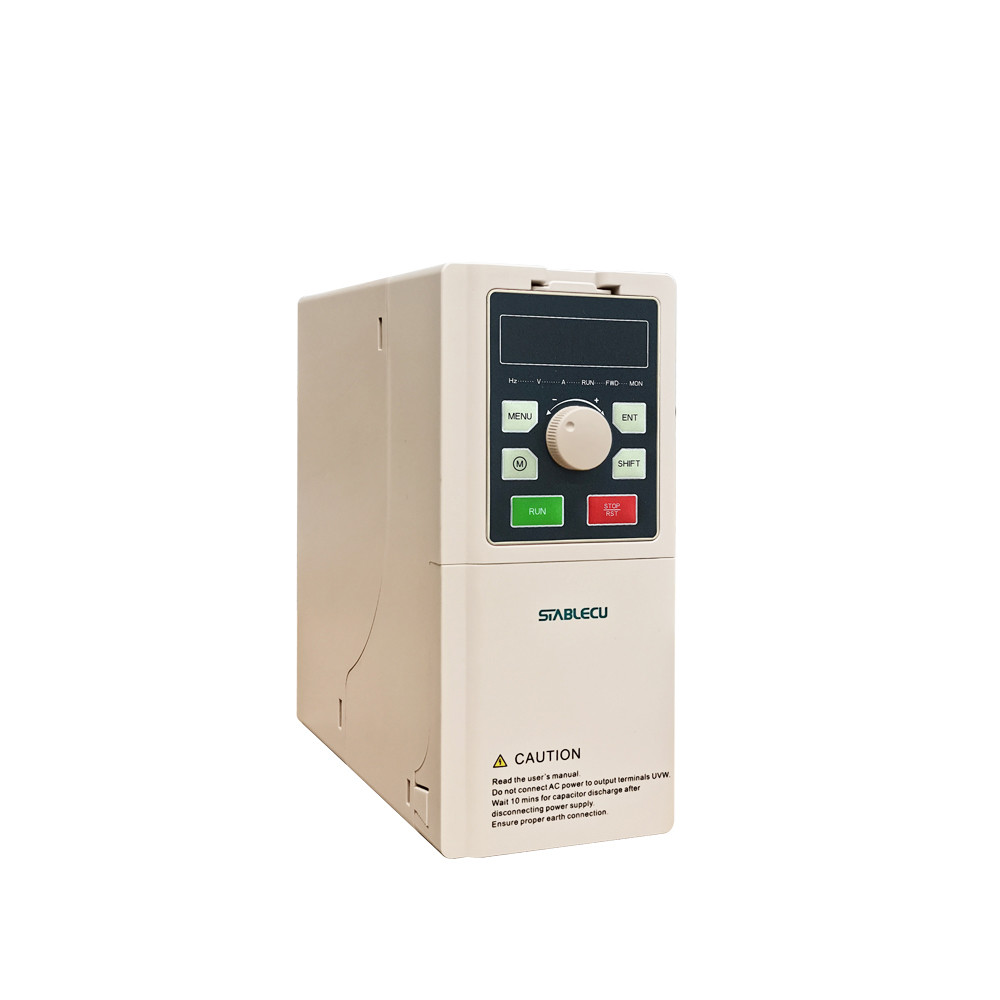

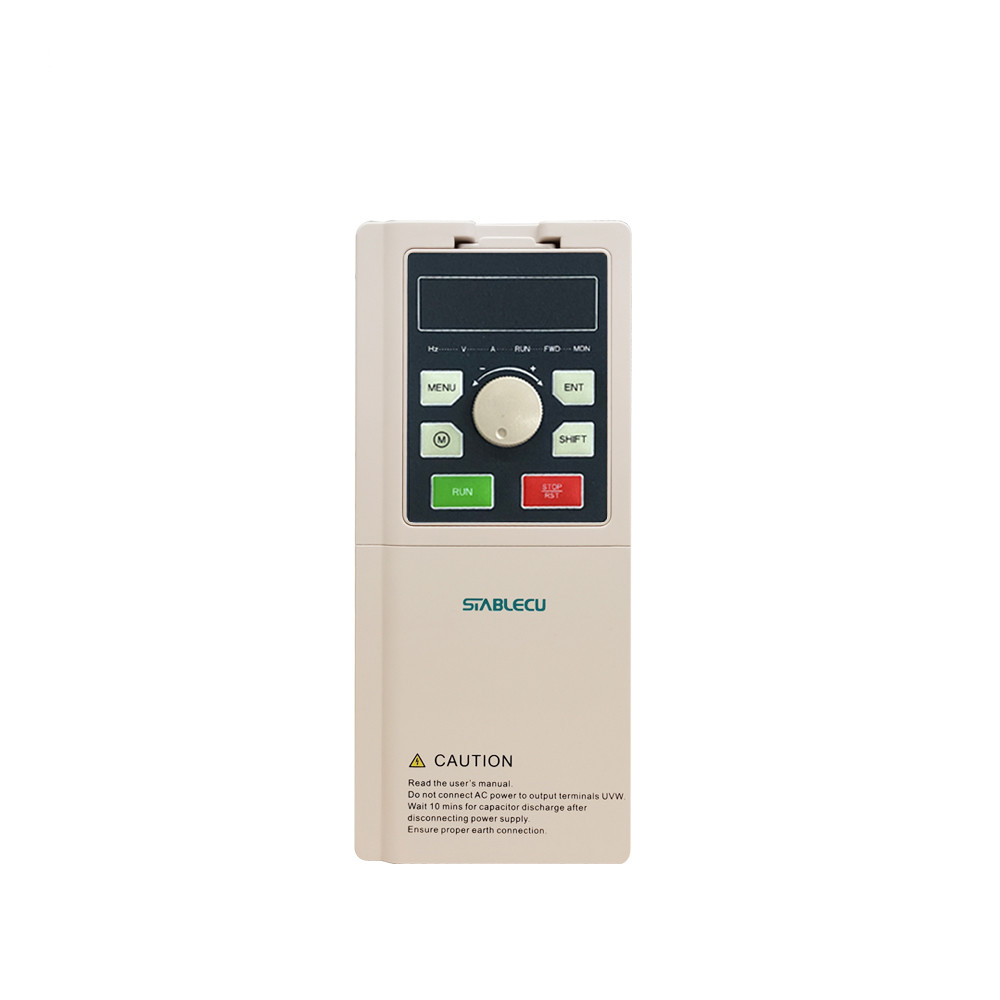

Product Images of variable frequency drive
