| Place of Origin: | China |
|---|---|
| Brand Name: | STABLECU |
| Certification: | CE |
| Model Number: | ST310-4T37G |
| Minimum Order Quantity: | 1PCS |
| Packaging Details: | 1pcs/Polybag,100pcs/big polybag, 300pcs/ctn |
| Delivery Time: | 5-8 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Material: | ABS+PC | Power: | 37KW |
|---|---|---|---|
| Voltage: | 380V | Phase: | Three Phase |
| Product Name: | AC Inverter | Color: | Gray |
| Apply For: | General Machinery | Warranty: | 18 Months |
| High Light: | AC drive VFD 50HP,Three Phase AC Drive VFD,50HP three phase AC drive |
||
Frequency Inverter 37KW 380V Three Phase 50HP Converter For Water Pump Drive
Quick detail of frequency inverter
18 Months Warranty
CE,LVD,EMC
IP20 Protection Grade
300V-480V AC
V/F Control
Working state of VFD
1. The working state of ST310 series frequency converter is divided into shutdown state, running state,
and motor parameter self-tuning state.
2. Shutdown state: After the frequency converter is powered on and initialized if there is no operation command input,
or after the stop command is executed during operation, the 3-phase U/V/W terminal of the converter has no output,
and the running status indicator light of the operation panel, RUN, is not on.
3. Running state: After the frequency converter receives the running command, the 3phase U/V/W terminal of the
frequency converter starts to have output, and the operation status indicator light on the operation panel is always on.
4. Motor parameter self-tuning state: Set motor parameters to P02.00-P02.05, and select P02.07 as 2 static self-setting or
3 rotary self-setting according to the current state of the motor. After selecting Confirm, the panel will display Tune.
Press Run to enter the self-setting state. After the self-setting, it will return to the shutdown state.
Specification of frequency inverter
| Output current | 75A |
| Input current | 80A |
| Adaptation motor | 37KW |
| Braking resistor power | 9000W |
| Mounting dimension | 257.2*466*217MM |
| Weight | 20kg |
| Packing Size | 286*327*504MM |
Other models of frequency inverter
| Model | ST310-30G | ST310-37G |
| Specific Parameters | ||
| Applicable Motor (kw) | 30 | 37 |
| Input Current (A) | 65 | 80 |
| Output Current (A) | 60 | 75 |
| Breaker (A) | 100 | 100 |
| Contactor (A) | 65 | 80 |
| Brake Unit | Standard Built-in | |
| Braking Resistor Power | 6kW | 9kW |
| Resistance/ Ultimate resistance | 20(≥16) | 16(≥10) |
| Power Input | ||
| Allow Frequency Fluctuation | ±5% | |
| Allow voltage fluctuation | Voltage imbalance＜3%, distortion rate meets the requirements of 1EC61800-2 | |
| Allow voltage fluctuation | The constant voltage fluctuation is ±10%, and the short fluctuation is115%~+10%, that is, 323V~528V | |
| Power Output | ||
| Output Voltage | 3-Phase:0~rated input voltage, error less than ±3% | |
| Output Frequency | 0.00~300.00HZ,each unit 0.01HZ | |
| Overload Capacity | 150% 60s, 180% 10s, 200% 0.5s | |

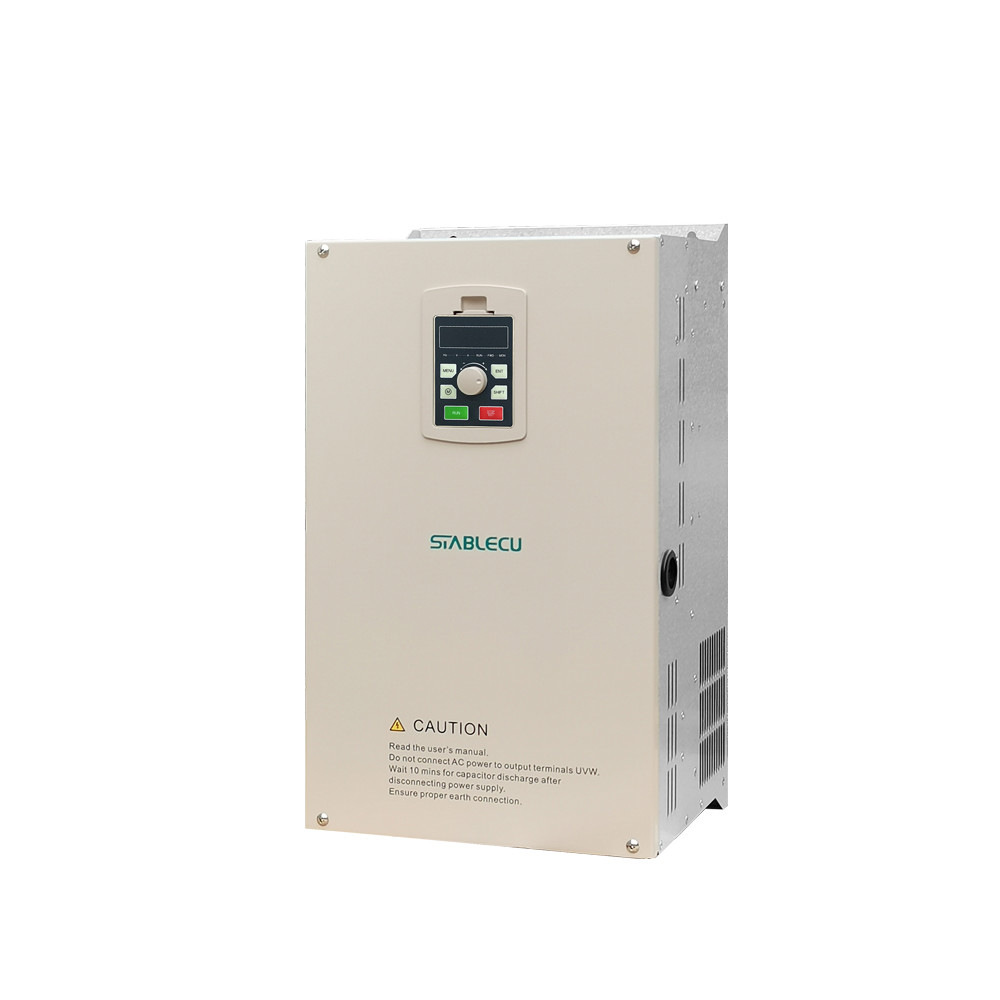

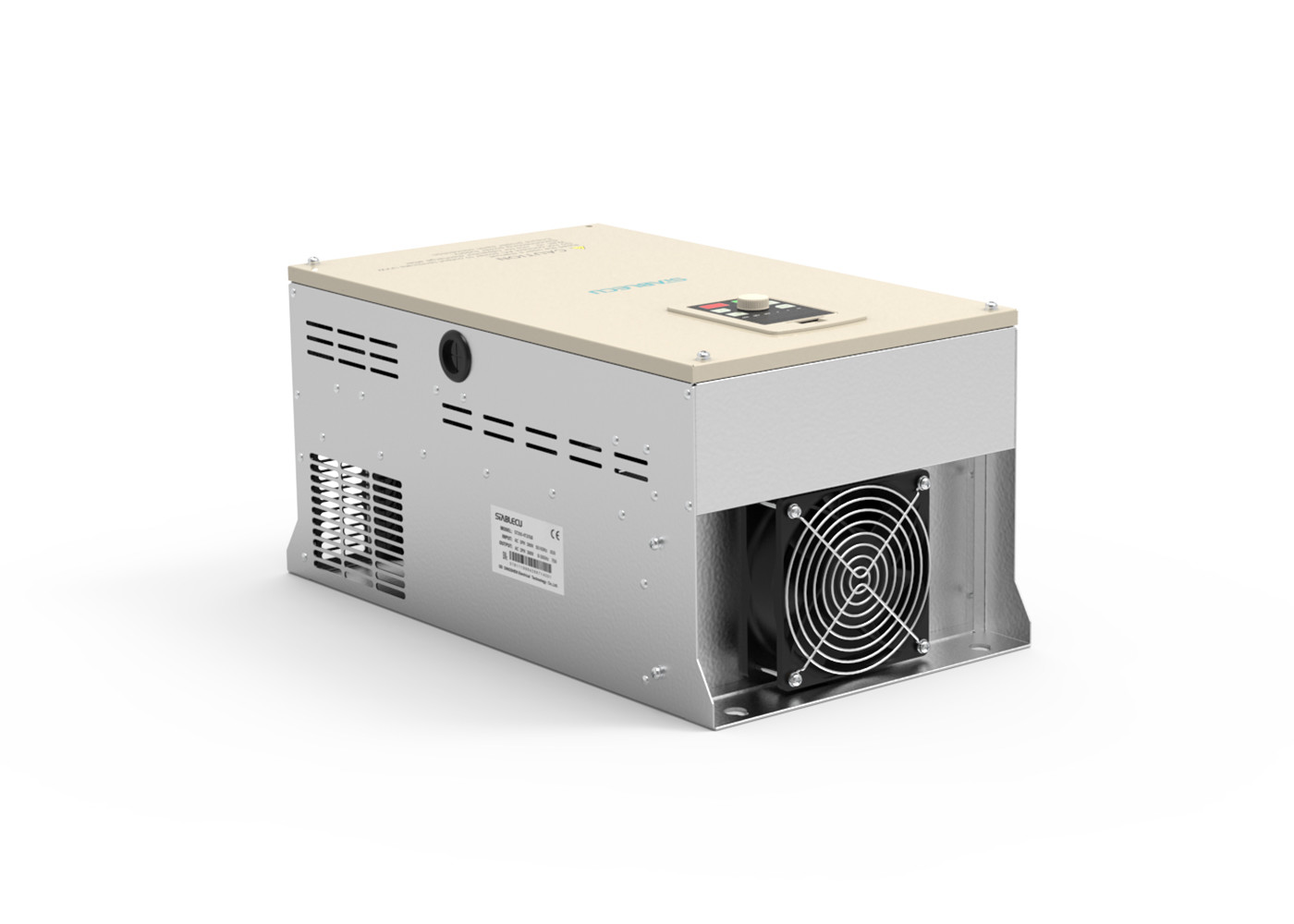

Detailed Images of frequency inverter
Application of frequency inverter
Widely used in machinery industry, woodworking industry, packaging industry, chemical industry, textile industry,
printing industry, food processing, water pump, TM electric box, and so on.
